Tp-link EAP110-N A 300Mbps antenna

Excellent Hardware Designs:

- With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas:

- EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications:

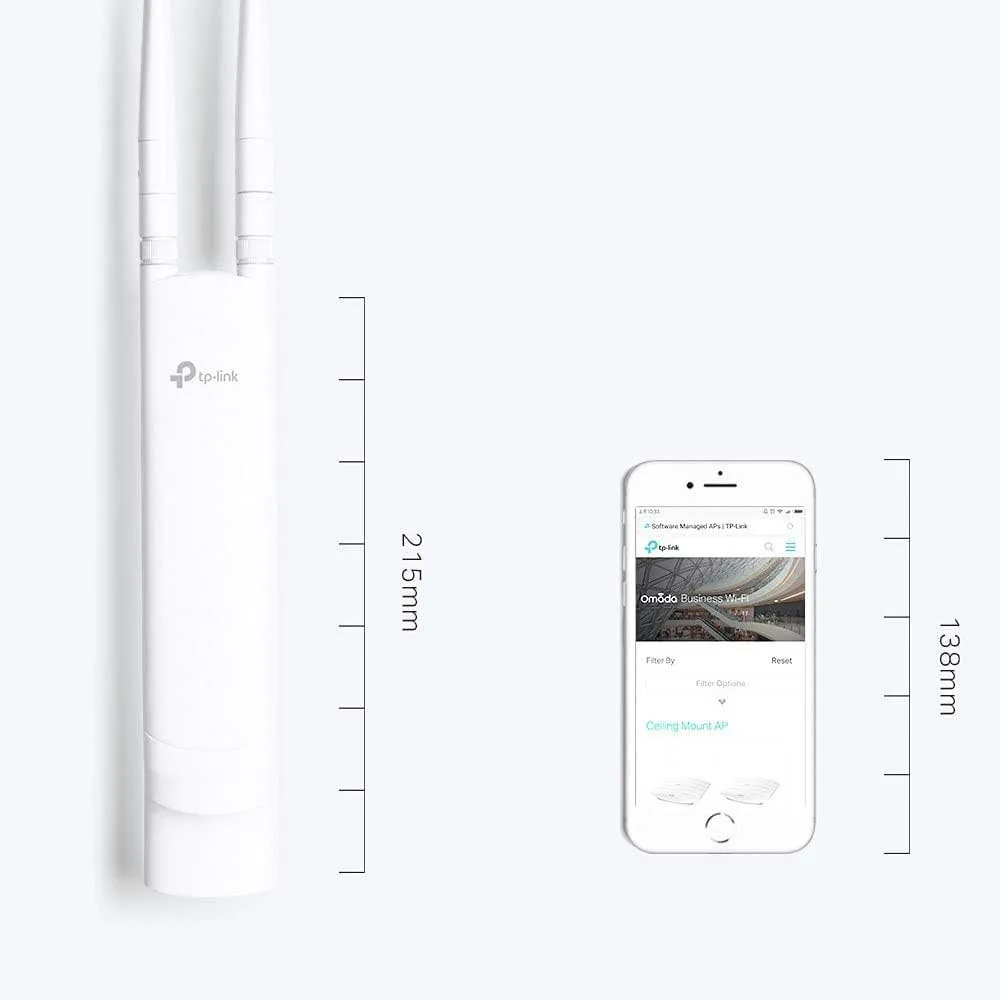

- EAP110-Outdoor is just similar to a cellphone, with dimension:

8.5 × 1.8 × 1.1in.

(215 × 46 × 27mm) Supports Passive PoE for Easy Outdoor Set up:

- Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

Flexible Deployment:

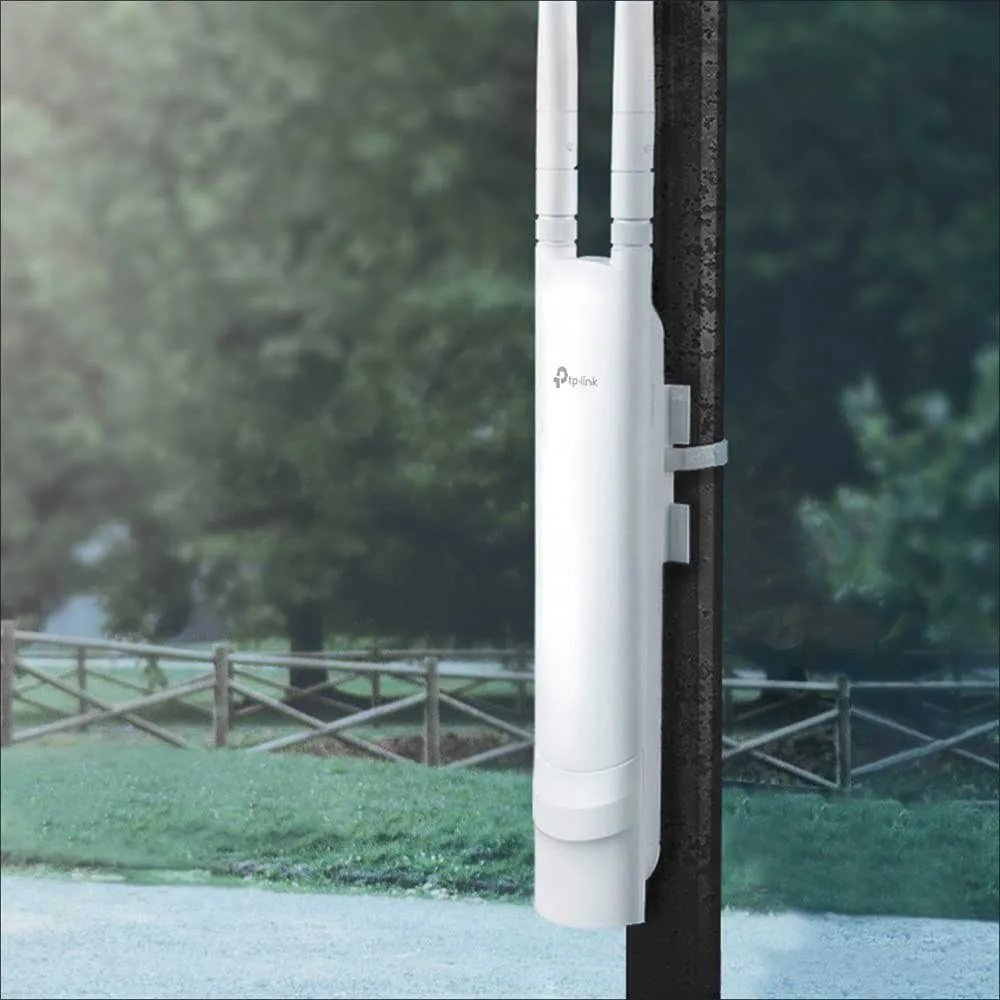

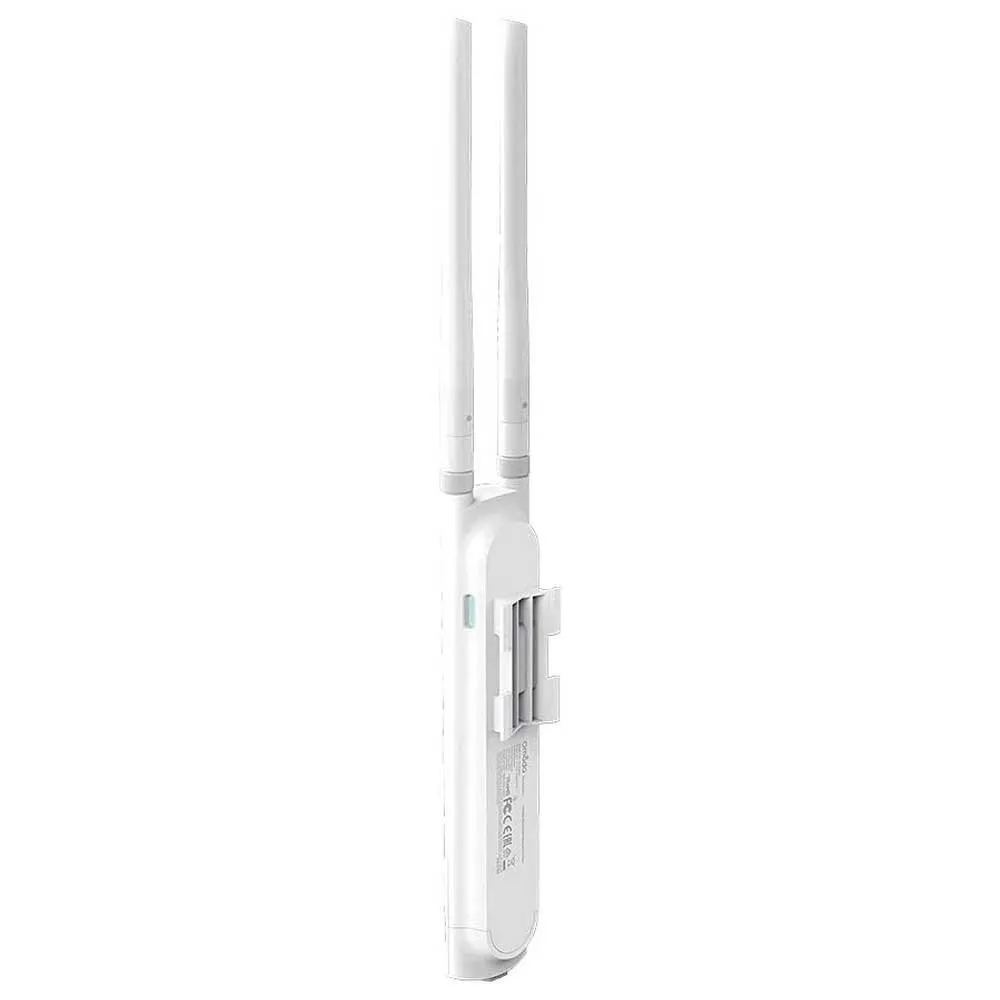

- EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

Wi-Fi That Goes the Distance:

- With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters.

- in outdoor settings.

Specially Designed Weatherproof Enclosure for:

- Outdoor Environment Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

- Lightning Protection and ESD Protection.

- No Ingress of Dust.

- Waterproof Enclosure Efficient Centralized Network Management:

- With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location.

It´s network management as it should be.

- efficient and intuitive.

Features:

- Built for outdoor Wi-Fi applications.

- Up to 300Mbps1 Wi-Fi with 2x2 MIMO technology.

- High transmission power and high gain antennas provide a long-range coverage area.

- Durable, weatherproof enclosure to withstand fair and foul weather.

- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation.

- Auranet Controller Software lets administrators easily manage hundreds of EAPs.

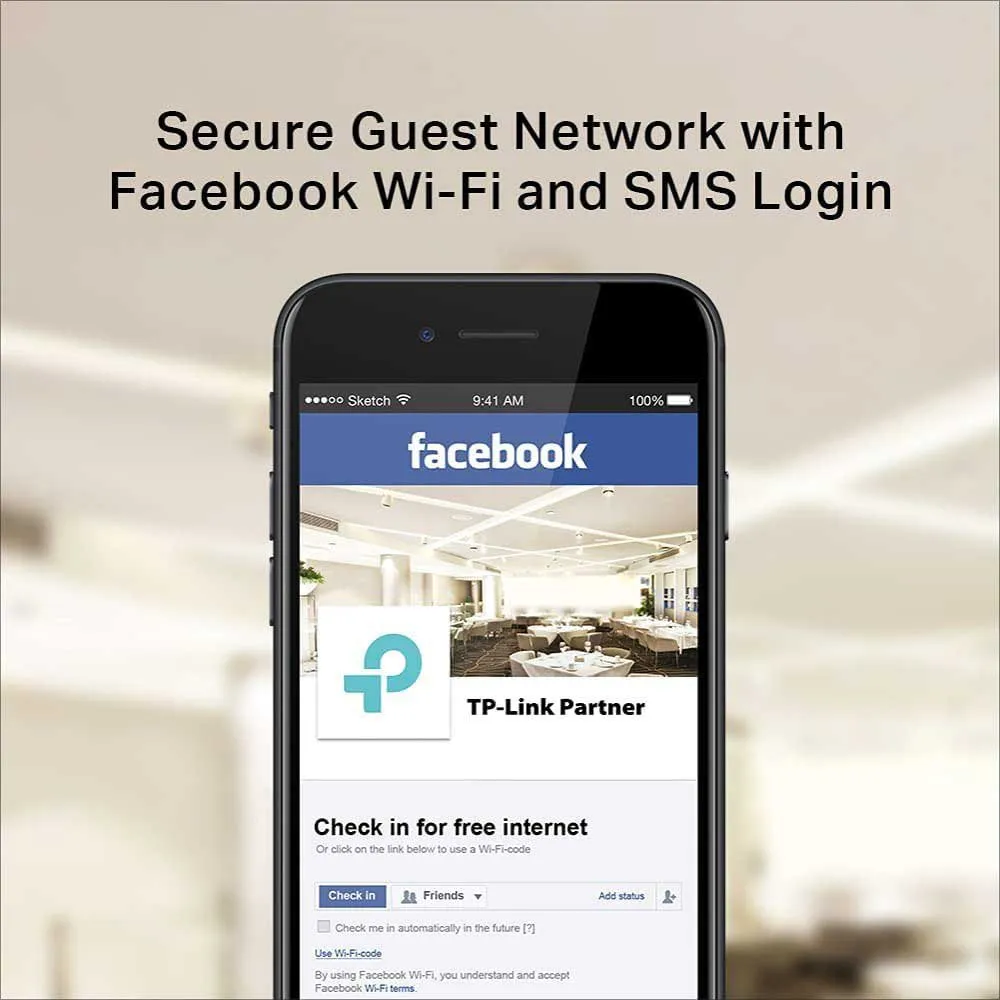

- Captive portal provides a convenient method for guest authentication.

- Supports management vlan for an enhanced network management Hardware features:

- Interface:

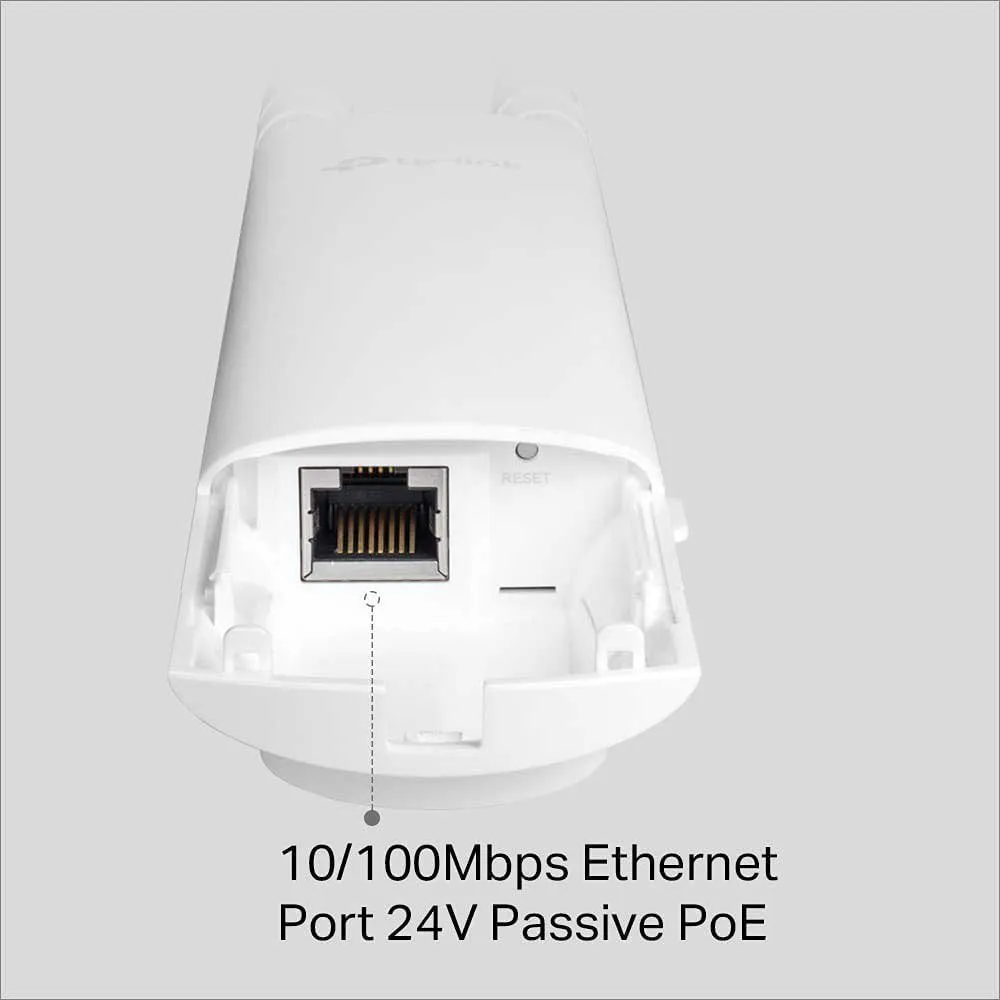

1 × Fast Ethernet (RJ-45) Port (Support Passive PoE).

- Button:

Reset.

- Power Supply:

24V Passive PoE (+4,5pins.

- 7,8pins.

PoE Adapter Included).

- Power Consumption:

3.1 W.

- Dimensions ( W x D x H ):

8.2 × 3.7 × 1.7 in.

(209 × 95 × 42.6 mm).

- Antenna Type:

2 × 3dBi External Omni waterproof.

- Weatherproof Enclosure:

IP65.

- Mounting:

Pole or wall mounting (mounting kit included) Wireless features:

- Wireless Standards:

IEEE 802.11n/g/b.

- Frequency:

2.4GHz Signal Rate 11n:

- Up to 300Mbps.

- 11g:

Up to 54Mbps.

- 11b:

Up to 11Mbps Transmit Power:

- < 27dBm Wireless Functions:

- Multiple SSIDs (Up to 8 SSIDs).

- Enable/Disable Wireless Radio.

- Automatic Channel Assignment.

- Transmit Power Control (adjustable on 1 dBm step).

- QoS (WMM).

- Load Balance.

- Rate Limit.

- Reboot Schedule.

- Wireless Schedule.

- Wireless Statistics based on SSID, AP, and Client Wireless Security:

- Captive Portal Authentication.

- Access Control.

- Wireless Mac Address Filtering.

- Wireless Isolation Between Clients.

- SSID to VLAN Mapping.

- Rogue AP Detection.

- 802.1X Support.

- 64/128/152-bit WEP / WPA / WPA2-Enterprise,.

- WPA-PSK / WPA2-PSK Management:

- Omada App:

Yes Centralized Management:

- Omada Cloud-Based Controller.

- Omada Hardware Controller (OC300).

- Omada Hardware Controller (OC200).

- Omada Software Controller Cloud Access:

- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller).

- Email Alerts:

Yes.

- LED ON/OFF Control:

Yes.

- Management MAC Access Control:

Yes.

- SNMP:

v1, v2c.

- System Logging Local/Remote Syslog:

Local and Remote Syslog.

- SSH:

Yes.

- Web-based Management:

HTTP/HTTPS.

- L3 Management:

Yes.

- Multi-site Management:

Yes.

- Management VLAN:

Yes Others:

- Certification:

FCC, RoHS Package Contents:

- 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor.

- Passive PoE Adapter.

- Power Cord.

- Mounting Kit.

- Waterproof Rubber Insert.

- Waterproof Antennas.

- Installation Guide Environment:

- Operating Temperature:

- 30C~65C (-22C~149C).

- Storage Temperature:

- 40C~70C (-40C~158C).

- Operating Humidity:

10%~90% non-condensing.

- Storage Humidity:

5%~90% non-condensing.
