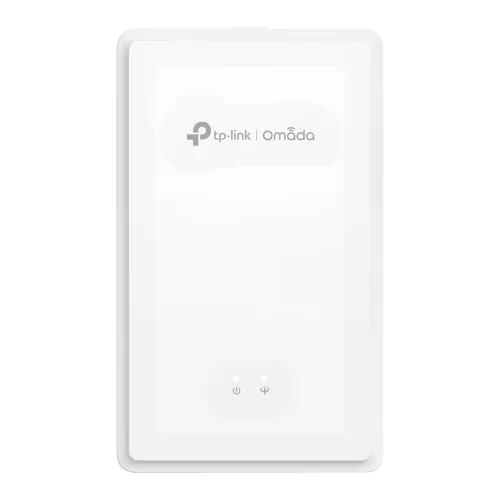

Tp-link EAP615GP-WALL WIFI Access Point

Features:

- Ultra-fast Wi-Fi 6 AX1800 speed.

Speed ​​up to 1201 Mbps on the 5GHz band and 574 Mbps on the 2.4GHz band.

- Advanced and safe technology.

Roaming (802.11 k/v/r), Wi-Fi Mesh, Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest.

- Network and Security WPA2-PSK, WPA3-SAE/AES.

- High performance connectivity.

1 SC/APC GPON Port Uplink and 2 Gigabit LAN Ethernet ports.

- VoIP Compatibility.

1 FXS RJ11 port supports SIP accounts to receive and make calls.

- Easy installation.

Simple wall mounting in just a few minutes.

- Power supply:

AC (100-240V~ 50/60Hz).

- Omada AI Wi-Fi.

Automatic channel selection and power adjustment, AI Roaming and High Gain Smart Antennas.

- Secure Guest Network.

Protects the main network by giving separate access to visitors and guests with different authentication options such as Captive Portal, 802.1X / Radius / Local Database.

- Centralized Management.

Access via the cloud with the Omada app or locally, ensuring intuitive and efficient network control and Standalone Mode.

- Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices that support the corresponding features.

- Maximum wireless signal rates are the physical rates derived from IEEE standard 802.11 specifications.

Actual wireless data throughput and wireless coverage are not guaranteed.

They will vary due to factors including network conditions, client limitations, and environmental factors including building materials, obstructions, traffic volume and density, and client location.

- Seamless roaming may require firmware upgrade.

Use of Omada Mesh and Seamless Roaming, and Captive Portal require Omada SDN Controllers.

Please refer to the Omada SDN Controller user guides for configuration methods.

- PoE pass-through is only available when 802.3at powers the device.

The maximum power output for POE pass-through is 13W (EU version) or 12W (US version) based on lab testing.

Actual power delivered to the device may vary.

- Touchless provisioning and automatic channel selection and power adjustment require the use of Omad´s cloud-based controller Ultra-fast Wi-Fi 6 AX1800 speed:

- Speed ​​up to 1201 Mbps on the 5GHz band and 574 Mbps on the 2.4GHz band.

Advanced and safe technology:

- Roaming (802.11 k/v/r), Wi-Fi Mesh, Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network and Security WPA2-PSK, WPA3-SAE/AES.

High-performance connectivity:

- 1 SC/APC GPON Port Uplink and 2 Gigabit LAN Ethernet ports.

VoIP compatibility:

- 1 FXS RJ11 port supports SIP accounts to receive and make calls.

Easy installation:

- Easy wall mounting in just a few minutes.

Electrical power supply:

- AC (100-240V~ 50/60Hz).

Omada AI Wi-Fi:

- Automatic channel selection and power adjustment, AI Roaming and High Gain Smart Antennas.

Secure guest network:

- Protects the main network by giving different access to visitors and guests with different authentication options such as Captive Portal, 802.1X / Radius / Local Database.

Centralized Management:

- Access via the cloud with the Omada app or locally, ensuring intuitive and efficient control of the network and Standalone Mode.

Specifications:

Hardware Features:

Interface:

- 1x GPON Port.

- 1x FXS Port.

- 2x Gigabit RJ45 Ports.

- GPON Interface.

- Port Type:

SC-APC.

- Standards and Protocols:

ITU-984.x, G.988, Class B+.

- Data Rate:

2.488 Gbps (Downstream).

1.244 Gbps (Upstream).

- Fiber Type:

9/125 um Single mode.

- Max.

Cable Length:

20 km Buttons:

- Reset LED:

- Power Supply 100-240V~ 50/60Hz, 0.5A.

- Power Consumption 12.2W.

- Weight 320g.

- Dimensions 5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm).

- Antenna Type Internal Omni.

- 2.4 GHz:

2× 4 dBi.

- 5 GHz:

2× 6.5 dBi.

- Wall Mounting (Kits included) Wireless Features:

- Coverage 50㎡(600ft²).

- Concurrent Clients 120+.

-.

- IEEE 802.11 a/b/g/n/ac/ax Wireless Standards Frequency:

- 2.4 GHz and 5 GHz.

- Signal Rate.

- 5 GHz:

1201 Mbps†.

- 2.4 GHz:

574 Mbps Wireless Features:

- 2×2 (2.4G & 5G) MU-MIMO‡.

- HE80 (80 MHz Bandwidth)‡.

- OFDMA‡.

- Seamless Roaming §.

- Multiple SSIDs (16 SSIDs, 8 on each band).

- Enable/Disable SSID Broadcast.

- Enable/Disable Wireless Radio.

- Guest Network.

- Automatic Channel Assignment.

- Beamforming.

- Rate Limit.

- Band Steering.

- Load Balance.

- Airtime Fairness.

- Transmit Power Control (Adjust Transmit Power on dBm).

- QoS (WMM).

- RADIUS Accounting.

- MAC Authentication.

- Reboot Schedule.

- Wireless Schedule and Statistics.

- Static IP/Dynamic IP Wireless Security:

- Captive Portal Authentication.

- Access Control.

- Wireless Mac Address Filtering.

- Wireless Isolation Between Clients.

- VLAN.

- Rogue AP Detection.

- 802.1X Support.

- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Potency of transmission:

EC:

- <20 dBm(2.4 GHz, EIRP).

- <23 dBm(5 GHz, band1 & band2, EIRP).

- <24 dBm(5 GHz, band3, EIRP).

- FCC:

- <21 dBm (2.4 GHz).

- <21 dBm (5 GHz) Management:

- Omada App Yes Centralized Management:

- Omada Hardware Controller (OC300, OC200).

- Omada Software Controller.

- Omada Cloud-Based Controller.

- Cloud access Yes.

Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

- Email Alerts Yes.

- Control LED ON / OFF Yes.

- MAC Access Management Control Yes.

- SNMPv1, v2c, v3.

- Accessing the Local System Log/Remote System Log.

- SSH Yes.

- Web-based management Yes.

- Touchless Provisioning Yes.

Require the use of Omada Cloud-Based Controller.

Package content:

- EAP615GP-Wall.

- Wall Mounting Kit.

- Installation Guide System Requirements:

- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environmental factors:

- Operating Temperature:

0-40℃ (32-104℉).

- Storage Temperature:

- 40-70 ℃ (-40-158 ℉).

- Operating Humidity:

10-90% RH non-condensing.

- Storage Humidity:

5-90% RH non-condensing.
