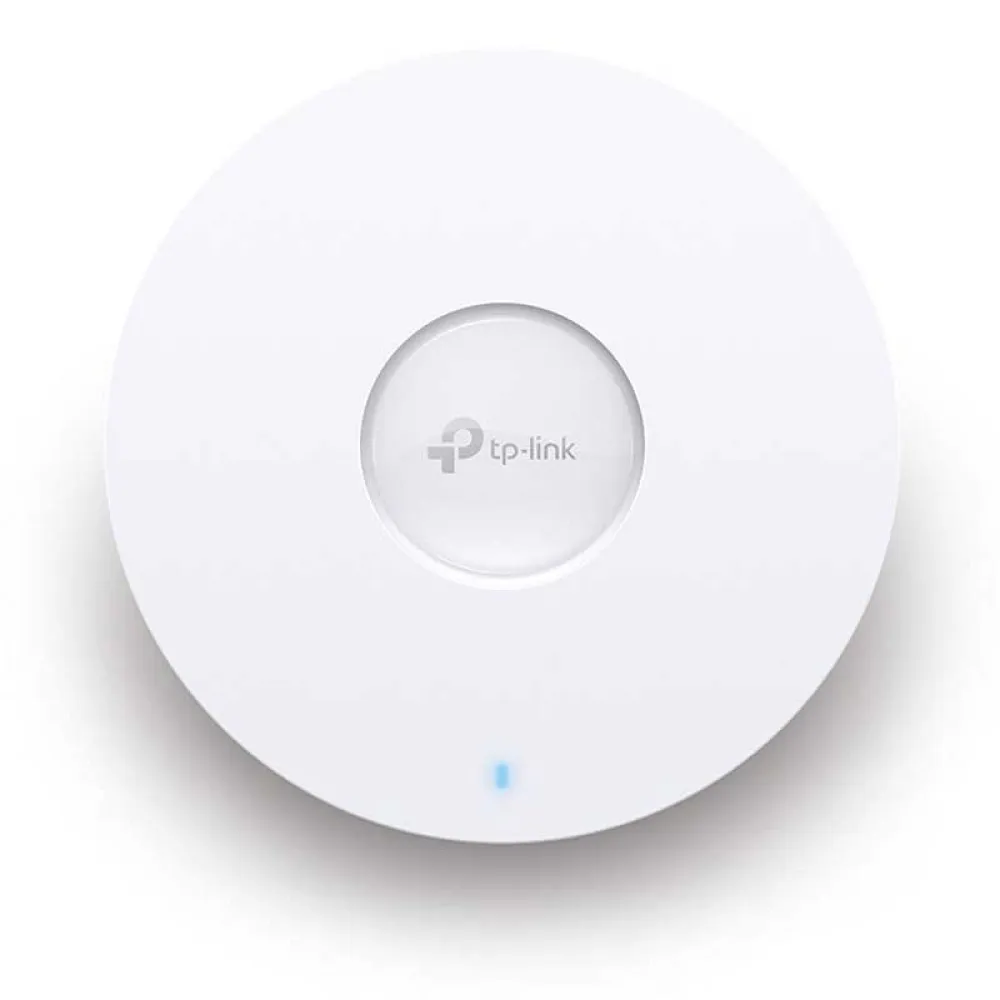

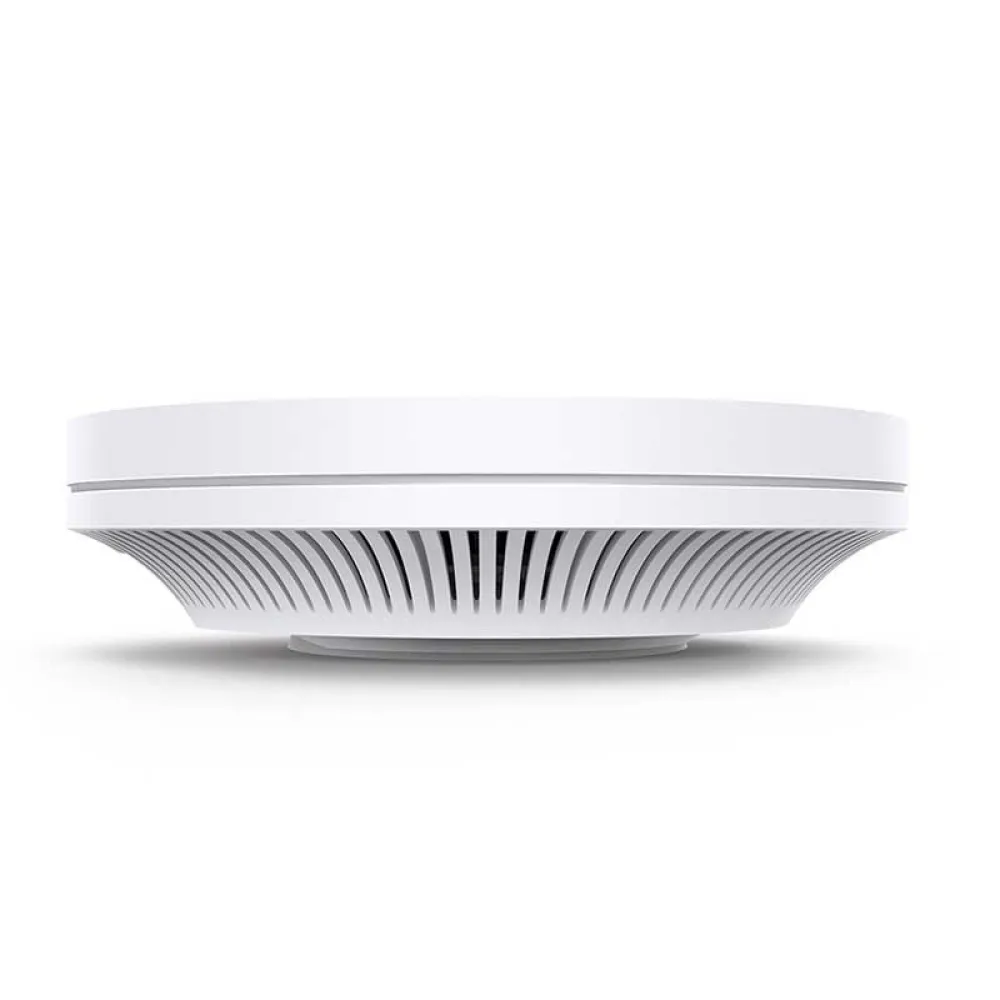

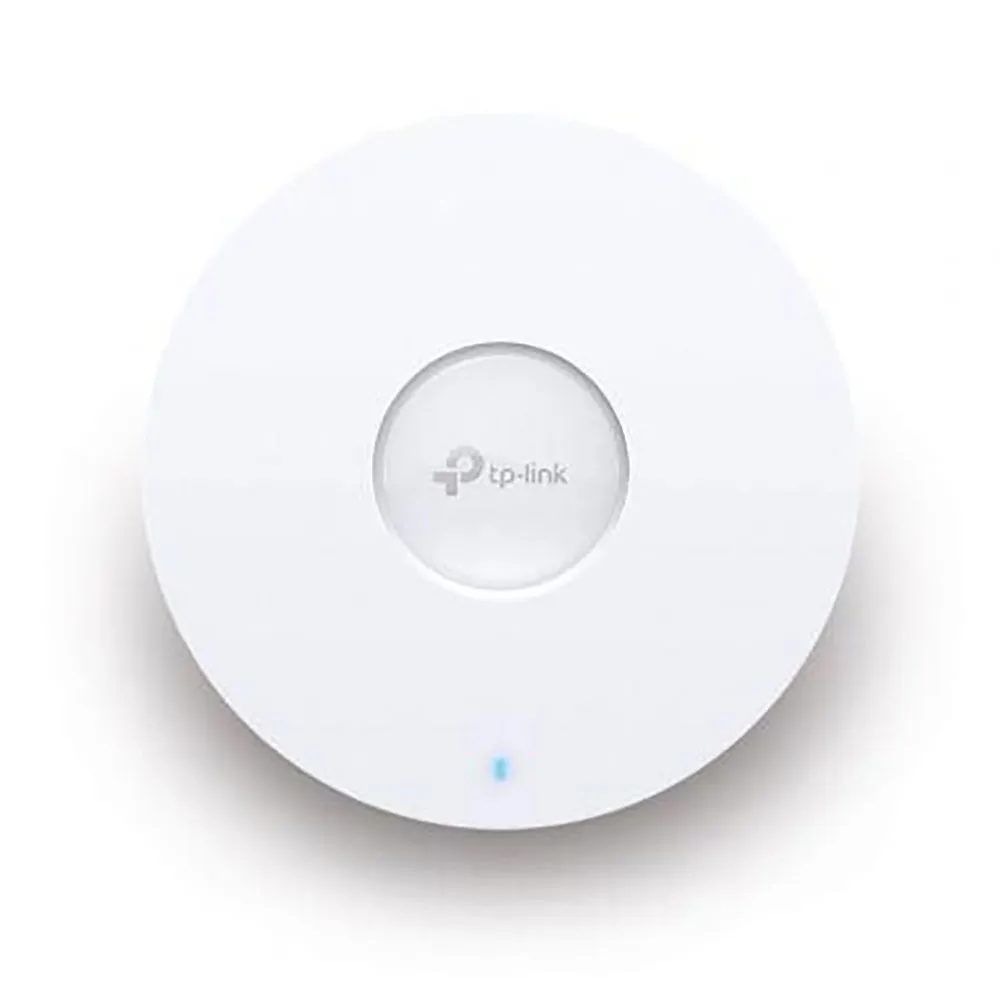

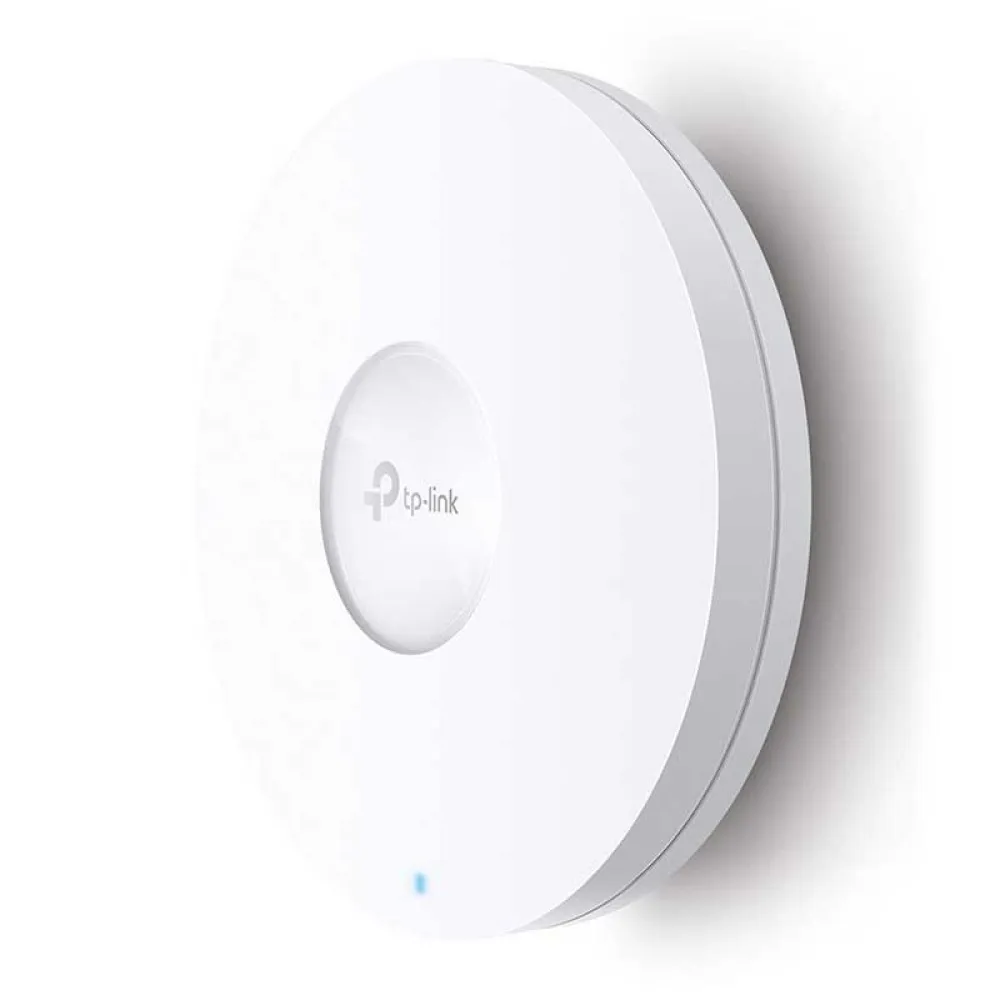

Tp-link EAP670 WIFI Access Point

Features:

- Ultra-fast Wi-Fi 6 speed.

Up to 4804Mbps on 5GHz and 574Mbps on 2.4GHz, for a total of 5378Mbps†.

- High Efficiency Networks.

More than 250 devices connected at the same time in a stable manner and without interruptions.

- Centralized Management.

With the Omada controller, you get intuitive and efficient network control with local or cloud access.

- 160 MHz Bandwidth.

Reduce interference and double the available network spectrum in a single stream with HE160‡.

- Omada Mesh.

Enables connectivity between different Omada access points to create a wide-range, high-coverage network.

- Seamless roaming.

Devices connected to the network automatically connect to the access point that can offer the best coverage without losing connection.

- PoE+ support.

Supports Power over Ethernet (802.3at) for greater installation freedom.

High-Density Connectivity:

- Simultaneous connection for more than 250 devices Cloud Management:

- The Omada controller allows you to manage the network from the cloud or with local access 2.5GE Ethernet Performance:

- Increases throughput and wired speed 160 MHz Channel:

- Reduces interference and doubles the network spectrum in a single stream HE160 Automatic Channel Selection:

- Optimizes overall performance by reducing Wi-Fi interference Omada Mesh Technology:

- Creates a single, secure network across the entire business Seamless Roaming:

- Devices automatically connect to the access point with the best coverage PoE+ compatible:

- Freedom of installation by integrating 802.3at Power over Ethernet technology The ideal technological solution for business environments:

- More speed and capacity with less interference and ultra-low response time.

Ultra-fast Wi-Fi 6 AX5400:

- The different technologies integrated into this Omada equipment allow reaching up to 5.4Gbps, 2.6 times faster than the Wi-Fi 5 generation.

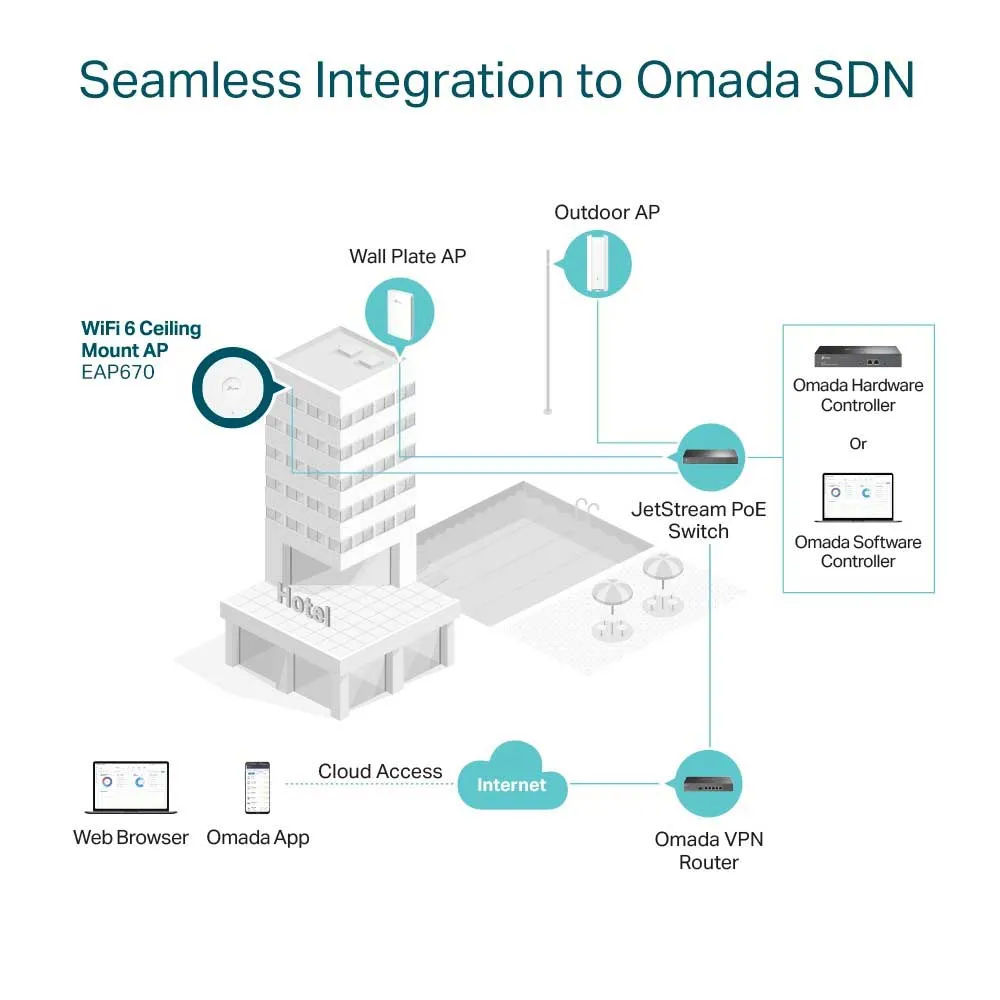

Omada Centralized Management:

- The Omada solution integrates different network devices such as access points, switches and routers controlled 100% from the cloud.

Omada creates scalable, secure and high-performance networks ideal for all types of verticals such as Hospitality, education, retail, offices, healthcare centres and public administration.

Automatic Channel and Power Selection:

- The EAP670 Wi-Fi 6 access point optimizes network performance by reducing Wi-Fi interference by automatically adjusting the channels and transmission power of access points included in the same network.

Easy installation with Omada Mesh:

Greater freedom of installation:

- Omada Mesh access points technology allows you to wirelessly install APs in areas that are difficult to access by cable.

Smart Performance:

- Omada selects the best route between access points and ensures that devices have an Internet connection even when one of the access points in the network stops providing a signal.

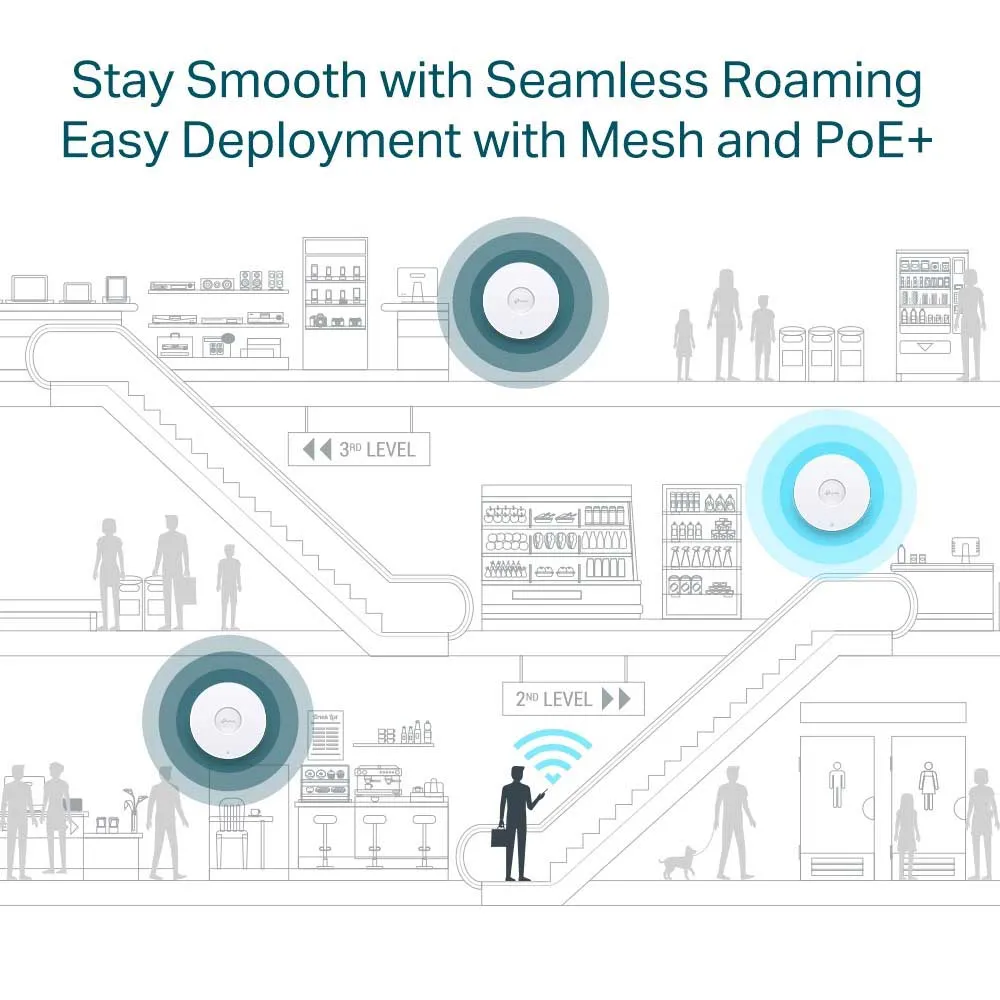

Roaming without interruptions:

- Devices automatically connect to the access point that offers the best coverage, avoiding signal interruptions while moving from one point to another.

Specifications:

Hardware Features:

- Interface 1 x 2.5 Gigabit Ethernet port (RJ-45) (IEEE802.3at PoE compliant).

- Reset buttons.

- Power supply.

- 802.3at PoE.

- 12V / 1.5A DC.

- Power Consumption.

- EU:

18.1 W.

- Dimensions 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm).

- Antenna Type.

- Internal Omni.

- 2.4GHz:

2 × 4 dBi.

- 5 GHz:

4 × 5 dBi.

- Bluetooth Yes.

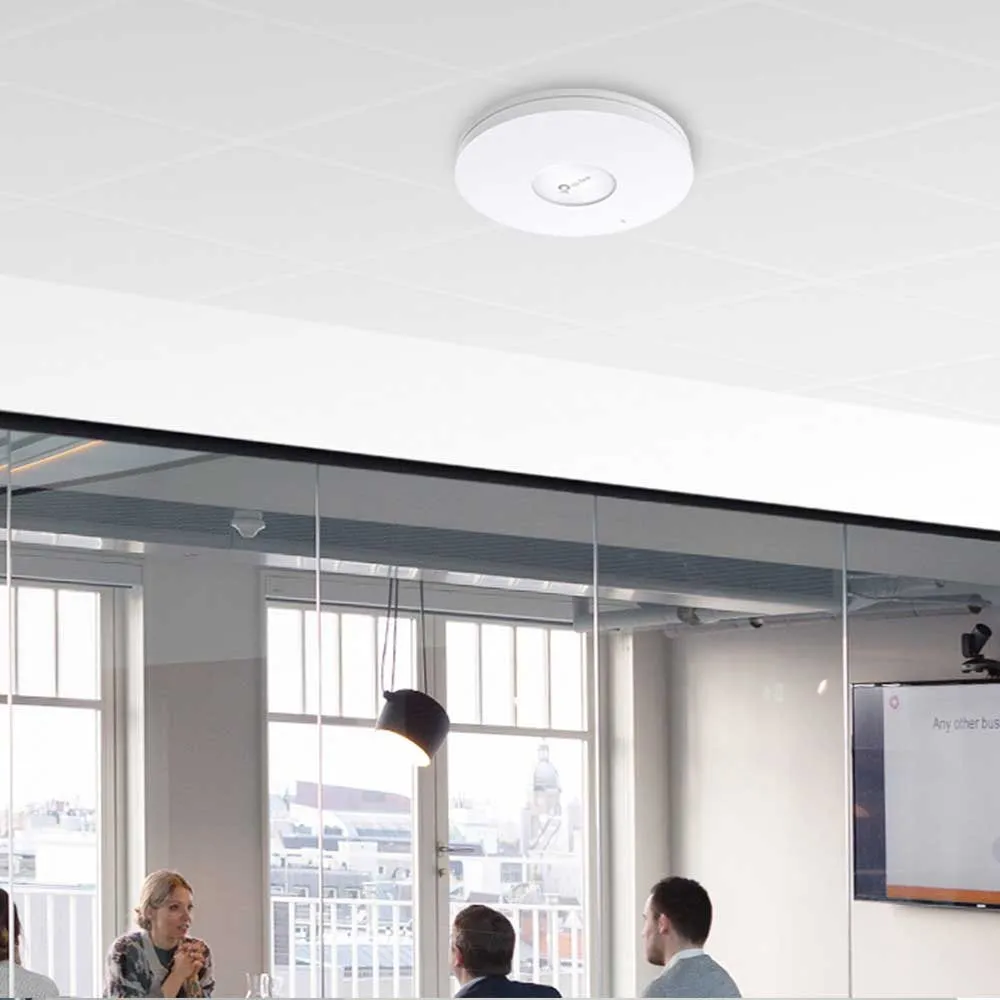

- Mounting Ceiling/Wall Mount (Kits included) Wireless Features:

- Coverage 140㎡(1500 ft².

- Wireless Client Capacity 250.

- Concurrent Clients 250+.

- IEEE 802.11ax/ac/n/g/b/a Wireless Standards.

- Frequency 2.4 GHz and 5 GHz.

- Signal Rate.

- 5GHz:

up to 4804Mbps.

- 2.4GHz:

up to 574Mbps.

- Wireless Features.

- 1024-QAM.

- OFDM symbol 4 times longer.

- OFDMA.

- Multiple SSIDs (up to 16 SSIDs, 8 for each band).

- Enable/disable wireless radio.

- Automatic channel assignment.

- Transmit Power Control (Transmit power adjustment in dBm).

- QoS (WMM).

- MU-MIME.

- HE160 (160 MHz bandwidth)‡.

- Continuous roaming.

- Omada Mesh.

- Band direction.

- Load balance.

- Airtime Equity.

- Beamforming.

- Rate limit.

- Restart schedule.

- Wireless schedule.

- Wireless Statistics based on SSID/AP/Client.

- Wireless Security.

- Captive Portal Authentication.

- Access control.

- Wireless MAC Address Filtering.

- Wireless isolation between clients.

- Assigning SSID to VLAN.

- Detection of unauthorized access points.

- 802.1X Support.

- WPA-Personal/Business, WPA2-Personal/Business, WPA3-Personal/Business Potency of transmission:

EC:

- <20 dBm (2.4 GHz, EIRP).

- <23 dBm (5 GHz, band 1 and band 2, EIRP).

- <30 dBm (5 GHz, band 3, EIRP).

- FCC:

- <25 dBm (2.4 GHz).

- <28 dBm (5 GHz) Management:

- Omada App Yes.

- Centralized Management.

- Omada Hardware Controller (OC300).

- Omada Hardware Controller (OC200).

- Omada Software Controller.

- Omada Cloud-Based Controller.

- Cloud Access Yes (via OC300, OC200, Omada Software Controller or Omada Cloud-based Controller).

- Email Alerts Yes.

- ON/OFF control LED Yes.

- MAC Access Management Control Yes.

- SNMP v1, v2c, v3.

- Access to Local System Log/Remote System Log Local/Remote Syslog.

- SSH Yes.

- HTTP/HTTPS Web-Based Management.

- L3 Management Yes.

- Multi-site management Yes.

- Management VLAN Yes.

- Touchless Provisioning Yes.

Requires use of Omada cloud-based controller.

Others:

- CE, FCC, RoHS Certifications Package content:

- EAP670.

- Power adapter.

- Ceiling/Wall Mount Kits.

- Installation guide.

- System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environmental factors:

- Working temperature:

0-40℃ (32-104℉).

- Storage temperature:

- 40-70 ℃ (-40-158 ℉).

- Operating humidity:

10-90% RH non-condensing.

- Storage humidity:

5-90% RH non-condensing.
