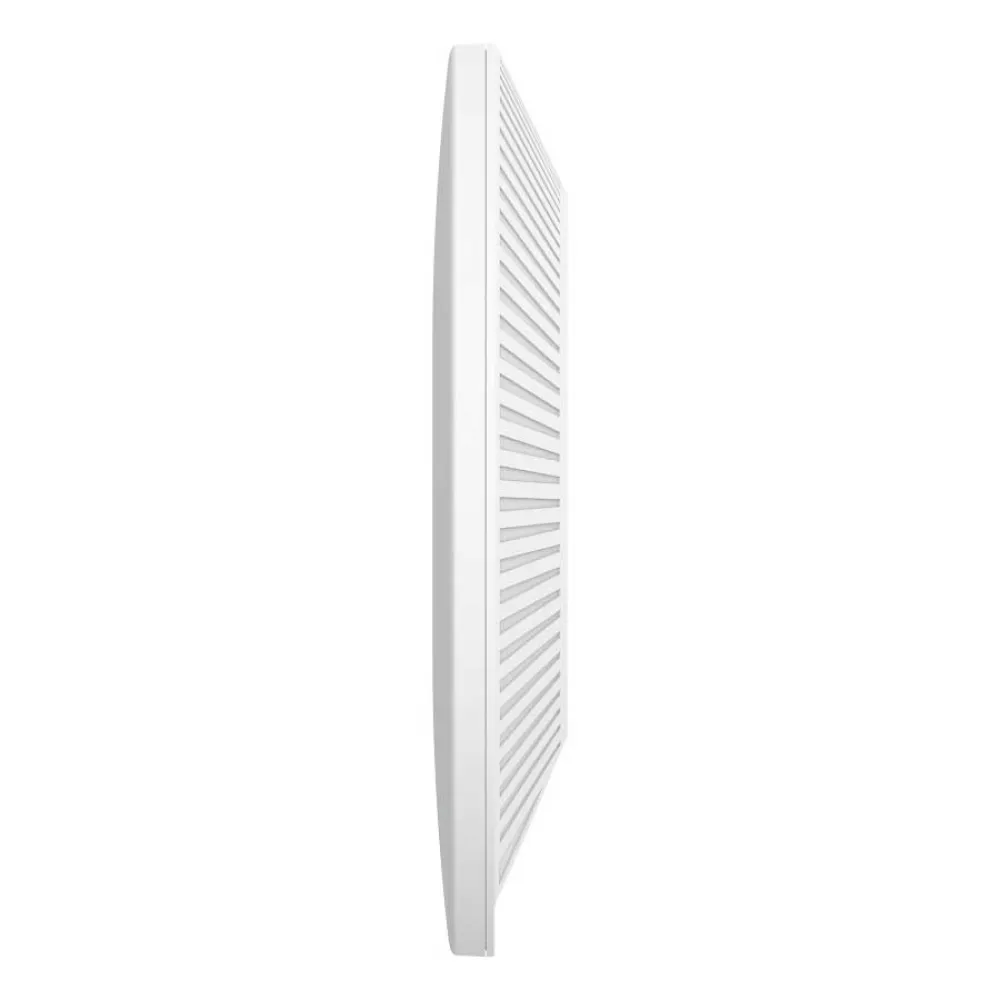

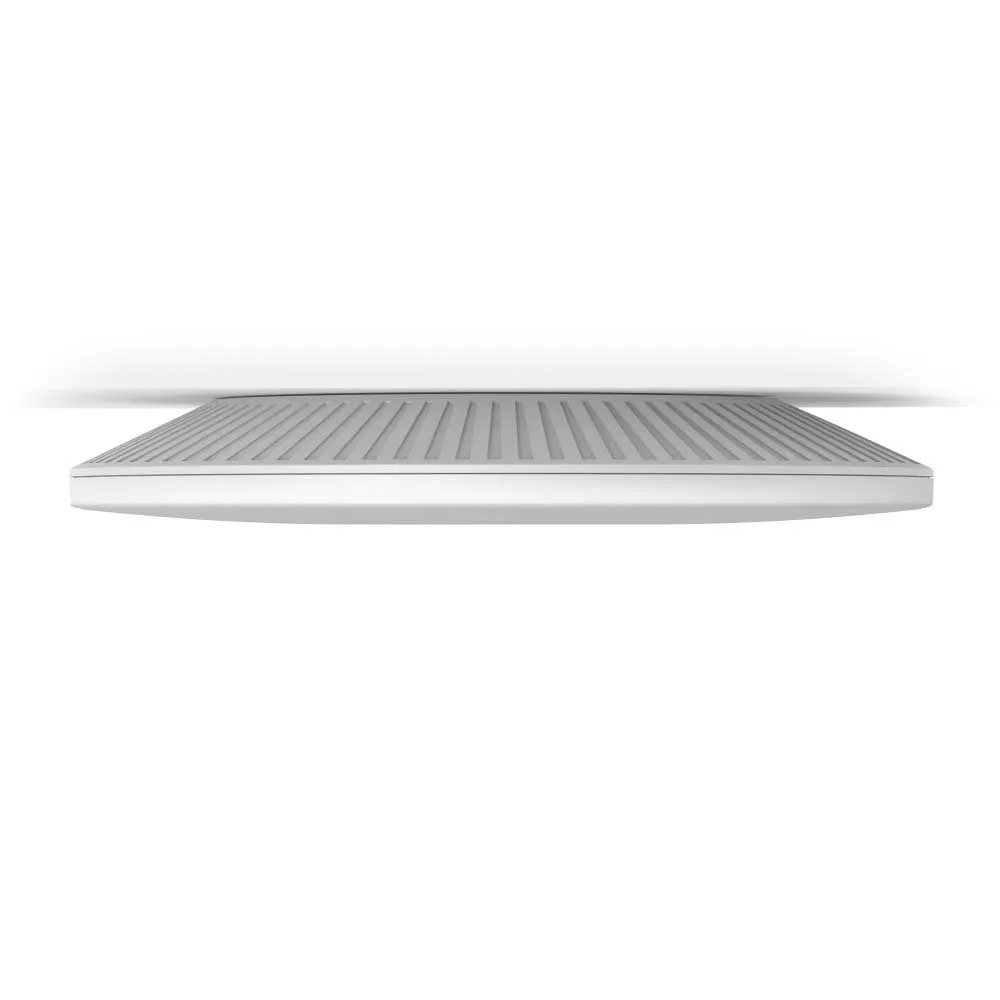

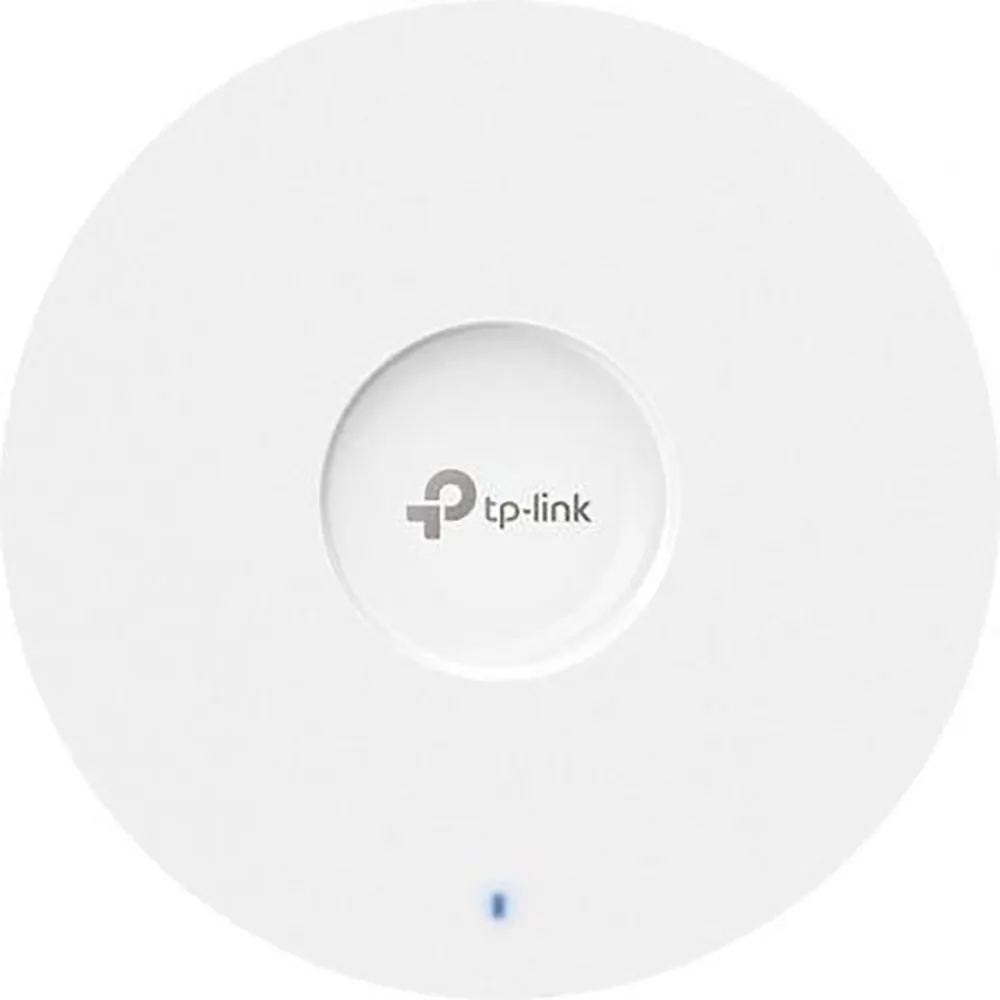

Tp-link EAP683UR WIFI Access Point

Features:

AX6000 Ceiling Mount Wi-Fi 6 Access Point:

- Ultra-fast speed.

Up to 1148Mbps on 2.4GHz and 4804Mbps on 5GHz, for a total of 5952Mbps†.

- Long-Range Wireless Coverage.

Internal dual-band antennas with high transmission power and 4×4 MIMO.

- Wi-Fi 6 technology.

Supports HE160 and 1024-QAM.‡.

- Centralized Management.

With the Omada controller, you get intuitive and efficient network control with local or cloud access.

- Omada Mesh.

Enables connectivity between different Omada access points to create a network with great range and coverage.§.

- PoE+ support.

Supports Power over Ethernet (802.3at) for greater installation freedom in addition to DC power (power adapter not included).

Long Range Wireless Coverage:

- Thanks to its internal 4 × 4 MIMO dual-band antennas with high transmission power.

Specifications:

Hardware Features:

- Interface 1× 2.5Gb PoE+ port.

- Reset buttons.

- Power supply.

- PoE 802.3at.

- 12V / 2A DC.

- Power Consumption.

- EU:

20.43W.

- Dimensions 220 × 220 × 32.5 mm.

- Internal Omni Antenna Type.

- 2.4GHz:

4×4 dBi.

- 5 GHz:

4× 5 dBi.

- Bluetooth V5.2.

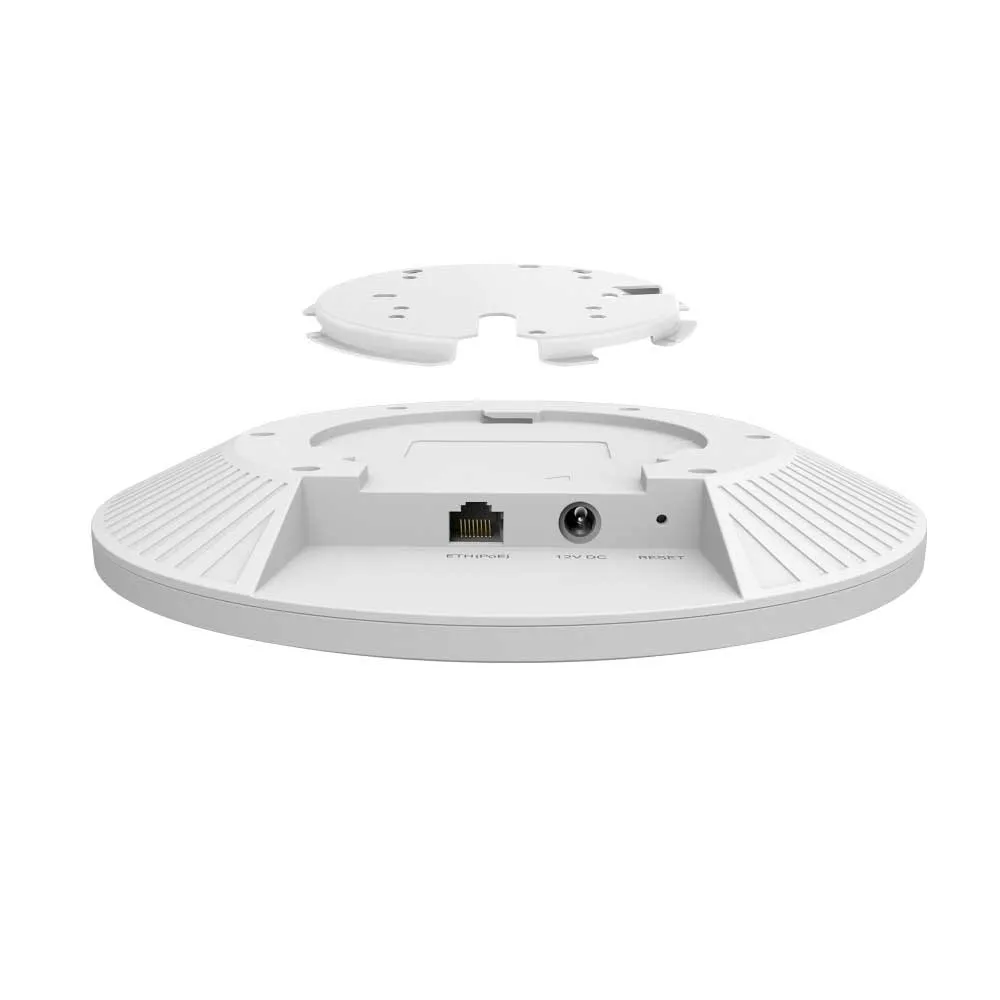

- Mounting Ceiling/wall mount (kits included) Wireless Features:

- Coverage 185㎡.

-.

-.

-.

- Concurrent Clients 510+.

-.

-.

- IEEE 802.11ax/ac/n/g/b/a Wireless Standards.

- Frequency 2.4 GHz and 5 GHz.

- Signal Rate.

- 5 GHz:

Up to 4804 Mbps.

- 2.4GHz:

Up to 1148Mbps.

- 1024-QAM.

- 4× longer OFDM symbol.

- OFDMA.

- Multiple SSIDs (up to 16 SSIDs, 8 for each band).

- Wireless radio on/off.

- Automatic channel assignment.

- Transmit power control (transmit power adjustment in dBm).

- QoS (WMM).

- MU-MIMO (4.

- 4 MU-MIMO DL&UL).

- MIMO [MU-MIMO 4.

- 4 (2.4G and 5G).

SU-MIMO 4.

- 4 (2.4G and 5G).

- HE160 (160 MHz bandwidth)‡.

- Uninterrupted roaming (802.11k/v/r) §.

- Omada Mesh§.

- Band direction.

- Load balance.

- Airtime Fairness.

- Beamforming technology.

- Speed ​​limit.

- Reset schedule.

- Wireless programming.

- Wireless statistics based on SSID/AP/Client Wireless Security:

- Captive Portal Authentication§.

- Access control.

- Wireless Mac Address Filtering.

- Wireless isolation between clients.

- Assigning SSID to VLAN.

- Detection of unauthorized access points.

- 802.1X Support.

- WPA-Personal/Business, WPA2-Personal/Business, WPA3-Personal/Business Potency of transmission:

- CE:

<20 dBm(2.4 GHz, EIRP).

- <23 dBm(5 GHz, band1 & band2, EIRP).

- <28 dBm(5 GHz, band3, EIRP).

- FCC:

<26 dBm (2.4 GHz).

- <26 dBm (5 GHz) Management:

- Omada App Yes.

- Centralized Management.

- Omada Hardware Controller (OC300).

- Omada Hardware Controller (OC200).

- Omada Software Controller.

- Omada Cloud Controller.

- Cloud Access Yes.

Requires use of OC300, OC200, Omada Cloud or Omada Software.

- Email Alerts Yes.

- ON/OFF control LED Yes.

- MAC Access Management Control Yes.

- SNMP v1, v2c, v3.

- Accessing the Local System Log/Remote Syslog.

- SSH Yes.

- HTTP/HTTPS Web-Based Management.

- L3 Management Yes.

- Multi-site management Yes.

- Management VLAN Yes.

- Touchless Provisioning Yes.

Requires the use of Omada Cloud-Based Controller.

Others:

- CE,FCC,RoHS Certifications Package content:

- EAP683 UR.

- Ceiling/Wall Mounting Kits.

- Ceiling/Wall Mount Kits.

- Installation guide.

- System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environmental factors:

- Working temperature:

0-40℃(32-104℉).

- Storage temperature:

- 40-70℃ (-40-158℉).

- Operating humidity:

10-90% RH non-condensing.

- Storage Humidity:

5-90% RH non-condensing.
