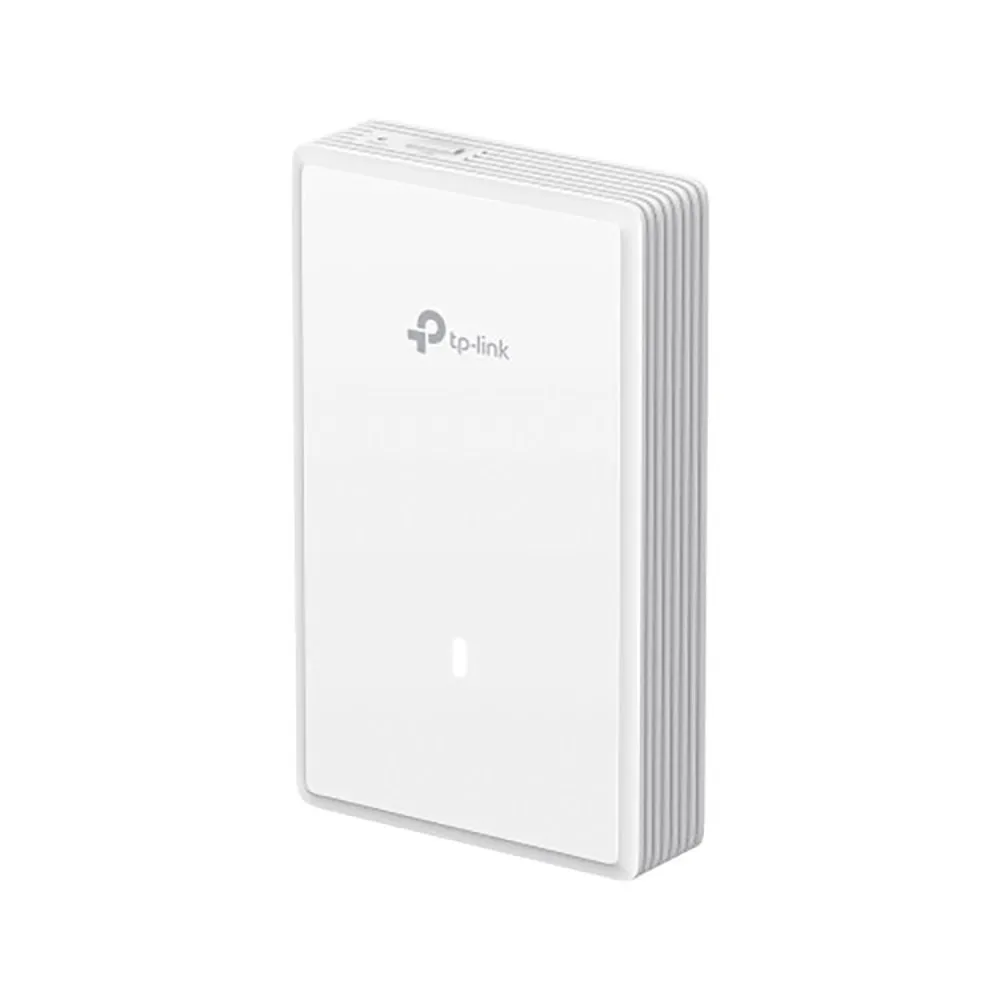

Tp-link EAP725-WALL WiFi 7 WIFI Access Point

Features:

- Next-Gen WiFi 7.

- WiFi Speeds up to 5.0 Gbps†.

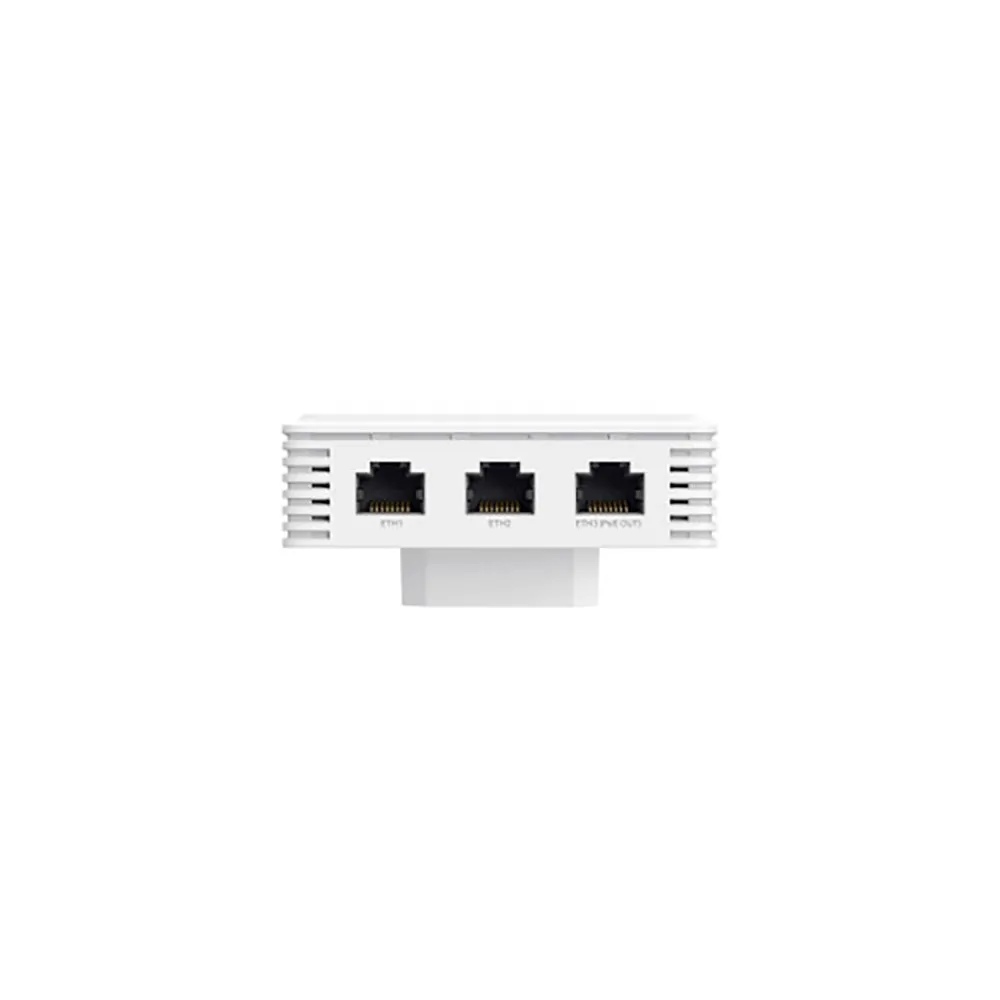

- 2× 2.5G Ports + 2× Gigabit Ports.

- 802.3at/bt PoE.

- Enhanced Security.

- Centralized Cloud Management.

- Omada Mesh & Seamless Roaming.

- Compact Design Dedicated and Complete, Private WiFi Networks for Every Room:

- Hospitality.

- Office.

- Meeting Room.

- Apartment.

- Villa.

- Dormitory Optimized Wired Performance with 2.5G PoE Ports:

- With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network.

Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.

- The PoE pass-through feature requires an 802.3at/bt PoE input.

If the power consumption of the AP´s downstream device exceeds 7W, the AP needs an 802.3bt input.

Boosted Network Security:

- Secure Guest Network with up to 16 SSIDs.

- Boost Your Business with SMS Login.

- WPA3 for Worry-Free Open Public Networks.

- Rogue AP Detection Seamless Integration into the Omada SDN:

- Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.

Specifications:

Hardware features:

Interface:

- Uplink:

1× 2.5G Ethernet Port.

- Downlink:

1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.

The PoE pass-through feature requires 802.3at/bt input.

If the power consumption of the AP´s downstream device exceeds 7W, the AP needs an 802.3bt input.).

- Button:

Reset, LED.

- Power Supply:

802.3at/bt PoE Max.

Power Consumption:

- 802.3bt:

17W (PoE Out support 15.4W).

- 802.3at:

17W (PoE Out support 7W).

- Dimensions ( W x D x H ):

143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) Antenna:

- 4× Internal Antennas.

- 2.4 GHz:

2× 4 dBi.

- 5 GHz:

2× 5 dBi.

- Mounting:

Wall Mounting (Kits included) Wireless features:

- Coverage:

50 ㎡ (600 ft²).

- Concurrent Clients:

250+§.

- Wireless Standards:

IEEE 802.11 a/b/g/n/ac/ax/be.

- Frequency:

2.4 GHz and 5 GHz Signal Rate:

- 5 GHz:

Up to 4324 Mbps.

- 2.4 GHz:

Up to 688 Mbps Wireless Functions:

- 16 SSIDs (Up to 8 SSIDs on each band).

- Enable/Disable Wireless Radio.

- Automatic Channel Assignment.

- Transmit Power Control (Adjust Transmit Power on dBm).

- QoS(WMM).

- Seamless Roaming.

- Beamforming.

- Rate Limit (Based on SSID/Client).

- Load Balance.

- Airtime Fairness.

- Band Steering.

- Reboot Schedule.

- Wireless Schedule.

- RADIUS Accounting.

- MAC Authentication.

- Wireless Statistics.

- Static IP/Dynamic IP Wireless Security:

- Captive Portal Authentication.

- Access Control.

- Wireless Mac Address Filtering.

- Wireless Isolation Between Clients.

- VLAN.

- Rogue AP Detection.

- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power:

- < 22 dBm (2.4 GHz).

- < 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) Management Features:

- Omada App:

Yes Centralized Management:

- Omada Hardware Controller (OC300).

- Omada Hardware Controller (OC200).

- Omada Software Controller.

- Omada Cloud-Based Controller.

- Cloud Access:

Yes.

Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

- Email Alerts:

Yes.

- LED ON/OFF Control:

Yes.

- Management MAC Access Control:

Yes.

- SNMP:

v1, v2c, v3.

- System Logging Local/Remote Syslog:

System Log.

- SSH:

Yes.

- Web-based Management:

Yes.

- L3 Management:

Yes.

- Multi-site Management:

Yes.

- Management VLAN:

Yes.

- Zero-Touch Provisioning:

Yes.

Requiring the use of Omada Cloud-Based Controller.

Others:

- Certification:

FCC, RoHS Package Content:

- BE5000 Wall Plate Wi-Fi 7 Access Point.

- Installation Guide.

- Mounting Kits.

- System Requirements:

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment:

- Operating Temperature:

0-40 ℃ (32-104 ℉).

- Storage Temperature:

- 40-70 ℃ (-40-158 ℉).

- Operating Humidity:

10-90% RH non-condensing.

- Storage Humidity:

5-90% RH non-condensing.
