Tp-link LS105GP switch 5 ports

EU Plug.

Features:

- Full Gigabit Ports:Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.

- 65 W PoE Budget:Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable.

Up to 30 W PoE output is supported by each PoE port.

- Up to 250 m PoE Transmission:With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

- PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices.

- Plug and Play:Simply plug and play for instant connectivity with no configuration required.

- Silent Operation:Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

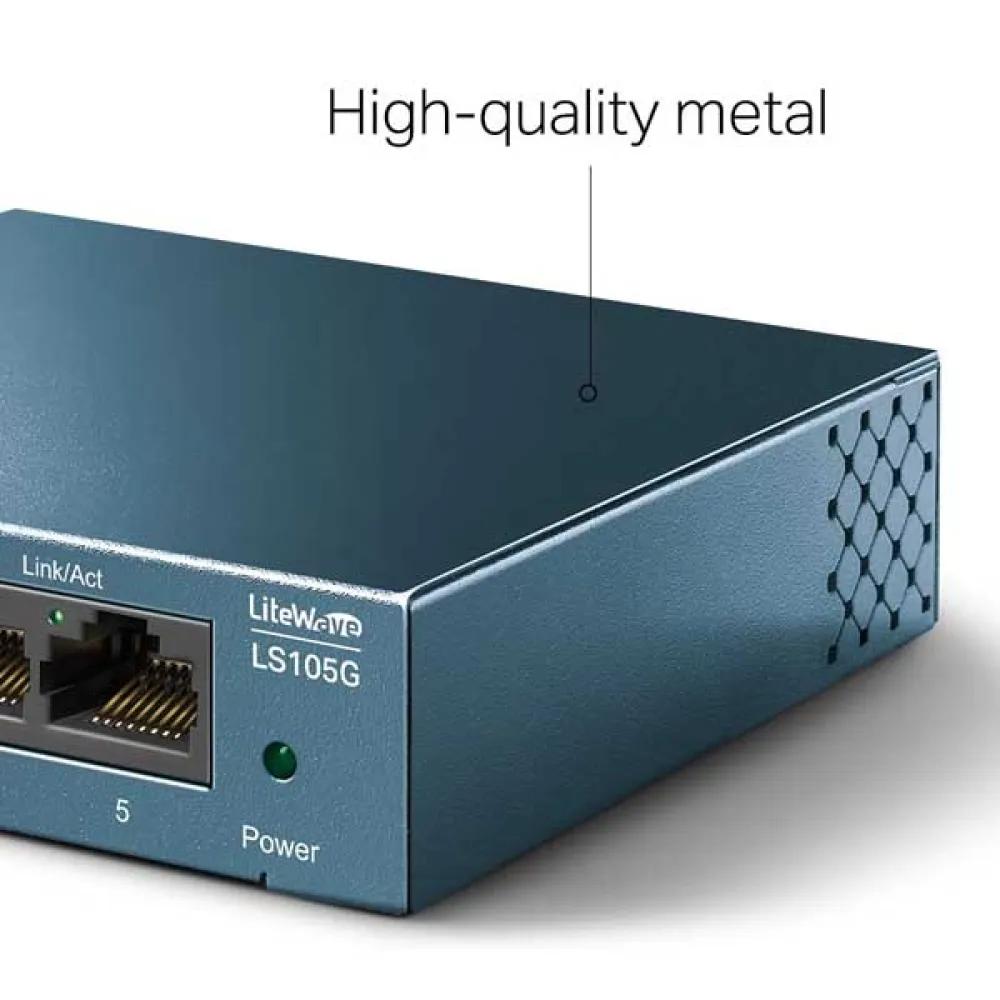

- Reliable Hardware Design:Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

- 65 W PoE Budget.

- Long-Range PoE+ (250m.

- ).

- PoE Auto Recovery.

- Intelligent Power Management.

- Desktop or Wall-Mounting.

- Plug and Play.

- Silent Operation.

- Durable Metal Casing Power over Ethernet, Flexible Network Deployment:- Compliant with the 802.3af/at PoE+ standard, 65 W available for all PoE+ Ports, 30 W max per Port.

- System Self-Healing with PoE Auto Recovery:- Automatically detect and reboot offline or unresponsive devices Gigabit Ports for Faster Speed:- Auto-negotiation for 3-speed (10/100/1000 Mbps) .

Specifications:

Hardware.

Features:

Interface:- 5× 10/100/1000Mbps RJ45 Ports (Ports 1-4 supports 802.3af/at PoE+).

- AUTO Negotiation.

- AUTO MDI/MDIX Network Media .

- 10BASE-T:UTP category 3, 4, 5 cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- 100BASE-TX:UTP category 5, 5e cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- 1000BASE-T:UTP category 5, 5e, 6 or above cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- Fan Quantity:Fanless Installation:- Desktop.

- Wall Mounting.

- Power Supply:External Power Adapter (Output:53.5 VDC / 1.31 A) PoE Ports (RJ45):- Standard:802.3 af/at compliant.

- PoE Ports:Ports 1-4, up to 30 W PoE output per port.

- Power Supply:65 W.

- Dimensions ( W x D x H ):3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption:- 4 W (220/50 Hz.

no PD connected).

- 74.46 W (220/50 Hz.

with 65 W PD connected) Max Heat Dissipation:- 13.6 BTU/h (no PD connected).

- 253.16 BTU/h (with 65 W PD connected) Performance:- Switching Capacity:10 Gbps.

- Packet Forwarding Rate:7.44 Mpps.

- MAC Address Table:2K.

- Jumbo Frame:16 KB Software.

Features:

Advanced.

Features:

- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission).

- PoE Auto Recovery Button (Ports 1-4).

- Compatible With IEEE 802.3af/at Compliant PDs.

- Mac Address Auto-Learning and Auto-Aging.

- IEEE 802.3x Flow Control.

- 802.1p/DSCP QoS.

- IGMP Snooping.

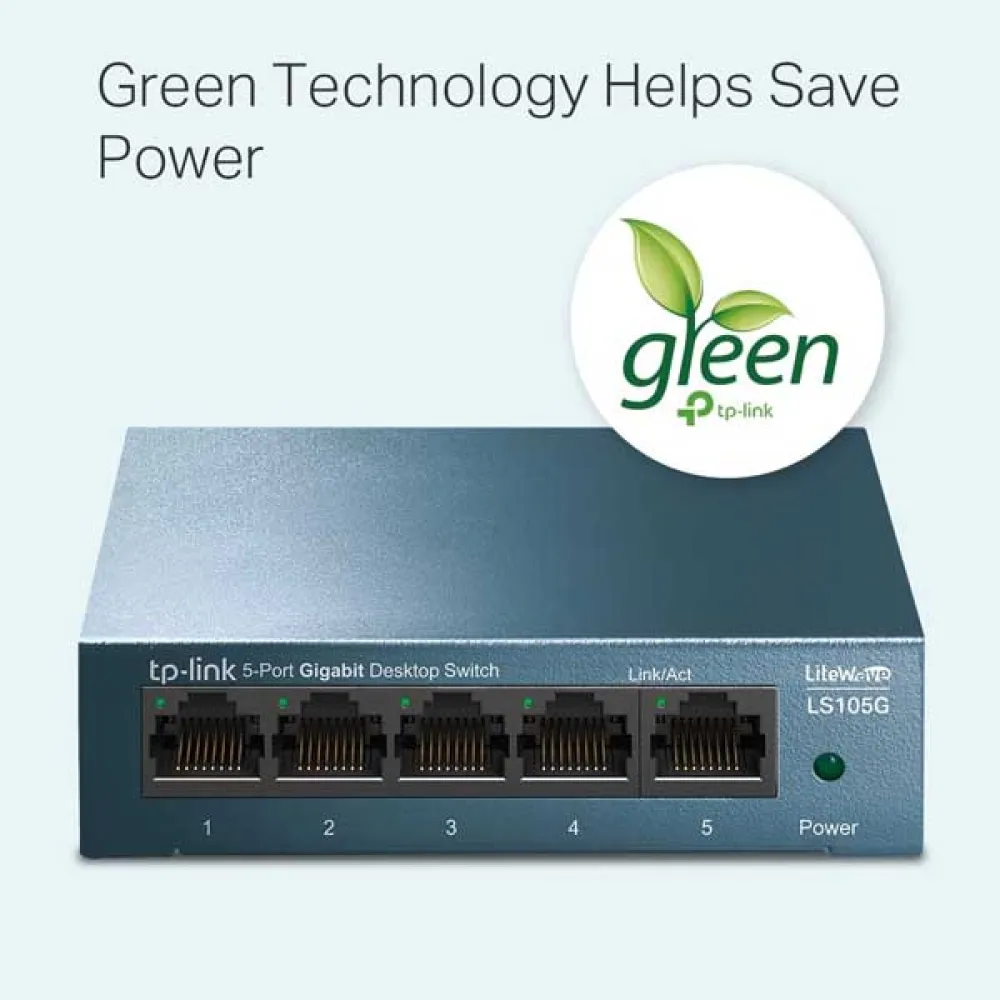

- Green Technology.

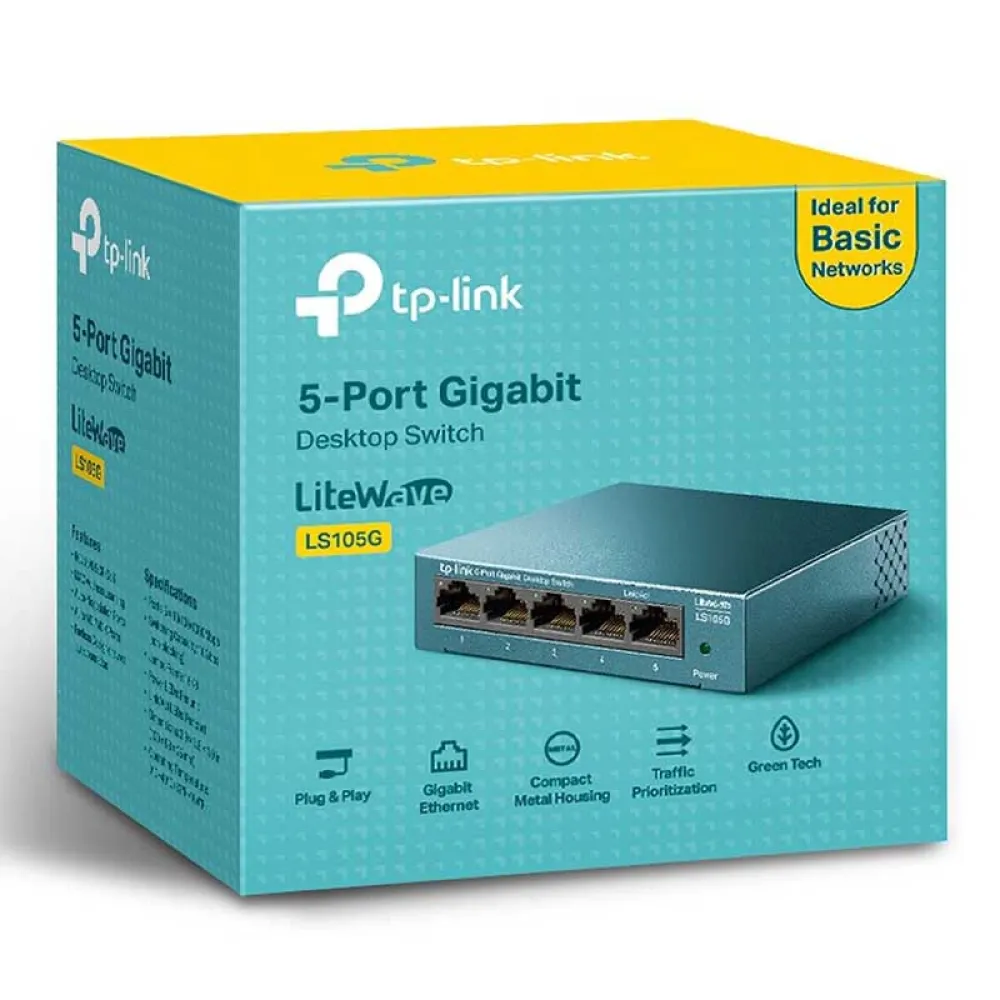

- Transfer Method:Store-And-Forward Others:- Certification:FCC, CE, RoHS Package Contents:- LS105GP.

- Power Adapter.

- Installation Guide Environment:- Operating Temperature:0-40 ℃ (32-104 ℉).

- Storage Temperature:-40-70 ℃ (-40-158 ℉).

- Operating Humidity:10-90% RH non-condensing.

- Storage Humidity:5-90% RH non-condensing.
