Tp-link LS108GP switch

EU Plug.

Features:

- Full Gigabit Ports:Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

- 62 W PoE Budget:Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable.

Up to 30 W PoE output is supported by each PoE port.

- Up to 250 m PoE Transmission:With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

- PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices.

- Plug and Play:Simply plug and play for instant connectivity with no configuration required.

- Silent Operation:Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

- Reliable Hardware Design:Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Power over Ethernet, Flexible Network Deployment:- Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 62 W with 30 W max per PoE+ port.

When total power consumption exceeds 62 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Specifications:

Hardware.

Features:

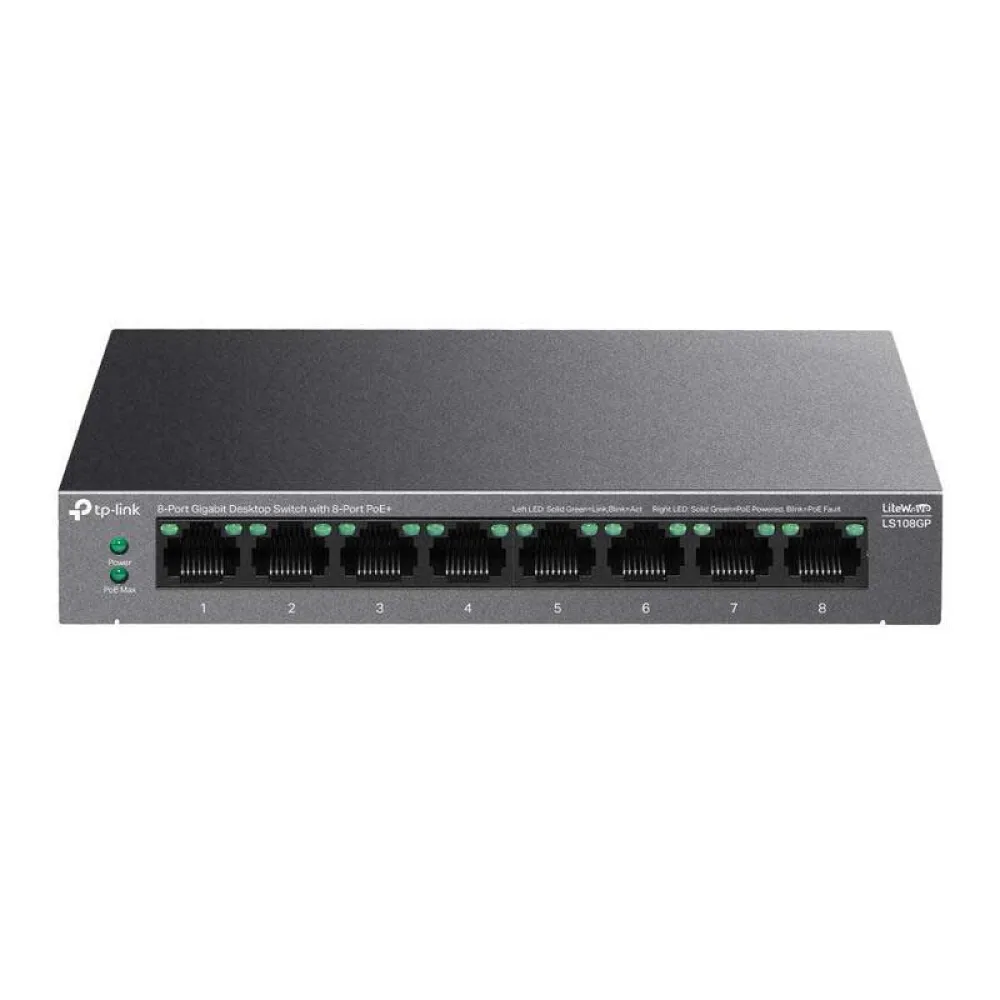

Interface:- 8× 10/100/1000Mbps RJ45 Ports (Ports 1-8 supports 802.3af/at PoE+).

- Auto Negotiation.

- Auto MDI/MDIX Network Media:- 10BASE-T:UTP category 3, 4, 5 cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- 100BASE-TX:UTP category 5, 5e cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- 1000BASE-T:UTP category 5, 5e, 6 or above cable (maximum 100m).

EIA/TIA-568 100Ω STP (maximum 100m).

- Fan Quantity:Fanless Installation:- Desktop.

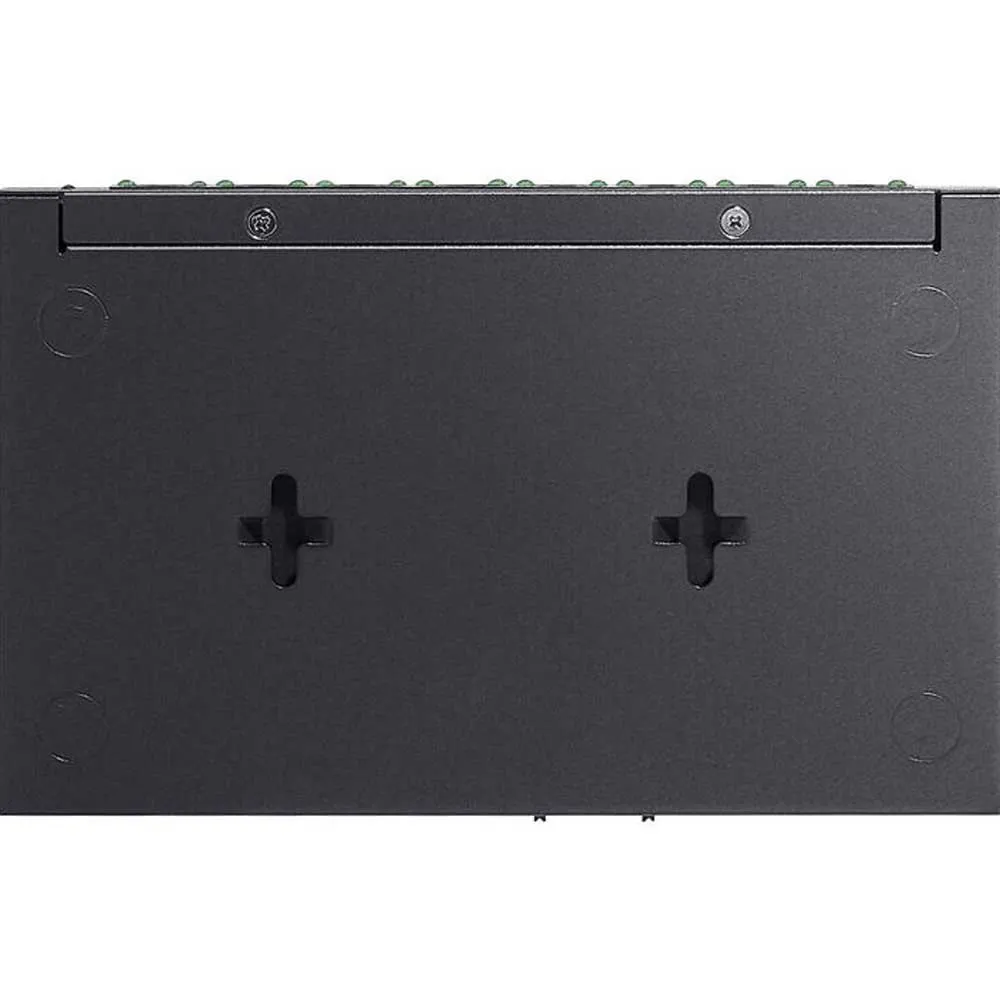

- Wall Mounting.

- Power Supply:External Power Adapter (Output:53.5 VDC / 1.31 A) PoE Ports (RJ45):- Standard:802.3 af/at compliant.

- PoE Ports:Ports 1-8, up to 30 W PoE output per port.

- PoE Budget:62 W.

- Dimensions ( W x D x H ):6.2×3.9×1.0 in (158×99×25 mm) Max Power Consumption:- 5.53 W (220 V/50 Hz.

no PD connected).

- 71.61 W (220 V/50 Hz.

with 62 W PD connected) Max Heat Dissipation:- 18.81 BTU/h (220 V/50 Hz.

no PD connected).

- 243.47 BTU/h (220 V/50 Hz.

with 62 W PD connected) Performance:- Switching Capacity:16 Gbps.

- Packet Forwarding Rate:11.9 Mpps.

- MAC Address Table:4K.

- Jumbo Frame:16 KB Software.

Features:

Advanced.

Features:

.

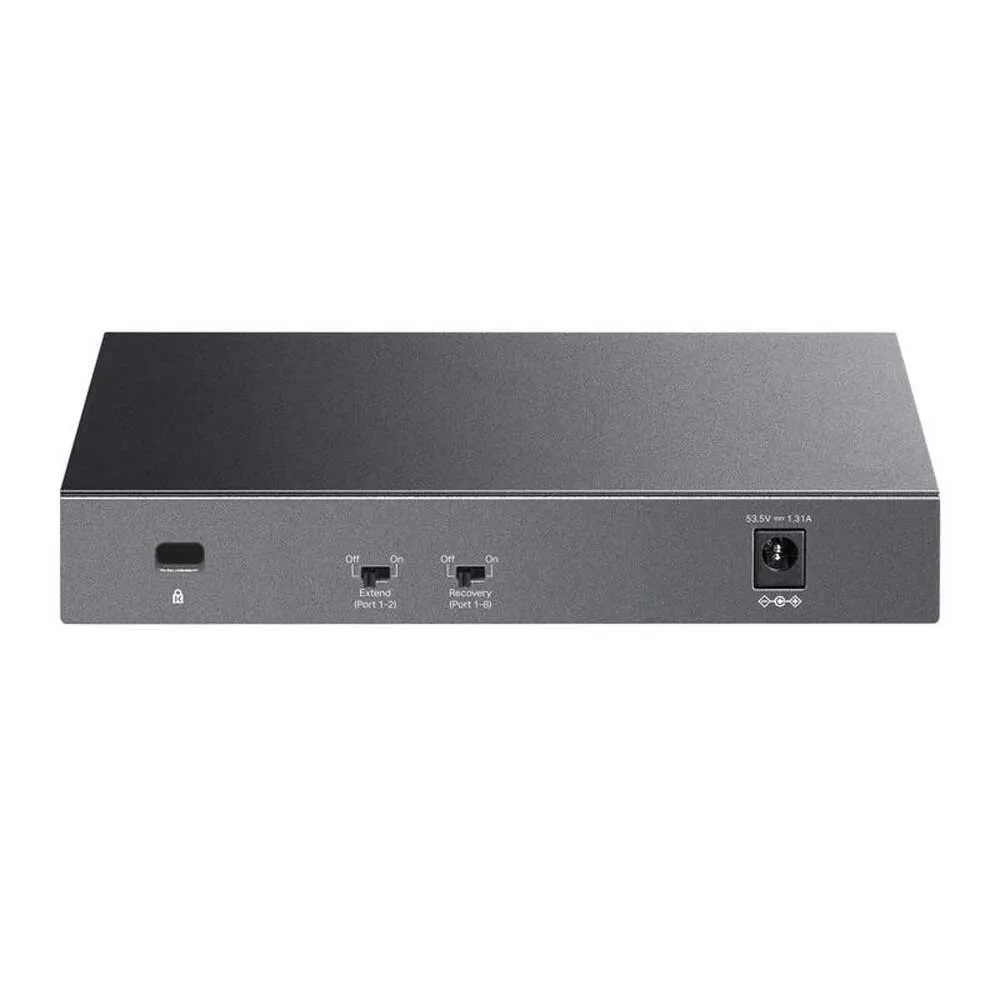

- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission).

- PoE Auto Recovery Button (Ports 1-8).

- Mac Address Auto-Learning and Auto-Aging.

- IEEE 802.3x Flow Control.

- 802.1p/DSCP QoS.

- IGMP Snooping.

- Green Technology.

- Transfer Method:Store-And-Forward Others:- Certification:FCC, CE, RoHS Package Contents:- LS108GP.

- Power Adapter.

- Installation Guide Environment:- Operating Temperature:0-40 ℃ (32-104 ℉).

- Storage Temperature:-40-70 ℃ (-40-158 ℉).

- Operating Humidity:10-90% RH non-condensing.

- Storage Humidity:5-90% RH non-condensing.
