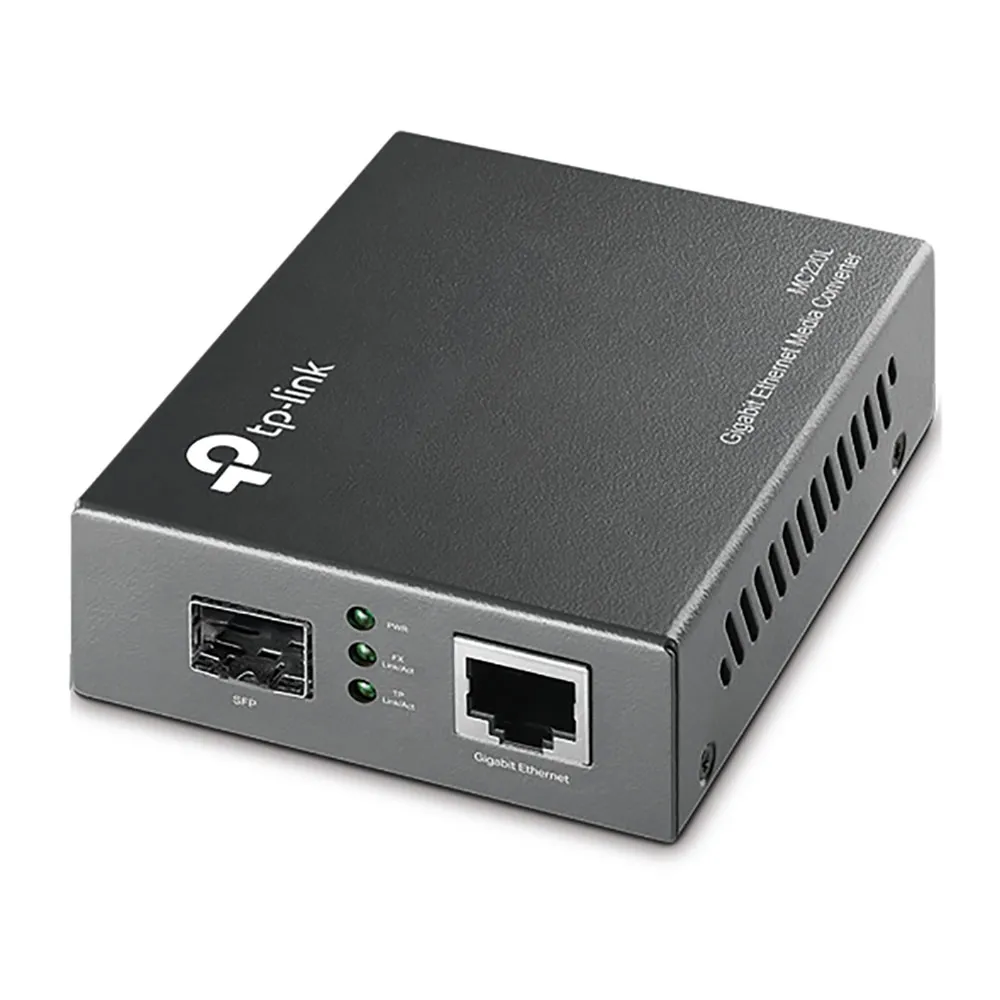

Tp-link Mc220L media converter

TP-LINK MC220L Gigabit SFP Media Converter | Extend Your Network

Seamlessly extend your high-speed network over long distances with the TP-LINK MC220L Gigabit SFP Media Converter. This robust and efficient device is the perfect solution for bridging the gap between traditional copper wiring and high-performance fiber optic cable, overcoming the distance limitations inherent in standard Ethernet networks. Ideal for connecting remote buildings, floors, or workgroups, the MC220L ensures reliable, high-speed data transmission where you need it most.

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Its plug-and-play design simplifies installation, while advanced features provide the flexibility and performance required for modern enterprise and campus networks. By converting signals, it allows you to future-proof your infrastructure and leverage the superior speed and security of fiber optics without a complete network overhaul.

Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

Key Benefits
* Extend Network Distance: Effortlessly extend your Gigabit Ethernet connection well beyond the 100-meter limit of copper cable, reaching up to 10km depending on the SFP module used.
* Flexible Fiber Connectivity: The hot-swappable SFP port provides ultimate flexibility, allowing you to use either multi-mode or single-mode fiber SFP modules to match your specific distance and budget requirements.
* Full Gigabit Speed: Maintain uncompromised network performance with a maximum data transfer rate of 1000 Mbit/s, ensuring fast and efficient file transfers, streaming, and other bandwidth-intensive applications.
* Plug-and-Play Installation: With Auto-Negotiation and Auto-MDI/MDIX on the RJ45 port, the converter automatically detects and configures for the correct link speed and cable type, making setup quick and hassle-free.
* Versatile Deployment: Use the MC220L as a compact standalone device or install it into TP-Link´s 14-slot rackmount chassis (TL-MC1400) for a centralized and managed power solution in larger network environments.

Main Features
* Converts between 1000BASE-SX/LX/LH fiber and 10/100/1000Base-T copper media.
* Features one 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX.
* The FX port is hot-swappable, supporting flexible SFP module integration.
* Auto-negotiation of Half-Duplex / Full-Duplex transfer mode.
* Complies with IEEE 802.3ab and IEEE 802.3z standards.
* Can be used as a standalone unit or with TP-Link´s chassis.

Power suppliers

The device is powered by an external power adapter and features highly efficient energy use.
* Power consumption (max): 1.7 W

Technical specifications
* Networking Standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
* Maximum Data Transfer Rate: 1000 Mbit/s
* Ethernet Interface Type: Gigabit Ethernet
* Fiber Optic Connector: SFP
* Connectivity Technology: Wired
* Fiber Mode Structure: Multi-mode, Single-mode
* Maximum Transfer Distance: 10000 m
* Product Colour: Black
* TP-Link Media conv.: 1000BASE-SX/LX/LH
