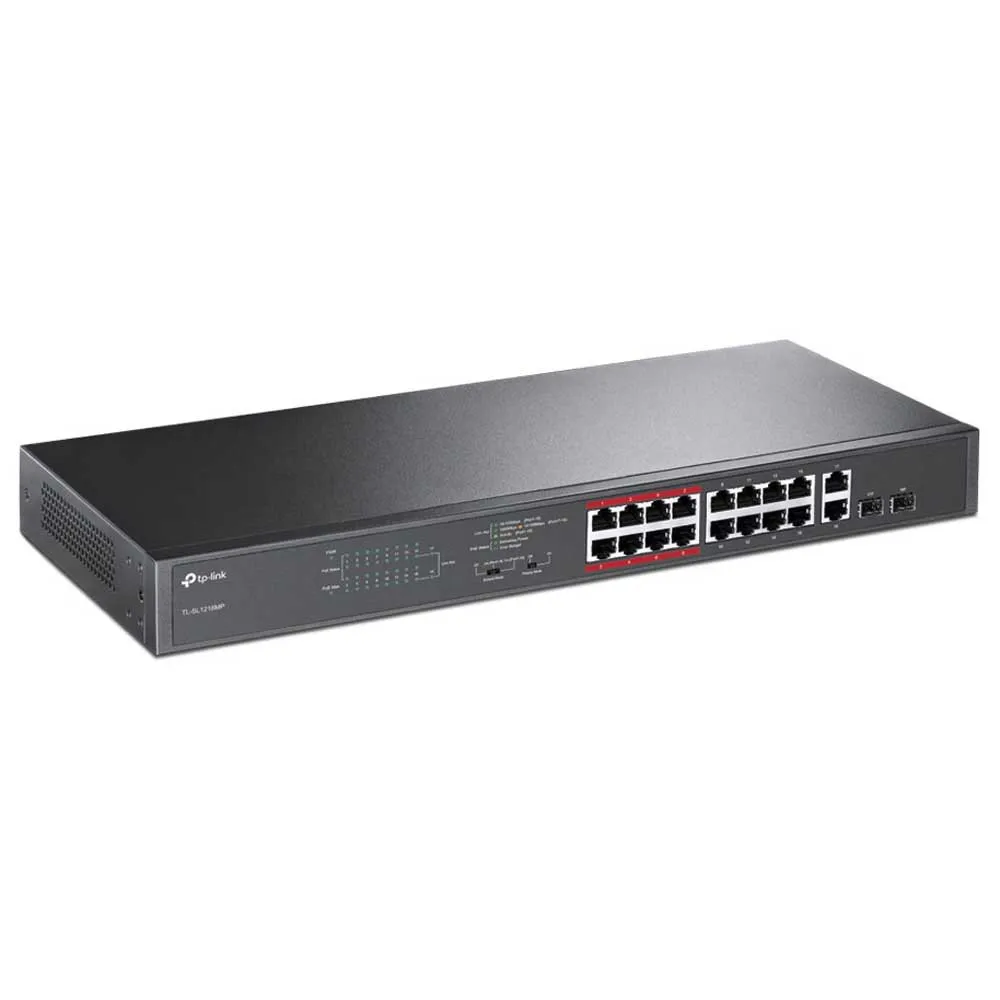

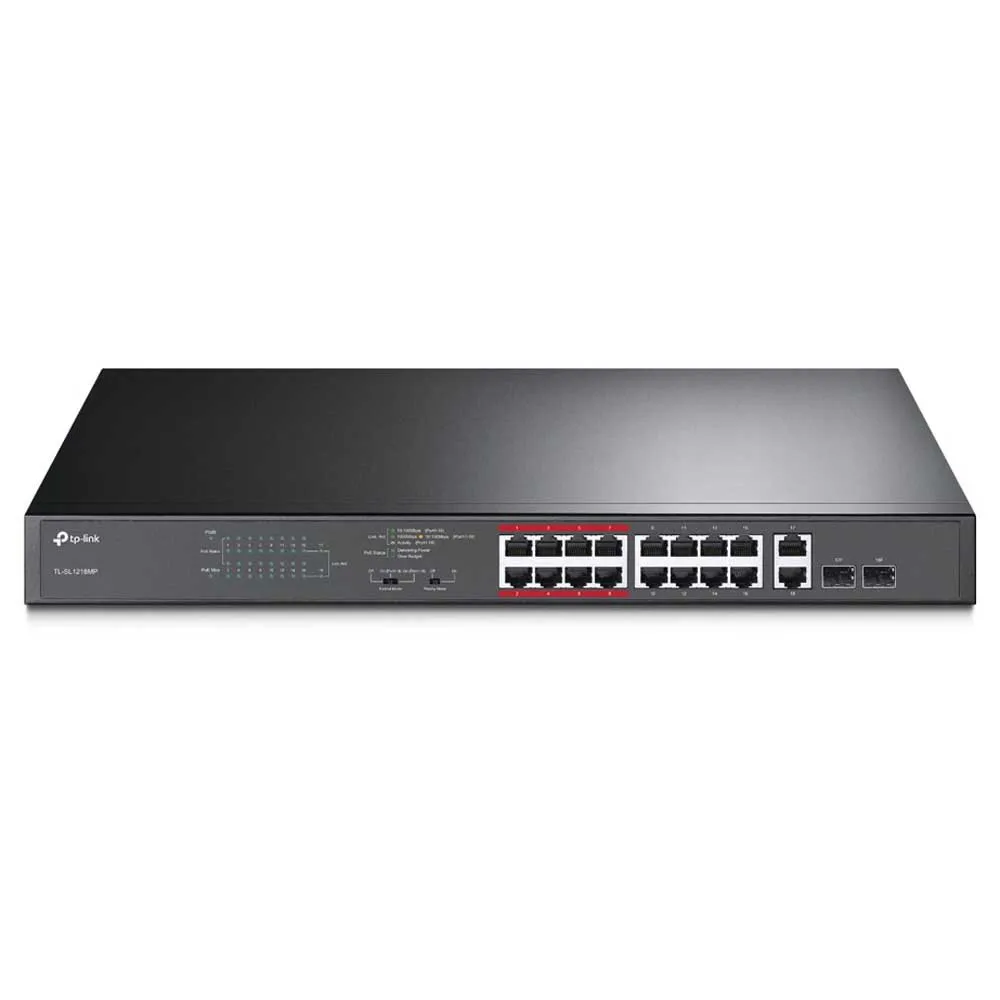

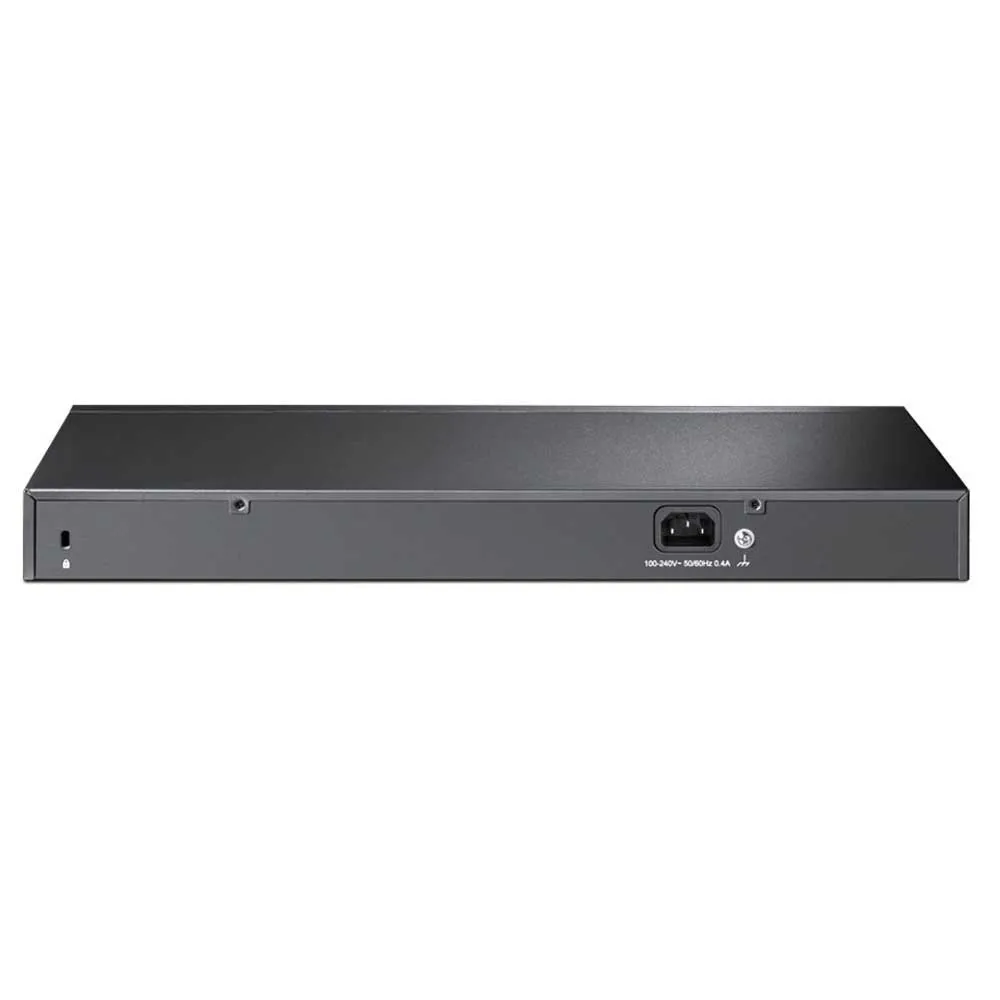

Tp-link TL-SL1218MP switch

EU Plug.

Easy-to-Use PoE Switch with Innovative Design.

Up to 250m of Data and Energy transmission for Surveillance.

High Capacity PoE.

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W of power delivered to each PoE port.

The total PoE capacity is 192W for 16 ports, making it the ideal choice for small and medium-sized businesses with surveillance systems.

Up to 250m Transmission for Surveillance.

The TL-SL1218MP is a PoE switch specially designed for IP surveillance environments.

The switch allows surveillance installation to be simpler, safer and less expensive.

Thanks to the extended mode, the PoE distance reaches up to 250m, making it ideal for deploying IP Cameras in large areas.

Video Quality Assured.

To ensure quality in sensitive applications such as video monitoring, the TL-SL12128MP offers high priority options for those ports connected to IPC.

Specifications:

-Quantity of basic RJ-45 Ethernet switching ports:20.

-Basic RJ-45 Ethernet switching type ports:Gigabit Ethernet (10/100/1000).

-SFP Combo Number of ports:2.

-Gigabit Ethernet (copper), number of ports:2.

-Number of Fast Ethernet ports (copper):16.

-Width:440 mm.

-Depth:180 mm.

-Height:44 mm.

-Power supply included:Yes.

-AC input voltage:100 -240 V.

-AC input frequency:50 -60 Hz.

-Energy consumption:18.7 W.

-Operating temperature range:0 -40 °C.

-Relative operating humidity:10 -90%.

-Storage temperature range:-40 -70 °C.

-Storage relative humidity:5 -90%.

-Heat dissipation:741.15 BTU/h.

-Network standards:IEEE 802.3af, IEEE 802.3at.

-Support 10G:No.

-Auto MDI / MDI-X:Yes.

-Copper Ethernet cabling.

Technology:10BASE-T,100BASE-TX,1000BASE-T.

-Flow control support:Yes.

-MAC address table:8000 entries.

-Jumbo Frames, support:Yes.

-Switching capacity:7.2 Gbit/s.

-Jumbo Frames:10.

-Save and forward:Yes.

-Package buffer:4.1 MB.

-Packet redirection speed (1 Gbps):5.36 pps.

-Cables included:LAN (RJ-45).

-Package weight:2.96 kg.

-User manual:Yes.

-Packing type:Box.

-Package width:528 mm.

-Package depth:250 mm.

-Package height:80 mm.

-MAC, address filter:Yes.

-Switch type:Unmanaged.

-Rack mounting:Yes.

-Product color:Black.

-LED indicators:LAN, PoE, Status.

-Number of fans:2 Fan(s).

Certification:RoHS, FCC.

-Stackable:No.

-PoE:Yes.

-Power over Ethernet (PoE) Budget:192 W.

-Number of Power over Ethernet (PoE) ports:1.
