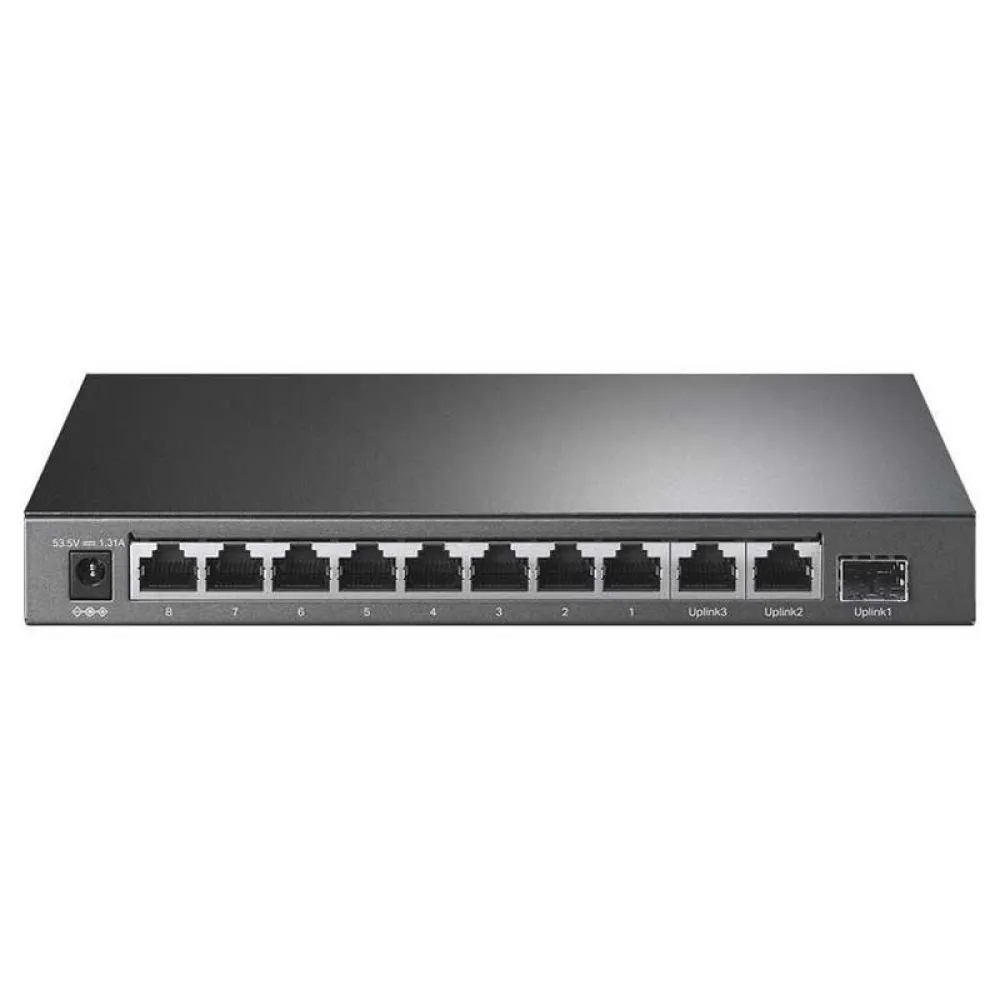

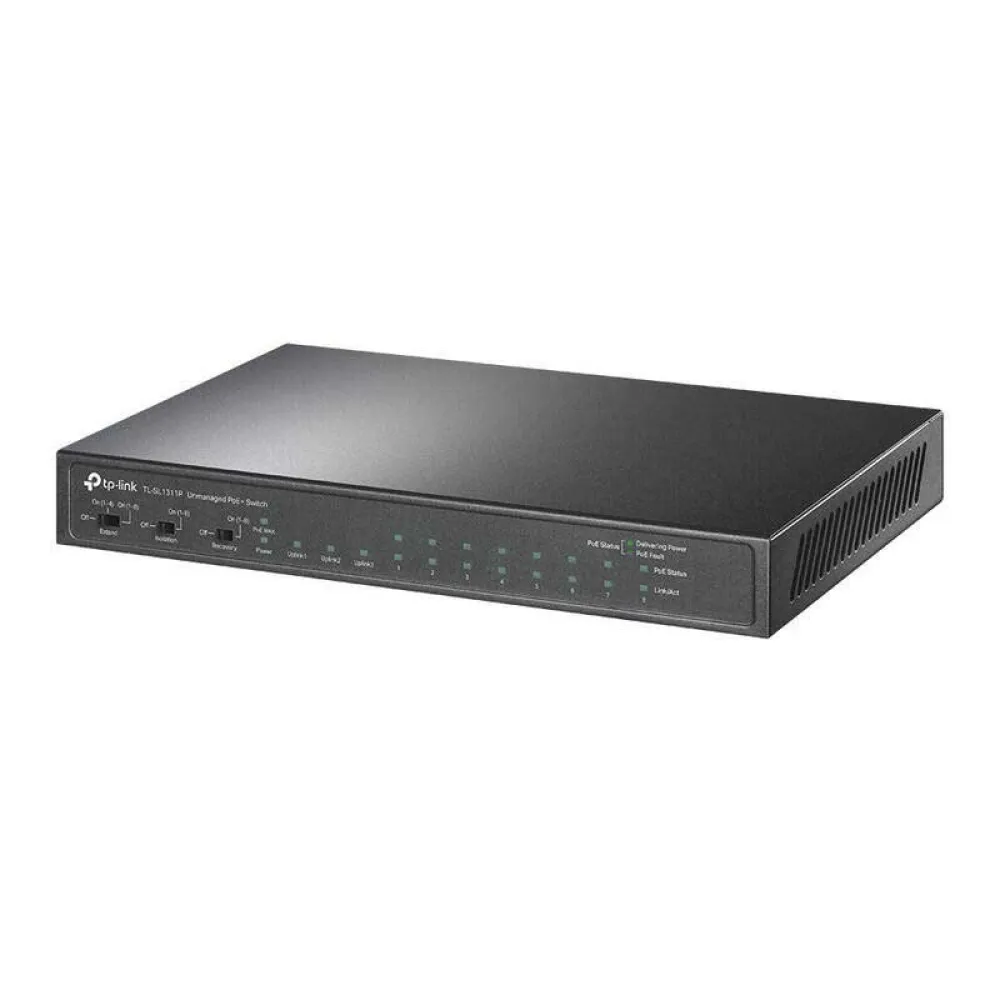

Tp-link TL-SL1311P switch

EU Plug.

Brand:tp link.

Model:tl-sl1311p.

Interfaces -.

8 ports.

Rj45 to 10/100 mbps.

Ports.

-2 x port 1000 mbps rj45 ports.

-1 x port 1000mbps sfp slot.

-ieee 802.

3i.

-ieee 802.

3u.

-ieee 802.

3x.

-ieee 802.

3af.

-ieee 802.

3at.

-ieee 802.

3z.

Features:

-network media (cable):10base-t:utp cable category 3, 4, 5 (maximum 100 m).

Eia/tia-568 100 ω stp (maximum 100 m).

100base-tx:utp category 5, 5e cable (maximum 100 m).

Eia/tia-568 100 ω stp (maximum 100 m).

-poe.

Poe standard:ieee 802.

3af, ieee 802.

3at.

Puerto poe 1-8, up to 30 w per port.

Poe 65 w energy budget.

-auto -negotione yes.

-auto mdi/mdix.

-power power in rj45:power+:pin 3 and pin 6.

Power-:pin 1 and pin 2.

-maximum energy consumption:5.

61 w (220 v/50 hz.

Without connected pd).

77.

32 w (110 v/50 hz.

With 65 w pd connected).

-maximum heat dissipation:19,13 btu/h (without pd connected).

263.

7 btu/h (with 65 w pd connected).

-relendum mode:store and forward.

-switch capacity:7.

6 gbps.

-mac addresses table:2k, automatic learning, automatic aging.

-extended mode.

-isolation mode.

-poe´s automatic recovery.

-flow control.

-without fan.

-certifications:ce, fcc.

-dimensions:209 x 126 x 26mm.
