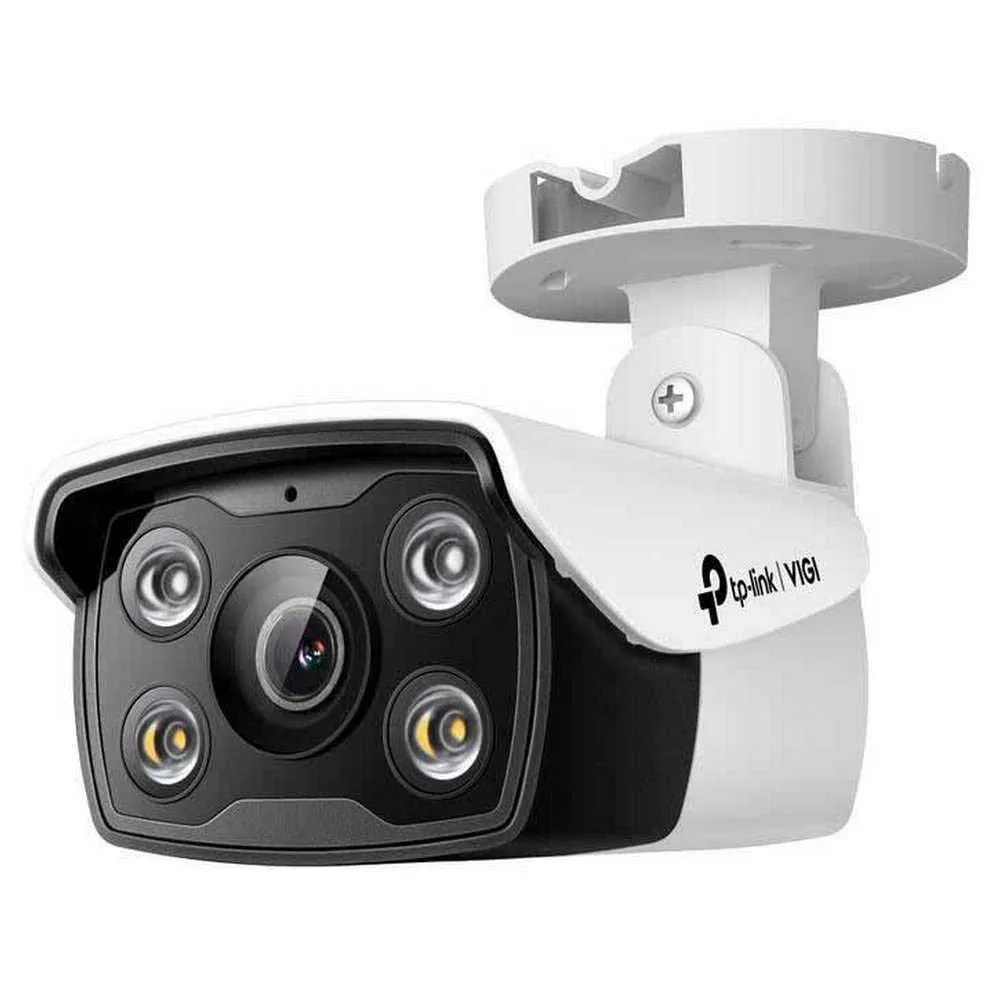

Tp-link VIGI C3402 8 mm security camera

Smart Video Surveillance that Connects with your Business 24/7.

4 MP outdoor full color VIGI bullet IP camera.

Full color night vision.

The VIGI C340 camera is equipped with a high-resolution sensor and fill light, capturing more colors.

In addition, it records videos with a resolution of 4MP, so you can see images full of details.

Classification of people and vehicles.

Integrated AI chips use advanced algorithms to distinguish humans and vehicles from other objects.

You can easily customize alarm rules based on security needs, and receive accurate notifications of events.

We monitor your businessSmart detection.

Thanks to the built-in AI algorithms, the VIGI camera performs more effective detection.

Receive notifications when someone accesses restricted areas, covers the camera, and when objects are removed or abandoned.

Two-way audio.

Allows communication through the integrated microphone and speaker.

The built-in microphone allows you to monitor the audio in your environment, both for security functions and to establish communication with people located in proximity to the speaker.

Remote monitoring.

Allows communication through the integrated microphone and speaker.

Additionally, you can receive notifications and check sources when someone crosses a boundary, enters an area you´ve set, obstructs the camera, or removes/abandons objects.

Images with all the detailsSmartVid intelligent video enhancement.

The different technologies integrated into the VIGI video surveillance camera, such as Smart IR, WDR (Wide Dynamic Range), 3D DNR and Night Vision, process the videos to improve their quality and facilitate their subsequent viewing.

H265+ video.

Same video quality in less space.

Without the need to contract additional bandwidth, VIGI cameras transmit compressed videos to save storage space, lighten network loads and reduce monitoring costs without sacrificing image quality.

Simplified deployment with PoE.

Easily connect and power your PoE camera with an RJ45 cable that transmits both data and power.

No power adapter needed.

VIGI works well even in harsh environments with rain and dust.

Flexible Management.

Take full control of your security through three management methods:NVR UI, VIGI App and VIGI Security Manager.

In addition, you can save the videos on a microSD card of up to 256 GB.

Flexible installation anywhere.

Select the installation location that protects your business.

The camera includes everything needed to securely mount it to ceilings, walls and poles.

A complete security system Run your business with peace of mind.

TP-Link´s VIGI professional video surveillance system protects your business 24/7 anywhere.

Advanced quality-assured features and easy installation protect your business at all times.

Specifications:-Bit transfer speed range:0 -64 Kbit/s.

-Built-in speakers:Yes.

-Audio system:2-way.

-Built-in microphone:Yes.

-Audio input channels:1.

-Audio output channels:1 channel.

-Sampling frequency:8 kHz.

-Signal-to-noise ratio (SNR):52 dB.

-DC-in jack:Yes.

-Ethernet LAN ports (RJ-45):1.

-Observation distance:27 m.

-Recognition distance:13 m.

-Identification distance:6 m.

-Fixed focal length:2.8 mm.

-Number of lenses:1.

-Detection distance:64 m.

-Width:174 mm.

-Height:70 mm.

-Weight:280 g.

-Packing type:Box.

-Package weight:420 g.

-Length:78 mm.

-Power:DC, PoE.

-Energy consumption:3.4 W.

-DC output voltage:12.

-Power consumption (max):7 W.

-Operating temperature range:-30 -60 °C.

-Storage temperature range:-40 -60 °C.

-Relative operating humidity:0 -95%.

-Storage relative humidity:0 -95%.

-Sustainability certificates:BSMI, CE, KC.

-Sustainability compliance:Yes.

-Number of simultaneous live viewing channels:3 channels.

-Live view:Yes.

-Ethernet:Yes.

-Wifi:No.

-Network standards:IEEE 802.3af, IEEE 802.3at.

-Supported network protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS.

-Bluetooth:No.

-3D Positioning:Yes.

-Bit rate control:Constant Bit Rate (CBR)/Variable Bit Rate (VBR).

-Maximum resolution:2560 x 1440 Pixels.

-Video compression formats:H.264, H.264+, H.265, H.265+.

-Frame rate:30 pps.

-Privacy mask:Yes.

-Digital Wide Dynamic Range (DWDR):Yes.

-Total megapixels:4 Mpx.

-Supported graphic formats:1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440.

-Backlight compensation (BLC):Yes.

-Image quality adjustment:Brightness, Contrast, Mirror, Saturation.

-Smart IR:Yes.

-Bit rate:256 Kbps -4 Mbps.

-Highlight compensation (HLC):Yes.

-Coding of regions of interest (ROI):Yes.

-Integrated card reading:Yes.

-Compatible memory cards:MicroSD (TransFlash).

-Maximum memory card size:256 GB.

-Built-in HDD:No.

-Network Attached Storage (NAS):Yes.

-Automatic Network Replenishment (ANR, Automatic Network Replenishment):Yes.

-Video motion detection:Yes.

-Password protection:Yes.

-IP address filter:Yes.

-HTTPS encryption:Yes.

-Optical sensor size:25.4 / 3 mm (1 / 3´´).

-Sensor type:CMOS.

-Number of sensors:1.

-Progressive scanning:Yes.

-Restore button:Yes.

-Web browser:Yes.

-Number of privacy masking zones:4.

-Viewing angle of the lens, horizontal:102°.

-Viewing angle of the lens, vertical:55°.

-Lens viewing angle, diagonal:122°.

-Inclination angle:-90 -90°.

-Tray reach:-90 -90°.

-Minimum illumination:0.005 lx.

-Shutter speed:1/3 -1/10000 s.

-Number of cameras:1.

-Mounting kit:Yes.

-User manual:Yes.

-Product color:Black, White.

-Form factor:Bullet.

-Mounting Type:Ceiling/Wall/Pole.

-IP Code (International Protection):IP66.

-LED indicators:Yes.

-Housing material:Plastic.

-Night vision:Yes.

-Night vision distance:30 m.

-LED type:IR.

-Infrared wavelength:850 nm.

-Number of lighting LEDs:2.

-Type:IP security camera.

-Supported Placement:Outdoor.

-Connectivity.

Technology:Cable.

-Day/night mode:Yes.
