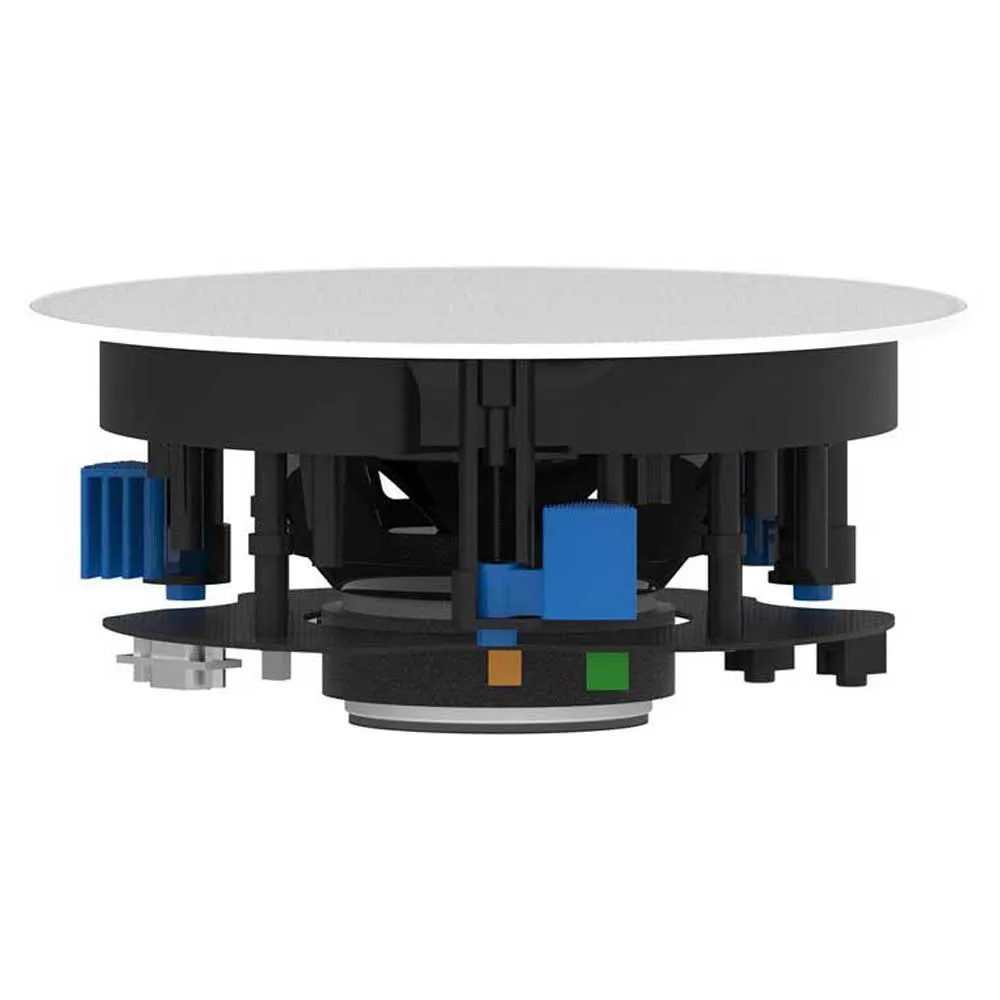

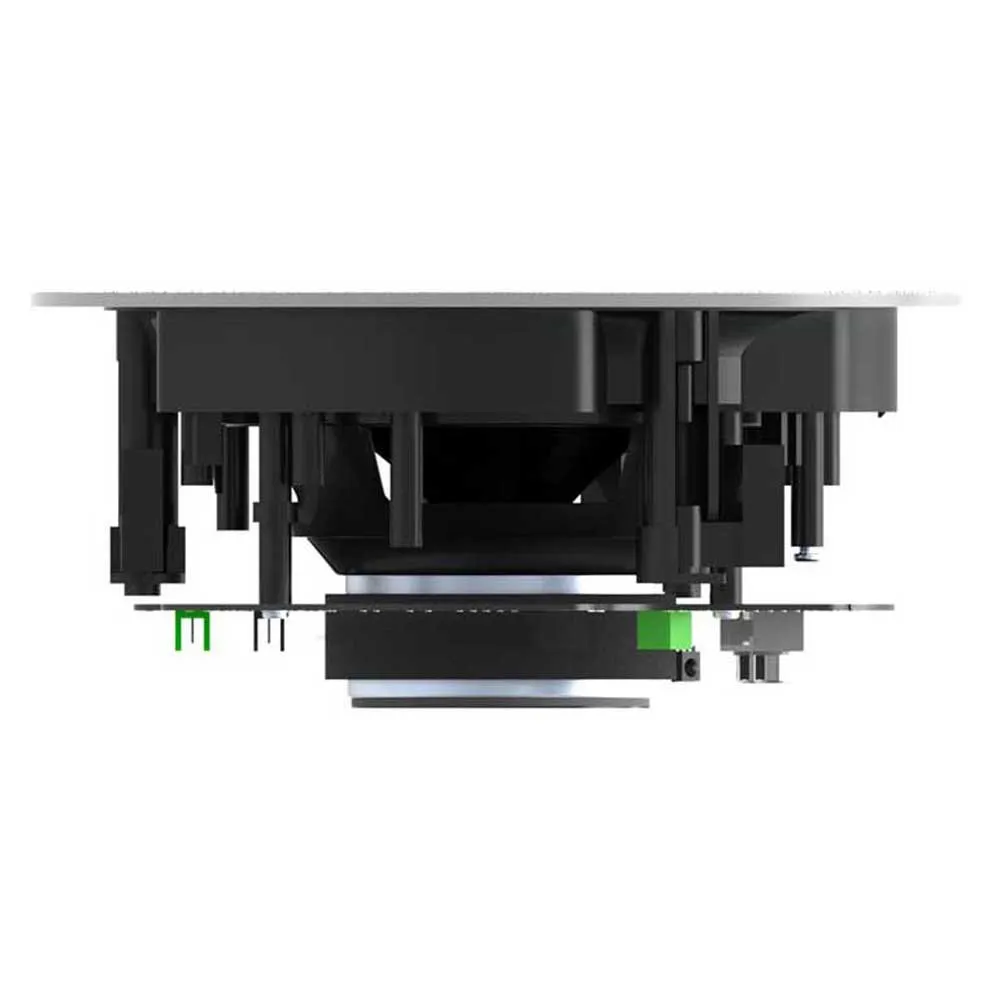

Vision CS-1900P 6.5´´ Ceiling Speaker

EU Plug.

The CS-1900P are based on Vision´s passive ceiling loudspeakers but have a powerful 70 watt amplifier built in.

Easy to use and virtually invisible, these professional-grade loudspeakers are ideal for meeting spaces that can be divided, or at home.

Bluetooth:- Easy to connect to.

Bluetooth can be disabled via the remote control or RS-232.

Rename Bluetooth, Set Pin:- Connect via USB and run software (see downloads tab) to rename and set the pin.

The speakers stores the details for up.

- to eight paired devices.

Even if you change the PIN these eight devices will still connect without needing the new pin.

When you pair a 9th device the 1st device will need to enter the password again to connect.

Auto-Switching:- Choose to change to the Bluetooth input automatically when a device is paired, or manually switch.

Remote Control:- An included IR remote control gives the user full control, including bass and treble adjustment.

IR Front and Rear:- Switch between the front IR receiver, or the rear IR receiver if using a wired control system, or off.

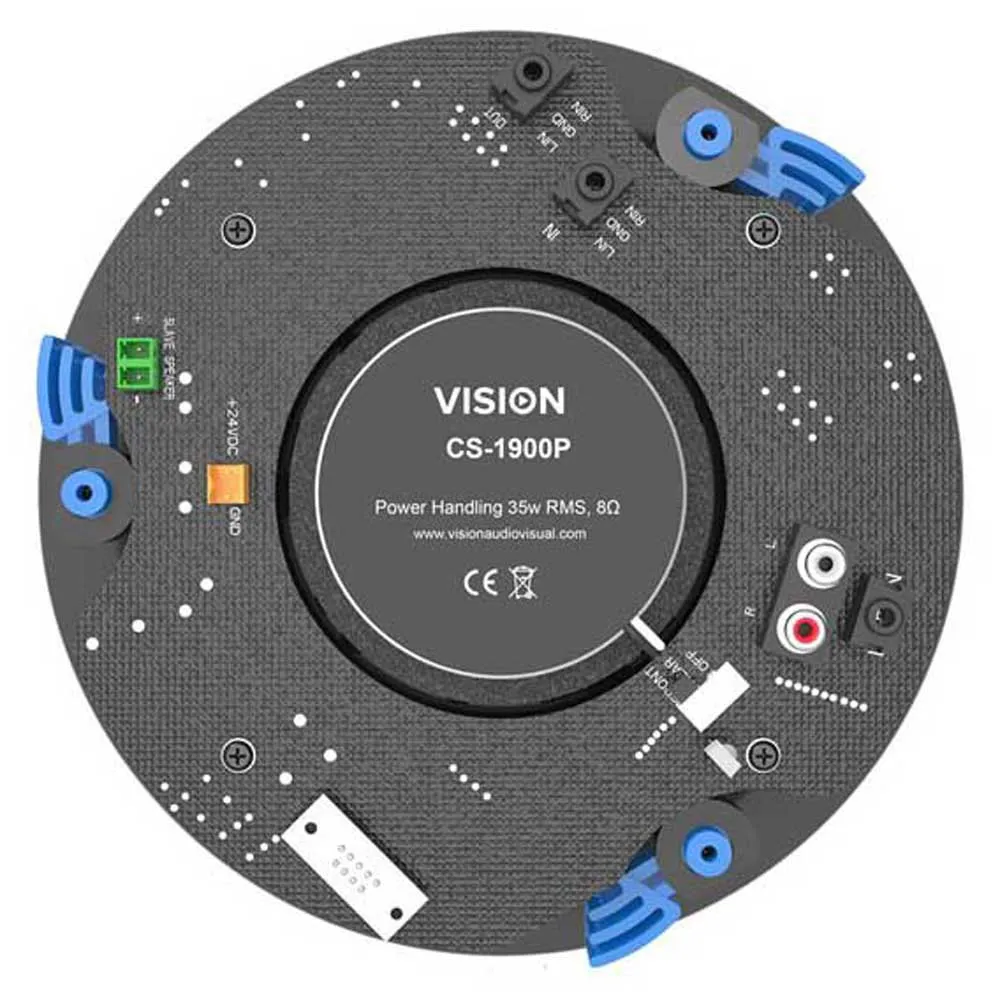

Master/Slave:- The amplifier is housed in the ''master´´ loudspeaker which has the connection panel, and a speaker output connects to the included passive ''slave´´ loudspeaker.

Daisy-Chain:- If you require two pairs for the room an audio output allows you to pass the audio signal on to a second pair of CS-1900P.

In fact you can daisy-chain as many pairs as you need using this line-level audio output.

RS-232:- For integration into a controlled audio-visual environment they can be controlled with RS-232 (serial) codes.

Vision´s Techconnect Control can be used to control them.

Memory:- When power is turned on at the wall the CS-1900P automatically turn on and resumes the previous input and volume setting.

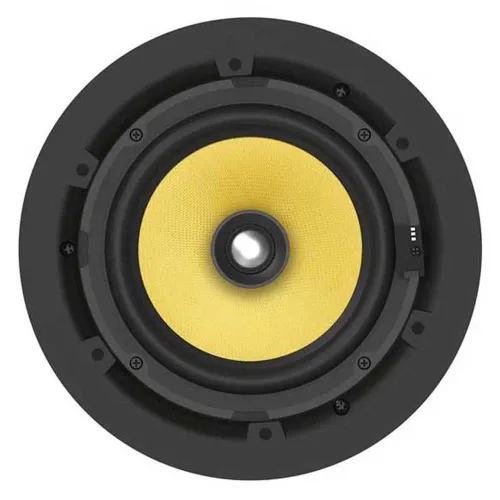

2-Way with Kevlar Driver:- Two-way woofer and tweeter design with quality materials and a passive cross-over for superior audio.

Auto-Standby:- If the amplifier senses no input for ten minutes it will automatically go into standby mode.

Bluetooth device NOT PAIRED when it goes into standby:they will wake up when you pair a device or play audio though the line-level input.Bluetooth device PAIRED when it goes into standby:if the BT input was selected only the Bluetooth source will wake them up.

If the line-level input was selected only a line-level input will wake them up.

Automatic standby can be disabled with the remote control.

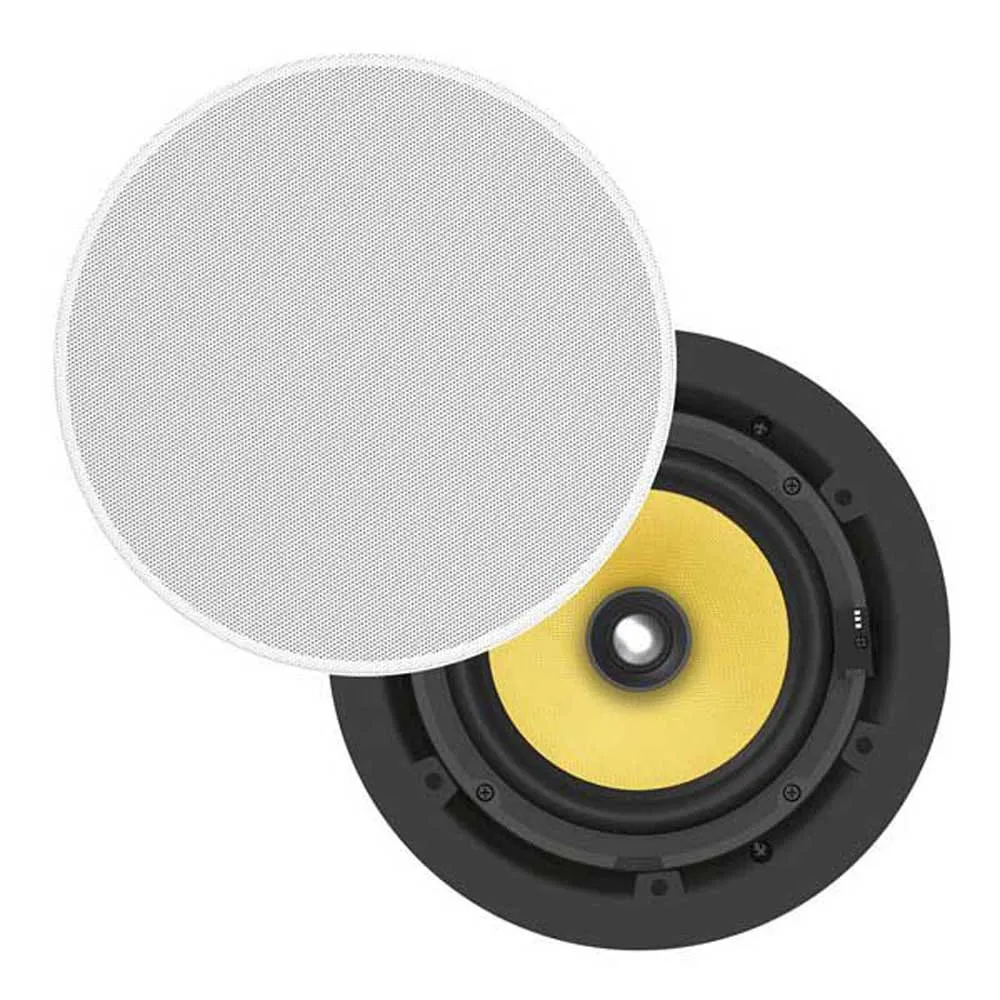

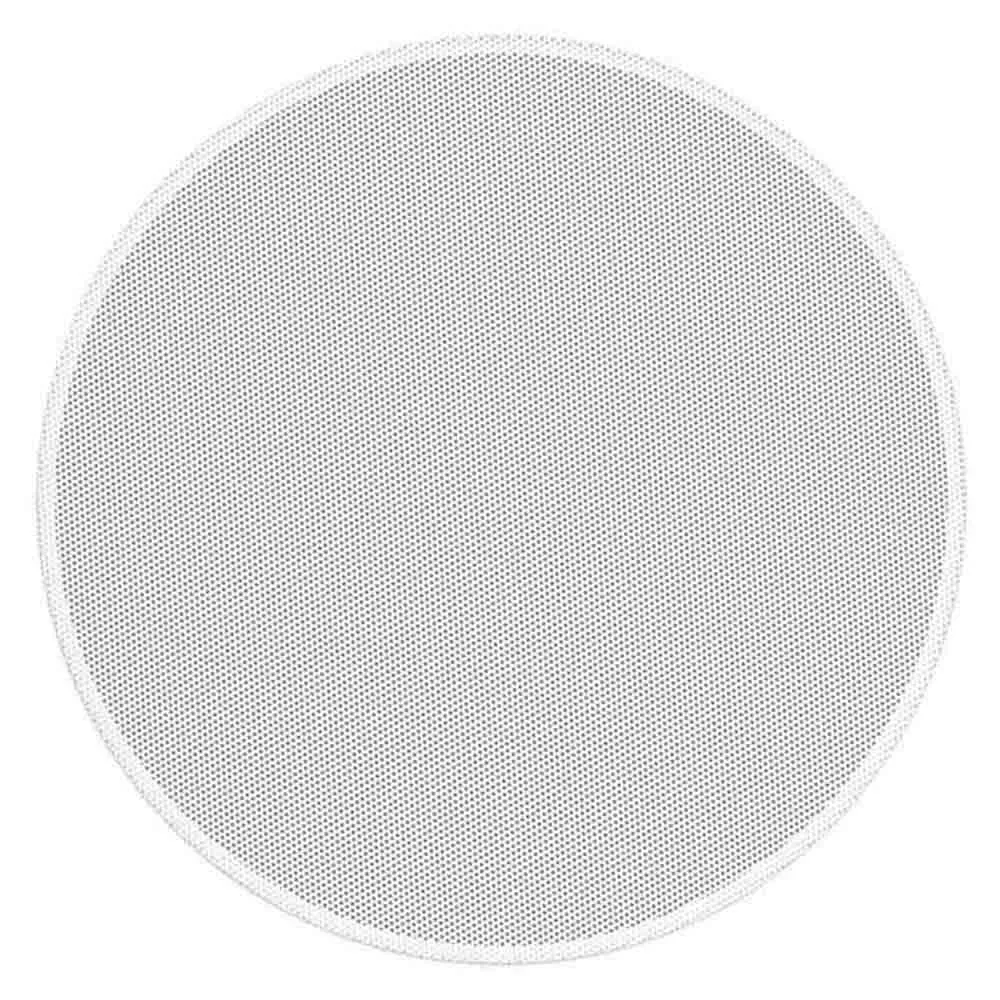

Magnetic Grille:- The bezel-less grille clips into place once the speakers are secured.

Simple to fit:- A cutout template is included so the installer can easily trace the cut line in the ceiling tile.

Cut a 198 mm hole and fit the speaker.

it´s quick and easy.

Features:

- Integrated 2 x 35 watt (RMS) amplifier.

- 1 x wired input / 1 x Bluetooth input.

- Switches between stand alone or daisy-chain mode.

- IR remote included.

- BT can be disabled.

Specifications:

- Loudspeaker Dimensions:232 X 95 Mm (diameter 224 Mm Without Grille).

- Cutout Size:198 Mm.

- Carton Dimensions:253 X 253 X 273 Mm.

- Speaker Weight Master:1.3 Kg.

- Speaker Weight Slave:1.2 Kg.

- Carton Weight:4.0 Kg (per Pair).

- Construction Material:Plastic (abs).

- Amplifier Output:2 X 35 Watts (rms).

- Woofer:6.5″ Kevlar.

- Tweeter:0.5″ Silk.

- Output Impedance:8 Ohms.

- Sensitivity:89 Db (1w/1m).

- Frequency Response:80 Hz-20 Khz.

- Power Consumption:≤ 70 W.

- Line-level Input:1 X 2-phono And 1 X 3.5mm Minijack (summed).

- Speaker Output:Phoenix Connector.

- Daisy-chain Input:3.5mm Minijack.

- Daisy-chain Output:3.5mm Minijack Speaker Input:- Phoenix Connector Accessories Included:- 1 X Speaker Cable 5 M Long.

- 1 X Remote Control (battery Included:Cr2025 3v Li-mn).

- Power Supply:100-240v 50/60hz Ac External Power Supply - 24 Volt / 3 Amp.

- Dc Tail Length:1.5m.

- Transformer Dimensions:120 X 52 X 32 Mm.
