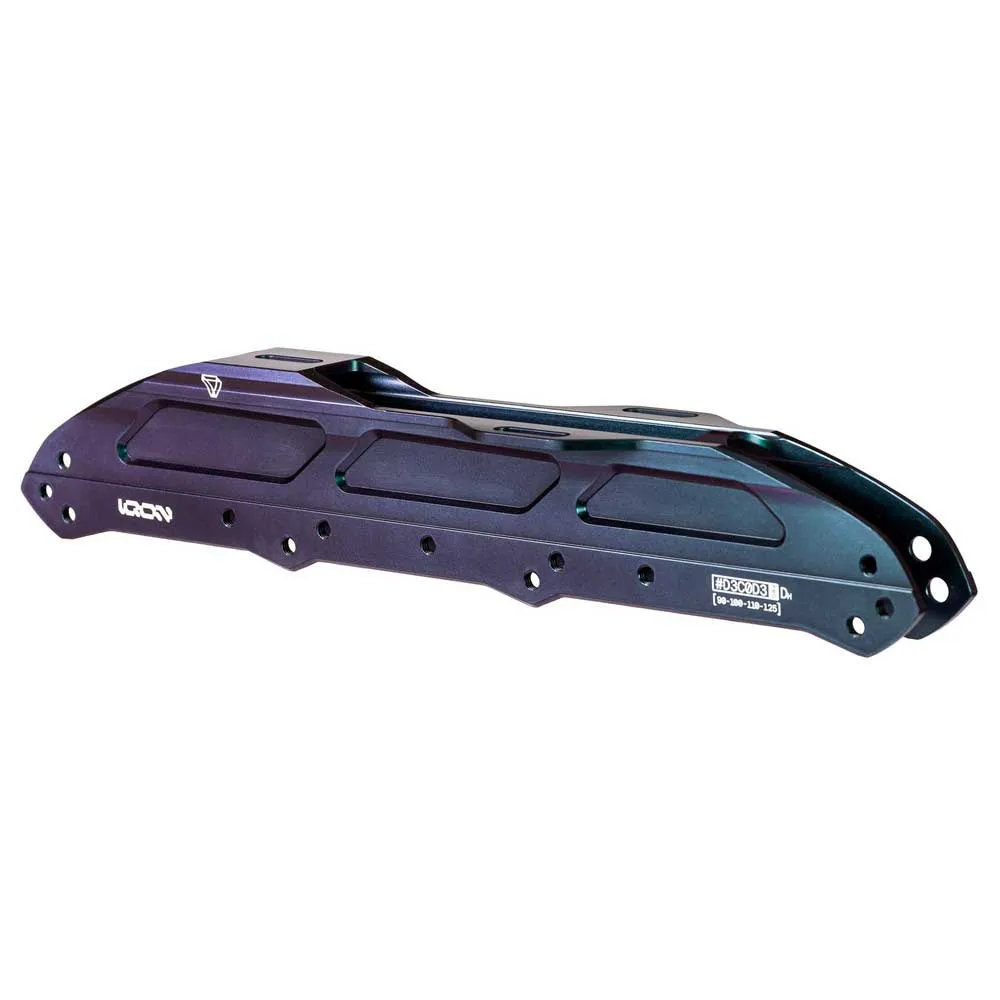

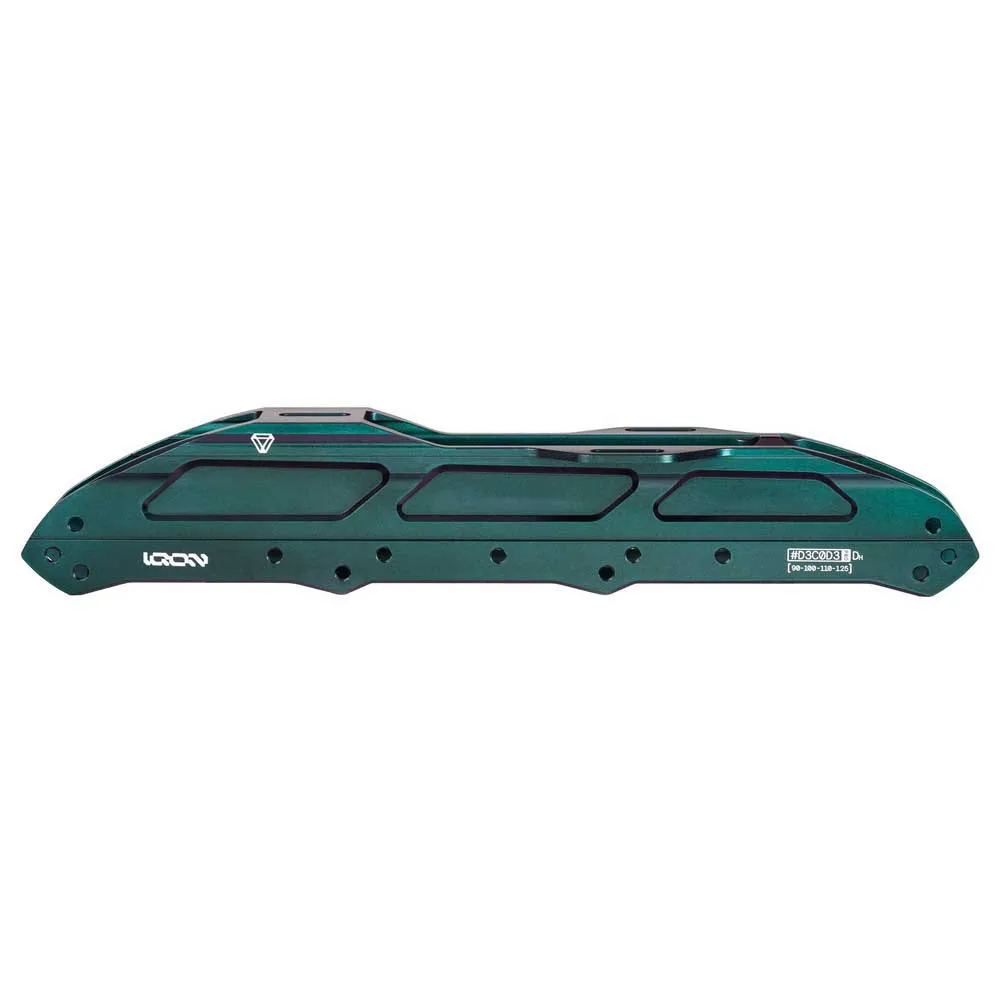

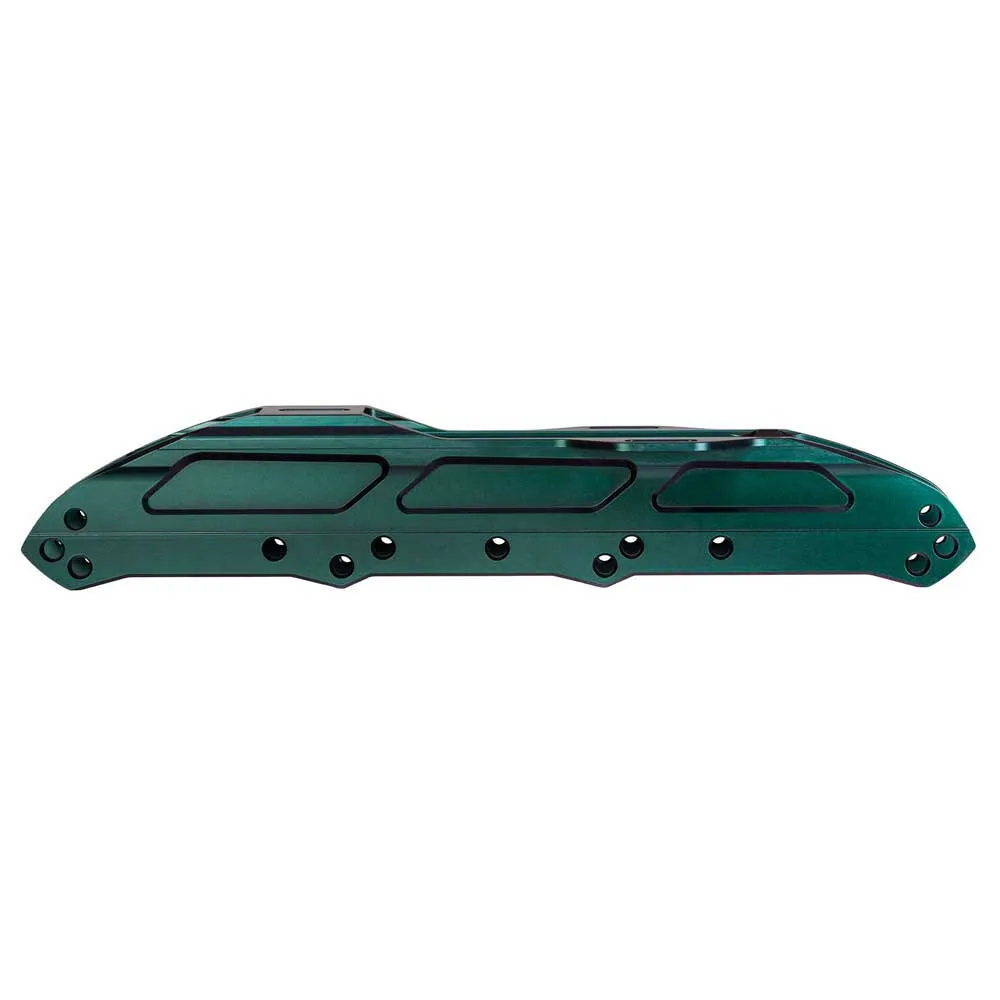

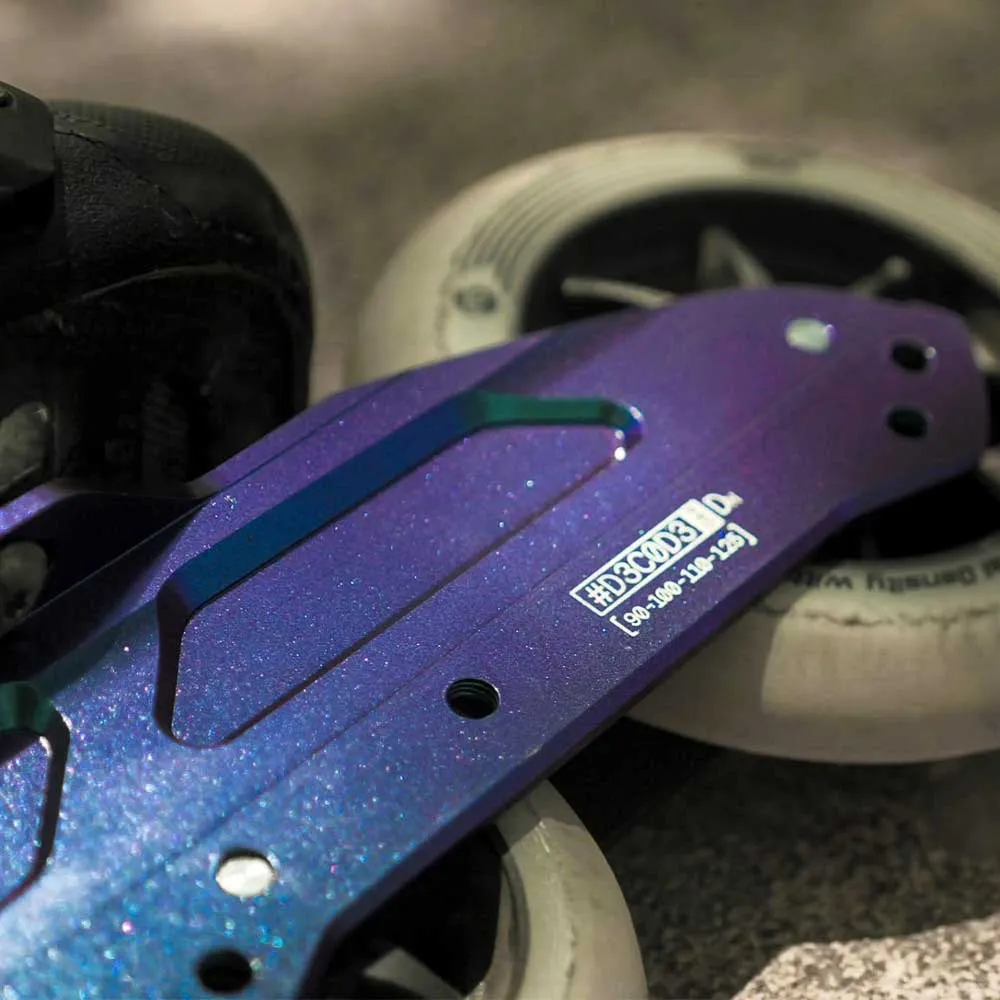

Iqon Tr decode dh Inline Skates Frame

In inline downhill everything changes depending on the track: some tracks require more slides, more turns, others more lines and top speed- So there’s no single ideal frame- We´ve optimized and combined the four most popular setups into a single versatile frame- The DECODE DH Trinity frame is truly the Swiss Army knife of downhill inline skating.

Versatile 4-in-1 setups:
- 5x90mm: The classic downhill setup. Easy slides, quick turns, low and maximum freeride fun. The only Trinity 5x90 frame available.
- 125-100-100-125mm: New concept and tested as the perfect racing balance on most tracks. Long, extremely low profile (as low as a traditional trinity 4x100), offering outstanding momentum.
- 125-110-110-125mm: Powerslide´s famous DH350 configuration, slightly longer, designed for larger feet and unbeatable top speeds.
- 4x110mm: Also, a very popular setup- With a gap between 1st and 2nd wheels to improve grip. Ideal as an alternative setup using identical wheels.

Easy & Quick Wheel Changes:
- Wheels are mounted from the inside of the frame, allowing rapid wheel changes without removing skates- Critical for lightning-fast pit stops during races- With this frame you will have no problem using any leftover downhill wheels.

Enhanced Stability & Customization:
- All setups are slightly shifted backward, offering better stability in tuck positions and smoother slide initiation- However, you have full freedom to adjust the frame position thanks to elongated mounting rails, longer than standard Trinity frames.

Specifications:

- Sizes: 378mm
- Frame Material: AL 7003 aircraft
- Frame Mounting Standard: Trinity 3-point mounting
- Max. Wheel Size: 125mm, 110mm, 90mm (check product description)
- Frame Wheel Base (Inch / MM): 378mm
- Frame Setup: 5x90mm, 4x110mm, 2x125mm/2x110mm, 2x125mm/2x100mm (check product description)
- Standing Height Front / Rear in MM: 64mm / 75mm
- Frame Axles: Single axle AL 7075, 8mm, Torx T25, L=35mm
- Adjustable Side to Side: Yes
- Adjustable Front to Back: Yes
- Frame Construction: Single void
- Frame Manufacturing Process: Extruded and CNC machining

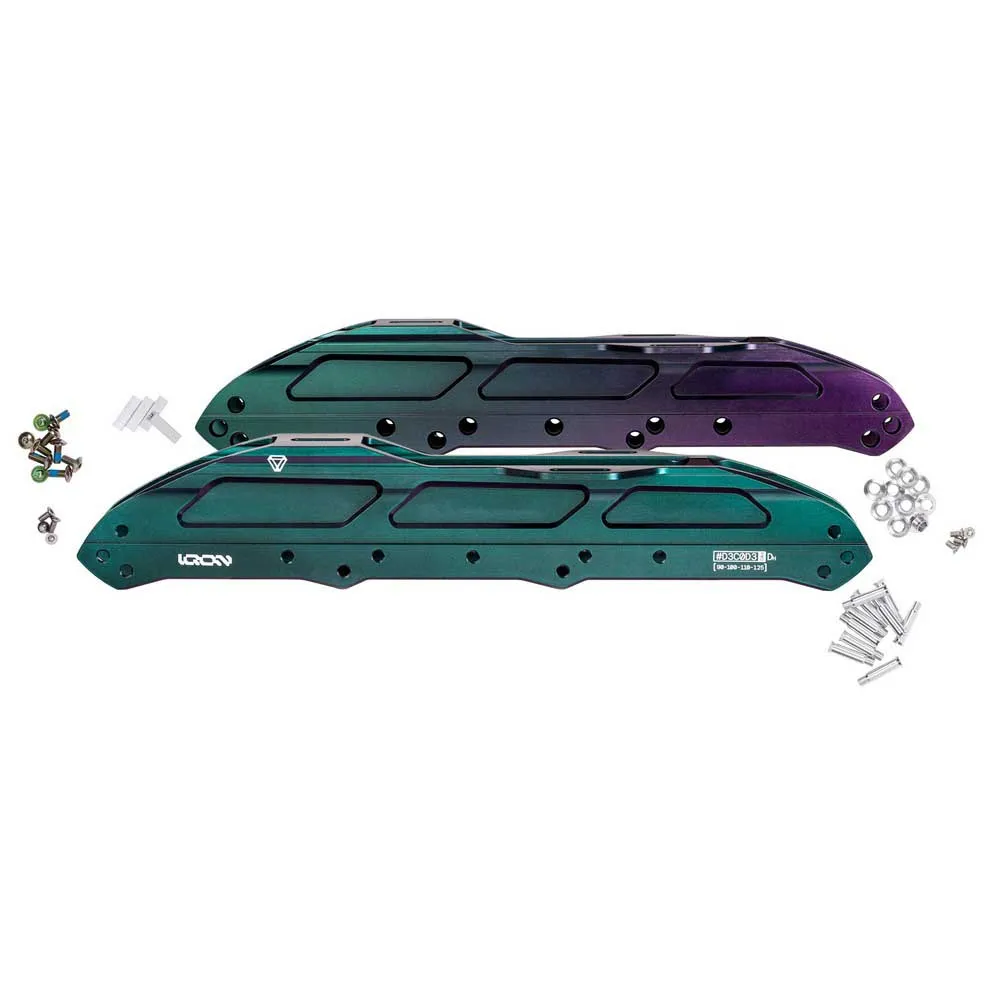

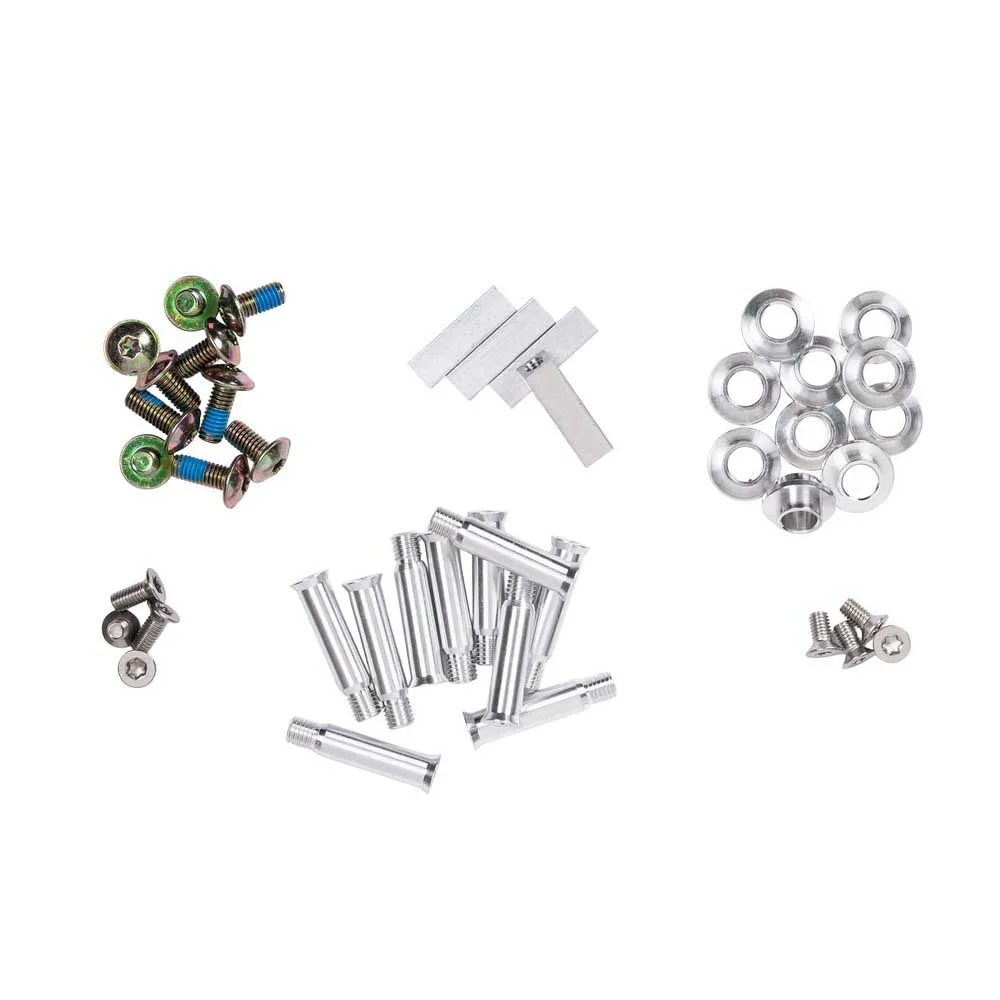

- Included Accessories: AL spacer, 6 washers 1mm thick, 6 screws 10mm, 6 screws 12mm, 6 screws 15mm, 1 IQON tool Torx T25
