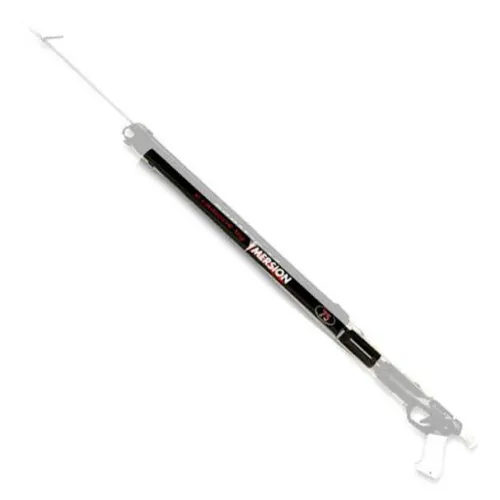

Imersion Barrel 28 mm

Answer of Carlos

No

Não

Answer of andré

yes this model has an arrow guide along the entire length, it is of good quality, I have already bought one, it is corked but be careful it is not drilled to put the head I was very happy with my purchase. André

oui ce modèle à un guide flèche sur toute la longueur, il est de bonne qualité, j'en ai déjà acheté un, il est bouchonné mais attention il n'est pas percé pour mettre la tête j'ai été très content de mon achat. André

Answer of andré

the tube is very cylindrical: External -28 mm. Internal - 26 mm., you have to adapt an Imersion handle and an Imersion head otherwise you will have adaptation problems, moreover the tube is not drilled for the head, you will have to make the holes, the tube is originally capped. otherwise, I made a mount for a 75 cm rifle no worries good quality of the product andré

le tube est bien cylindrique: Externe -28 mm. Interne - 26 mm., il faut y adapter une poignée Imersion et une tète Imersion autrement vous aller avoir des soucis d'adaptation, par ailleurs le tube n'est pas percé pour la tète, vous devrez réaliser les perçages, le tube est bouchonné d'origine. autrement , j'ai fais un montage pour un fusil de 75 cm aucun soucis bonne qualité du produit andré

Answer of Salvatore

It is not exactly cylindrical. Internally it has a sort of rod guide that makes it almost impossible to adapt a grip from another brand. However, externally it is 28, internally 26 mm

Non è proprio cilindrico. Internamente porta come una sorta di guida asta che risulta quasi impossibile adattare una impugnatura di un’altra marca. Comunque esternamente è 28, interno 26 mm

Answer of Carlos

Immersion Grip Merou D Gold And Challenger Complete https://www.tradeinn.com/diveinn/en/immersion-grip-merou-d-gold-and-challenger-complete/617823/p

Imersion Empuñadura Mérou D Or And Challenger Complete https://www.tradeinn.com/diveinn/es/imersion-empunadura-merou-d-or-and-challenger-complete/617823/p

Answer of MIZANTZIDIS

Imersion Mérou D Or And Challenger Complete (immersion grip) 28 mm is compatible with this tube" https://www.tradeinn.com/diveinn/es/imersion-empunadura-merou-d-or-and-challenger-complete/617823/p

Imersion Mérou D Or And Challenger Complete (immersion grip) 28 mm is compatible with this tube" https://www.tradeinn.com/diveinn/es/imersion-empunadura-merou-d-or-and-challenger-complete/617823/p

Answer of Salvatore

Hi, I also had the same problem. Basically, I haven´t found any grip that fits this barrel. I had to create a groove in one of the handles to fit it

Ciao, anche io ho avuto lo stesso problema. Praticamente, non ho trovato nessuna impugnatura che vada bene per questo fusto. Ho dovuto creare io una scanalatura su una impugnatura per potergliela adattare

Answer of MANUEL

The external diameter is 28mm but when incorporating accessories it must be taken into account that the tube has an internal fold to fit with the immersion heads and handles

el diámetro externo es de 28mm pero a la hora de incorporar accesorios hay que tener en cuenta que el tubo presenta un pliegue interior para encajar con los cabezales y empuñaduras de inmersión

Answer of Salvatore

110 cm

110 cm

Answer of Giuseppe

Yes, there is a hollow rod guide inside the tube, it does not protrude. For use, a special head with the same groove is required.

Si c´è un guida asta incavato all´interno del tubo non è sporgente.per l´utilizzo occorre una testata apposita con lo stessa scanalatura.

Answer of Luca

The rod guide is internal. It is not compatible with standard grips

Il guida asta è interno. Non è compatibile con le impugnature standard

Answer of MAURICIO

It does have a guide but perhaps it is not the one you are imagining. The tube folds inwards on itself. You need an immersion head and handle, which have a space for that fold to fit.

Si tiene una guía pero quizás no es la que estás imaginando. El tubo se pliega en si mismo hacia adentro. Necesita cabezal y empuñadura imersion, las cuales tienen un espacio para que entre ese pliegue.

Hello, this is the inner diameter. Regards

Hello, this is the inner diameter. Regards
