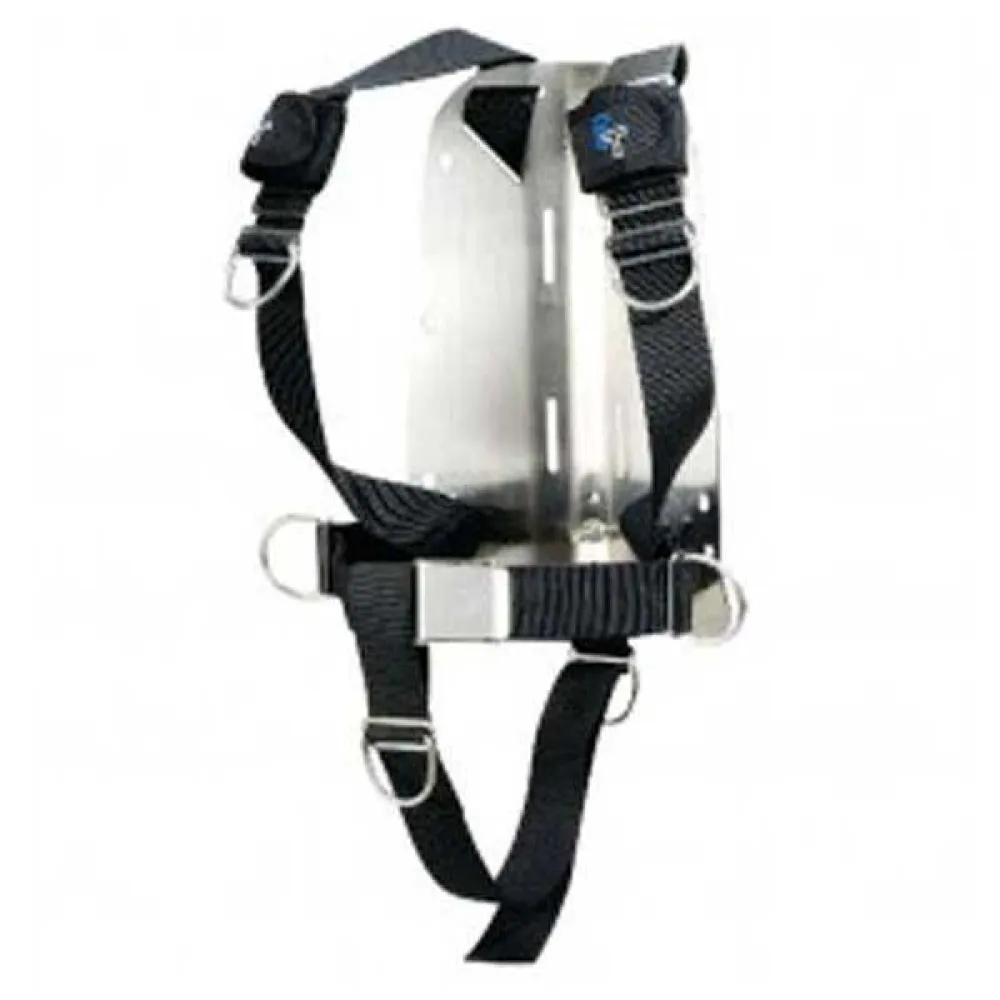

Ist Dolphin Tech Aluminium Backplate

Features:

Aluminium back plate with basic harness and crotch strap.

BASIC HARNESS

- Material: 5cm (2”) wide, 2.5mm thick nylon webbing.
- Overall length: 320cm (126´) with centre grommet.
- Complete HB1 set also include: 2 hose holders, 2 flat D-rings, 2 bent D-rings, 1 belt buckle & 6 webbing keepers.

ALUMINIUM BACK PLATE

- Material: 6061 aluminium
- Weight: 0.8kg (1.76lb)
- Mounting hole distance: 11”(27.9cm)
- Light-weight, excellent for travelling


Whats in the box:

BP4:
The back plate is the heart of a technical buoyancy compensator. It provides the vital connection between a diver and his scuba. Individually press-formed and all edges de-burred, DOLPHIN TECH back plates have 5cm (2”) slots for the harness and crotch strap as well as 10 perimeter holes for attaching additional equipment such as stage bottles and canister torch. There are 3 sets of tank mounting holes along the plate’s center line, giving the diving easier option to fine tune tank to torso position.

HB3:

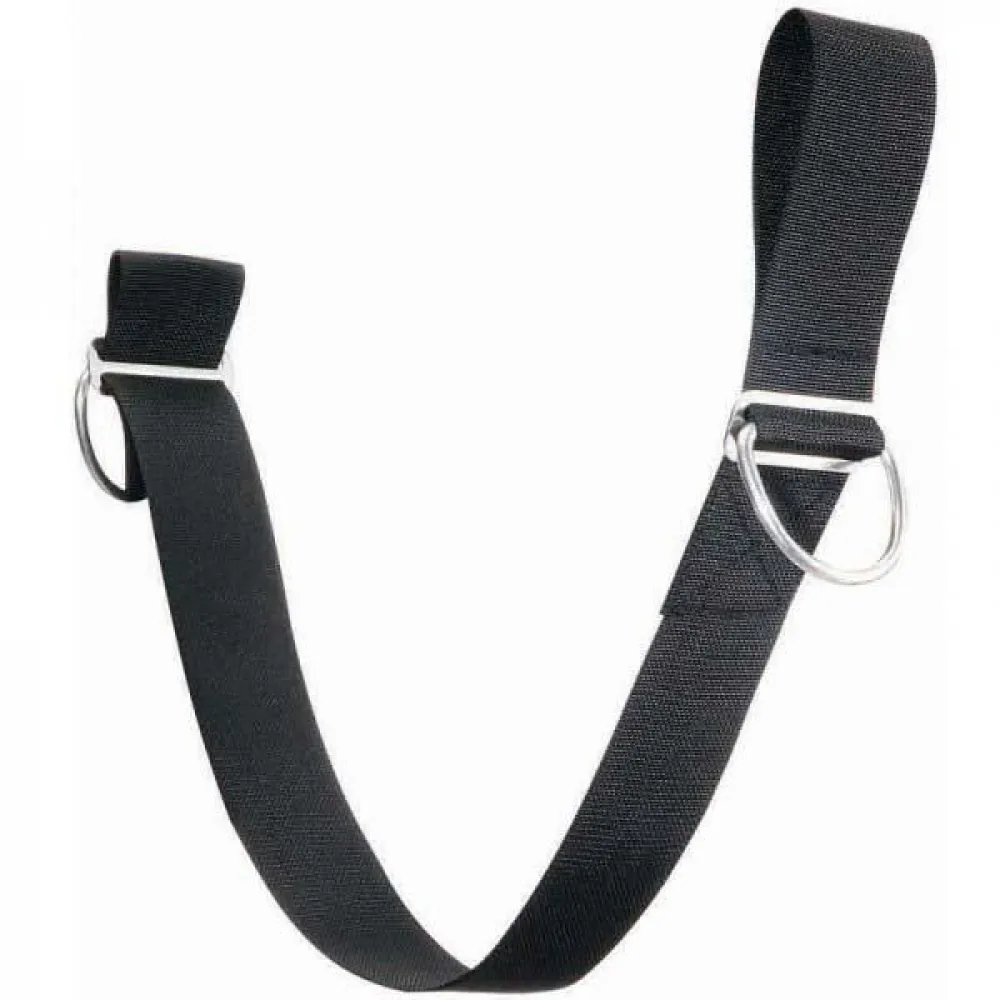

The soft crotch strap further secures and stabilises your scuba rig to your torso without causing any discomfort.

HB2:

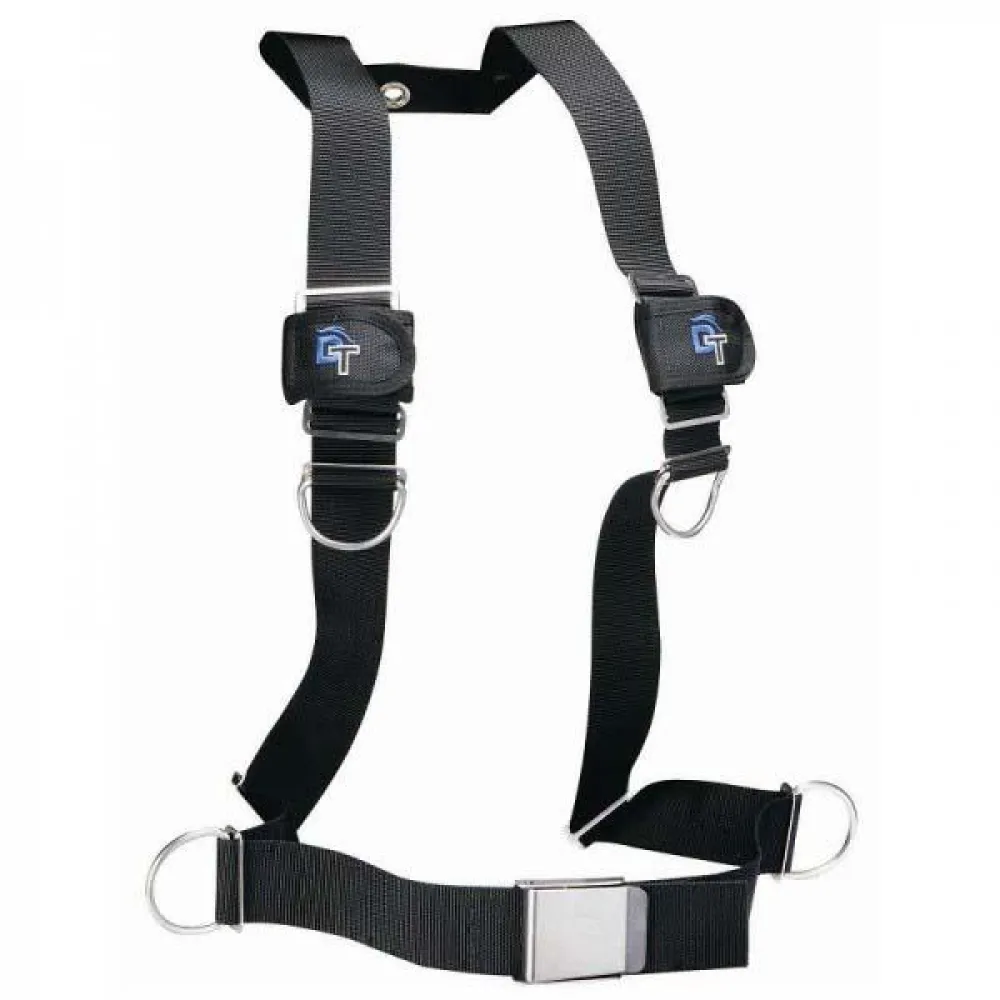

The deluxe harness gives the diver a more comfortable set up than the basic harness. It comes with anatomically shaped shoulder padding and in 2011, waist cushions are added to soften the burden brought on by the heavy cylinder(s). An extra set of pre-fixed chest D-rings provide additional attachment points for extra gear.
