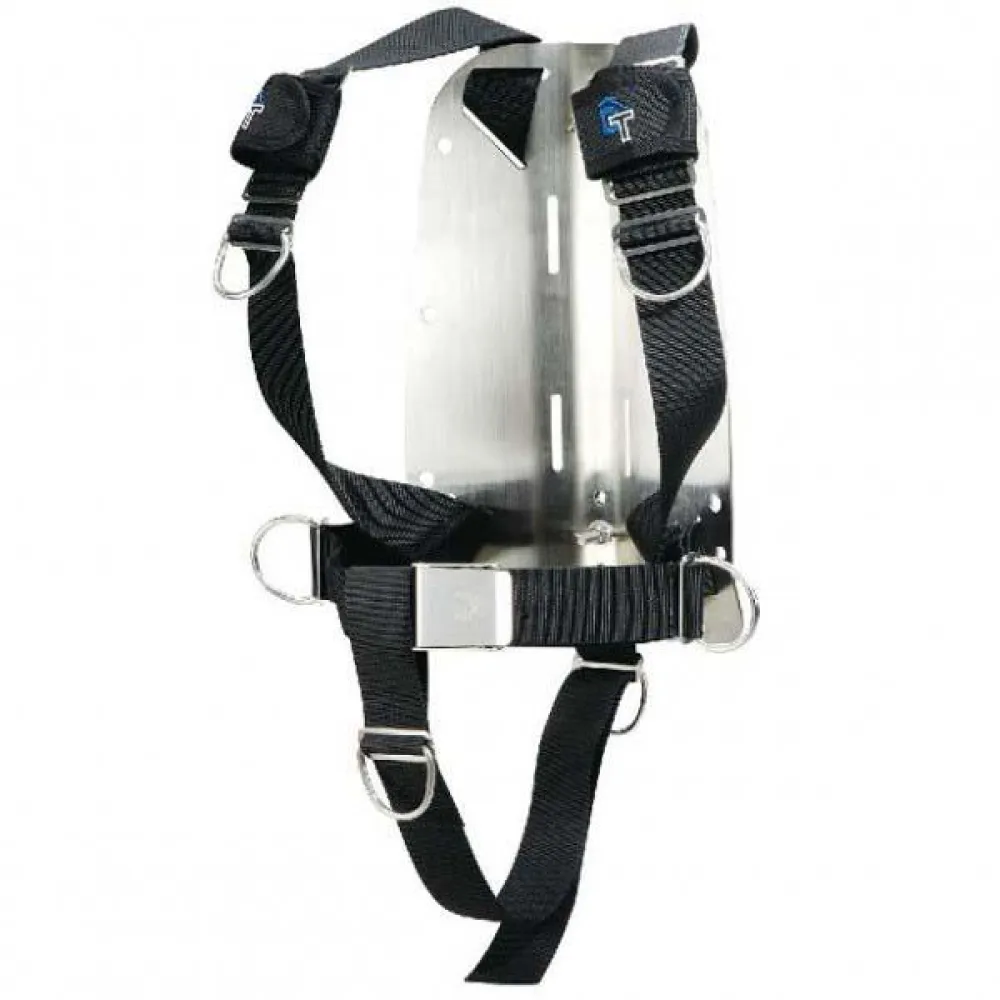

Ist Dolphin Tech Steel Harness System With Backplate

Features:

Stainless steel back plate with basic harness and crotch strap.

BASIC HARNESS

- Material: 5cm (2”) wide, 2.5mm thick nylon webbing.
- Overall length: 320cm (126´) with centre grommet.
- Complete HB1 set also include: 2 hose holders, 2 flat D-rings, 2 bent D-rings, 1 belt buckle & 6 webbing keepers.

STAINLESS STEEL BACK PLATE

- Material: 304 stainless steel
- Weight: 2.25kg (4.96lb)
- Mounting hole distance: 11”(27.9cm)
- Strong, rust-resistant
- Forms a part of the weighting system
- Pre-bent anatomical lower corners


Whats in the box:

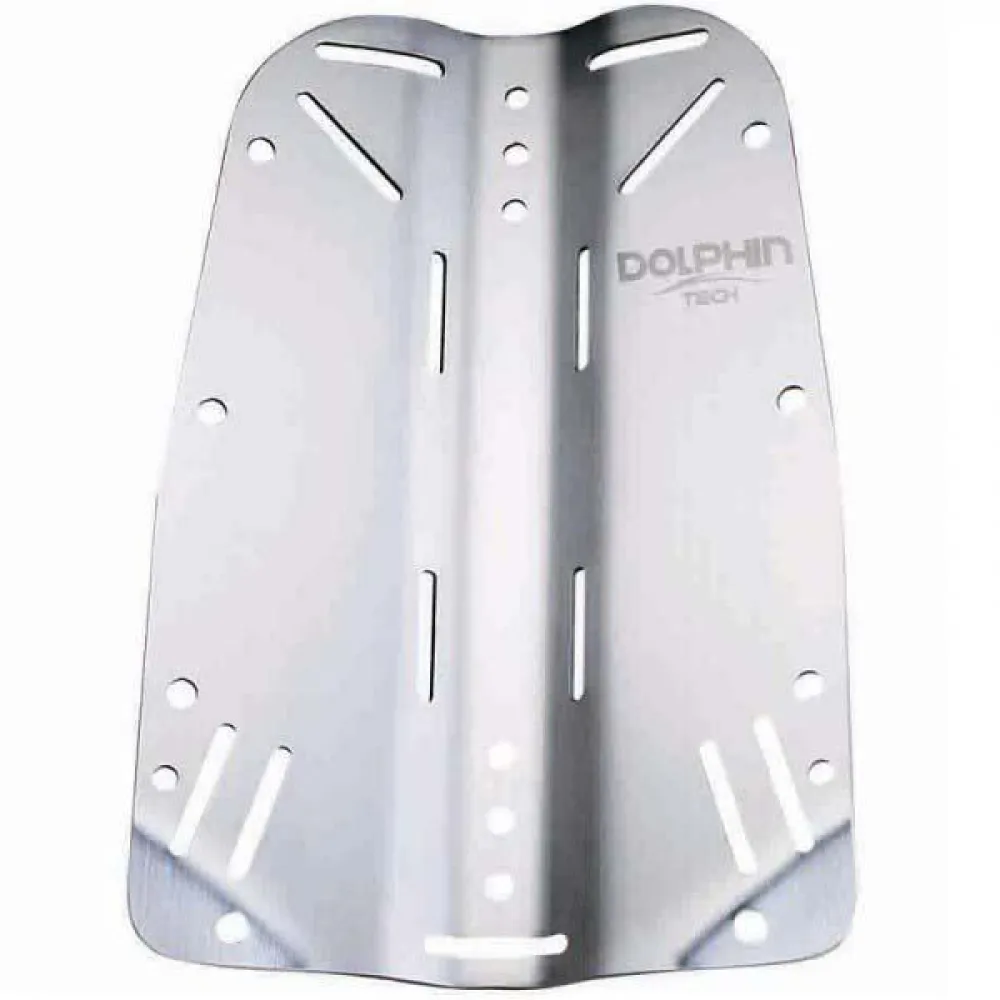

BP3:
The back plate is the heart of a technical buoyancy compensator. It provides the vital connection between a diver and his scuba. Individually press-formed and all edges de-burred, DOLPHIN TECH back plates have 5cm (2”) slots for the harness and crotch strap as well as 10 perimeter holes for attaching additional equipment such as stage bottles and canister torch. There are 3 sets of tank mounting holes along the plate’s center line, giving the diving easier option to fine tune tank to torso position.

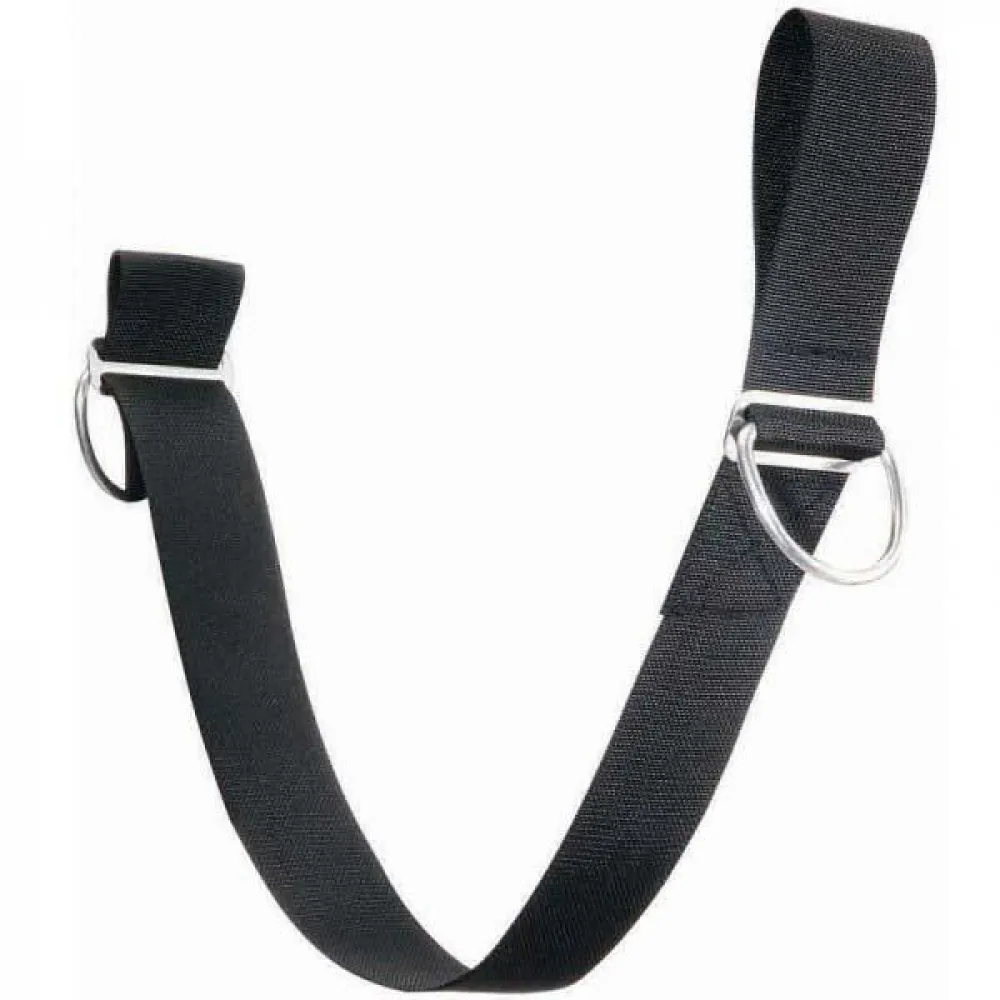

HB3:
The soft crotch strap further secures and stabilises your scuba rig to your torso without causing any discomfort.

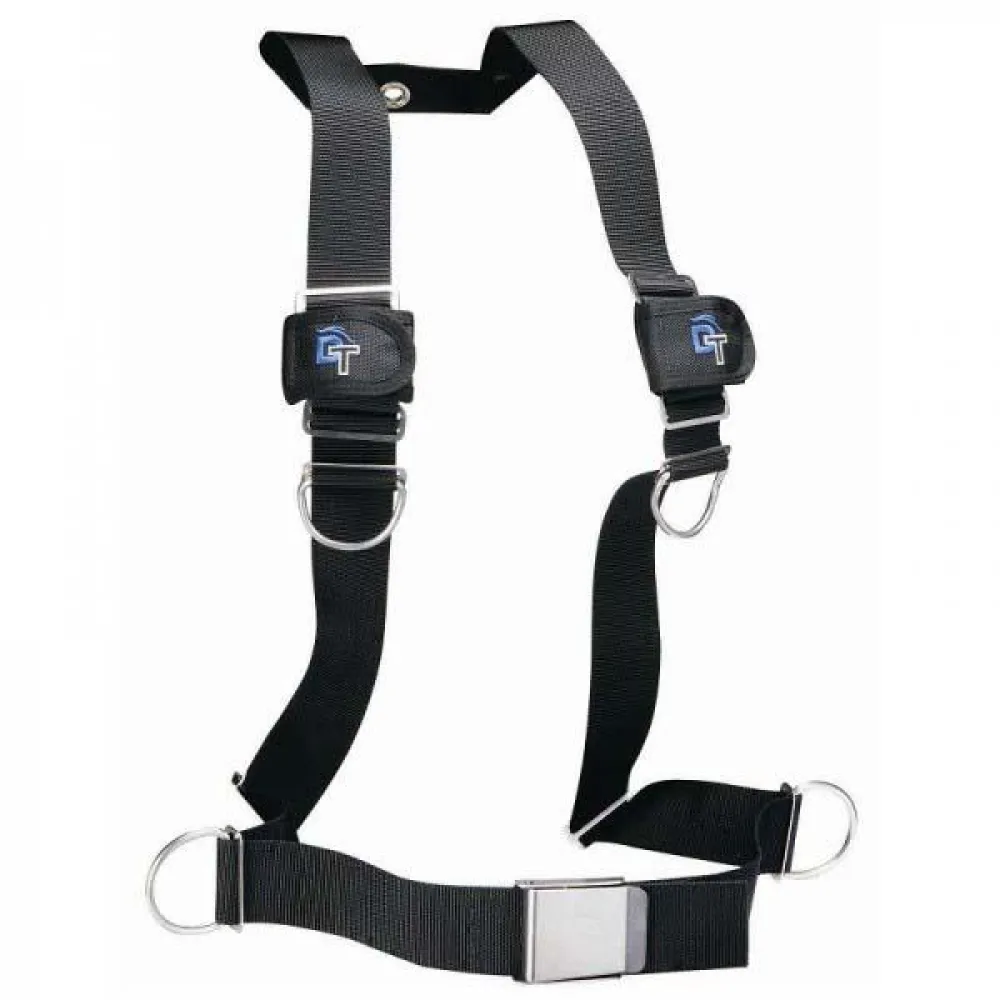

HB1:
As simple as it can be, DOLPHIN TECH basic harness is the most reliable, has no superfluous parts to fail and easy to set up. It comes with 4 protective sleeves to cover the webbing where it is threaded through the back plate.
