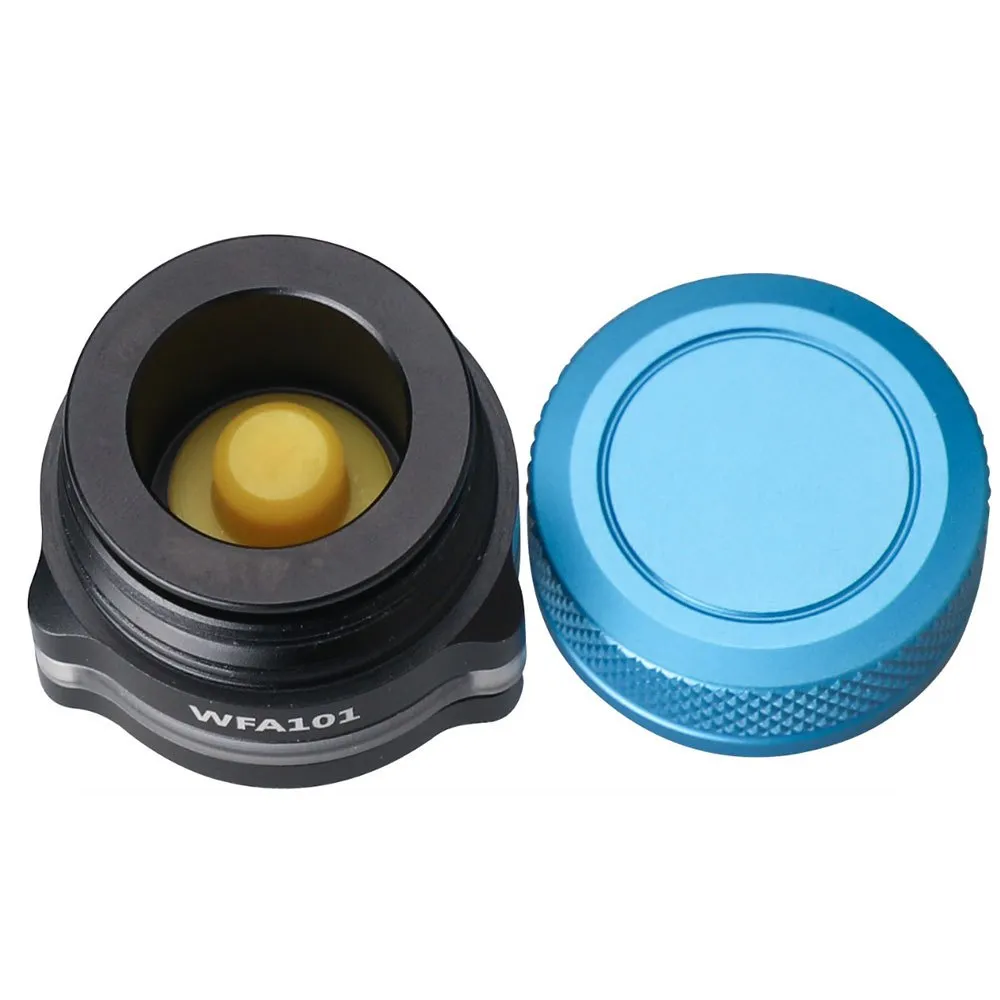

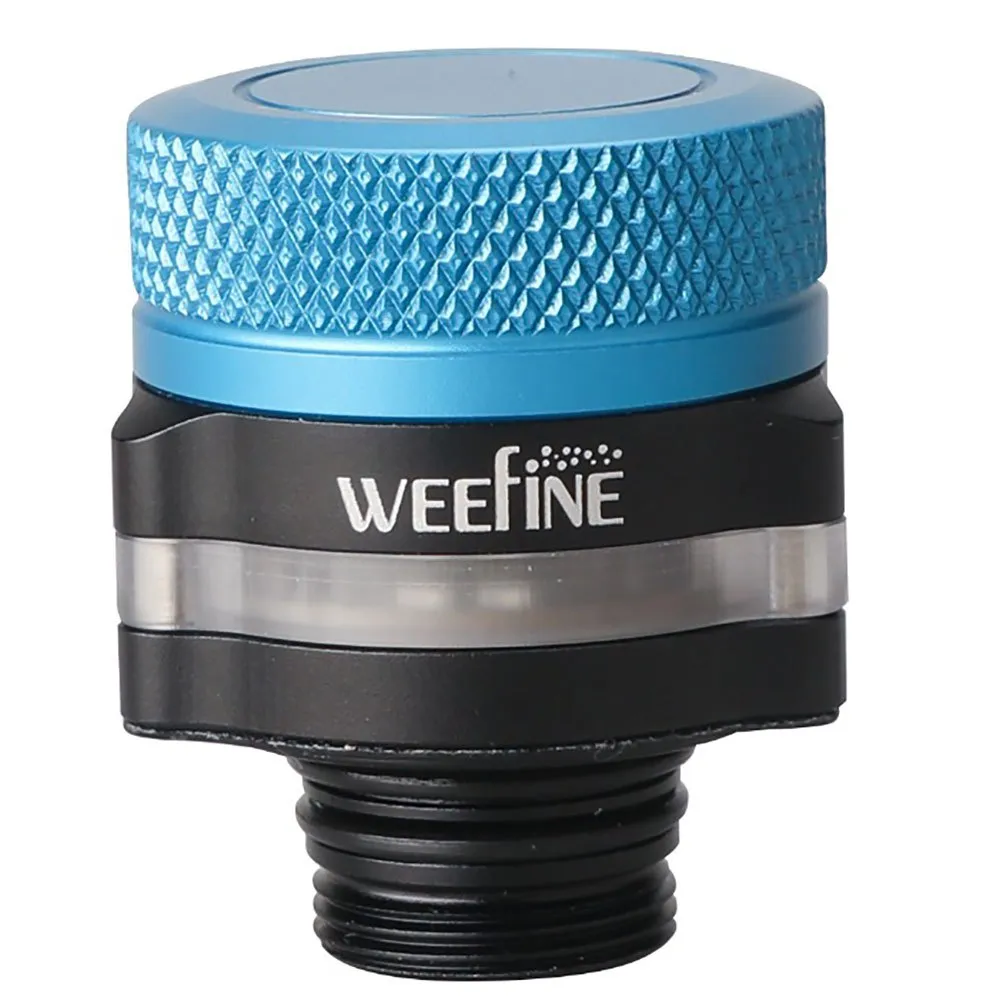

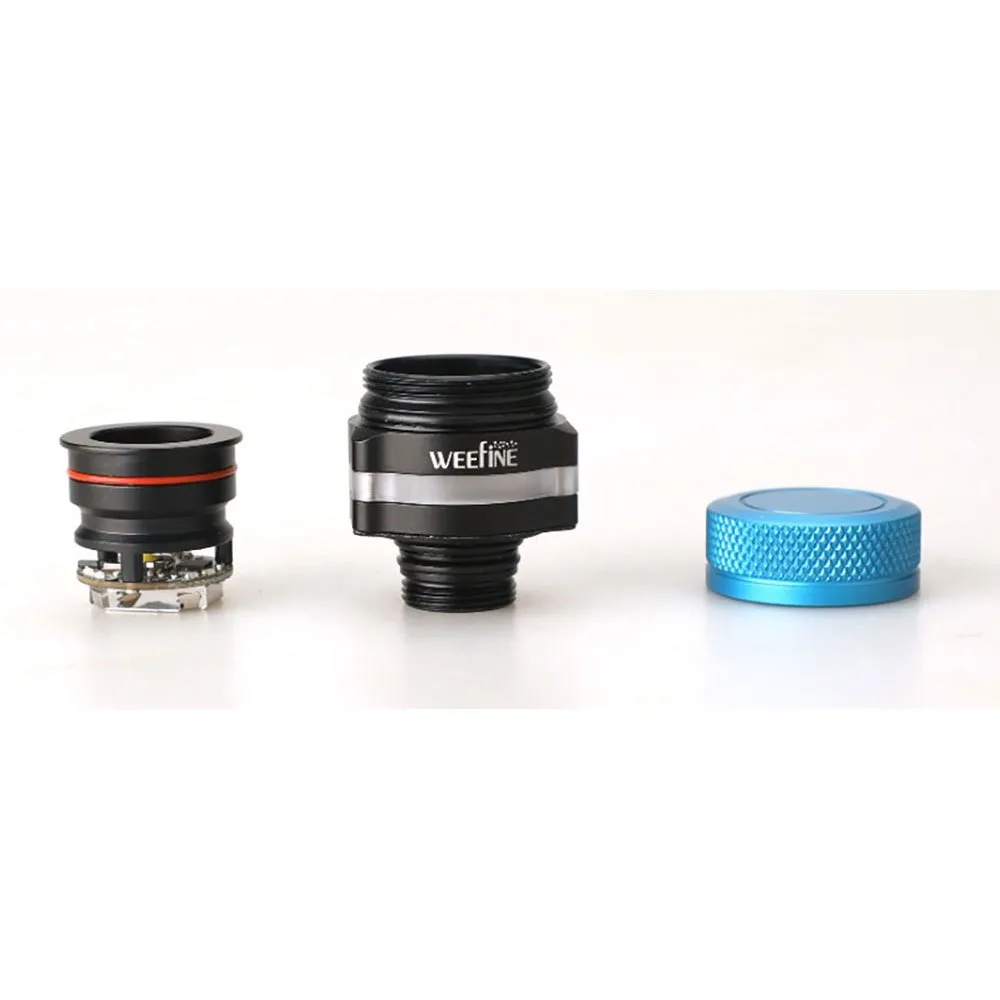

Weefine WFA101 Vacuum System

Weefine vacuum system consisting of valve and vacuum pump.

Weefine offers you the following adapters as an accessory so that you can use its vacuum system in any housing on the market, you will have to buy the vacuum system with the adapter that you will need in your housing so that you can use it without problem:

WFA51-A for M14 thread and H17 length.

WFA51-B for M14 thread and H28 length.

WFA51-F for M16 thread and H17 length.

WFA51-C for M16 thread and H40 length.

Incorporating the vacuum valve into a housing allows you to confirm the tightness of the housing before and during the dive.

How to use, the vacuum system is installed, the safety cap is removed, with the cap turned upside down, the vacuum pump is activated by touching the arrow and making dough with the assembly, now we can extract the air with the vacuum pump When the pilot light turns green, remove the extraction system, put the safety cap on and dive if the color of the vacuum system has not changed in 10 minutes.

Compatibility:

- The valve and vacuum pump can be installed in the housings with great ease, you only need to order the adapter corresponding to your housing to ensure compatibility.

Characteristics:

- Vacuum valve made of anodized aluminum.

- Transport box measurements:

170×90×50mm.

- Measurements:

diameter 32x34mm height from the thread.

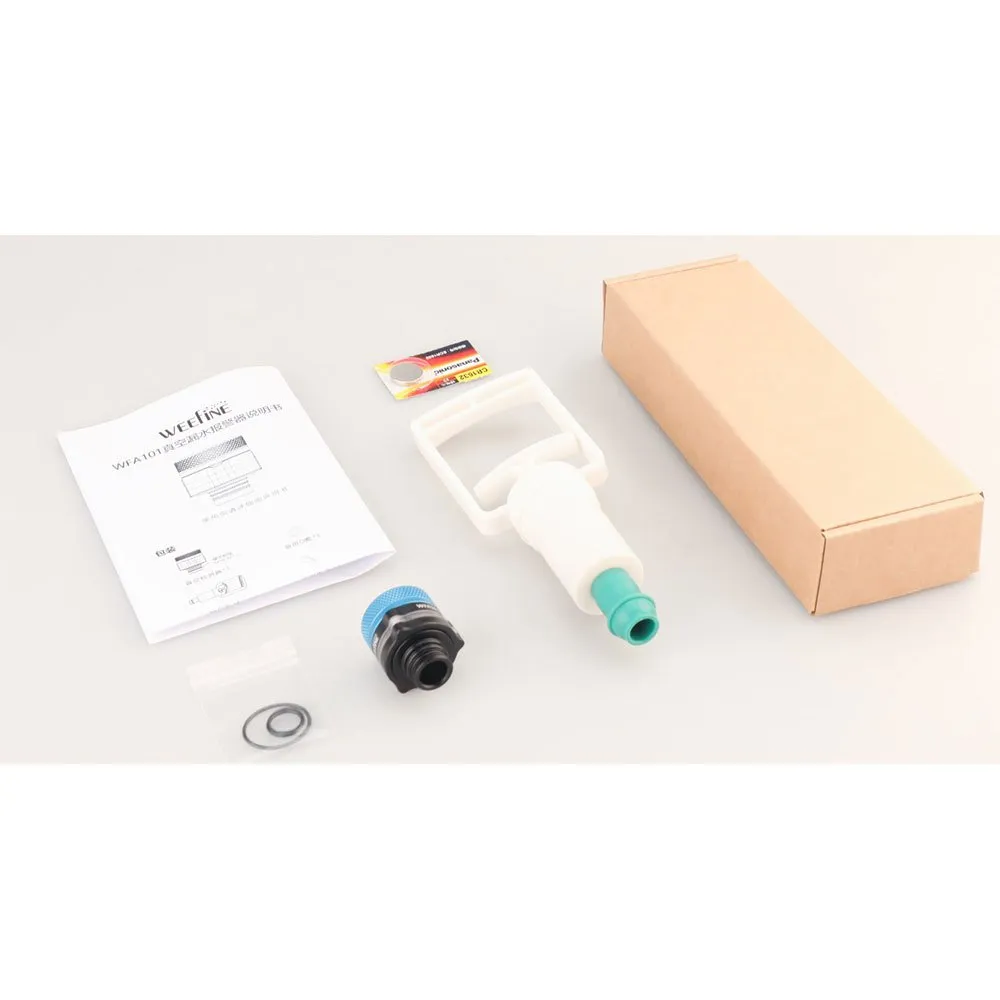

- The pack includes:

valve and vacuum pump.

- Powered by a user-changeable 1632 battery.

- Submersible up to 100 meters.

Important:

Using the valve and the vacuum pump does not exclude continuing to carry out intensive cleaning and maintenance just as we would do if we did not have this new system installed.

User manual is delivered with the product.
