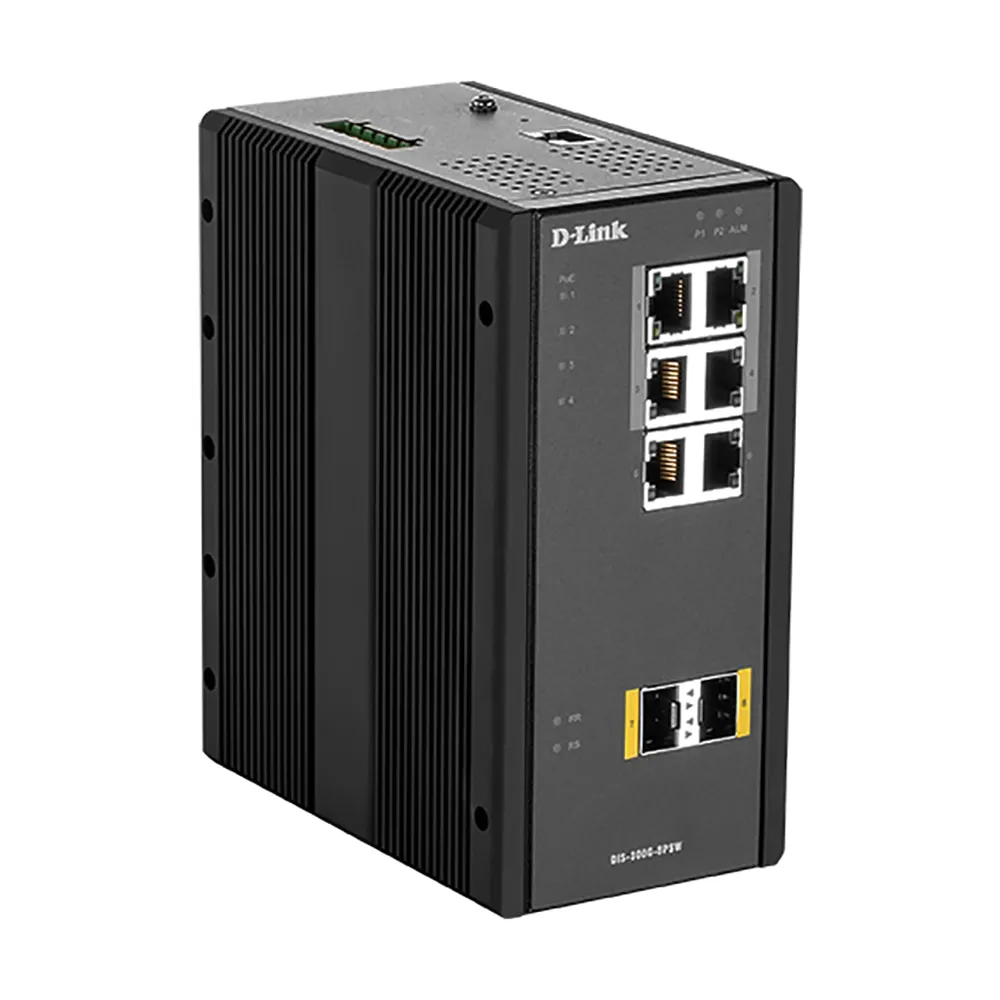

D-link DIS 300G-8PSW switch

EU Plug.

Features:

- 4 X 100/1000baset Poe Ports, 2 X 100/1000baset Ports, 2 X 100/1000basesfp Slots.

- 120 W Poe Power Budget.

- High Availability.

- Easy-To-Control Management Interfaces And Security.

- Withstands Extreme Temperatures.

- Certified For Vibration, Shock, Free-Fall, Emc.

- Managed Customization:Features User Management Interfaces, Including An Industrial-Like Cli, And Web-Based Management, The Dis-300g-8psw Is Easy To Manage And Provides The Security And Controls To Guard And Shape Your Network Needs.

- Gigabit Connectivity With Poe And Sfp Slots:Designed With 4 X 100/1000baset Poe Ports, 2 X 100/1000baset Ports, And 2 X 100/1000basesfp Slots To Suit A Range Of Devices And Network Layouts.

- Officially Certified:Certifications For Vibration, Shock, Free-Fall, And Electromagnetic Compatibility To Maximise Network Uptime In A Variety Of Deployment Environments, Including Smart City Surveillance, Factory Automation, And Outdoor Wireless Networks.

- Withstands Extreme Temperatures:Operates Effortlessly In A Range Of Industrial And Harsh Environments In Temperatures From -40°C To +75°C, And Can Cold Start From -40°C.

- Strong Build:The Tough Housing Has Been Created To Keep Your Network Protected And Reliably Rugged.

- High Availability:Rapid Ring Failover Recovery Time Of.

- Poe Support:With Its 120 W Poe Power Budget, It´S Been Designed To Supply Data And Poe Power To Compliant Devices, Which Removes The Need For Unnecessary Plugs And Cables And Reduces Deployment Time And Effort.

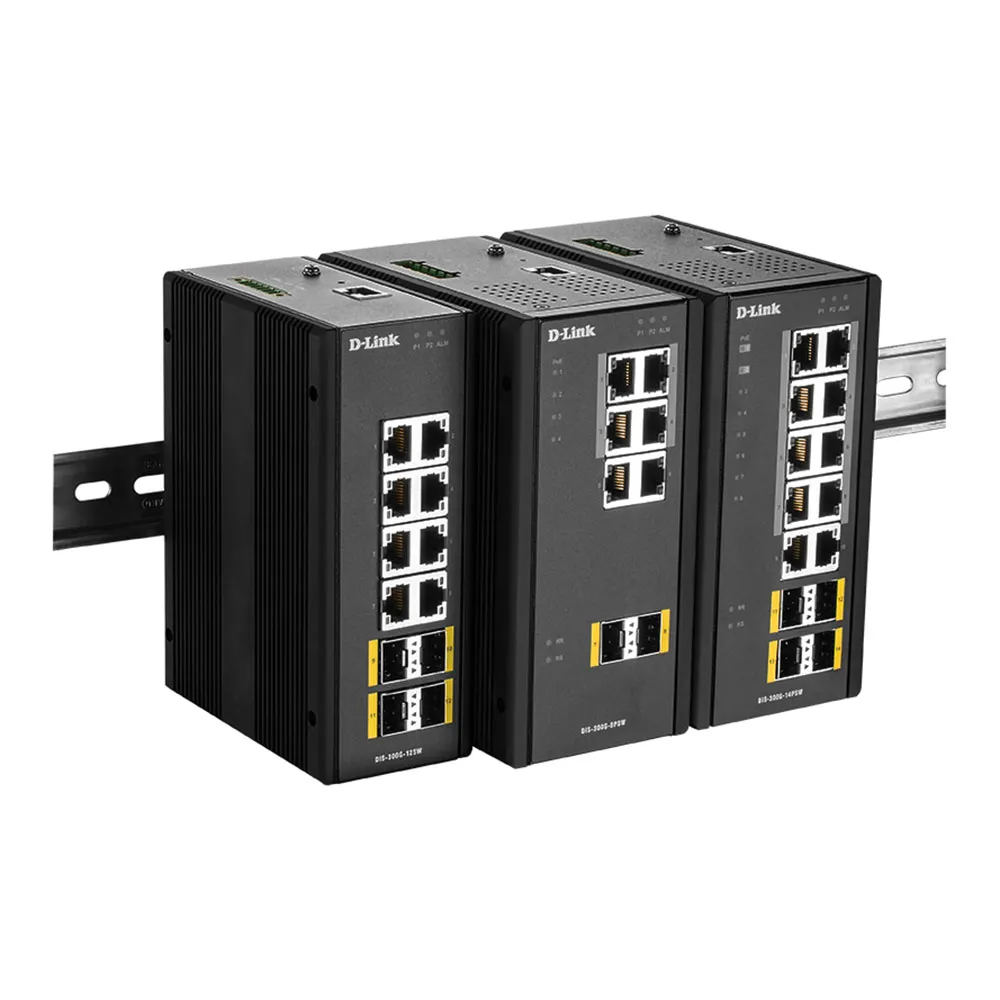

- Fast Deployment:For Instant Installation It Features A Snap-To-Din-Rail Clip, And Also Supports Wall Mounting.

- Fanless Design:With No Moving Parts Inside To Reduce Downtime And Maintenance Call Outs, The Rugged Housing Has Been Optimised For The Transfer Of Heat.

- Discrete Size:Small But Mighty.

To Make The Most Of Cabinet Space, It Measures:77 X 154 X 128 Mm.

Specifications:

Management.

Features:

- Switch Type:Managed.

- Switch Layer:L2.

- Quality Of Service (Qos) Support:Yes.

- Web-Based Management:Yes.

- Traffic Shaping:Yes.

- System Event Log:Yes.

- Mib Support:Rfc 1757 Rmon 1,2,3,9.

Rfc 2674 Q Mib Rfc‑1213 Mib‑Ii.

Rfc‑1493 Mib.

Rfc 2233 If Mib.

Ports & interfaces:- Basic Switching Rj-45 Ethernet Ports Quantity:6.

- Basic Switching Rj-45 Ethernet Ports Type:Gigabit Ethernet (10/100/1000).

- Sfp Module Slots Quantity:2.

- Fiber Optic Connector:Lc.

Network:- Networking Standards:Ieee 802.1d, Ieee 802.1ab, Ieee 802.1ad, Ieee 802.1p, Ieee 802.1s, Ieee 802.1w, Ieee 802.3ad, Ieee 802.3af, Ieee 802.3at, Ieee 802.3x.

- Full Duplex:Yes.

- Flow Control Support:Yes.

- Link Aggregation:Yes.

- Broadcast Storm Control:Yes.

- Auto Mdi/Mdi-X:Yes.

- Spanning Tree Protocol:Yes.

- Auto-Negotiation:Yes.

- Vlan Support:Yes.

- Virtual Lan.

Features:

Tagged Vlan, Protocol-Based Vlan, Mac Address-Based Vlan, Port-Based Vlan, Ip Subnet-Based Vlan.

- Number Of Vlans:1024 Data Transmission:- Mac Address Table:8000 Entries.

- Store-And-Forward:Yes.

- Jumbo Frames Support:Yes.

- Jumbo Frames:9000.

Security:- Dhcp.

Features:

Dhcp Server, Dhcp Snooping, Dhcp Relay, Dhcp Client.

- Security Algorithms:Https, Snmp, Snmpv3, Ssh.

- Authentication Type:Ieee 802.1x, Radius.

- Queue Scheduling Algorithms:Spq, Weighted Round Robin (Wrr) Multicast.

Features:

- Multicast Support:Yes Design:- Led Indicators:Alarm, Lan, Poe, Power.

- International Protection (Ip) Code:Ip30.

- Wall Mountable:Yes.

- Din Rail Mounting:Yes.

Performance:- Firmware Upgradeable:Yes Technical Details:- Pallet Gross Weight (Air):404.4 Kg.

- Pallet Gross Length:120 Cm.

- Pallet Gross Width:110 Cm.

- Pallet Height (Air):148.5 Cm.

- Pallet Gross Weight (Sea):559.4 Kg.

- Pallet Height (Sea):2.02 M.

Power:- Dc Input Voltage:48.

- 58 V.

- Power Consumption (Typical):14 W.

- Power Consumption (Max):265 W.

- Power Protection.

Features:

Over Current, Reverse Polarity Power Over Ethernet (Poe):- Power Over Ethernet (Poe):Yes.

- Power Over Ethernet Plus (Poe+) Ports Quantity:4.

- Power Over Ethernet (Poe) Voltage Range:54.

- 58 V.

- Power Over Ethernet (Poe) Power Per Port:60 W.

- Total Power Over Ethernet (Poe) Budget:120 W Operational Conditions:- Operating Temperature (T-T):-40.

- 75 °C.

- Storage Temperature (T-T):-40.

- 85 °C.

- Operating Relative Humidity (H-H):5.

- 95%.

Weight & dimensions:- Width:71 Mm.

- Depth:154 Mm.

- Height:128 Mm.

- Weight:1.31 Kg.
