Digitus CAT 6E Keystone Module

Future-oriented standards and high-end quality for your network.

The Cat 6 keystone module supports transmission speeds of up to 1 GBit/s & 250 MHz in connection with cat.

6 or higher network installation cables Cable fixation is accomplished using locking caps that can be opened at any time without tools in order to use the keystone module multiple times, for example with field applications In connection with a modular patch panel and modular network junction boxes, the cat.

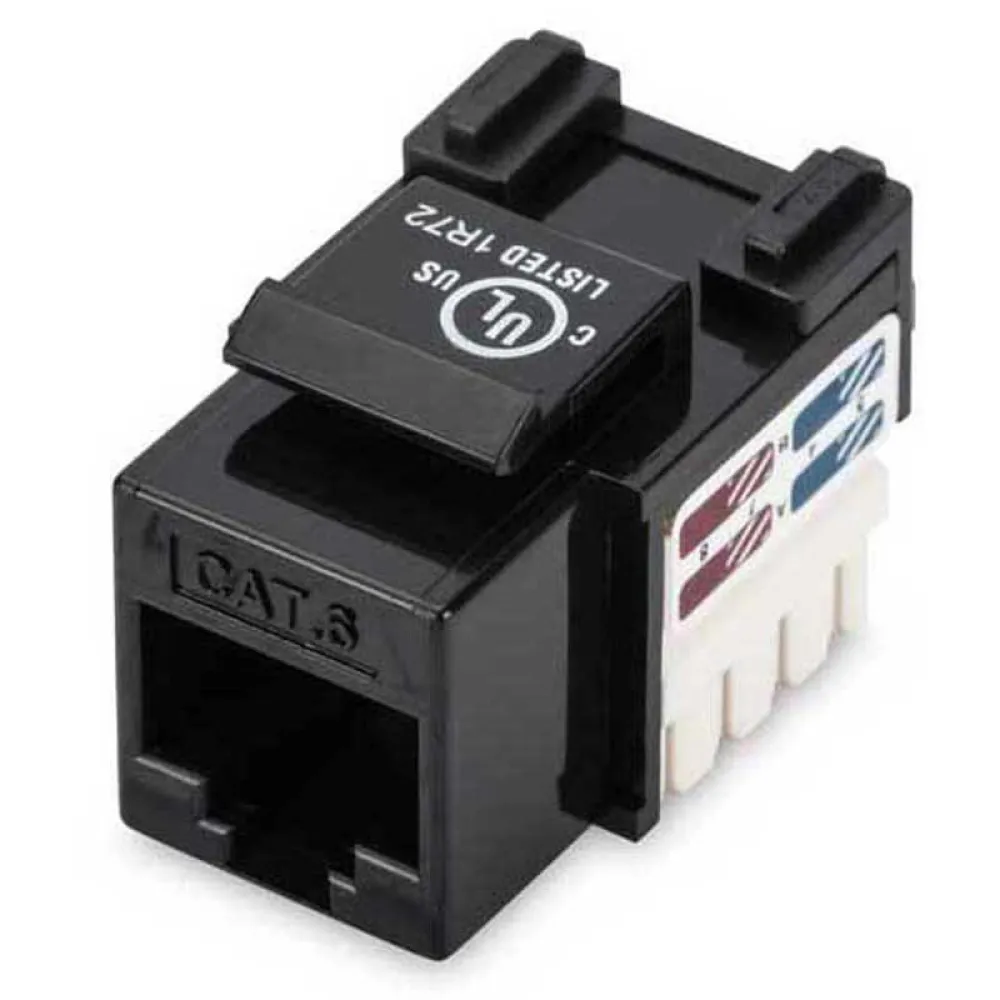

6 keystone modules are perfect for structured building cabling The mounting connection of the keystone module in category 6 / class E makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1 Stable plastic locking lever on the top of the keystone jack.

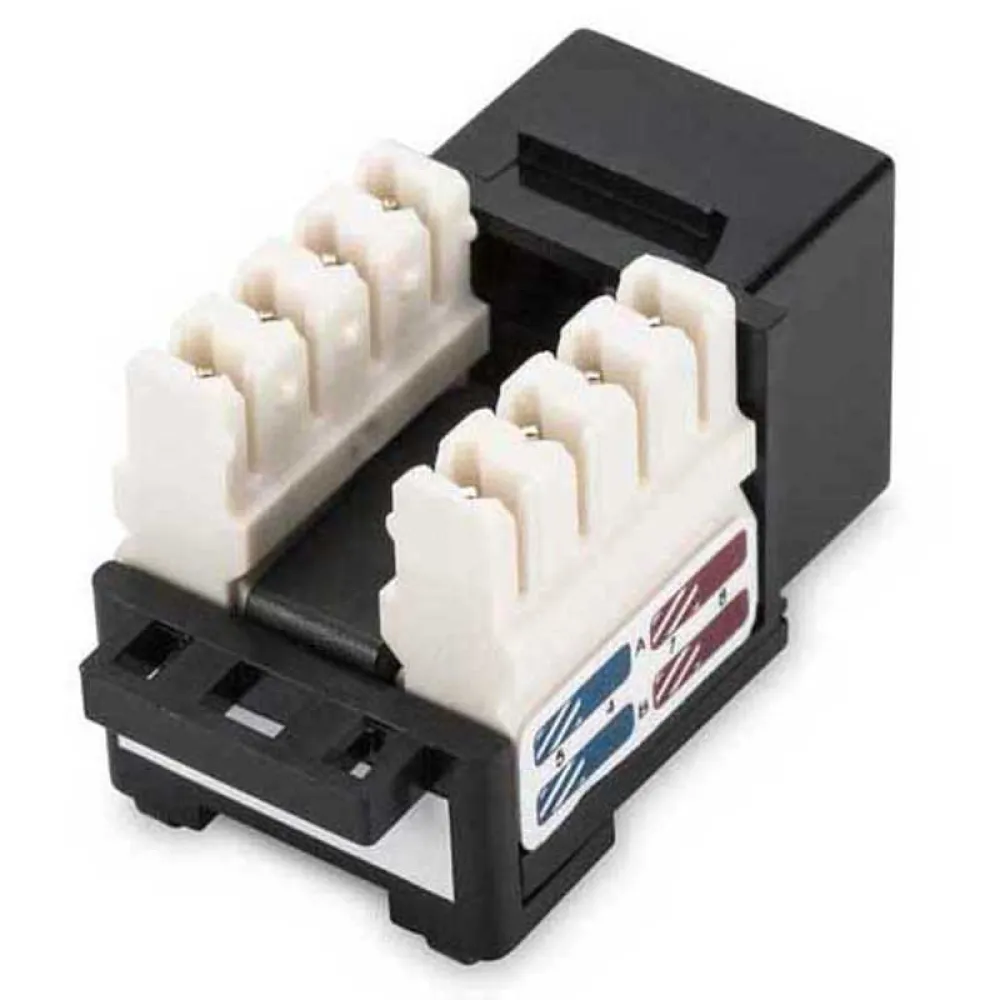

- LSA strips are color-coded in accordance with EIA/TIA 568 A&B.

- The tensile load between the jack and the plug is 7.7 kg The ´´DN-93601´´ from DIGITUS® is an unshielded CAT 6 Keystone Module which provides best performance and link quality for your network.

It is tested with Link Performance Class E, for up to 250 Mhz, 3P Channel Link and Permanent Link, EN 50173 and ISO/IEC 11801.

The cable installation takes place via LSA, color coded acc.

EIA/TIA 568 A&B.

Technical Details:

- Transmission properties:

Category 6.

- Area of application:

Up to 250 MHz, 1GBase-T.

- Norms:

ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties:

- Suitable for 483 mm (19´´) cabinet mounting.

- RJ45 female, 8P8C.

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.

- Cable fixing with smart cable ties Technical properties:

- RJ45 female material:

ABS UL 94V-0.

- RJ45 female contact:

Tinned phosphor bronze, 0.5 μ gold-plated contact.

- LSA termination clamp:

Krone LSA+, UL 94V-2, zinc plated phosphor bronze.

- Conductor plate:

FR4, UL 94V-0 Physical properties:

- Insertion force:

30N max.

(IEC 60603-7-5).

- Retention strength:

7.7 kg between jack and plug.

- Operation temperature:

- 20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).

- Mating cycles female:

> 750 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- Clamp:

> 200 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- IDC wire size:

22.

- 26 AWG solid and stranded conductor.

- Insulation resistance:

> 500 MOhm.

- Contact resistance:

< 20 MilliOhm.

- Dielectric strength:

1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground).
