Fractal Design Summit PC tower case

Fractal Design Summit PC Tower Case

Fractal Design Summit: The Apex of Performance and Spacious Design

Elevate your build to its absolute peak with the Fractal Design Summit, a PC tower case engineered for the uncompromising enthusiast. As a flagship Large chassis, the Summit represents the pinnacle of form and function, delivering a platform for builds that push the boundaries of performance. Its commanding presence and sophisticated design aesthetic make it the ultimate canvas for a high-end gaming rig, professional workstation, or a meticulously crafted water-cooling masterpiece. The Summit is built to accommodate the most ambitious hardware configurations while offering an unparalleled building and user experience.

Experience the freedom of a truly expansive and modular interior, designed to house complex systems with ease. The spacious layout provides exceptional clearance for the largest components, ensuring that your vision is never limited by physical constraints. The internal architecture is optimized for both maximum airflow and elaborate custom liquid cooling loops, offering a versatile foundation for any thermal management strategy. With its focus on accessibility and clean cable management, the Summit transforms the building process from a chore into a rewarding journey, resulting in a system that is as beautiful on the inside as it is on the outside.

Main Features
* Highly versatile dual-layout interior for optimized airflow or maximum storage capacity.
* Exceptional water-cooling support for multiple radiators, including front and top-mounted configurations.
* Extensive fan mounting options throughout the chassis for ultimate thermal control.
* Spacious interior architecture designed for maximum component compatibility.
* Tool-less, latching side panels for quick and easy access to your system components.
* Advanced cable management system with integrated routing channels and straps.

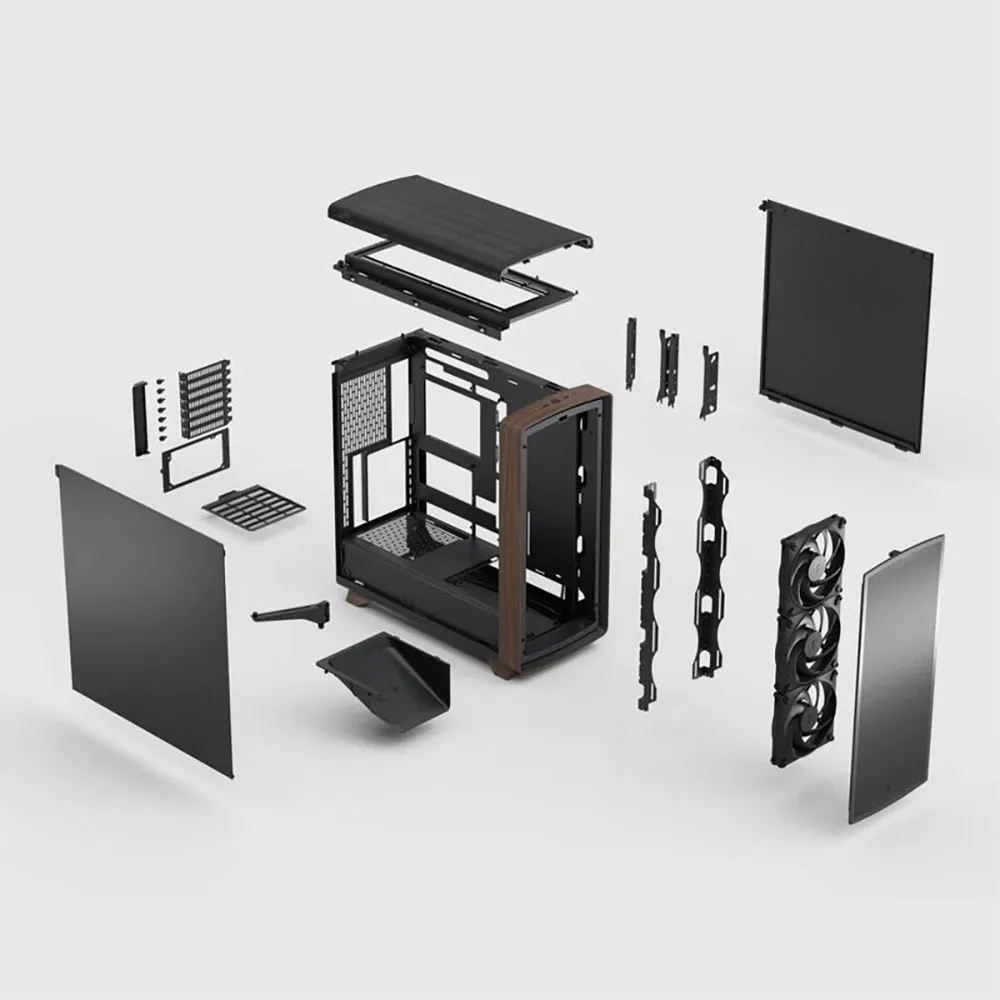

* Modular design elements for a highly customizable and adaptable building experience.
* High-speed front I/O panel with modern connectivity for all your peripherals.
* Integrated support for vertical GPU mounting to showcase your graphics card.

Technical Specifications
* Case Type: Full Tower
* Motherboard Compatibility: Extended ATX (E-ATX), ATX, Micro-ATX, Mini-ITX
* Power Supply Type: ATX
* GPU Max Length: 500 mm
* CPU Cooler Max Height: 185 mm
* PSU Max Length: 250 mm (with HDD cage installed)
* Front Radiator Support: Up to 480 mm or 420 mm
* Top Radiator Support: Up to 360 mm or 420 mm
* Rear Radiator Support: Up to 140 mm
* Bottom Radiator Support: Up to 280 mm
* Front Fan Support: 4x120 mm or 3 x 140 mm
* Top Fan Support: 3x120 mm or 3 x 140 mm
* Rear Fan Support: 1x120 mm or 1 x 140 mm
* Bottom Fan Support: 2x120 mm or 2 x 140 mm
* Drive Bay Support: Multiple universal 3.5"/2.5" bays and dedicated 2.5" SSD mounts
* Expansion Slots: 9 + 3
* Front I/O: 1 x USB 3.1 Gen 2 Type-C, 4 x USB 3.0, Audio I/O
* Dimensions (LxWxH): 605x240 x 566 mm
