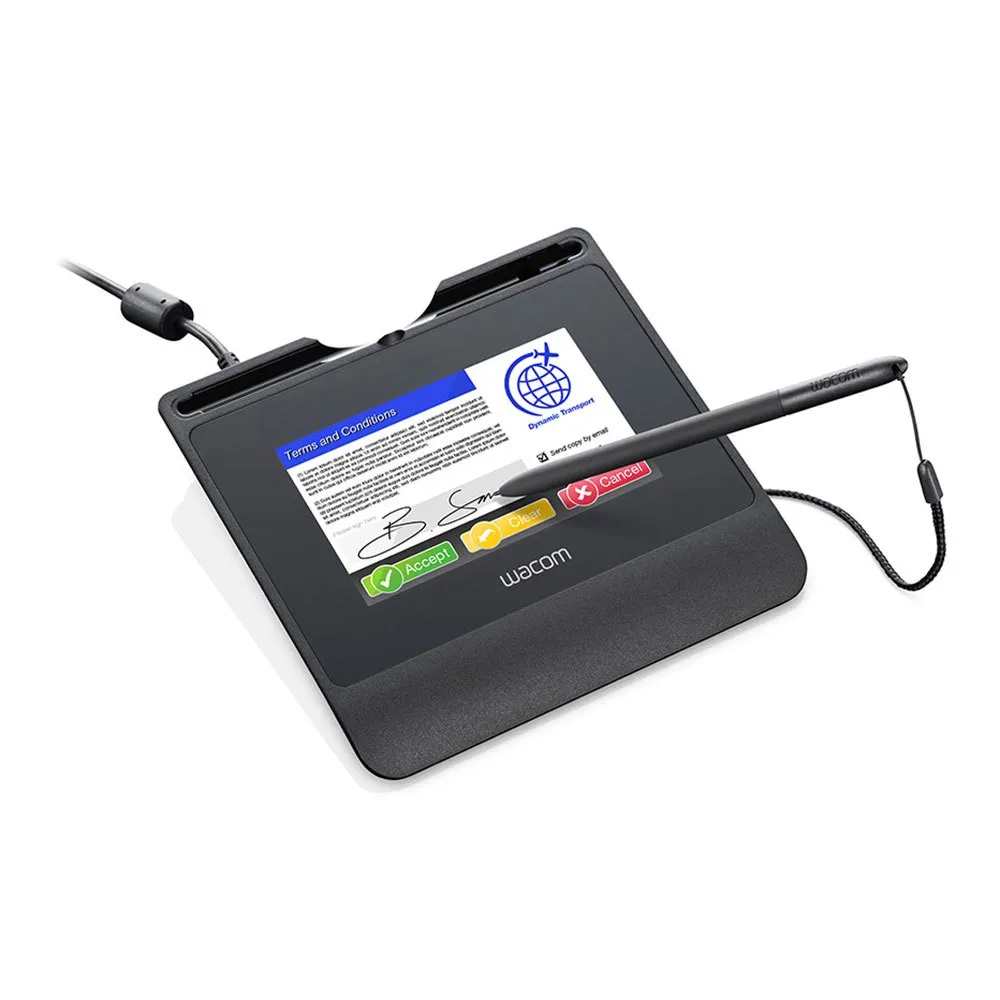

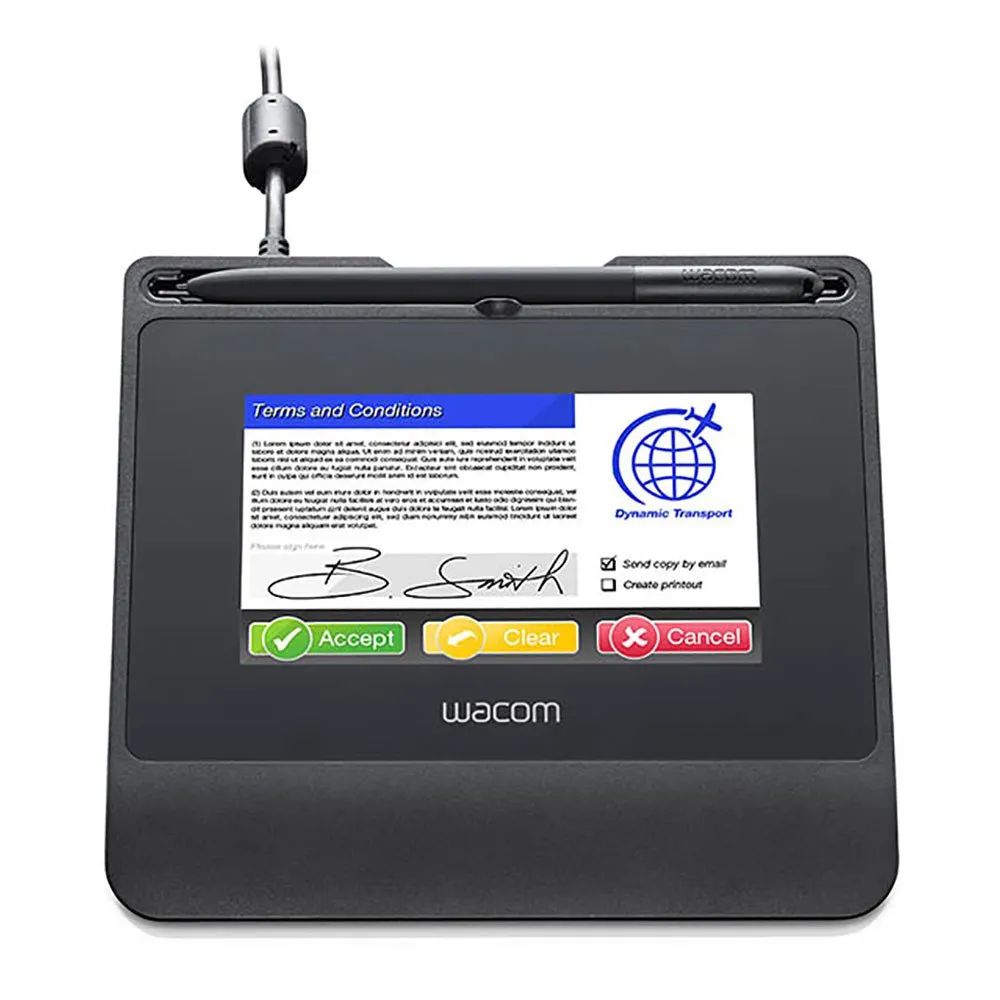

Wacom STU-540 Graphics Tablet

EU Plug.

The STU-540 combines the broadest range of connectivity options, user conveniences and top-level encryption - making it the premier choice for organizations looking to implement handwritten electronic signature into their workflow The STU-540.

Features:

- 5´´ high resolution, color screen allows you to display vibrant branding and marketing messages.

- Native support for new versions of Citrix (v7.8 and newer).

- Virtual COM port connectivity to support use in a variety of other terminal server environments.

- Integrated functions - image slideshow, soft keypad run from the device.

Configured using a simple utility, eliminating the need for separate software.

- Utilizes Wacom´s digital inking technology - WILL (Wacom Inking Layer Language) - to produce an on screen signature that looks clean, crisp and visually replicates pen on paper signatures.

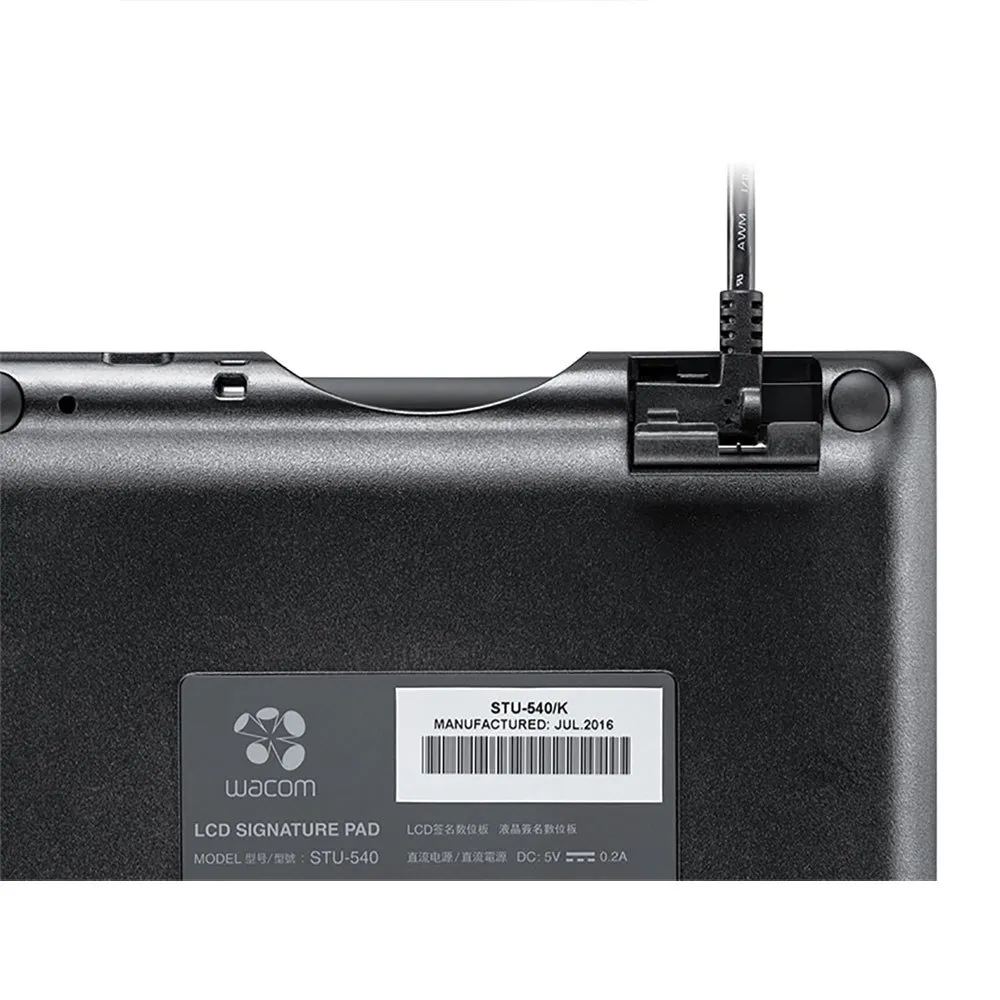

- In desktop environments, it utilizes standard USB.

For virtualized desktop configurations, there are several options - giving users a range of choices to best fit their requirements.

The STU-540 is natively supported in Citrix v7.8 and newer.

For Citrix v6.5 and other virtualized desktop environments, the STU-540 can be set up to emulate a serial connection over USB.

In addition, it offers the option, via a separate accessory kit, to add a physical serial connector instead of USB.

When not in signing mode, the color screen on the signature pads can display high-quality images for advertising and marketing without a separate application continuously running in the background.

Additionally, a customizable keypad feature lets an administrator set up configurable on-screen keypads or soft keys that can support different workflows.

General.

Specifications:

- Dimensions (W x H x D) 6.4 x 6.2 x 0.4 inches (163.0 x 157.0 x 10.0 mm).

- Weight 0.6 lbs.

(250 g).

- Power supply USB bus powered.

- Power consumption 2.5W maximum.

- Communication interface USB (RS-232 optional).

- Protocol modes USB, VCP, RS-232 LCD.

Display:- Display type Amorphous TFT LCD.

- Cover plate surface Anti-glare etched glass.

- Screen dimensions 4.25 x 2.56 inches (108 x 65 mm).

- Native resolution 800 x 480 pixels Pad and Pen:- Reading technology Electromagnetic Resonance (EMR).

- Coordinate resolution 2,540 lpi.

- Coordinate accuracy ± 0.02 inch (± 0.5mm) center.

- Pen report rate 200 points per second.

- Pen pressure levels 1,024.

- Security lock slot Yes.

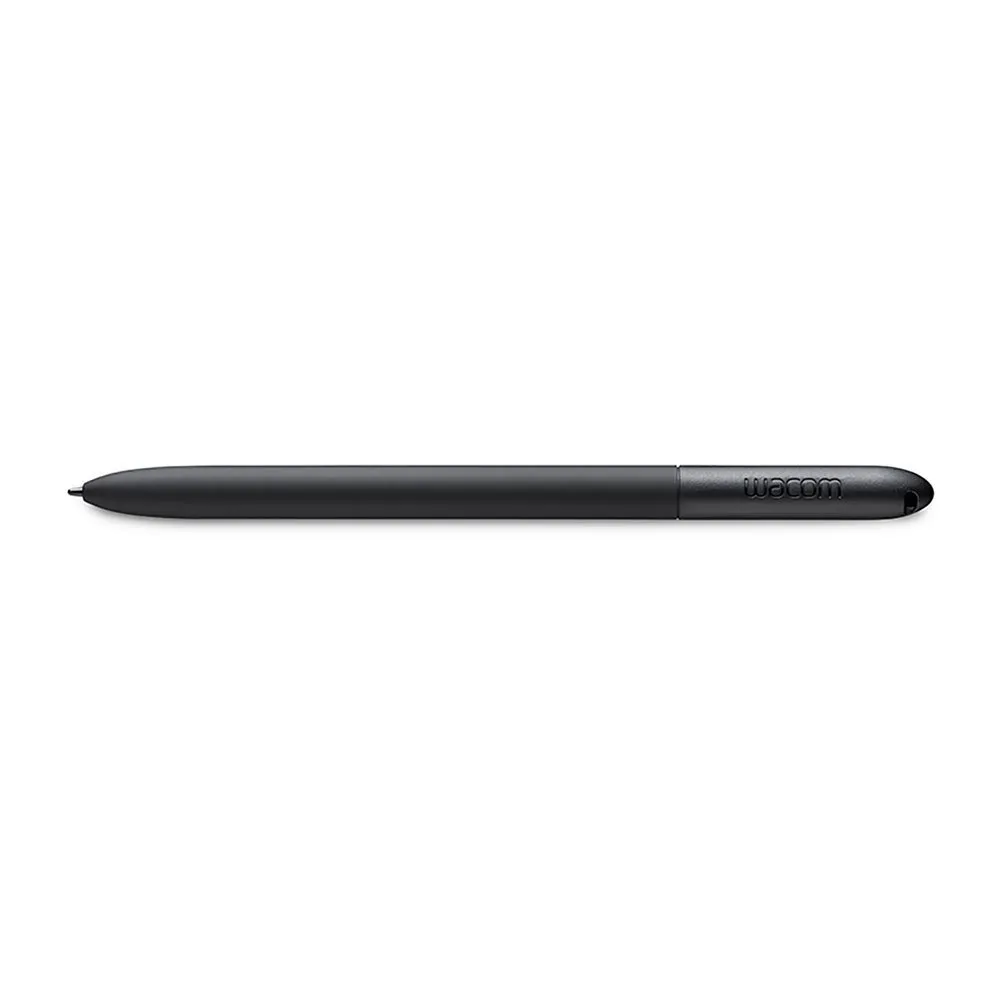

- Encryption AES256 / RSA2048 Miscellaneous:- Pen storage Pen compartment.

- Signature software compatibility Compatible with signature / E-signing software and Wacom sign pro PDF.

- C++,.NET and Java SDK/API available for developers.

- Optional accessories Serial connectivity kit.
