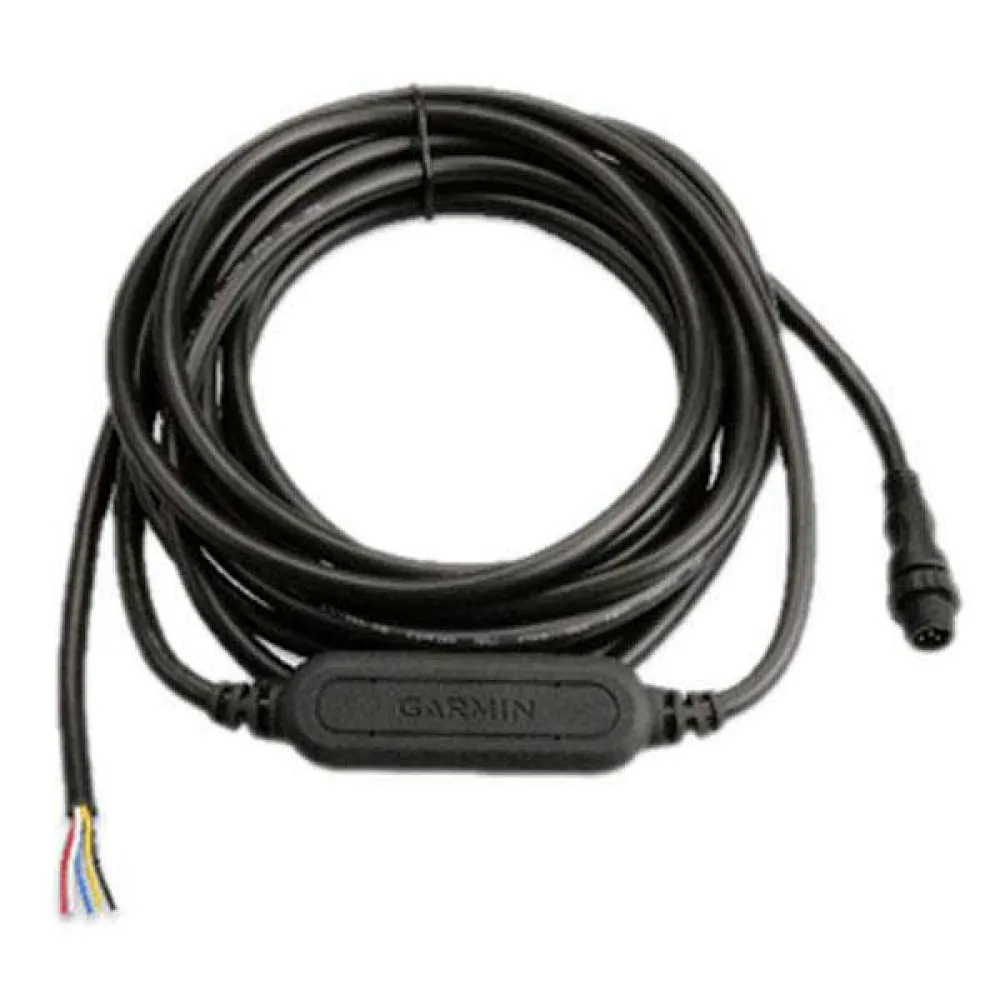

Garmin GFL 10 Cable

With the GFL 10 Fluid Level Analog Adapter aboard your vessel, you can give new life to your old gauges by making the transition from analog to digital.

This simple-to-install adapter takes the data generated by traditional analog gauges and converts the data into a NMEA 2000 signal so you can create or expand your network without replacing all of the equipment on your boat.

Connect to Your Network

With the GFL 10 adapter, you can convert analog information provided via the fluid-level sensor (not included) on your boat to your NMEA 2000 network.

The GFL 10 allows you to observe fluid-level information on compatible Garmin display devices connected to your NMEA 2000 network.

Upgrade With Ease

The NMEA 2000 analog adapters from Garmin are easy to add to any existing marine network. Once installed, the data from the adapters can be viewed via the GMI 10 Marine Instrument Display and other compatible Garmin devices. This easy-to-use set-up will help you bring your older dashboard into the digital age.


Specifications:

- Weight: 12.85 oz. (365 g)
- Total cable length: 16 ft. (4.9 m)
- Temperature range: From 5°F to 158°F (from -15°C to 70°C)
- Compass Safe Distance: 2 in. (5 cm)
- Power Input Source: 9–16 Vdc from the NMEA 2000 bus
- NMEA 2000 Power Usage: 1 W max
- NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)


Compatible Devices:

GMI 10 Marine Instrument
GMI 20 Marine Instrument
GPSMAP 4008
GPSMAP 4010
GPSMAP 4012
GPSMAP 451
GPSMAP 451s
GPSMAP 5008
GPSMAP 5012
GPSMAP 5015
GPSMAP 521
GPSMAP 521s
GPSMAP 551
GPSMAP 551s
GPSMAP 556
GPSMAP 556s
GPSMAP 6008
GPSMAP 6012
GPSMAP 7012
GPSMAP 7015
GPSMAP 720
GPSMAP 750
GPSMAP 8008 MFD
GPSMAP 8012 MFD
GPSMAP 8015 MFD
GPSMAP 8500 Black Box
GPSMAP 8530 Black Box
