Lowrance HDI Med/High

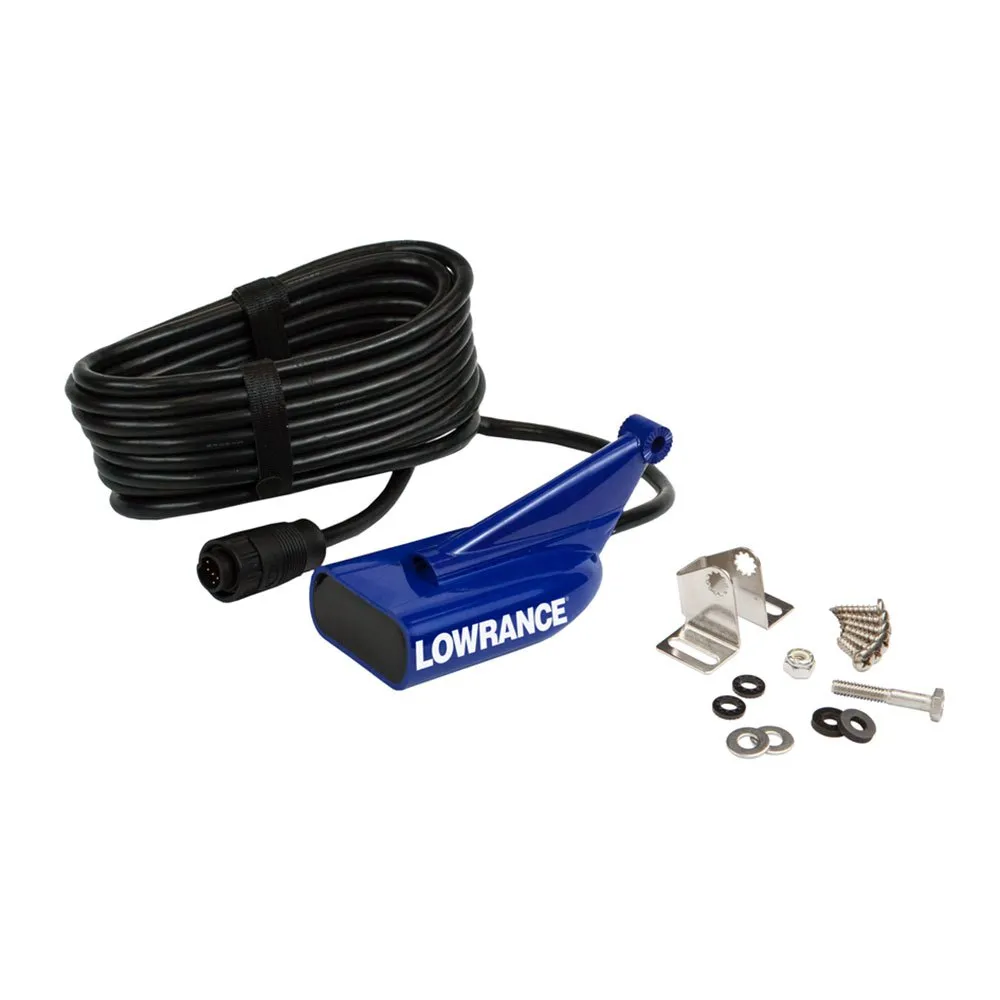

Lowrance HDI Med/High Transom Mount Transducer

Unlock a new level of underwater clarity and gain a decisive advantage on the water with the Lowrance HDI Med/High Transom Mount Transducer. Engineered for anglers who demand superior performance, this transducer combines two award-winning technologies into a single, powerful unit. Experience the best of both worlds with Hybrid Dual Imaging (HDI), which integrates Broadband Sounder™ and exclusive DownScan Imaging™ to provide the most comprehensive and detailed view of the water column and bottom structure available.

The power of HDI lies in its dual-capability approach. Utilize the Broadband Sounder with its Medium/High CHIRP frequencies to expertly mark fish arches and track your lure´s movement with exceptional target separation. Simultaneously, switch to DownScan Imaging to get stunning, picture-like views of bottom structure, vegetation, and thermoclines directly beneath your boat. This powerful combination allows you to distinguish fish holding tight to cover from the structure itself, eliminating guesswork and increasing your hook-up ratio. This HDI Skimmer transducer is designed to deliver the ideal sounding performance and the cleanest, noise-free sounder returns, ensuring you see exactly what´s happening below the surface.

Installation is streamlined with the classic transom-mount Skimmer® design, which offers a low profile to minimize drag and provides reliable readings at speed. A built-in, fast-response sensor provides real-time water temperature readings directly to your display, a critical piece of data for identifying patterns and locating active fish. The robust 9-pin connector ensures a secure, waterproof connection to a wide range of modern Lowrance fishfinders and chartplotters.

Key Features:

* Hybrid Dual Imaging (HDI): The core of this transducer, combining the fish-finding prowess of a Broadband Sounder with the high-resolution, picture-like detail of DownScan Imaging.
* Med/High CHIRP Sonar: Operates on 83/200 kHz frequencies, perfect for marking individual fish targets and achieving excellent depth penetration in freshwater and coastal environments.
* High-Frequency DownScan Imaging: Utilizes 455/800 kHz frequencies to deliver incredibly detailed, easy-to-interpret images of structure, rocks, and bottom composition.
* Integrated Temperature Sensor: A built-in sensor provides crucial surface water temperature readings, helping you locate baitfish and target species.
* Transom-Mount Skimmer® Design: A sleek, hydrodynamic design that mounts easily to the transom of most boats, ensuring optimal performance and durability.

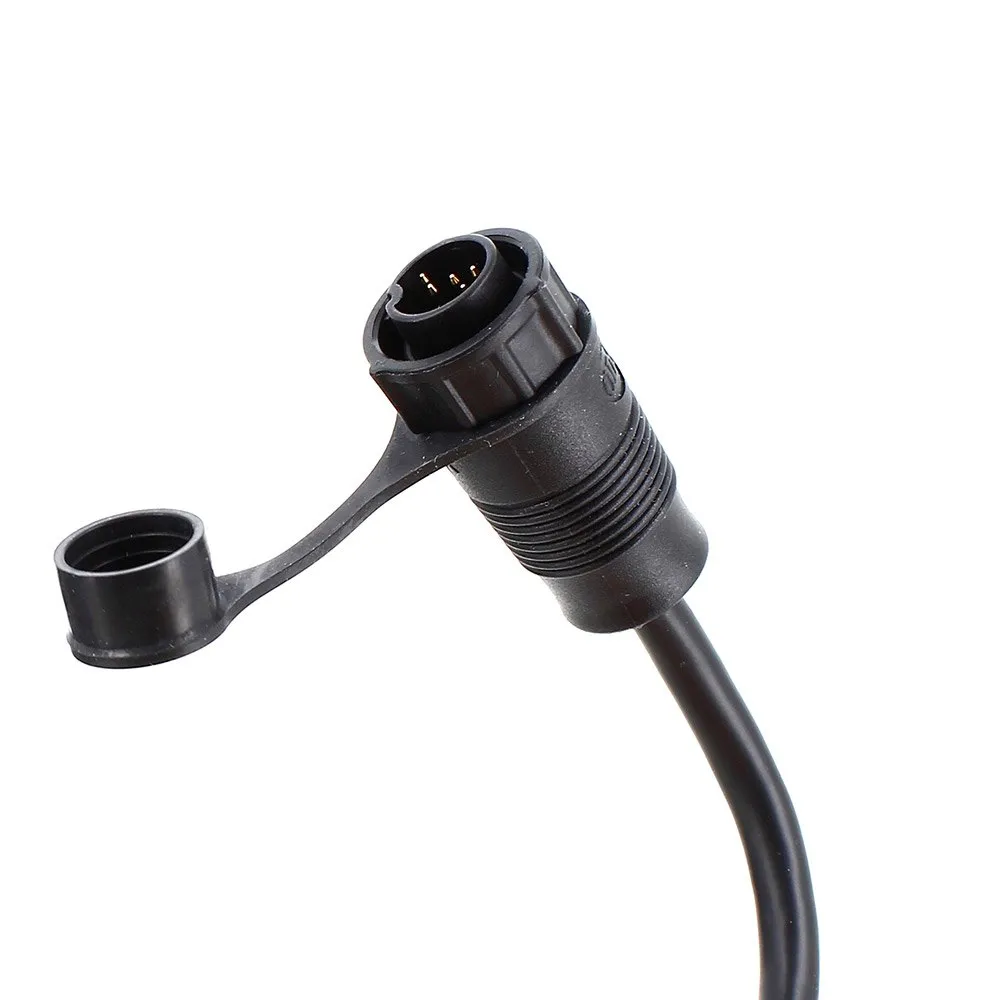

* 9-Pin Connector: Provides a secure, reliable connection to compatible Lowrance displays, including the Elite FS, HDS LIVE, and HDS Carbon series.

Technical Specifications:

* Product: Lowrance HDI Skimmer Med/High Transducer
* Mounting Style: Transom
* Power Output: From 0 to 0.60 kW (600W)

* Broadband Sounder: Medium/High CHIRP (83/200 kHz)
* DownScan Imaging: 455/800 kHz
* Connector Type: 9-pin xSonic
* Sensors: Depth and Temperature
