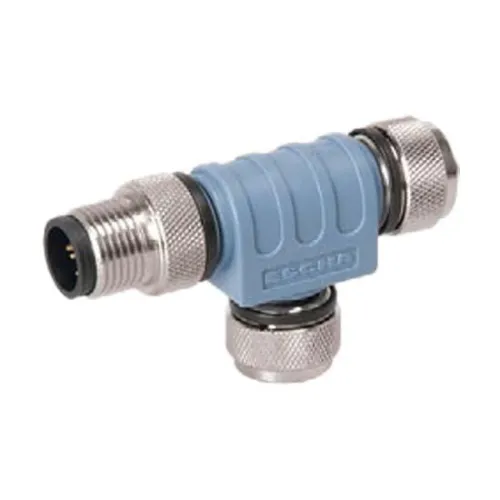

Maretron Micro Tee Connector

A Tee is used to tap into the trunk line for adding a drop connection.

The standard tee is also available with a cap for a protected diagnostic connection.

Tees can be mated with all other devices on the network of the same connector style.

Features:

- Gold contacts for greatest reliability.

- Keyed connectors for correcto-free connections.

Specifications:

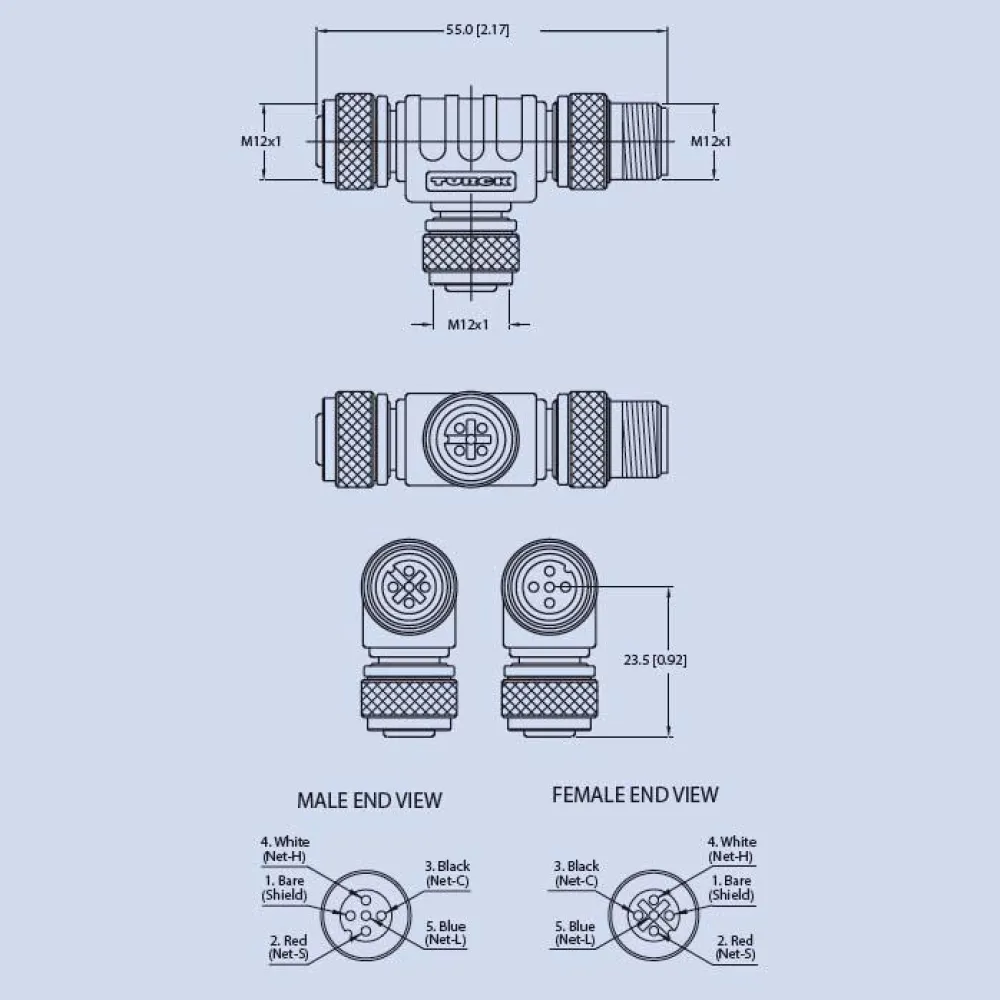

MECHANICAL:

- Molded Body Mat/Color:

Thermoplastic PUR/Blue.

- Contact Carrier Mat/Color:

PA 6 Contact Mat/Plating:

Brass/Gold.

- Coupling Nut Mat/Plating:

Brass/Nickel.

ELECTRICAL:

- Rated Current:

4.0 Amps.

- Rated Voltage:

60 V.

ENVIRONMENTAL:

- Protection Class:

EC IP67, NEMA 1,3,4,6.

- Operating Temperature:

-40°C TO 80°C (-40°F to 176°F).

APPROVALS:

- NMEA:

NMEA 2000.

Approved:

- IEC:

IEC 61162-3.
