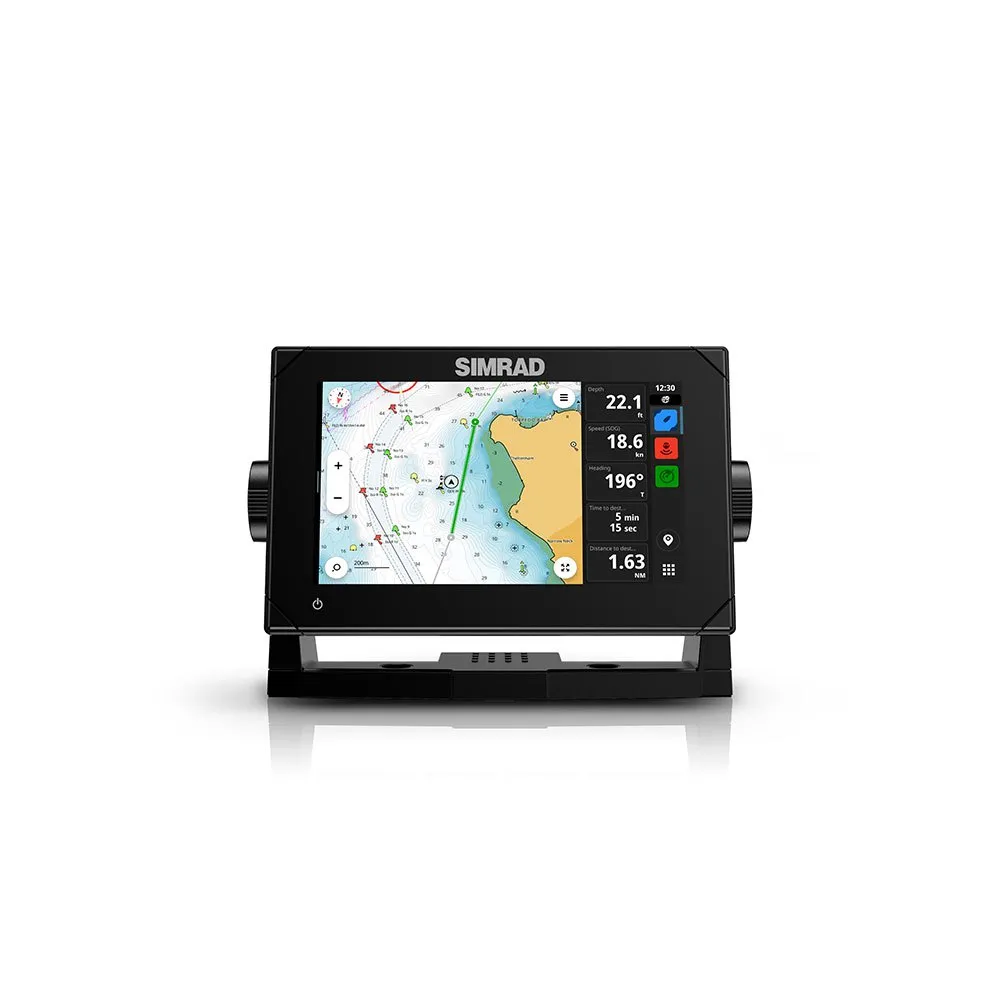

Navico NSX 3007 Active Imaging plotter with transducer

With trasducer active imaging.

The nsx series combines a clear and straightforward multi-touchscreen interface with high-definition images to deliver a whole new experience.

Screen customization, fully editable toolbar and improved day and night modes.

Get a crystal clear view of paper detail, texture and backdrop contours with the vibrant ips solarmax touchscreen, visible from any angle, in direct sunlight and through polarized lenses.

C-map discover x and reveal x optimized marine charts with a fresh and intuitive graphical presentation and the latest updates:- full vector charts with custom depth shading and high resolution bathymetry showing contour lines accurate to one level 1 foot detail.

- our fastest autorouting ever.

- projections of tides and currents for better planning and tracking of the route.

Our brand new operating system has been redesigned from the ground up, for boaters by boaters.

Offering a redefined interface that is faster, simpler and easier to navigate, it boasts new security features and an easy-to-use user interface.

It also has full support and connectivity across a range of existing sonar, radar, autopilot, digital switching and more.

Nmea 2000 compliant and equipped with a usb port that allows modem plug-in for additional connectivity to devices.

It also features an nsx ethernet port for networking.

Extensive integration of third party apps.

Waterproof:ipx6 - ipx7.

Sonar compatibility:one 9-pin 1kw xsonic sonar port.

Single channel chirp, 50-200 khz, hdi, active imaging.

Radar compatibility:halo dome radar.

Ais:nmea 2000.

Autopilot integration:complete autopilot control and commissioning for nac -1, nac-2, nac-3 and nac-d.

Audio server:sonichub2, fusionlink, jl audio, nmea 2000 compatible audio servers.

Ethernet:1 port.

Nmea 2000:1 x nmea 2000 micro-c port, 1 len.

Video input:ip camera, rtsp, onvif, ip cam-1,Wifi:integrated.

Gps:internal, 10hz, wass, msas, egnos.

Compatible cartography:discover x and reveal x.

Cover:included.
