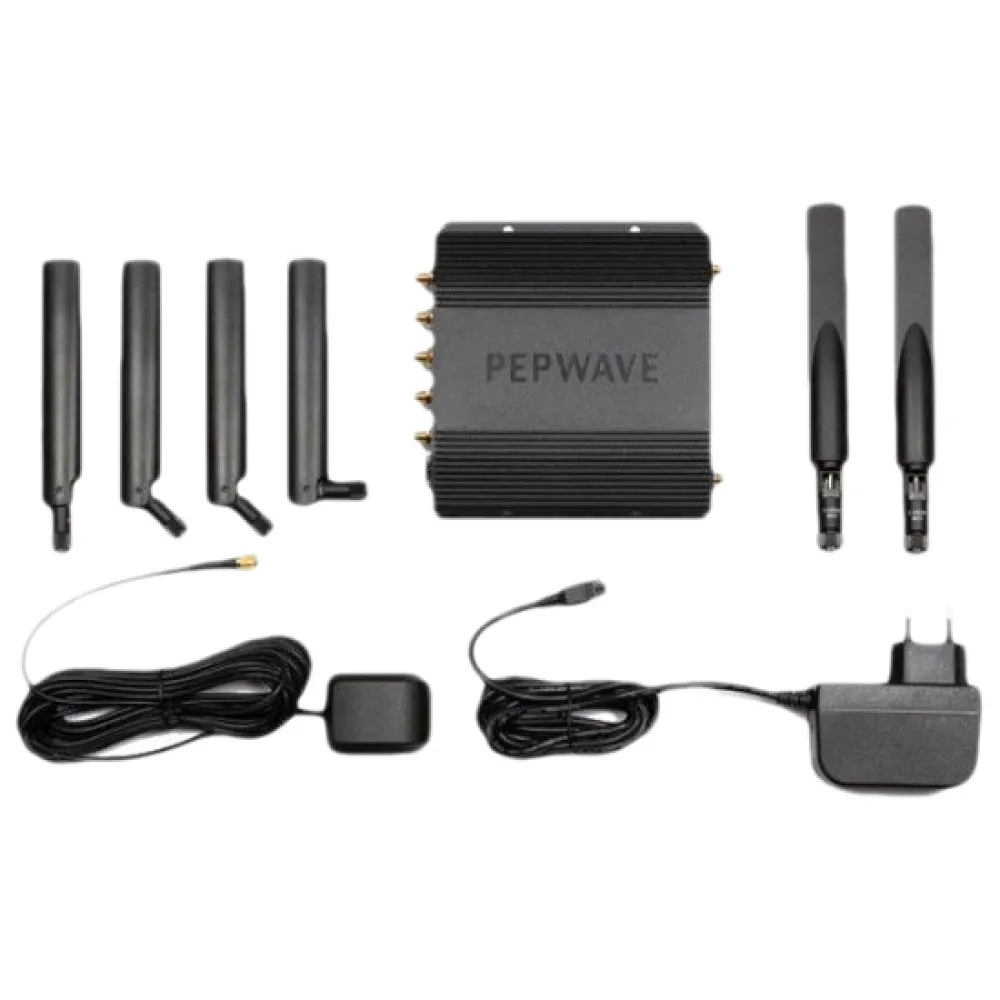

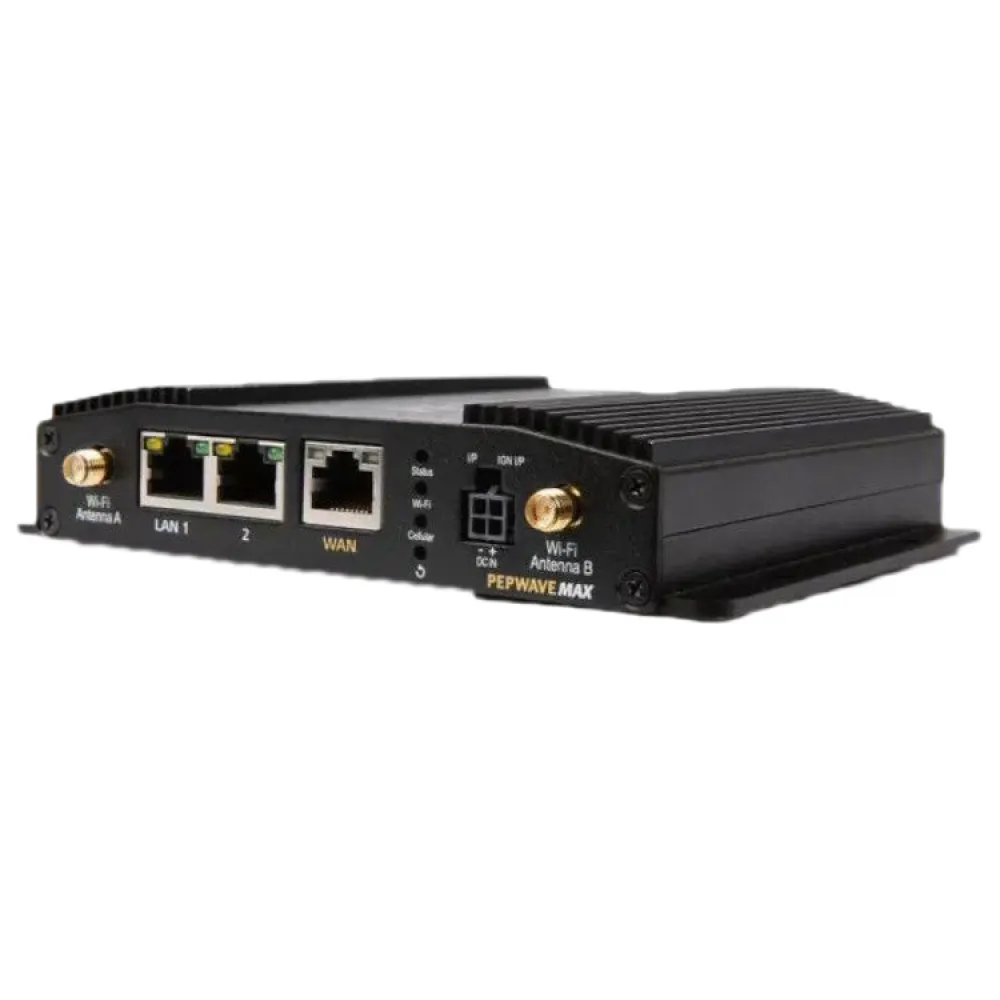

Peplink MAX BR1 Pro 5GN

The Peplink MAX BR1 Pro 5G router, with a 4-port LAN switch and automatic failover, is the ideal choice for deployments that demand extraordinary reliability and flexibility.

We call it Sonic for a reason:
The ´´classic goes sonic´´—why The Peplink BR1 Pro 5G features a next-generation multi-core CPU that delivers gigabit speeds. It´s 8 times faster than the original classic BR1. It´s a complete mobile internet solution for travelers looking to use mobile data as their primary way to stay connected. The BR1 5G is equipped with a 5G cellular modem for ultra-fast cellular access to all major mobile providers. The ultra-fast modem is capable of peak download speeds of 4 Gbps and upload speeds of 700 Mbps.

Wi-Fi 6 connectivity:
The BR1 5G has dual (nano) SIM slots allowing you to load multiple SIM cards from different carriers if desired by allowing you to select which SIM/carrier is in use by the modem. Your mobile connection signal is then wirelessly relayed inside your RV or travel trailer using the high-powered WIFI 6 unit’s 2x2 MIMO WiFi antennas. You get powerful 2GHz (long range) and 5GHz (high speed) wireless connectivity that now takes advantage of the latest WIFI 6 technology with much faster performance than its predecessor, while you also get wired Ethernet ports for your more demanding devices like VOIP phones, desktop PCs, or workstations. You can also use the BR1 5G LTE-´s WiFi-as-WAN functionality to connect to campsite WiFi in addition to using your cellular modem. For the advanced user, you can load balance multiple connections (advanced feature), allowing you to use both wireless/wired and cellular connections simultaneously. A true industrial-grade mobile workhorse for travel enthusiasts.

Specifications:

- LTE category options: 1x 5G
- Wi-Fi AP: Yes
- Wi-Fi WAN: Yes
- SIM slots: 2 Nano-SIM size (4FF)
- Wi-Fi Radio Dual (2.4GHz + 5GHz) Wi-Fi 6
- Recommended Users: 1-150
- Captive Portal: Yes
- Number of PepVPN / SpeedFusion peers: 2/5^
- GPS: Yes
- Input voltage: DC 10 - 30V
- Dimensions: 146.8 x 129 x 29.3 mm
- Weight: 580 g
