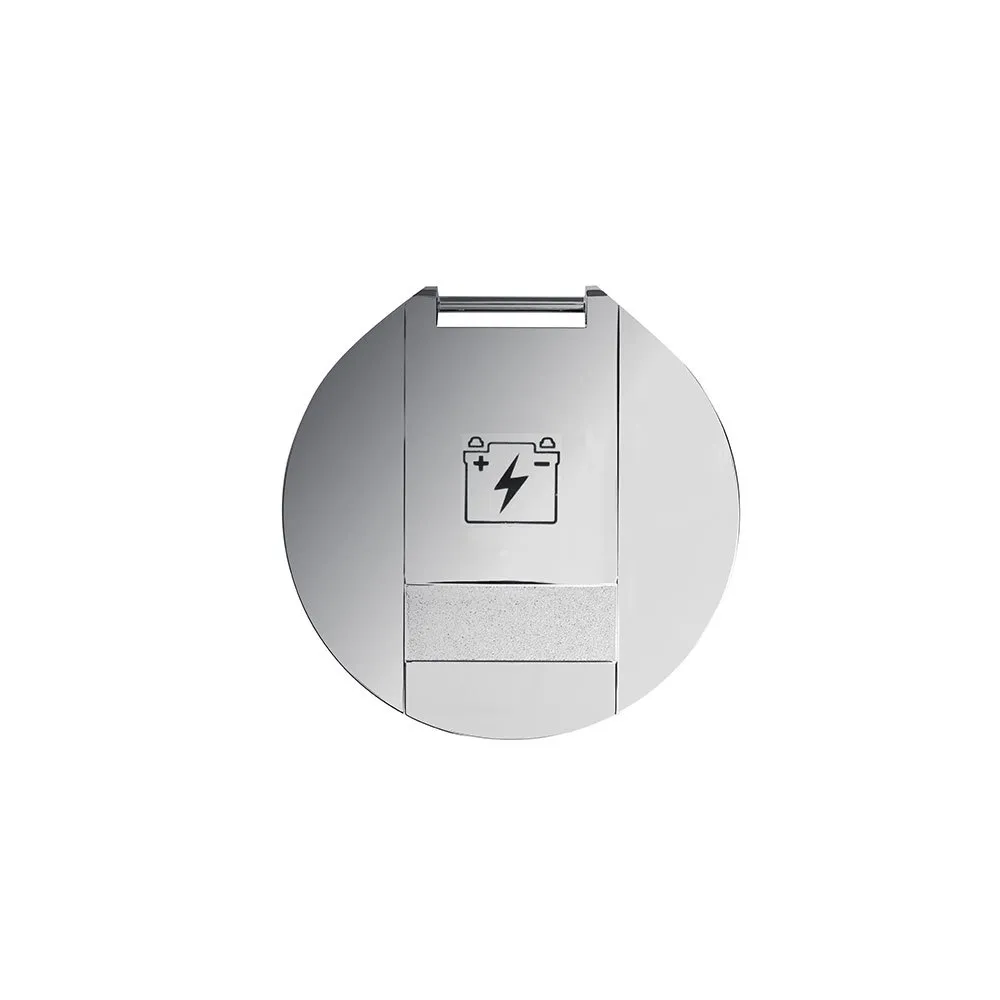

Plastimo EZ Elec Round Battery Switch

PLASTIMO EZ Elec Round Battery Switch

Category: Electronics
Subcategory: Electrical Connections

---

Ensure complete control and safety over your vessel´s electrical system with the premium PLASTIMO EZ Elec Round Battery Switch. As a critical component in any marine electrical setup, this switch provides a reliable and straightforward method for managing your boat´s power, isolating batteries for maintenance, and preventing unwanted battery drain when your vessel is not in use. Designed by the renowned marine equipment specialist Plastimo, the EZ Elec range combines robust functionality with a sleek, modern aesthetic, making it the perfect upgrade for any dashboard or electrical panel on sailboats, motorboats, and yachts.

The primary benefit of this battery switch is the enhanced safety it brings to your onboard electrical connections. By allowing you to completely disconnect the batteries from the rest of the electrical system, it effectively eliminates the risk of electrical fires, protects sensitive electronics from power surges during engine startup, and provides a crucial safety cutoff in an emergency. This simple yet vital function is essential for routine maintenance, winterization, or any time you need to work on the electrical system with confidence.

Key Benefits:

* Total Power Control: Effortlessly switch between battery banks or disconnect power entirely. The clear, positive-action rotary dial ensures you know exactly which circuit is active, preventing accidental power loss or incorrect battery usage.
* Enhanced Battery Life: Prevent slow, parasitic drains from clocks, stereos, and other electronics that can deplete your batteries over time. By isolating the batteries with a simple turn of the switch, you ensure they are fully charged and ready for your next voyage.
* Robust Marine-Grade Durability: Built to withstand the harsh marine environment, this switch is engineered for longevity. The EZ Elec battery switch unit by Plastimo. Rigid, chrome and round cover. This construction not only provides superior protection against corrosion and UV degradation but also adds a touch of elegance to your helm or control panel.
* Versatile Application: Whether you have a simple single-battery setup or a more complex dual-battery system for starting and house banks, the PLASTIMO EZ Elec range has a model to suit your needs, including ON/OFF and 1/2/BOTH/OFF configurations.

Main Features:

This high-performance battery selector Switch is designed for intuitive operation and easy installation. Its compact, round footprint allows for flexible mounting options, including both surface and flush-mount installations to achieve a clean, professional look.

* Ergonomic rotary knob with clear position indicators.
* Positive click mechanism for confident switching between positions.
* Available in models for single (ON/OFF) or dual battery installations.
* Features large M10 terminal studs to accommodate heavy-gauge battery cables, ensuring minimal voltage drop and a secure connection.
* Designed for simple integration into your existing electrical connections.

Technical Specifications:

* Voltage Compatibility: 12V / 24V / 48V DC systems
* Continuous Rating: 250 Amps
* Intermittent Rating (5 min): 450 Amps
* Cranking Rating (10 sec): 1250 Amps
* Terminal Studs: 2 x M10 (3/8") tin-plated copper
* Mounting: Can be surface or flush mounted (hole Ø 73 mm)
* Dimensions: Ø 97 mm x 78 mm (depth)
* Protection Rating: IP56 (Protected from limited dust ingress and high-pressure water jets from any direction)

Trust in Plastimo´s expertise in marine electronics to deliver a battery switch that offers uncompromising performance and reliability. The PLASTIMO EZ Elec Round Battery Switch is more than just a component; it´s a smart investment in the safety, reliability, and longevity of your boat´s electrical infrastructure. Upgrade your vessel´s power management system today for peace of mind on the water
