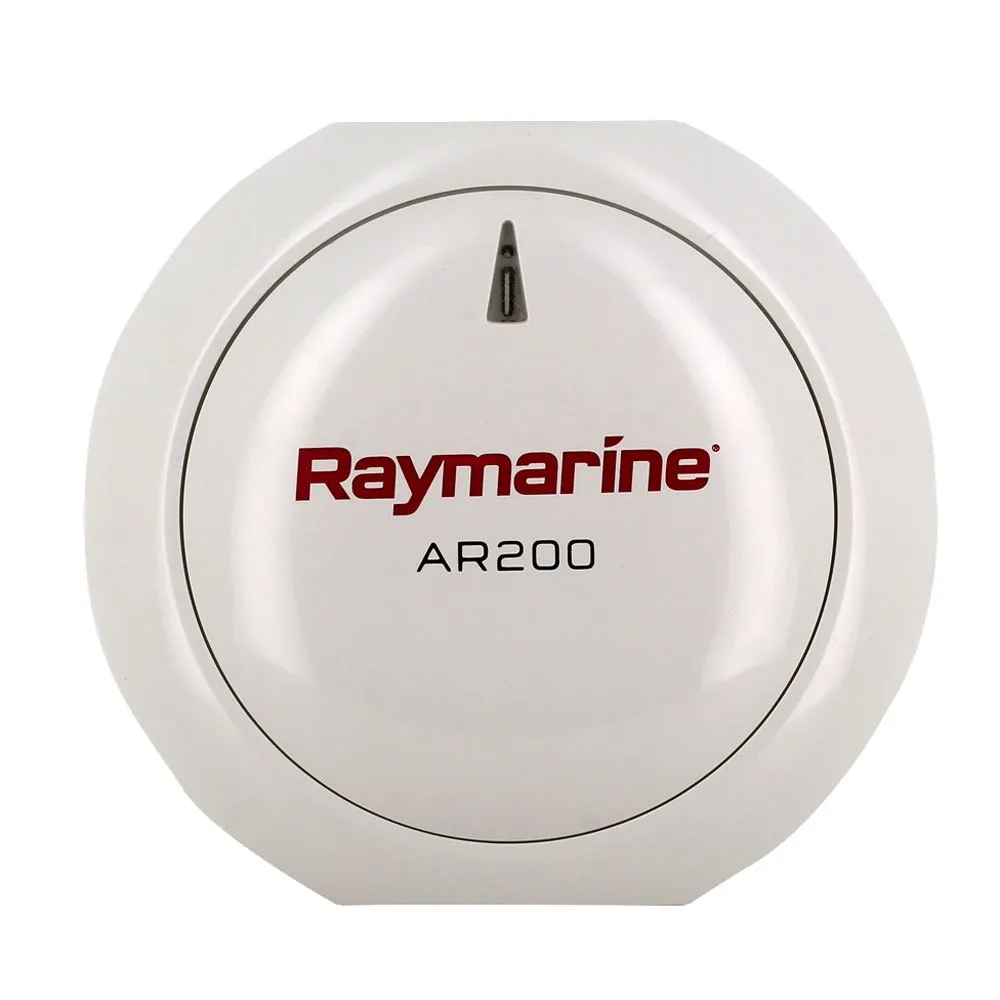

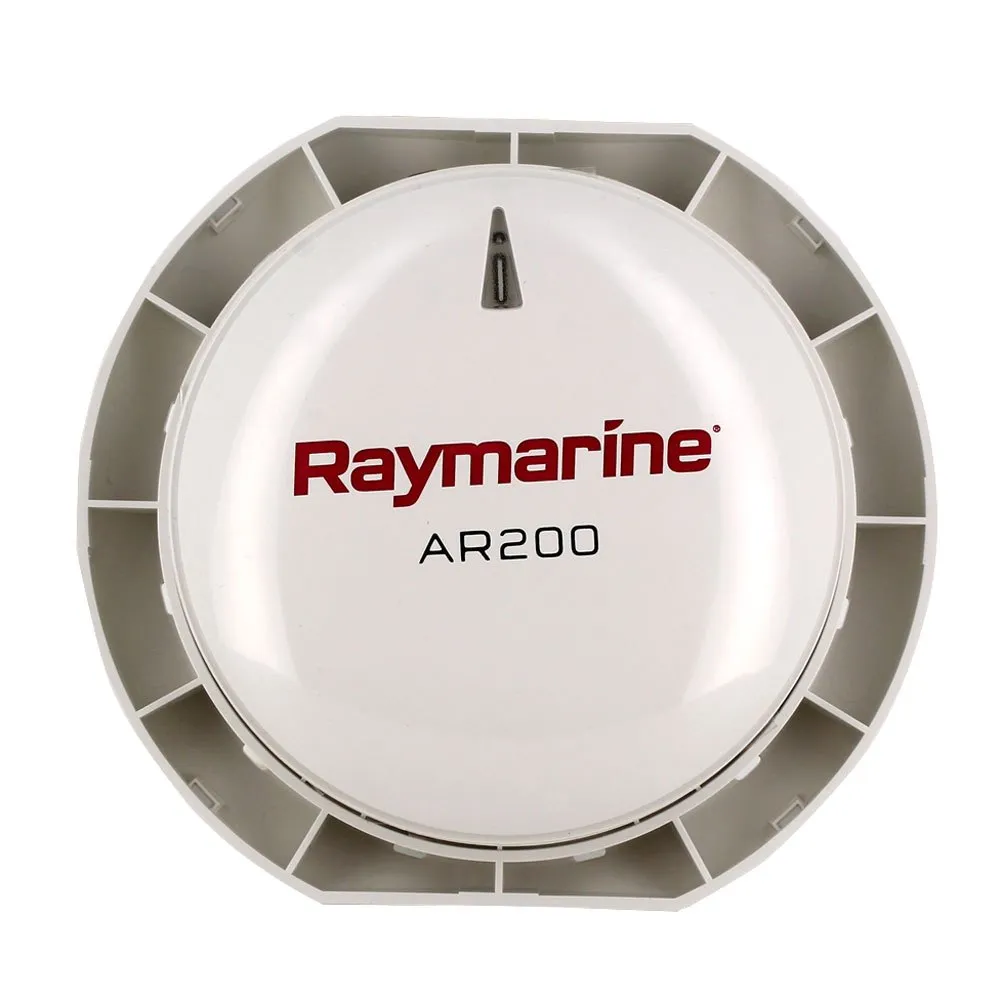

Raymarine AR200 IP Camera Stabilization Module For Augmented Reality

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor.

The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs.

When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.

Key Features:

- 9-axis AHRS (attitude and heading reference system) sensor.

- 28-channel GPS receiver.

- Fast 10Hz position updates.

- Satellite differential GPS-compatible.

Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support.

- When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays.

- NMEA 2000 compliant.

- IPX6 / IPX7 waterproof rating Technical.

Specifications:

Power.

Specifications:

- Nominal supply voltage:

12 V dc (Supplied by the SeaTalkng® network.).

- Operating voltage range:

9 V dc to 16 V dc (protected up to 32 V dc).

- Power consumption:

30 mA Max.

- LEN (Load Equivalency Rating) Environmental:

- Operating temperature range:

- 25 ºC to +55 ºC (-13 ºF to 131 ºF).

- Storage temperature range:

- 25 ºC to +70 ºC (-13 ºF to 158 ºF).

- Relative humidity:

93%.

- Water Ingress Protection:

IPx6 and IPx7 Conformance:

- EMC Directive:

2014/30/EU.

- Australia and New Zealand C-Tick compliance:

Level 2.

- RoHS Directive:

2011/65/EU.

- WEEE Directive:

2012/19/EU Gnss receiver:

- Signal acquisition:

Automatic.

- Channels:

Simultaneously track up to 28 satellites.

- Operating frequency:

1574 MHz to 1605 MHz.

- Update rate:

10Hz.

- Sensitivity:

Cold start =.

- 147 dBm.

- Re-acquisition =.

- 160 dBm.

- Tracking =.

- 164 dBm GNSS compatibility:

- GPS.

- Glonass:

- Galileo ready.

- Beidou ready Satellite Differential Type (SBAS):

- WAAS (United States).

- EGNOS (Europe).

- MSAS (Japan).

- GAGAN (India).

- QZSS ready (Japan).

- Differential acquisition:

Automatic.

- Position accuracy without SBAS (95%):

< 15m.

- Position accuracy with SBAS (95%):

<5m.

- Speed accuracy (95%):

<0.3m.

- Time to first fix from cold start:

<2 minutes (<60 seconds typical).

- Time to first fix from hot start:

<45 seconds.

- Geodetic Datum:

WGS-84.

- Antenna:

Internal Ahrs:

- AHRS:

3-Axis digital accelerometer.

- 3-Axis digital compass.

- 3-Axis MEMS Gyro digital angular rate sensor.

- Magnetic compass accuracy:

Static = ≤1° RMS.

- Dynamic = ≤3° RMS.

- Pitch, Roll and Yaw accuracy:

≤1°.

- Heading, Pitch, Roll and Rate of Turn update rate:

10Hz What´s in the box:

- Mounting trim (top).

- Small sealing ring.

- AR200.

- x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel).

- Mounting tray (bottom).

- x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel).

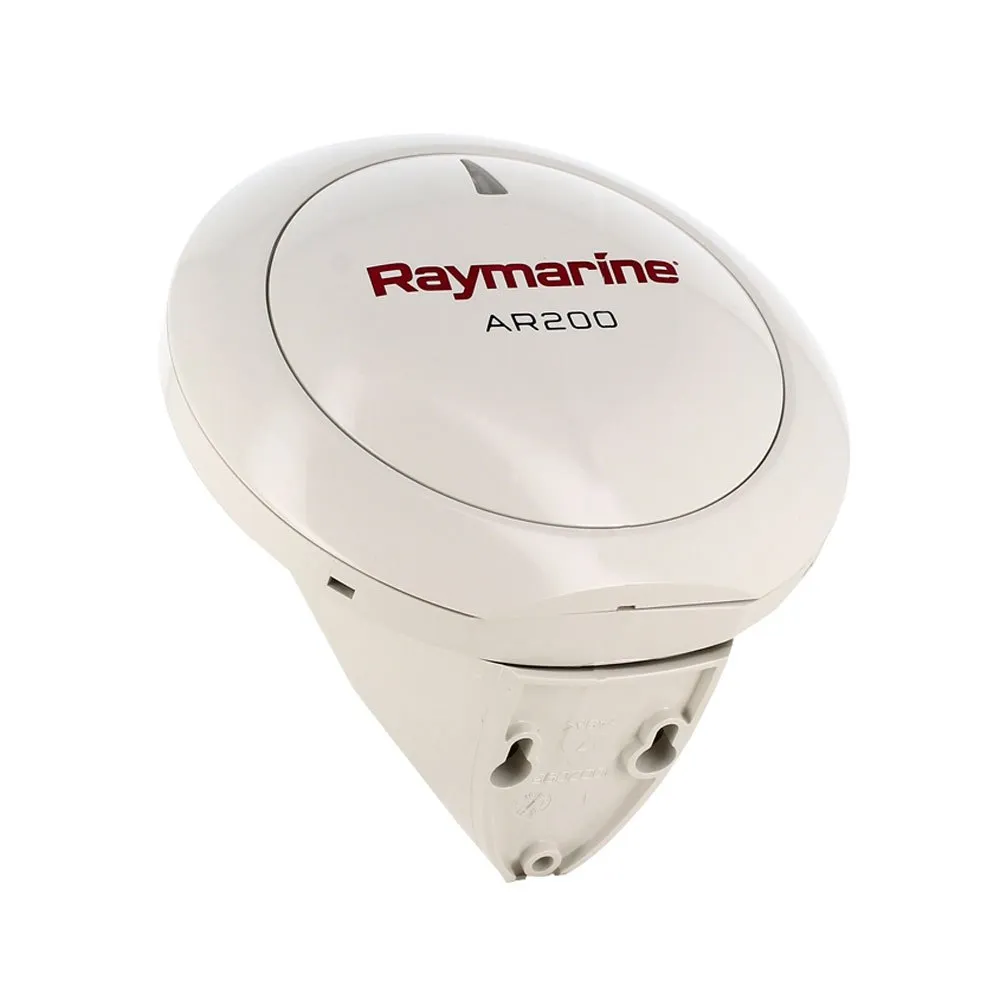

- Bulkhead (wall) bracket.

- Large sealing ring.

- Documentation.

- 6m (19.7ft) SeaTalkNG white cable.
