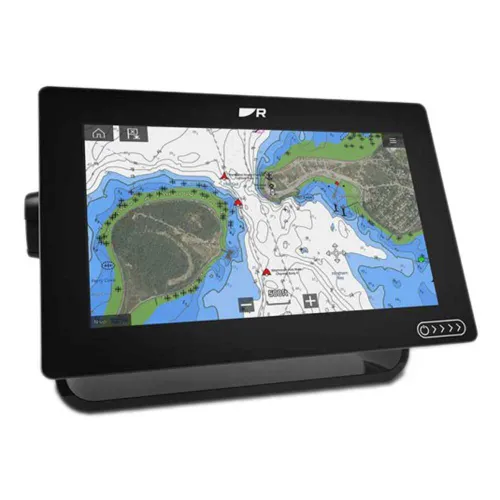

Raymarine Axiom+ 9 LightHouse plotter with cartography

Features:

All-In-One Chartplotter, Plus More:
Axiom®+ Is A New Generation Of Axiom Chartplotters Upgraded With All-Weather Higher Resolution Displays That Are 25 Percent Brighter Than The Previous Generation. Axiom+ Displays Are Equipped With A Powerful Quad-Core Processor For Industry-Leading Speed And Responsiveness.
- Seamlessly Redraw Charts And Expand Axiom+ With Solid State Radar, And Flir Thermal Cameras Or Add A Marine Camera And Navigate With Clearcruise Augmented Reality. Axiom+ Features The Renowned Lighthouse Operating System, So You Can Easily Navigate And Expand Your System.

Performance Tuned:
- Fast And Fluid Chart Redraw Of Lighthouse, Navionics And C-Map Electronics Charts.
- Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps.
- Smart And Intuitive Lighthouse Os Makes Navigating Easy.
- Ready To Expand - Network With Multiple Displays, Radars, Engines, Marine Cameras, And More.

Maximum Visibility:
- Upgraded Ips Display Technology Delivers Charts, Sonar, Radar, And Video In Stunning Color.
- Improved Viewing With New Lighthouse Color Themes, Including Day, Dusk And Night Mode.

Hydrotoughtm:
- Axiom+ Features Hydrotough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil, And Smudges.
- All-Weather Hydrotough Technology Delivers Improved Color And Contrast And Accurate Touch Controls - Even When Wet.

Make Smarter Navigation Decisions:
- Add An Ais (Automatic Identification Receiver) And Safely Navigate Busy Waterways With Ais Target Overlays
- Upgrade To Clearcruise Augmented Reality And Visualize Ais Targets, Navigation Aids, And Waypoints In High-Definition Video.
- Avoid Obstacles With Optional Quantum And Cyclone Radars And Doppler Target Tracking.


Specifications:

Physical:
Dimensions (Trunnion Mounted):
- Axiom+ 7: Width: 250.4 Mm (9.86 In), Height: 162.5 Mm (6.4 In), Depth Including Cables: 218 Mm (8.58 In)

Dimensions (Surface/Flush Mounted):
- Axiom+ 7: Width: 201.1 Mm (7.92 In), Height: 133 Mm (5.24 In), Depth Including Cables: 218 Mm (8.58 In)
- Accessory Connection: Usb Micro B
- Ethernet Connection: Raynet (10/100 Mbits/S)
- External Storage: Microsdxc Card Slot X 1
- Nmea 2000 Connection: Devicenet (Male Connector Built Into Power Cable)
- Wireless Connections: Bluetooth: V4.0, Wi-Fi: 802.11/B/G/N
- Internal Storage: 16 Gb Solid State (14 Gb Usable)
- Transducer Connection: 25 Pin Realvision Type Connector. Requires The A80490 Adaptor Cable For Cpt-S Style Transducers

Power:
Power Consumption: Axiom+ 7: 7.34 W
- Operating Voltage Range: 8 V Dc To 16 V Dc
- Fuse Rating: 7 A
- Nominal Supply Voltage: 12 V Dc

Environmental:
- Operating Temperature: 25°C To +55°C (-13°F To 131°F)
- Storage Temperature: 30°C To +70°C (-22°F To 158°F)
- Relative Humidity: Up To 93% @ 40°C (104°F)
- Waterproof Rating: Ipx6, Ipx7

Gps:
- Position Accuracy: Without Sbas: ≤ 15 Metres 95% Of The Time, With Sbas: ≤ 5 Metres 95% Of The Time
- Geodetic Datum: Wgs-84 (Alternatives Can Be Selected On The Mfd)
- Antenna: Internal - Ceramic Chip Mounted Near Top Of Unit
- Gnss Compatibility: Gps, Glonass, Beidou
- Almanac Update: Automatic
- Signal Acquisition:- Automatic
- Receiver Ic Sensitivity: 165 Dbm (Tracking), 160 Dbm (Acquisition), 148 Dbm (Cold Start)
- Operating Frequency: 1574 Mhz To 1605 Mhz
