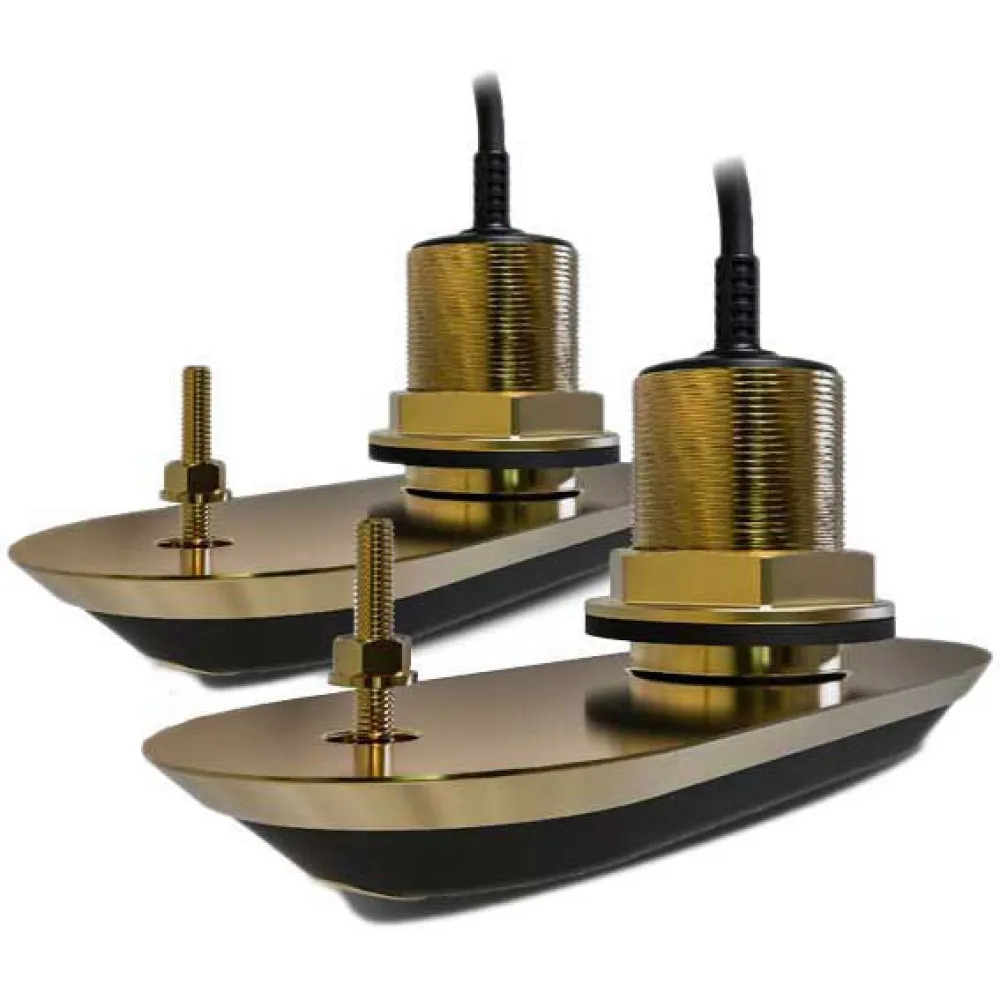

Raymarine RV-212 Pack

RV-212 Bronze Through Hull Transducer Pack (with 12° deadrise compensation).

Through Hull.

Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.

The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion.

You´ll enjoy crystal-clear imagery in waves, swells, and while maneuvering.

The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine´s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 6° to 18°.

This completely eliminates the need for fairing blocks.

The low-profile design slips effortlessly through the water without causing drag or cavitation.

The near-flush RV-212 system works great on trailered boats too.

The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls.

One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions.

Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.).

What´s in the Box?.

RV-212P Bronze Port Transducer with 2-meter cable.

RV-212S Bronze Starboard Transducer with 2-meter cable.

RealVision 3D Transducer Y-Cable.

RealVision 3D 8-meter (26-feet) Transducer Extension Cable.

Anti-rotation bolt kit.

Installation instructions.
