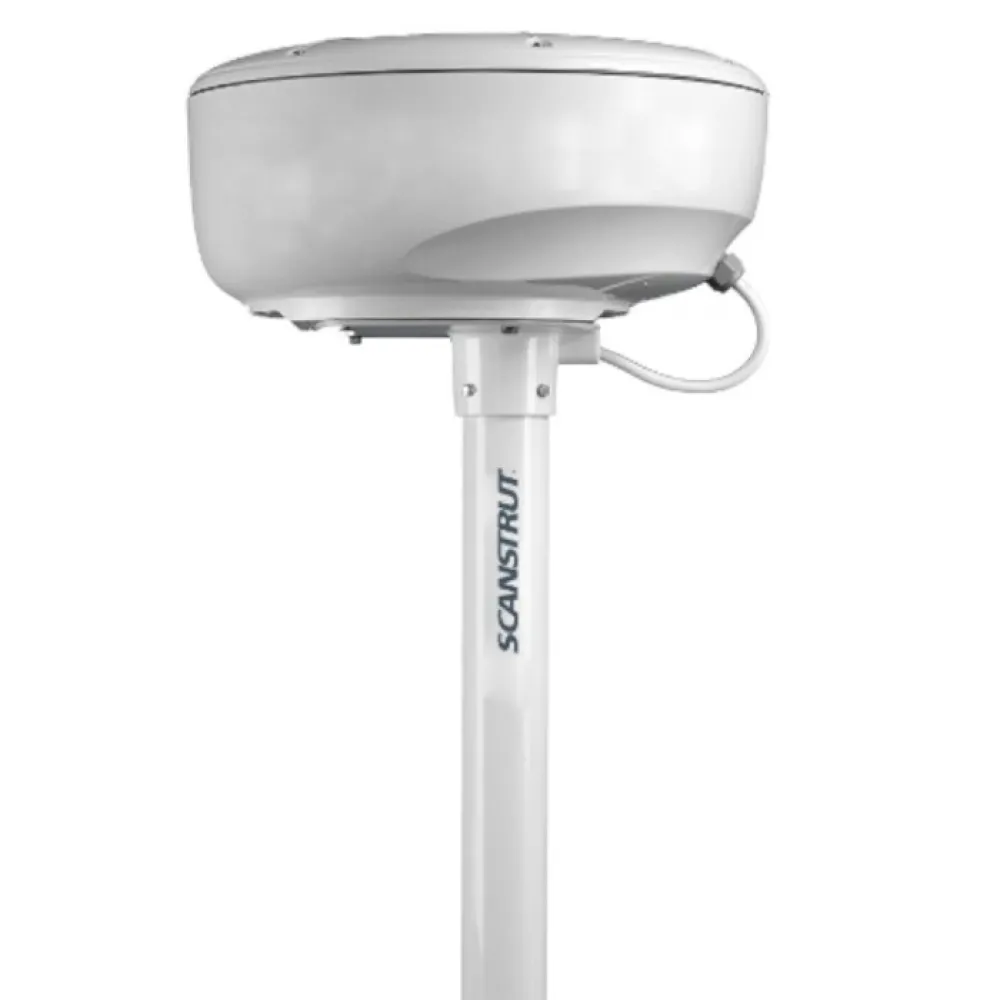

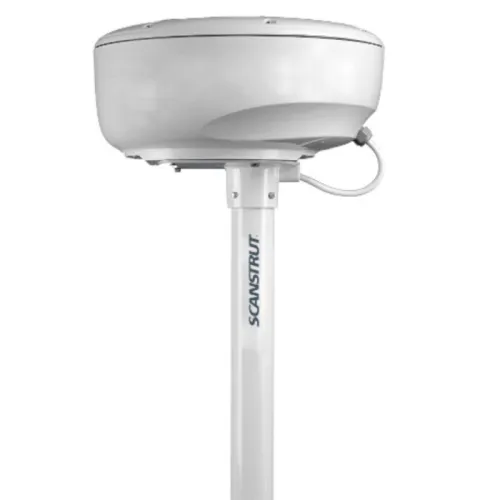

Scanstrut Radar pole mount 2.5 m

SCANSTRUT Radar Pole Mount 2.5m | Unrivalled Performance & Stability

Elevate your marine electronics with the SCANSTRUT 2.5m (8.3´) Radar Pole Mount, the definitive solution for achieving a clear, unobstructed view for your radar and antennas. Expertly engineered for the harsh marine environment, this pole mount system ensures your essential equipment performs at its peak, enhancing safety and situational awareness on every voyage. By raising your radome above the deck, you eliminate signal interference from deck equipment and crew, guaranteeing maximum range and target detection when you need it most.

Designed for both sailboats and powerboats, this mount offers a clean, space-saving installation on the transom or deck. Its robust construction and superior stability provide a secure platform for your valuable electronics, even in the most challenging sea conditions. The elegant design complements the aesthetics of any vessel while delivering the professional-grade performance that SCANSTRUT is renowned for.

Key Benefits:

* Optimised Radar Performance: Lifts your radar scanner to a height of 2.5 metres, providing a clear line of sight for superior signal clarity and extended range.
* Maximum Stability: Features two robust support modules that brace the pole against the transom, delivering maximum rigidity and support for your electronics array.
* Versatile & Space-Saving: Frees up valuable deck space by consolidating your radar and other antennas onto a single, streamlined mast. Its modular design allows for future upgrades and additions.
* Durable Marine-Grade Construction: Built to withstand the toughest offshore conditions, ensuring long-lasting reliability and protection for your equipment.
* Effortless & Watertight Installation: An adjustable base accommodates mounting on sloping transoms, while the included IP65 watertight seal provides a secure and dry cable entry point into the pole.

Main Features:

* Hollow 80mm (3.2") diameter pole allows for neat and protected internal routing of all cables.
* Adjustable base hinge enables a secure fit on angled transoms and decks.
* Two included support modules provide exceptional fore/aft and sideways bracing.
* Marine-grade, powder-coated aluminium construction for ultimate corrosion resistance and a durable finish.
* A comprehensive fitting kit and installation guide are supplied for a straightforward setup.

Supports:

This versatile pole mount is designed to support a wide range of marine electronics. It is the ideal platform for:
* Radomes up to 4kW from leading brands like Garmin, Raymarine, Simrad, and B&G.
* Small Satcom and TV antennas .
* GPS, VHF, AIS, and Wi-Fi antennas (requires optional spreader kits or mounting bars).

Technical Specifications:

* Product Code: SC102 Pole
* Height: 2.5m / 8.3 ft
* Pole Diameter: 80mm / 3.2"
* Material: Marine-Grade 6082 Aluminium
* Finish: Gloss White Polyester Powder Coat
* Base: Adjustable angle for deck or transom mounting
* Cable Management: Internal routing with IP65 gland
