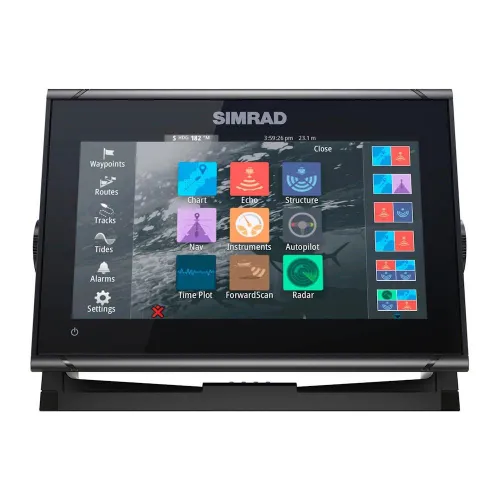

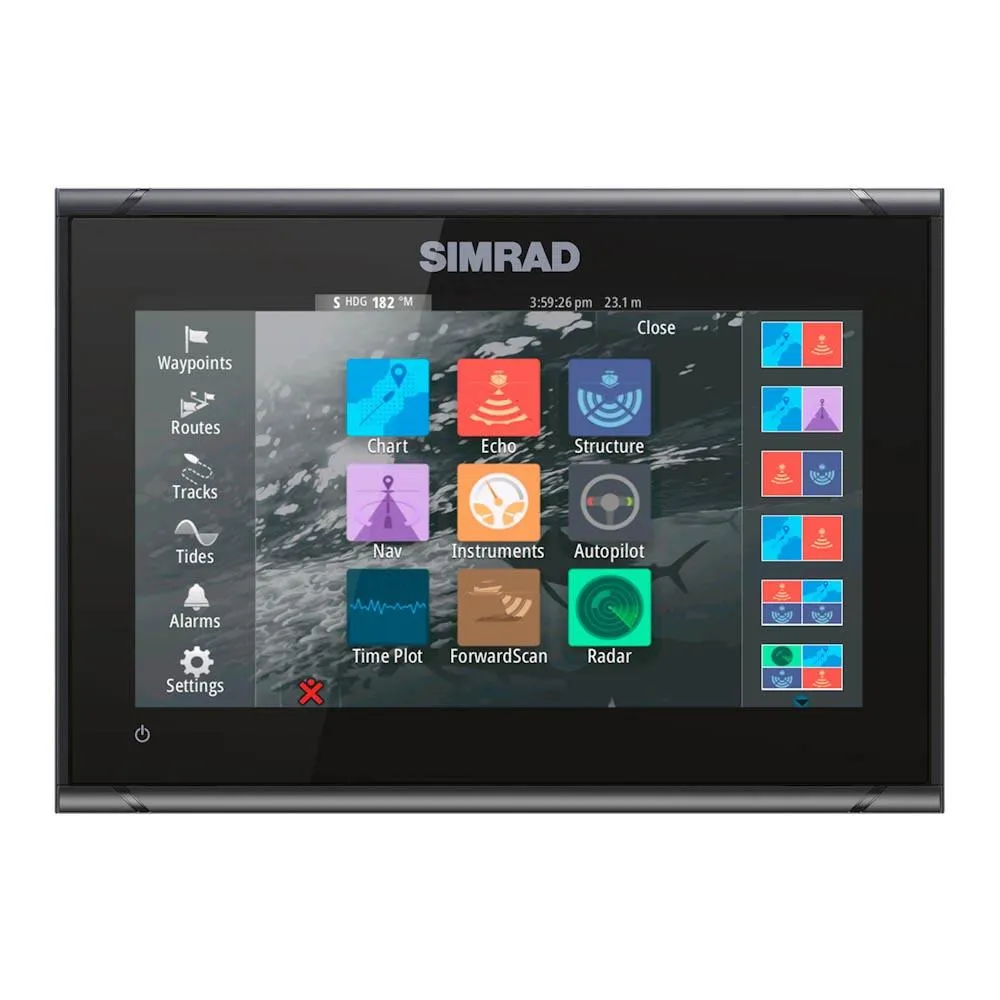

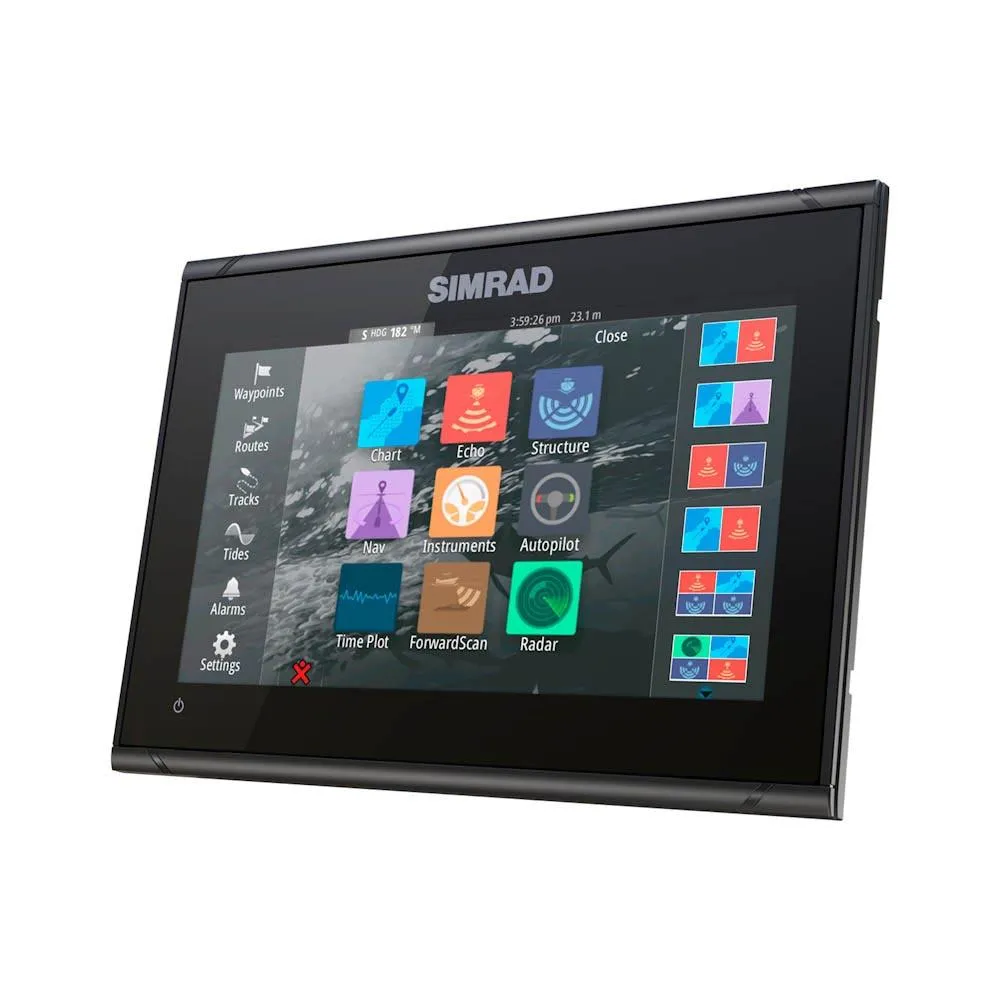

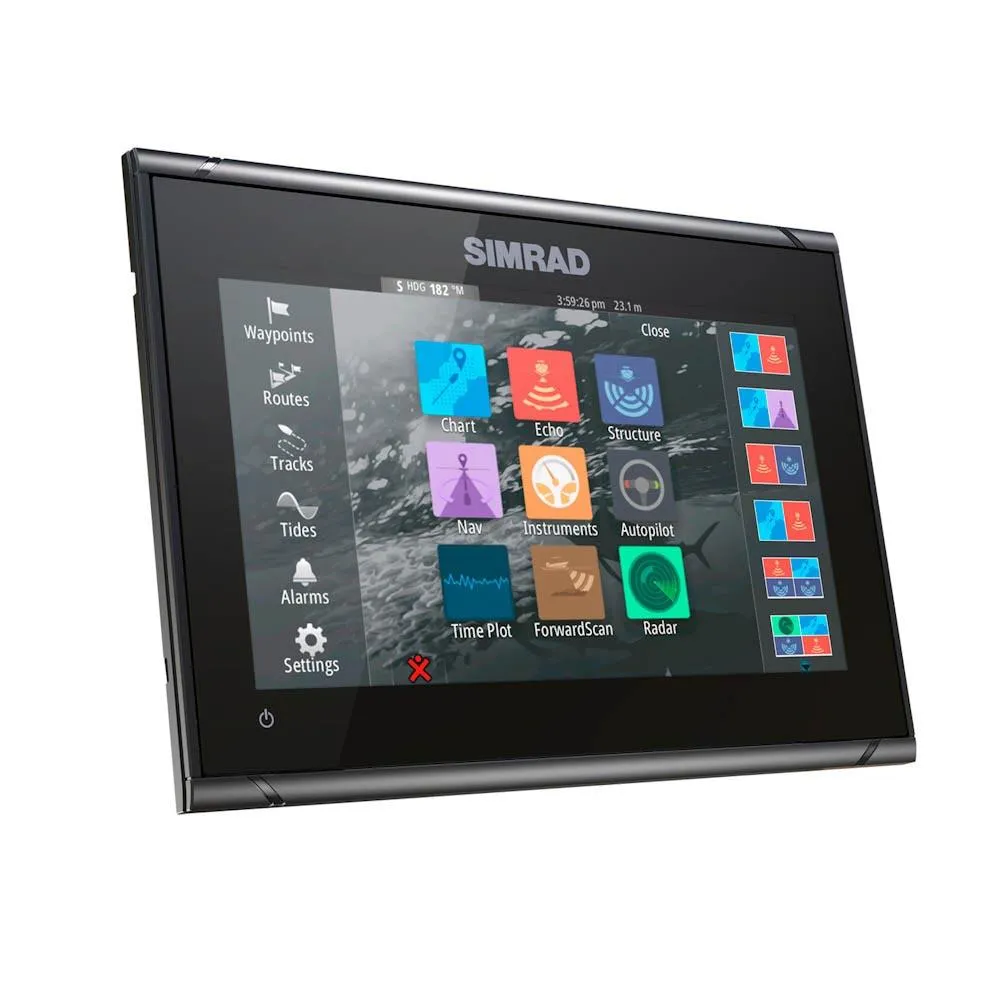

Simrad GO9 XSE Fishing Plotter

NSO evo2 Marine Processor Key Features:

- Large-Screen Navigation System
- Multi-TouchSensible (with compatible display)
- Dual Independent Video Output
- Full HD Video
- Performance Module compatibility
- Cartography Choice
- Smaller, lighter design
- Quad-Core Processing Power

Dual Independent Video Output:

- Independent HDMI output ports allow different setups on each display
- 2 x Quad core processors

– Dedicated processor per monitor gives superior speed and chart draw performance
GoFree

- Control both NSO evo2 monitors direct from your Ipad or Android Tablet.
- NSO evo2 Appears as 2 Separate MFD Displays within the GoFree Application.
- Even if you only have 1 monitor connected to the NSO evo2 on the vessel you can view and control the second output direct from your tablet…
Chartography Options
- Choose from the many available Cartography options on offer to best suit your Location and usage –C-MAP MAX-N –Navionics –Insight –Insight Genesis –NV Digital Chart

Control Options:

- OP-50 Remote –Full NSO evo2 System control available with OP-50 Remote –*Integrated NSO evo2 Autopilot control functions require OP-50 remote
- Touch screen Control – NSO evo2 can be operated by multi-touch monitors provided by select partners. Currently KEP marine Glass bridge touch screen monitors are certified for use on NSO evo2 and operate via USB cable connection. Multi touch gestures are supported for chart zoom / sonar zoom/ Radar range

New for NSO evo2:

- Multi zoom touch gestures
- Naviconics Depth Highlight range
- Naviconics shallow water highlight
- AIS Sarts
- Fusion Link Audio Device Support
- Grib Weather
- Flir Camera integration
- GS25 Antenna Configuration
- Wide screen display support

Language Packs:

- Standard Language Pack:

English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch,Norwegian, Portuguese, Swedish

- Asian Language Pack:

English (US), Japanese, Korean, Thai, Chinese,

- Eastern European Language Pack:

English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish

- Russia/Ukraine Language pack:

English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian

Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

MO-T Monitors Key Features

- Low Profile Glass Bridge Design
- More Screen, Less Border
- Widescreen Displays, HD Resolutions
- Touch/Non-Touch Option
- High Bright Backlight Option
- Picture in Picture
- On-Glass Menu Keys
- VESA bracket Mounting Option
- IP66 in Dash Mounting
- Suitable for any monitor application (not limited to Simrad)

High Def. Widescreen Displays:

- Higher Definition LCD panels enable more information to be presented on the display
- For a defined chart zoom level, user can see a larger area of chart in full detail
- For an echo sounder panel, more vertical pixels means more vertical resolution and target detail in the water column
- Wide LCD format makes more effective use of boat dashboard space
- Widescreen aspect ratios give more usable panel shapes in split modesn aspect ratios give more usable panel shapes in split modes


Specifications:

- Casing: ABS Plastic
- Operating Temp: -15°C to +55°C
- water ingress: IPx2
- Weight: 1060g
- dimensions (overall): 281mm (W) x 232mm (H) x 65.5mm (D)

Electrical:

- Operating voltage: 9 - 31.2 V DC
- Power consumption: 45W (Max)
- Low power standby mode: yes
- Protection: reverse polarity and temporary over-voltage to 36V
- Alarm output current: capable of driving 10A relay coil
- Processor: iMX61 quad core
- RAM: DDR3 1GB
- Storage: 8GB Flash
- Conformity: CE, C-Tick, HDMI

Interfaces:

- ethernet: 3 ports total - 1 & 2 are PoE (RJ45 socket)
- NMEA 2000: 1 port on rear (Micro-C male)
- Video input: 2 ports on rear (BNC female. NTCS or PAL format)
- Video output: 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9),
1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200 (WUXGA 16:10), 1280x800 (16:10), 1280x1024 (SXGA 5:4)

- USB: mass storage, keyboard and mouse (Type A socket)
- SD: 32GB (Full size SD card socket)
- NMEA 0183 baud rate: 4800, 9600, 19200, & 38400 (via proprietary cable)
- NMEA 0183 via RS232: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- charting support: Navionics, CMAP, Insight, NV Charts on SD


Specifications:

- Casing: PC/ABS
- Operating temp: -15°C to +55°C (+5°F to +131°F)
- Water ingress: IPX6 and 7
- Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
- Screen brightness: 1200 nits
- Screen resolution: 480 x 800 (H x W)
- Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60

Electrical:

- Operating voltage: 10 - 17 V DC
- Current draw at 13.6 V (sonar off, max B/L): 1 A
- Low power standby mode: yes
- Protection: reverse polarity and temporary over-voltage to 36 V
- Alarm output current: 1 A max
- Processor: iMX61 single core
- Conformity: CE, C-Tick

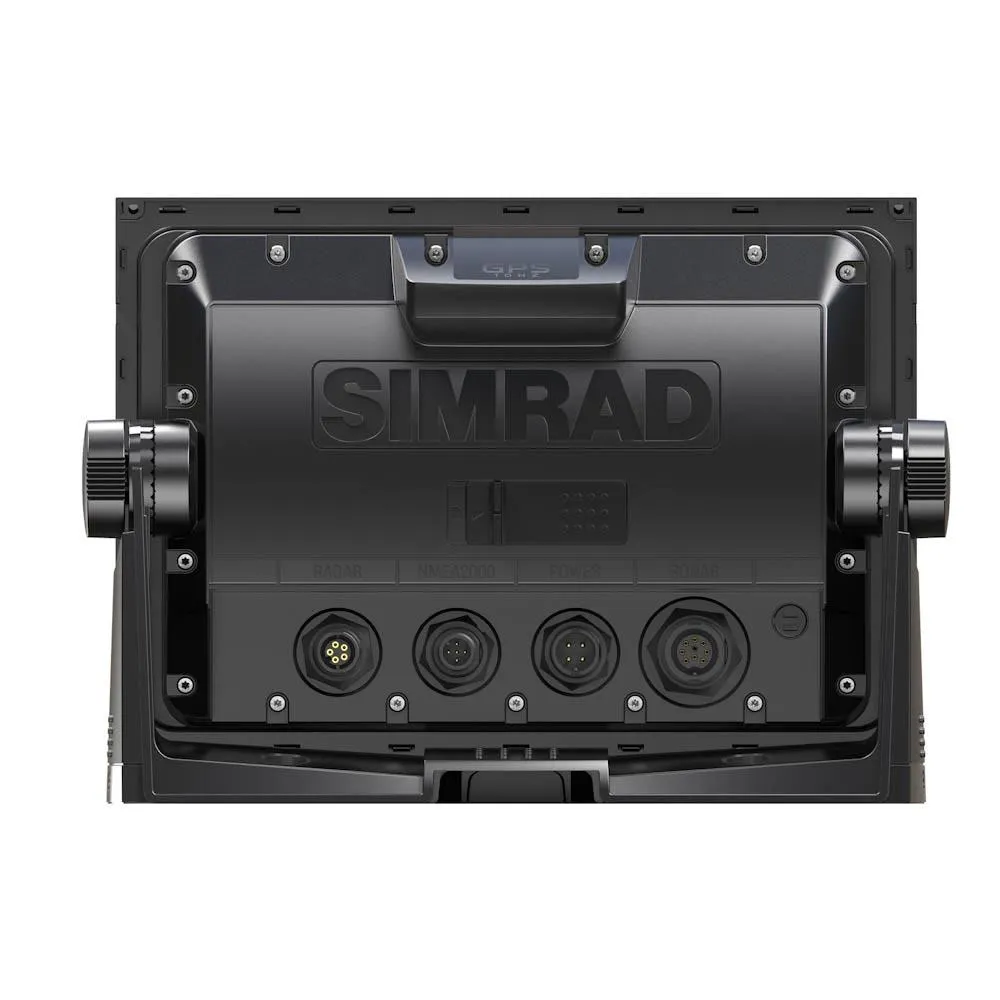

- NMEA 2000 (compliant): 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector)
Sonar 1 port (9 pin connector) Radar 1 port (5 pin Ethernet connector)
- Card reader: Dual microSD
