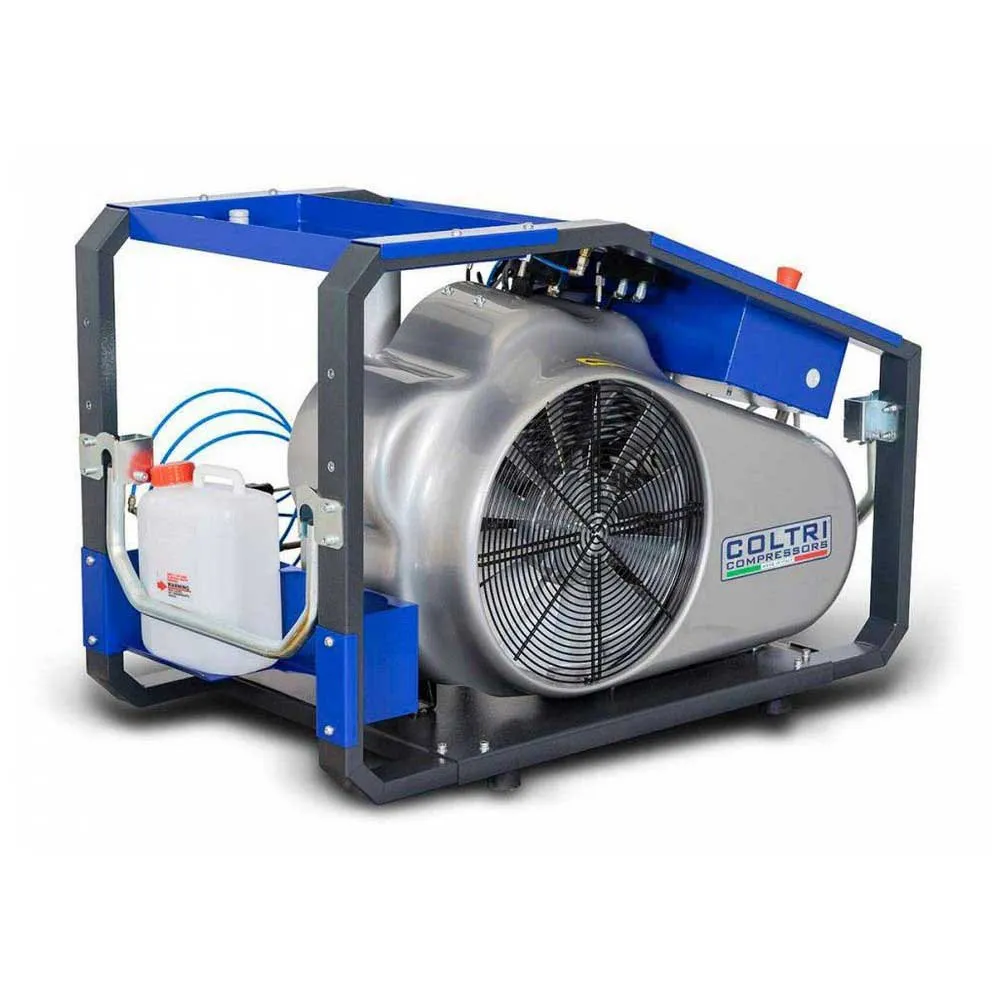

Coltri MCH13 Ergo Three Phase compressor

Model not valid for the American market, 50 Hz electric motor.

The ERGO model stands out for its robustness, portability and great efficiency.

Equipped with three different pumping units (MCH 13, MCH 16, or MCH 18 depending on the specific model) and powered by three-phase electric motors.

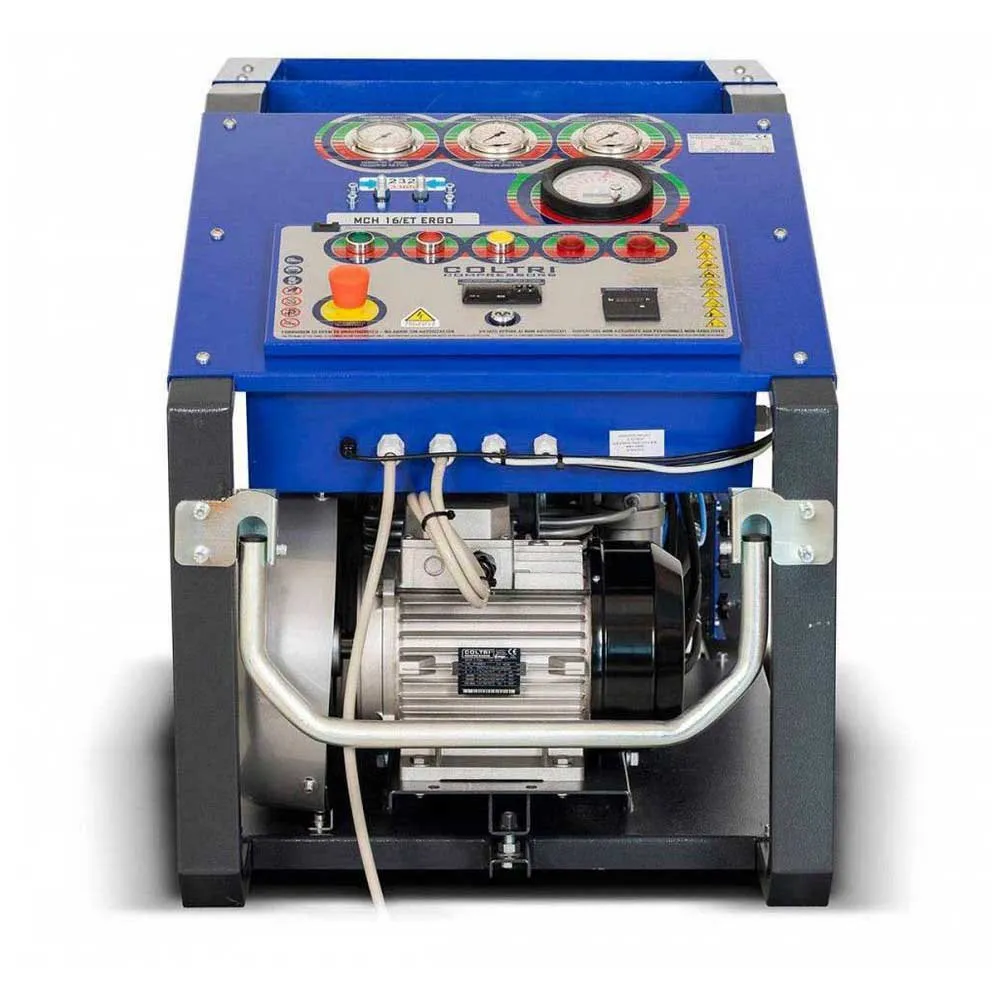

Each ERGO compressor has a monitoring system panel that includes an interstage pressure gauge, autostop with adjustable pressure switch, automatic condensate drain and a phase control for rotation direction.

The models in this series have two connections for high pressure hoses (from 232 to 330 bar) and a Maxifilter system.

The remote filling panel is available as an optional extra.

Technical drawing H:770 mm - W:1120 mm - D:630 mm H:30.31 in - W:44.09 in - D:24.80 in Pumping group capacity MCH 13 Three-phase Electric Motor - 235 l/m - 14,10 m³/h - 8.30 CFM FAD MCH 16 Three-phase Electric Motor - 315 l/m - 18,90 m³/h - 11.12 CFM FAD MCH 16 EM Single-phase Electric Motor - 315 l/m - 18,90 m³/h - 11.12 CFM FAD Filling time:* * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 13 Three-phase Electric Motor - 8 min.

30 sec.

MCH 16 Three-phase Electric Motor - 6 min.

20 sec.

MCH 16 EM Single-phase Electric Motor - 6 min.

20 sec.

Operating pressure 232 - 300 - 330 bar 3365 - 4351 - 4786 PSIG Net weight MCH 13 - Three-phase Electric Motor - 159 kg - 351 Lbs MCH 16 - Three-phase Electric Motor - 152 kg - 335 Lbs MCH 16 EM - Single-phase Electric Motor - 147 kg - 324 Lbs Noise level MCH 13 Three-phase Electric Motor - 80,7 db MCH 16 Three-phase Electric Motor - 82,3 db MCH 16 EM Single-phase Electric Motor - 82,3 db.
