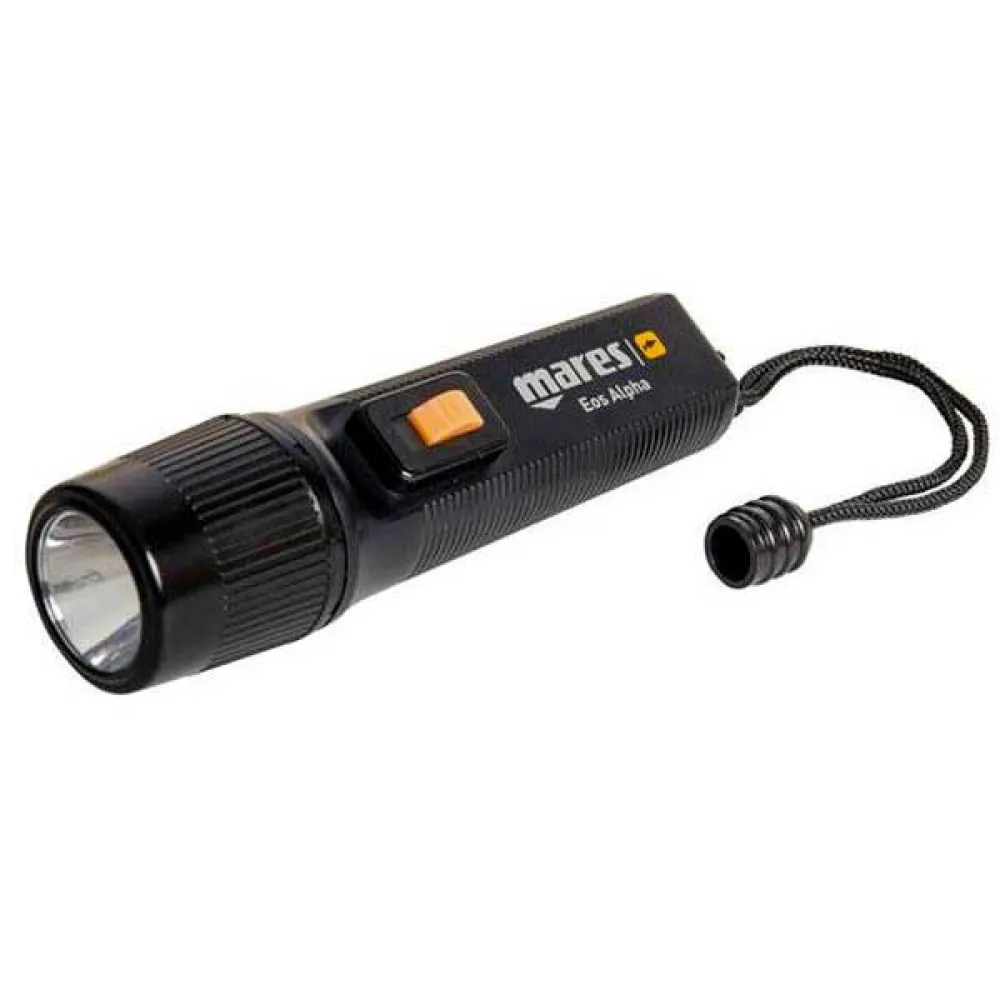

Mares Pure Passion Eos Alpha torch

TECHNICAL CHARACTERISTICS:Max depth - 50 m/164 ft.

-Switch - Magnetic slider, 2 positions (Off Fig.2A, ON Fig.2B).

-Batteries (not included) - 4 AA Alkaline or 4 AA rechargeable (2700mAh).

Burn time:ver 15 hours.

-Reflector - Polycarbonate (Hot Spot).

TO REPLACE BATTERIES:Unscrew the head of the torch (Fig.1A), holding it pointing upward then remove the LED holder (Fig.1B).

-Insert the batteries, paying CLOSE ATTENTION to their orientation, respecting the polarity shown on the stickers (Fig.4).

-Put the LED holder back in the correct position (Fig.3) and screw down the reflector holding nut (head)pletely.

CARE AND MAINTENANCE:Respect the polarity of the batteries as shown in this manual and inside the torch.

-Remove the batteries if the torch will not be used for long periods or during transport.

-Do not use the torch out of the water.

-AFTER EVERY USE CHECK THAT THE TORCH WAS CORRECTLY SWITCHED OFF.

-Replace ALL the batteries when they are dead, to avoid damage or injury to the torch or people.

-Do not unscrew the reflector holding nut (head) of the torch during a dive or when wet.

-Before screwing on the nut (Fig.1A) grease the two O-rings (Fig.1D) with silicone grease (Mares Code:15147) and ensure their leanliness.

Periodically (once a year), have the integrity of the O-Rings checked at a Mares Service Center ( -If water leaks occur or in the event of a malfunction, contact the Mares Dealer where you purchased the torch or a Mares Service Center.

-Use of expired batteries can significantly reduce the burn-time and performance.

-A decrease in light intensity and/or a slight flicker in the beam indicate that the batteries have nearly lost their charge.

They should be replaced at the next opportunity.

ROUTINE MAINTENANCE:Rinse the outside of the torch in fresh water after every dive, without disassembling it.

-Keep the torch in a cool, dry place.

The temperature must never exceed 50°C.
