Airmar Junction Box NMEA0183/NMEA2000 For ST950

Electronics - Communication.

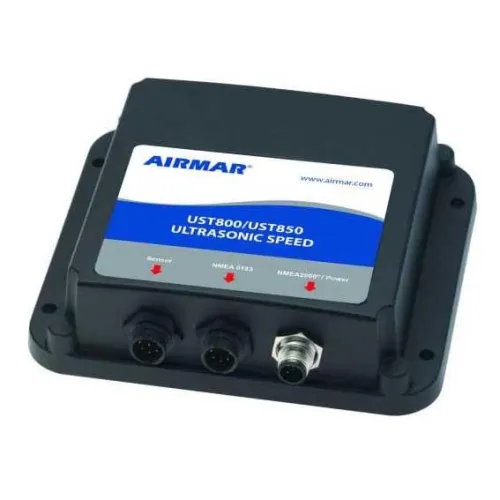

AIRMAR Junction Box NMEA0183/NMEA2000 For ST950.

Nmea0183 / nmea2000 junction box for st950 transducer.



Unlock the full potential of your vessel´s instrumentation with the AIRMAR Junction Box, expertly designed for the ST950 Speed and Temperature transducer. This essential piece of marine electronics acts as a powerful bridge, seamlessly converting analog transducer signals into both NMEA 0183 and NMEA 2000 digital formats. It is the definitive solution for integrating your reliable ST950 transducer with modern multi-function displays (MFDs), chartplotters, and other networked marine instruments.

Experience unparalleled flexibility and future-proof your boat´s communication network. With simultaneous NMEA 0183 and NMEA 2000 outputs, this junction box allows you to run a hybrid system, feeding data to both legacy equipment and the latest NMEA 2000-certified devices. This dual-protocol capability is perfect for vessel upgrades, allowing you to modernize your helm electronics without the immediate need to replace every component. The box simplifies complex wiring, providing a single, protected, and centralized hub for all connections, which significantly reduces installation time and potential points of failure.

Engineered for the harsh marine environment, the AIRMAR Junction Box is housed in a rugged, waterproof enclosure, ensuring long-term reliability and protection against moisture, vibration, and salt spray. By providing a clean, stable, and accurate digital data stream of your vessel´s speed-through-water and water temperature, you can optimize fuel consumption, improve sailing performance, and make more informed navigation decisions. This unit is more than just a connection point; it is an intelligent converter that ensures the critical data from your ST950 transducer is accurately and reliably displayed across your entire network.

Key Benefits:

* Dual-Network Integration: Provides simultaneous NMEA 0183 and NMEA 2000 outputs for maximum compatibility with both legacy and modern marine electronics.
* Simplified Installation: Centralizes transducer wiring into a single, robust unit, eliminating clutter and simplifying troubleshooting.
* Enhanced Data Accuracy: Converts analog signals to a stable digital format, ensuring precise and reliable speed and temperature readings on all connected displays.
* System Upgrade Path: Allows you to connect your existing ST950 transducer to a new NMEA 2000 network, protecting your initial investment.
* Durable Marine-Grade Construction: Features a waterproof, high-impact plastic enclosure designed to withstand the demanding conditions of a marine environment.

Main Features:

* Dedicated interface specifically for the AIRMAR ST950 Speed/Temperature transducer.
* Simultaneous NMEA 0183 and NMEA 2000 data output.
* Intelligent signal processing for analog-to-digital conversion.
* Compact and robust waterproof housing.
* Provides a centralized and protected connection point for transducer wiring.
* Facilitates plug-and-play integration with NMEA 2000 networks.

Technical Specifications:

* Product Type: Signal Converter Junction Box
* Attribute: Boxes
* Compatibility: AIRMAR ST950 Speed & Temperature Transducer
* Output Protocols: NMEA 2000 and NMEA 0183
* NMEA 2000 PGNs Transmitted: 128259 (Speed, Water Referenced), 130312 (Temperature)
* NMEA 0183 Sentences Transmitted: VHW (Speed Through Water), MTW (Water Temperature)
* Power Supply: 9 VDC to 16 VDC via NMEA 2000 network
* NMEA 2000 Load Equivalency Number (LEN): 2
* Connectors: Standard NMEA 2000 Micro-C male connector, internal terminal strips for transducer and NMEA 0183 connections.
* Enclosure Rating: IP67 Waterproof
