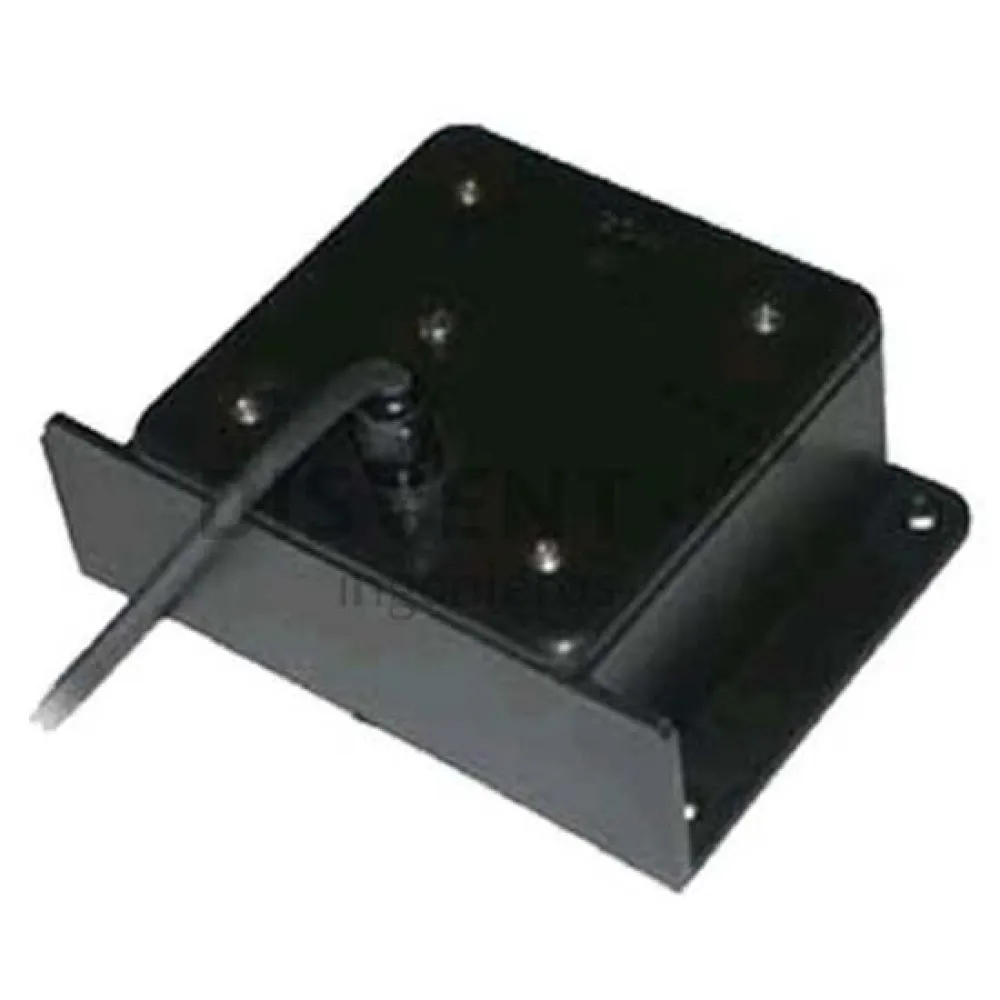

Comnav Fluxgate Compass for Autopilot

Features:

- Clip mounted allowing both fixed and hand held operation
- Suitable for small to mid-sized vessels
- Capable of operating on most standard types of steering systems
- Waterproof Control Head
- Automatic yaw, sea state and trim
- Optional full function Second Station
- “Nav” mode accepts NMEA 0183 information
- Digital display of rudder angle and operating mode
- Optional analog rudder angle indicator
- One NMEA 0183 Heading Output (HDM & HDG)
- Large LCD display with eight brightness levels for comfortable viewing
- Built-in diagnostics and self tests
- Visual and audible alarms
- Reliable in any sea and weather condition
- Easy to install and fully compatible with your onboard instruments
- Ten selectable steering parameters for both Fast and Slow modes
- Extended 3 year warranty
- Meets CE requirements


SPECIFICATIONS:

- Operating Voltage: 10-40 VDC
- Power Consumption: Average 3 amps, 20 amps Peak
- Solenoid Output: 20 amps max.
- DC Reversing Pump: 20 amps max.
- Clutch Output: 3 amps max.
- Navigational Interface: NMEA 0183
- Heading Reference: Fluxgate / Magnetic Compass
- Course Resolution: 1º
- Course Detection: 0.25º

DIMENSIONS:

- Control Unit: 152mm x 25mm x 79mm / 6.0 x 1.0 x 3.1 inches
- Processor Unit: 60mm x 380mm x 70mm / 6.3 x 15.0 x 2.7 inches
- Fluxgate Compass: 142mm x 107mm x 76mm / 5.6 x 4.2 x 3.0 inches
- Pump: 122mm x 191mm x 102mm / 4.8 x 7.5 x 4.0 inches
