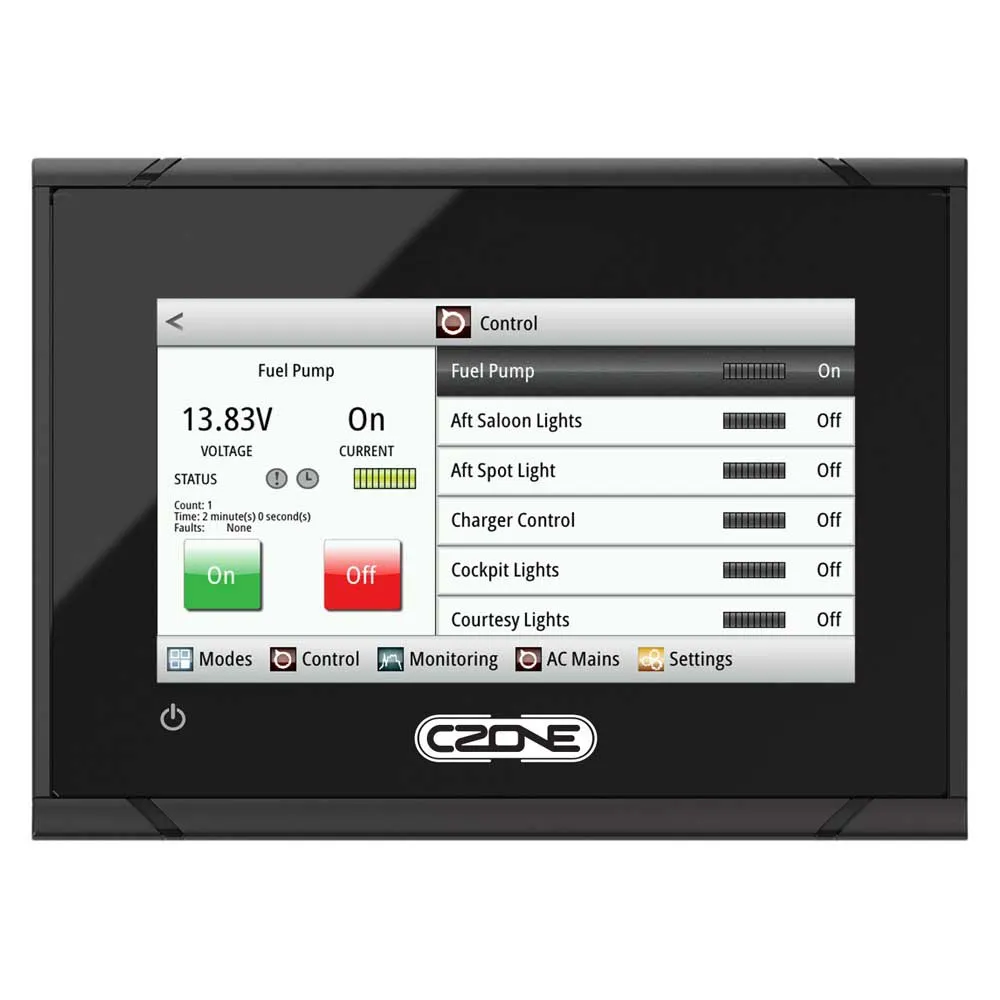

Czone Touch 5 Screen Kit

The sleek Touch 5 adds a compact touchscreen option to your CZone® installation. While offering many of the same features as its bigger brother, the Touch 10, this display module adds WiFi connectivity as well as the higher specification IPX7 waterproofing. With a super bright widescreen display and the latest capacitive touchscreen technology, this compact unit outperforms perfectly in sunlight. It also suits smaller applications where space is at a premium, or on larger applications as a secondary display.


Features:

- Easy to use touch interface.
- Glass dash styling.
- Super bright widescreen display.
- Low profile flush mounting.
- Reduced system cost and complexity, combines display and Wireless Interface functionality into one unit.
- IPX7 water ingress protection.
- Built-in WiFi connectivity.
- Micro SD card slot.
- NMEA 2000 compatible.


Specifications:

General specifications:
- Screen: 5” LED-backlit projected capacitive widescreen touch
- Resolution: 800 x 480 pixels
- Brightness (cd/m2): 1200
- Interfaces: NMEA2000, Micro SD
Dimensions, hxwxd:
- 120 x 152 x 58 mm
- 4.7 x 6.0 x 2.3 inch

Technical specifications:
- Power consumption: 900 mA at 13.5 V
- Protection degree: IPX7 water ingress
- Supply voltage: 12 V
