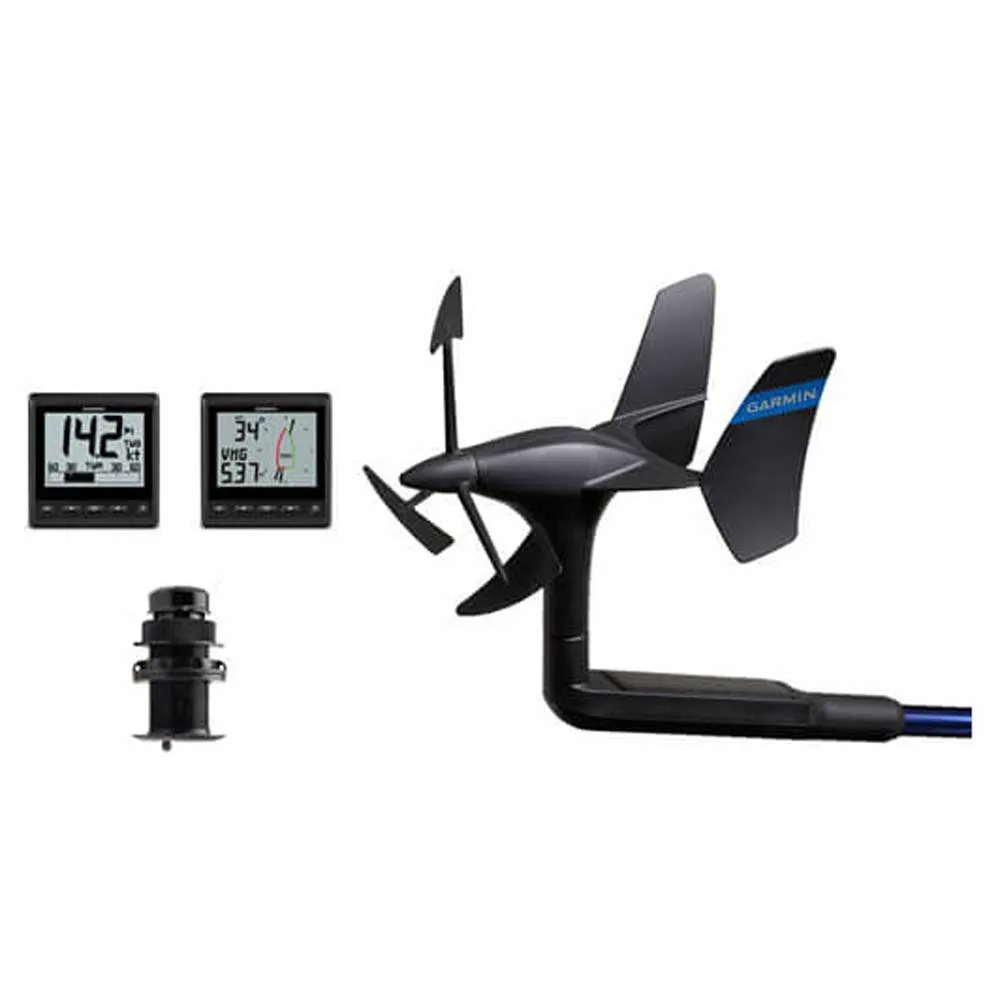

Garmin GNX™ Sail Wireless Transducer

- The information you need to make decisions with confidence
- Includes Garmin GNX ™ Wind and GNX 20 marine instruments, gWind ™ Wireless 2 transducer, and Airmar ® DST810 through-hull smart transducer
- The GNX Wind and GNX 20 instruments have high visibility monochrome LCD displays
- GWind Wireless 2 transducer eliminates cables running through masts up to 15 m (50 ft)
- DST810 intelligent thru-hull transducer provides data such as depth and speed and water temperature, and enables attitude detection for pitch / roll and trim / heel inputs
- Wireless connectivity to devices with Bluetooth ® allows calibration of the DST810 directly through the application of Airmar Cast
- Simple installation via NMEA 2000 ® network and plug-and-play method

Get information about wind and water
With a GNX Wireless Navigation Kit, you have all the equipment you need to get wind and water information.

GNX Wind instrument
GNX Wind provides the wind data you need to make determined decisions. GNX Wind features a rugged, high-visibility glass-lined monochrome LCD with customizable backlight colors, and connects via the NMEA 2000 network to display 2 data fields and a digital compass rose simultaneously giving you real data. and apparent on the wind, indications on the direction, the speed of the boat and much more. Low power consumption of 350 mW during the day (without backlighting) and 400 mW at night (with a medium level of backlighting), ideal for sailing boats. Customizable user settings allow you to configure the screen layout to your liking. The display settings include more than 15 important nautical parameters for wind, speed and navigation. It can even be connected wirelessly with the quatix marine smartwatch® 3 with GPS via ANT ® technology to transmit wind data directly to your wrist.


GWind Wireless 2 Transducer
gWind Wireless 2 offers an easy-to-install solution that eliminates cables running through masts up to 15 m (50 ft). Wind signals are accurately sent through an ANT connection directly to a GNX Wind instrument or a compatible Garmin GPSMAP ® chartplotter. The transducer features its famous Nexus dual-fin technology with a 3-blade propeller, providing precise wind speed and stable wind angle in light wind conditions.


GNX 20 nautical instrument
The GNX 20´s easy-to-read display uses black digits on a white or colored background to clearly display information regarding more than 50 navigation parameters, as well as data on water depth, speed of the boat through the sea. water or water temperature via NMEA 2000 network. Customizable user settings allow you to choose from 5 available display settings for sailboat or motorboat user profiles: single, dual and triple functions, plus graph mode and gauge to display information regarding wind, depth and speed. You can also customize the pages to display the nautical and boat-related information that interests you the most. Its rugged, anti-reflective coated glass display provides excellent day and night readability, as well as high-contrast digits that can be magnified up to 36mm. Daytime use at 350mW only draws 25mA, so no backlight is required. At night it only requires 400mW and a medium backlight level.

Airmar DST810 Thru-hull Smart Transducer
The DST810 combines accurate depth, speed and temperature data with attitude detection for pitch / roll and trim / list data, which it provides to the NMEA 2000 ® network and the GNX 20 instrument. This multi-sensor transducer detects depths up to 100 , 6 meters (330 feet), offers fast 5 Hz water speed signal output, and has an operating frequency of 235 kHz with a fan-shaped beam width of 10 x 44 degrees. Additionally, wireless connectivity to devices with Bluetooth ® technology allows the DST810 transducer to be calibrated directly through the Airmar Cast app. Advanced speed calibration works with different heel angles and speeds.

Features:

GWind Wireless 2 Transducer

- Unit dimensions, width x height: 345 mm x 610 mm
- Weight: 350g
- Waterproof: yes (IPX6¹)
- Temperature range: -15 ° C to 70 ° C ( 5 ° F to 158 ° F)
- Storage temperature: -20 ° C to 80 ° C ( -4 ° F to 176 ° F)
- Power consumption: battery (rechargeable through solar panel)
- Precision angle: greater than ± 1.5 °
- Speed: greater than ± 3%
- Wind speed scale: 0.8-90 knots (0.4-50 m / s)
- Wireless connectivity: yes
- ¹Protection in rough sea conditions

GNX Wind instrument:

- Dimensions: 110 x 115 x 30 mm
- Screen size (width x height): 83 x 60 mm; 101.6mm diagonal
- Weight: 230g
- Water resistance rating: IPX7
- NMEA 2000 certified: yes
- Power consumption: 0.35 W (day use); 0.4 W (night use)
- Voltage range: 9 to 16 V (from NMEA 2000)
- Mounting options: recessed or flush
- Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
- Compass Safe Distance: 209mm

GNX 20 instrument:

- Dimensions: 110 x 115 x 30 mm
- Screen size (width x height): 83 x 60 mm; 101.6mm diagonal
- Screen resolution: 320 x 240 pixels
- Weight: 247g
- Water resistance rating: IPX7
- NMEA 2000 certified: yes
- Power consumption: 2.5W maximum
- Voltage range: 9 to 16 V (from NMEA 2000)
- Mounting options: recessed or flush
- Temperature range: -15 ° C to 70 ° C ( 5 ° F to 158 ° F)
- Compass Safe Distance: 209mm

In the box:

- GWind Wireless 2 Transducer
- GNX ™ Wind
- GNX ™ 20
- DST810 Smart Thru-Hull Mount Transducer
- NMEA 2000 power cable
- Terminators for NMEA 2000
- NMEA 2000 Drop Cable (2m)
- 3 NMEA 2000 T-connectors
- Mast mounting bracket
- Mounting components
- NiMH battery
- Documentation

Devices compatibles:

echoMAP ™ CHIRP 52cv echoMAP ™ CHIRP 72cv echoMAP ™ CHIRP 72sv echoMAP ™ CHIRP 92sv
