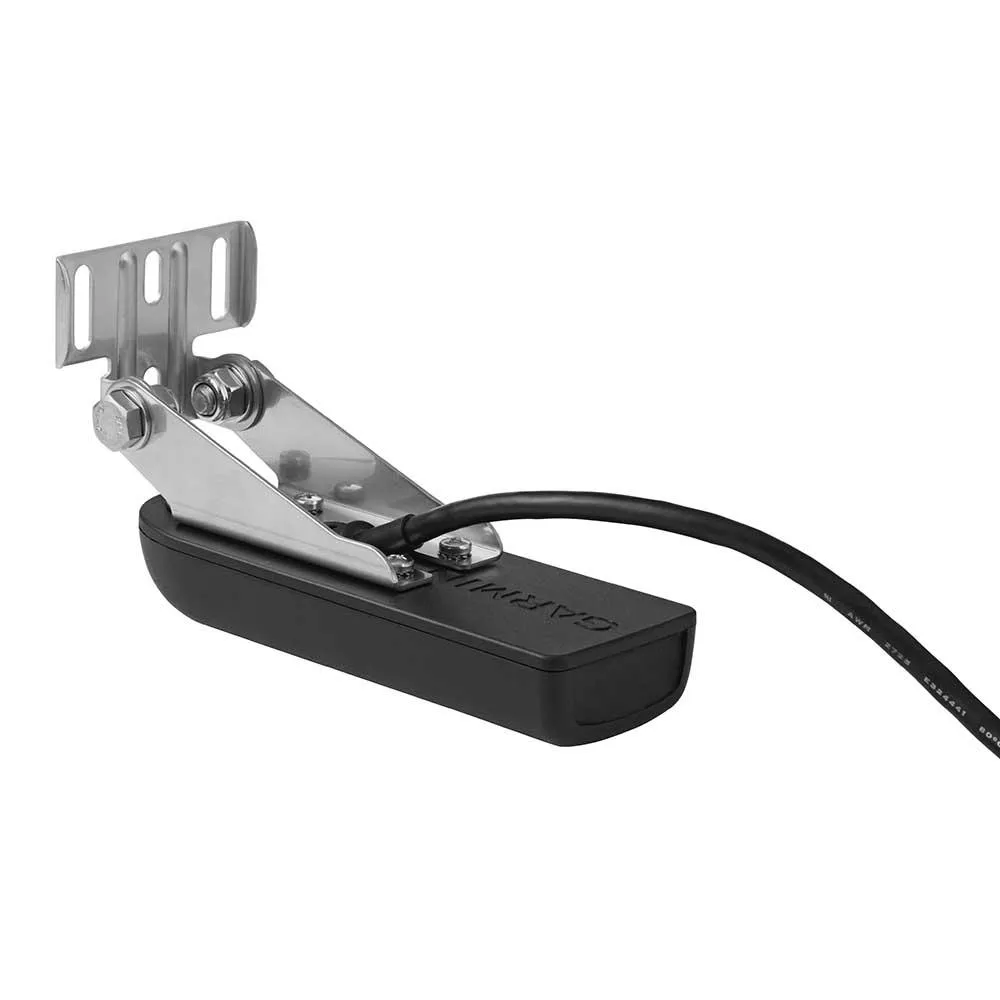

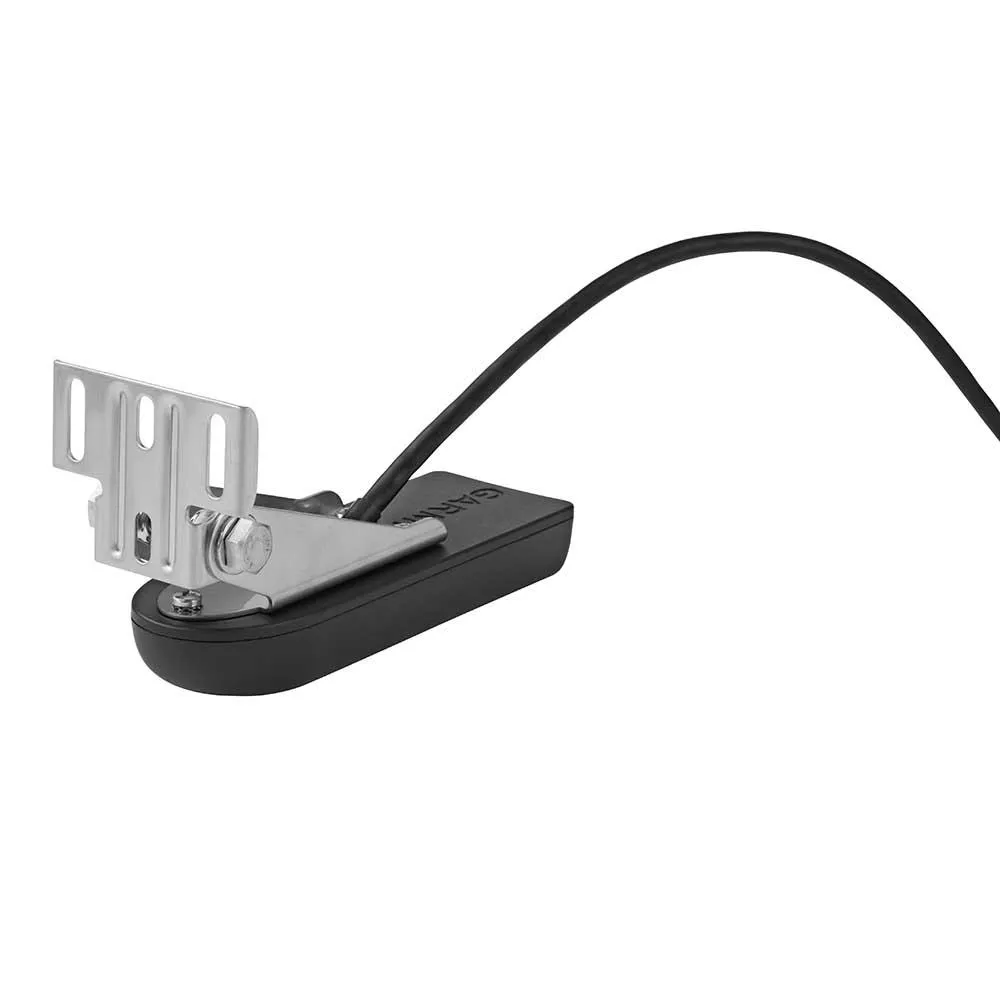

Garmin GT52HW-TM Transducer

GT52HW-TM is a freshwater fisherman transducer from Garmin. This technological equipment has been created for those who want an additional CHIRP transducer in addition to a ClearVu and Sidevu scanning probe. Its components allow you to visualize the fish that are under your boat.

This equipment is 12 pins and includes a traditional high band and wide beam / 150-240 kHz). As for it power is 250 W. The cable length is 20 ft. Its design is compact allowing easy transport.

In the package you will find support for mounting on stern mirror, support for trolling fishing engine, components for assembly and documentation.

GT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.
The 12-pin transducer features high wide band CHIRP traditional sonar and has a power rating of 250 W. The CHIRP ClearVü and CHIRP SideVü (455/800 kHz) elements have a power rating of 350 W each (1,050 W total).
GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.


General:

- Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Power: Traditional 250 W; ClearVü/SideVu 350 W
- Beamwidth: Traditional (24-16); ClearVü/SideVü (2.0 @ 455 kHz) & (1.0 @ 800 kHz)
- Maximum depth: Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft.
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20 ft.
- Supported deadrise/Transom angles: 0°-70° degree transom


In the box:

- GT52HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
