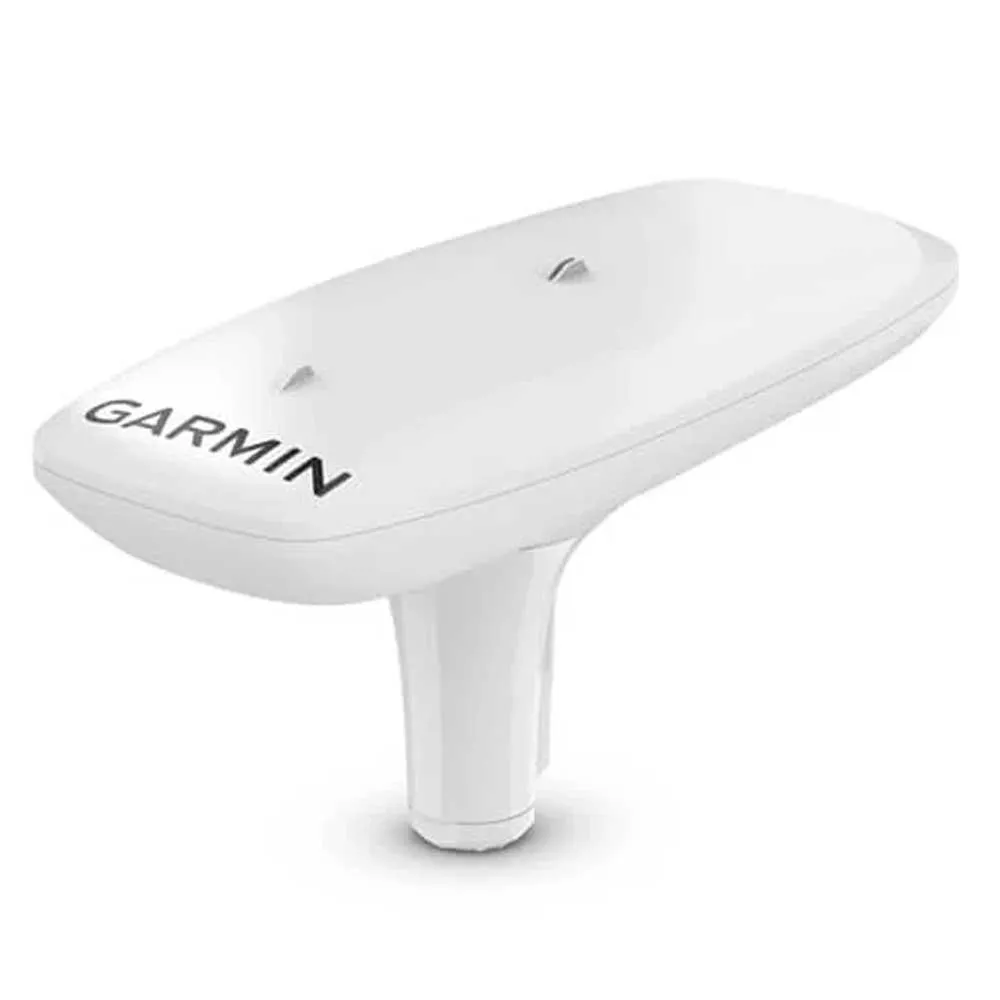

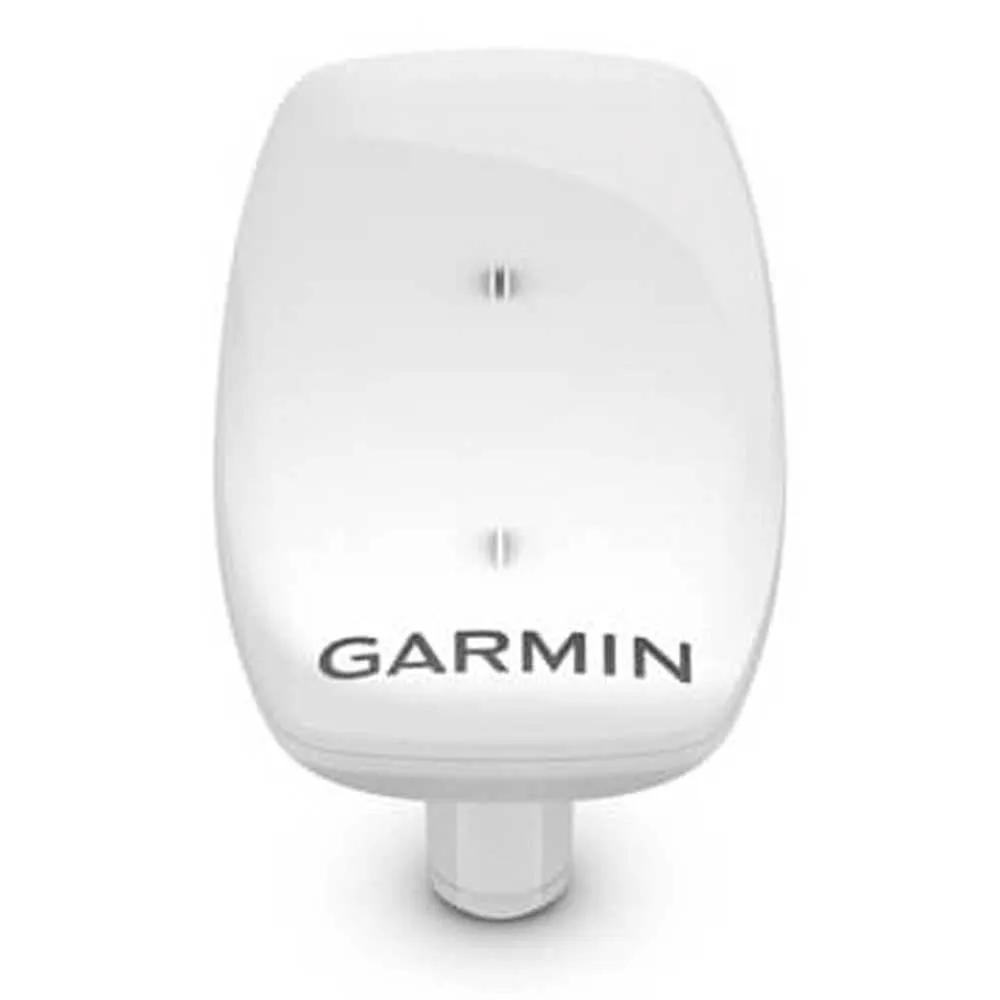

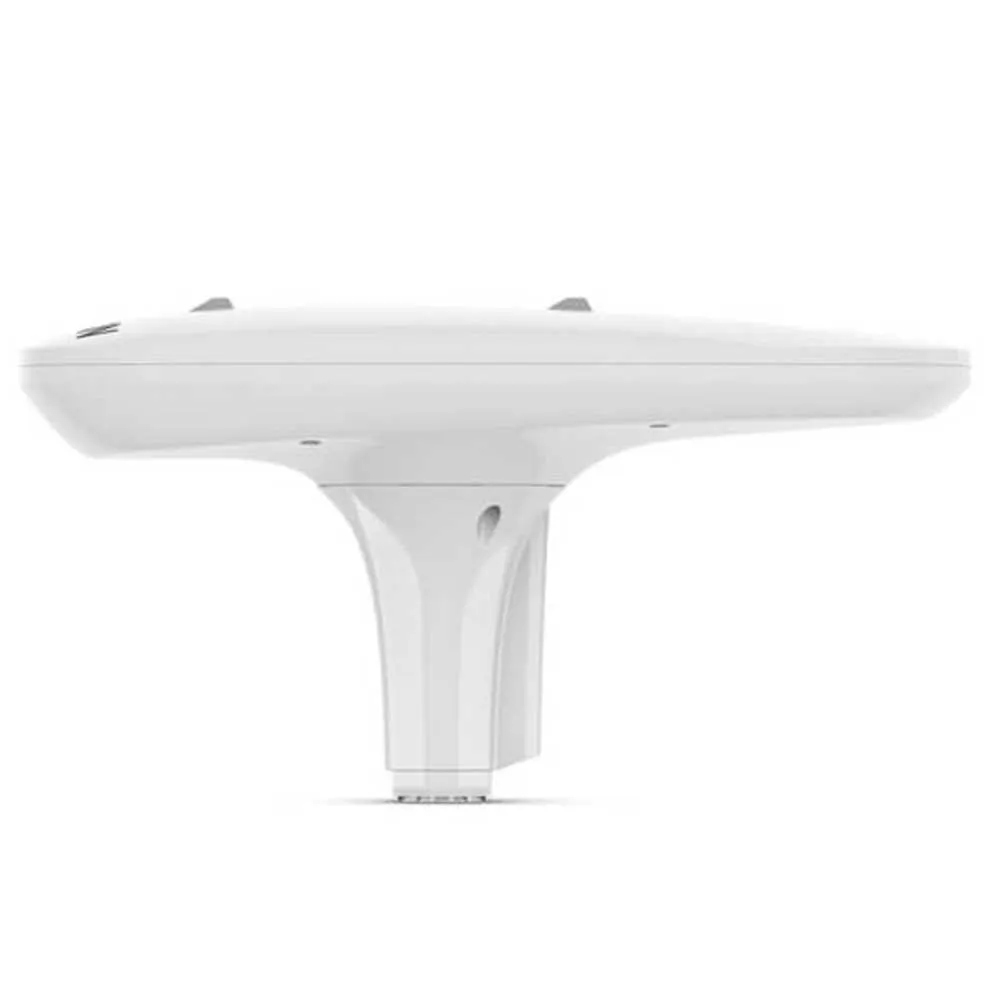

Garmin MSC™ 10 Marine Satellite Compass

YOU WILL KNOW EXACTLY WHERE YOU ARE GOING Get reliable and accurate heading information with the easy-to-install, GPS-based MSC ™ 10 Satellite Nautical Compass.

Accuracy is easier when you have a multiband GNSS receiver on board.

Faster updates.

More detailed tracking.

Are you worried about the choppy sea? The MSC 10 device also provides pitch, roll and roll information.

If other on-board systems need a heading sensor, we have what you need.

MULTIBAND AND MULTIBAND GNSS The multi-band (GPS L1 and L5) and multi- constellation (GPS, Galileo 1, GLONASS and BeiDou 1 ) GNSS receiver provide precise positioning 2.

ARFADA OF THE VESSEL AND MUCH MORE Get reliable and accurate information about the bow, pitch and roll of your boat, even in rough water.

INTEGRATED HEADING AND POSITION REFERENCE SYSTEM (AHRS) The integrated AHRS provides better GPS heading information at high speed.

ACCURATE HEADING DATA Various receivers provide heading accuracy within a 2 degree radius.

Since it uses satellite signals, you won´t have to worry about magnetic interference.

MAIN SENSOR IN VARIOUS SYSTEMS You can use the MSC 10 compass as the primary sensor for autopilots and other onboard systems that need accurate heading information.

COMPATIBILITY WITH NMEA 2000® NETWORK Get heading, pitch, roll, and heading information directly to your compatible Garmin chartplotter over the NMEA 2000 network.

Designed for a better browsing experience.

EASY INSTALLATION This compact device is easy to install and easily integrates into your Garmin marine ecosystem.

10HZ UPDATE FREQUENCY Get more detailed and accurate tracking information thanks to the 10 Hz position refresh rate.

AUXILIARY HEADING SENSOR In the hypothetical event that the satellite signal is lost, the MSC 10 will seamlessly switch from the GPS-based heading option to the magnetometer-based option 3.

- Dimensions (W x D x H):

155.5 x 333.6 x 76.2 mm (6.1 ″ x 13.1 ″ x 3.0 ″).

- Weight:

810 g (28.6 oz).

- Cable length:

6 m (19 ft 8 in).

- Temperature range:

- 15 to 70 ° C (5 to 158 ° F).

- Housing material:

High impact, glue-sealed plastic alloy, waterproof to IPX7 standards.

- Compass safe distance:

0 mm (0 ″).

- Power supply:

9 to 32 VDC, irregular.

- Power outlet:

180 mA at 12 V DC.

- NMEA 2000 Load Equivalence Number (LEN):

6 (300 mA max).

- Position accuracy, typical marine use:

<1 meter CEP, <3 meters 95%.

- Heading Accuracy:

2 RMS.

- Burst Accuracy:

8 cm RMS In the box:

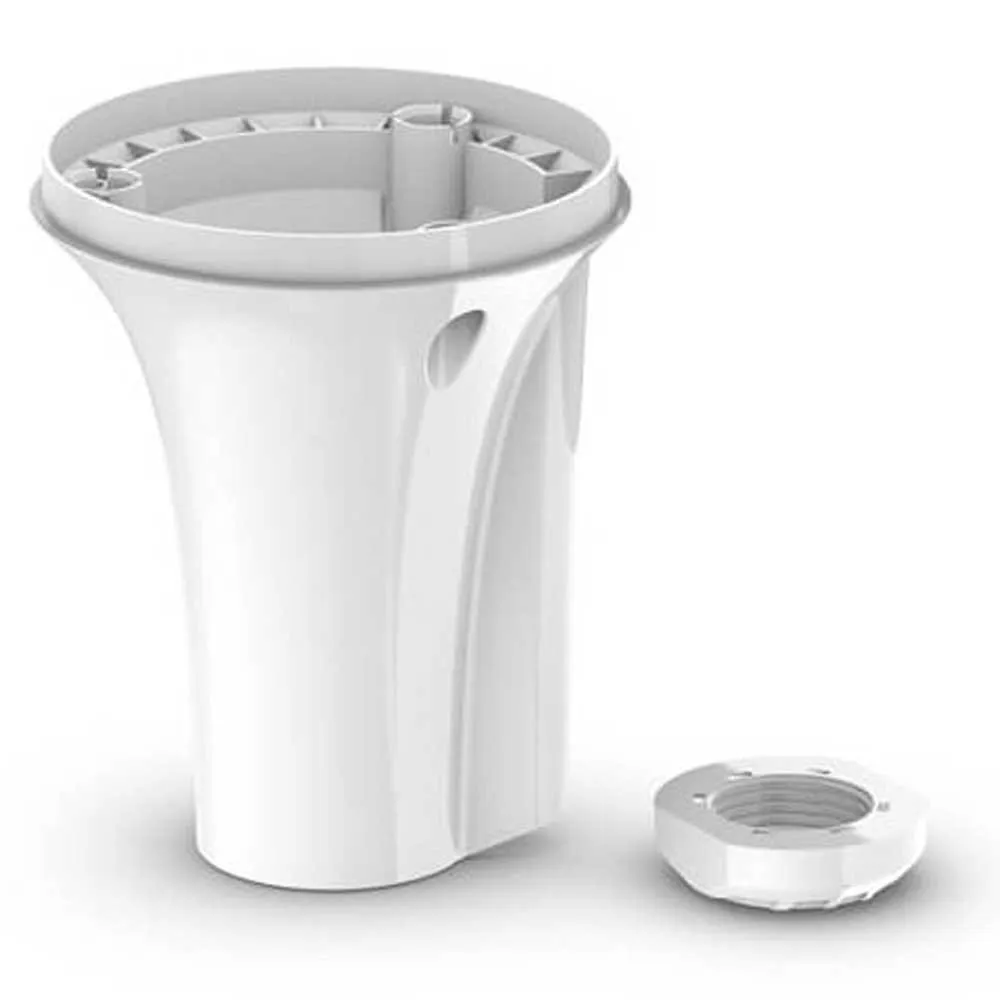

MSC ™ 10 Satellite Nautical Compass Pole mount Mounting components NMEA 2000 ® Main / Drop Cable (6 meters) NMEA 2000 T-connector Documentation Devices compatible:

GPSMAP® 8500 Black Box GPSMAP® 8530 Black Box GPSMAP® 8700 Black Box echoMAP ™ CHIRP 52cv echoMAP ™ CHIRP 72cv echoMAP ™ CHIRP 72sv echoMAP ™ CHIRP 92sv ECHOMAP ™ Plus 62cv ECHOMAP ™ Plus 62cv ECHOMAP Plus 72cv ECHOMAP Plus 72cv ECHOMAP Plus 72sv ECHOMAP Plus 72sv ECHOMAP Plus 92sv ECHOMAP Plus 92sv echoMAP UHD 62cv echoMAP UHD 72cv ECHOMAP ™ UHD 72sv ECHOMAP ™ UHD 92sv ECHOMAP ™ Ultra 102sv ECHOMAP ™ Ultra 102sv ECHOMAP ™ Ultra 122sv ECHOMAP ™ Ultra 122sv GMI ™ 10 GMI ™ 20 GNX ™ Wind GNX ™ Wireless Sail Pack 43 GPSMAP® 1020 GPSMAP® 1020xs GPSMAP® 1022 GPSMAP® 1022xsv GPSMAP® 1222 GPSMAP® 1222 Plus GPSMAP® 1222 Touch GPSMAP® 1222xsv GPSMAP® 1222xsv Plus GPSMAP® 1222xsv Touch GPSMAP® 1223 GPSMAP® 1223xsv GPSmap® 4008 GPSmap® 4010 GPSmap® 4012 GPSmap® 5008 GPSmap® 5012 GPSmap® 5015 GPSMAP 527 GPSMAP® 527xs GPSMAP® 6008 GPSMAP® 6012 GPSMAP® 7012 GPSMAP® 7015 GPSMAP 721 GPSMAP® 721xs GPSMAP® 722 GPSMAP 722 Plus GPSMAP® 722xs GPSMAP 722xs Plus GPSMAP® 723 GPSMAP® 723xsv GPSMAP® 7407 GPSMAP® 7407xsv GPSMAP® 7408 GPSMAP® 7408xsv GPSMAP® 7410 GPSMAP® 7410xsv J1939 GPSMAP® 7412 GPSMAP® 7412xsv GPSMAP® 7416 GPSMAP® 7416xsv GPSMAP® 820 GPSMAP® 820xs GPSMAP® 8410 GPSMAP® 8410xsv GPSMAP® 8412 GPSMAP® 8412xsv GPSMAP® 8416 GPSMAP® 8416xsv GPSMAP® 8417 MFD GPSMAP® 8422 MFD GPSMAP® 8424 MFD GPSMAP® 922 GPSMAP 922 Plus GPSMAP® 922xs GPSMAP 922xs Plus GPSMAP® 923 GPSMAP® 923xsv 17.78 cm (7 inch) GNX ™ 120 Large Format Marine Instrument Garmin 25.4 cm (10-inch) large format GNX ™ 130 marine instrument GNX ™ 20 Marine Instrument GNX ™ 21 Marine Instrument GPSMAP® 1222xsv Plus Pack GPSMAP® 722xs Plus Pack GPSMAP 722xs and GMR 18HD + Pack GPSMAP 722xs and GMR 18HD + Pack GPSMAP® 922xs Plus Pack GPSMAP® 8008 Multifunction Display GPSMAP® 8012 Multifunction Display GPSMAP® 8015 Multifunction Display GNX ™ Wireless 52 Navigation Package GNX ™ Wireless Wind Pack VHF 110i marine radio Marine radio VHF 115i Marine radio VHF 210i AIS Marine radio VHF 215i Marine radio VHF 215i AIS VHF 210i radio Volvo Penta digital cockpit system VHF 315i Marine Radio.
