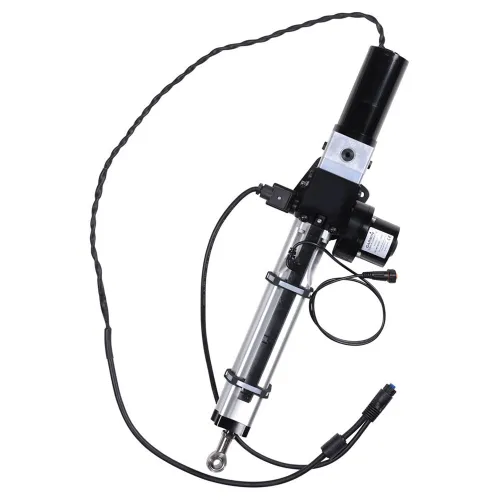

Garmin Reactor™ 40 Class B Compact V2 drive unit

GARMIN Reactor™ 40 Class B Compact V2 Drive Unit

Category: Electronics
Subcategory: Accessories

Experience unwavering control and superior autopilot performance on the water with the GARMIN Reactor™ 40 Class B Compact V2 drive unit. Engineered for sailors who demand precision, reliability, and efficiency, this high-performance drive unit serves as the core muscle of your autopilot system, ensuring your vessel stays true to its course in even the most challenging conditions. Its powerful yet compact design is specifically optimized for space-conscious installations without compromising on strength or durability.

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48.400 lbs of displacement. By integrating seamlessly with your Garmin electronics, this unit provides the robust power needed to manage your rudder, allowing you to relax at the helm, manage sails, or focus on navigation with complete confidence. Its energy-efficient operation minimizes power draw, a critical advantage for long passages where battery conservation is paramount. Built to withstand the harsh marine environment, the Reactor 40 Class B Compact V2 drive unit is the dependable choice for sailors seeking to upgrade their vessel’s steering capabilities.

Main Features
* Powerful integrated hydraulic linear design for robust and reliable steering.
* Optimized for sailboats with a displacement of up to 48.400 pounds.
* Compact and space-efficient footprint for versatile installation options.
* High-thrust capability ensures responsive control in heavy seas.
* Engineered for low power consumption, preserving onboard battery life.
* Durable construction designed to endure harsh saltwater environments.
* Provides seamless integration and performance with the Reactor 40 autopilot system.

Controllers
This drive unit is the physical component that executes steering commands and must be paired with a compatible autopilot control system. It connects directly to and is governed by the GARMIN Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack. This integration unlocks the full potential of Garmin´s renowned autopilot technology, including precise course holding, wind hold, step turns, and automated tack/jibe maneuvers when used with a compatible Garmin chartplotter and GHC™ helm control display.

Technical Specifications
* Dimensions (WxHxD, centered): 31.9" x 4.6" x 8.9" (810x120 x 225 mm)
* Drive unit type: Integrated hydraulic linear
* Stroke length: 10" (254 mm)
* Maximum thrust: 1.610 lbs (730 kg)
* Supply voltage: 10V to 30V (regulated to 12V by the ECU)
* Average clutch current at 12V: 1 Amp
* Average motor current at 12V: 2-4 Amps

Compatible Devices
* Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack
