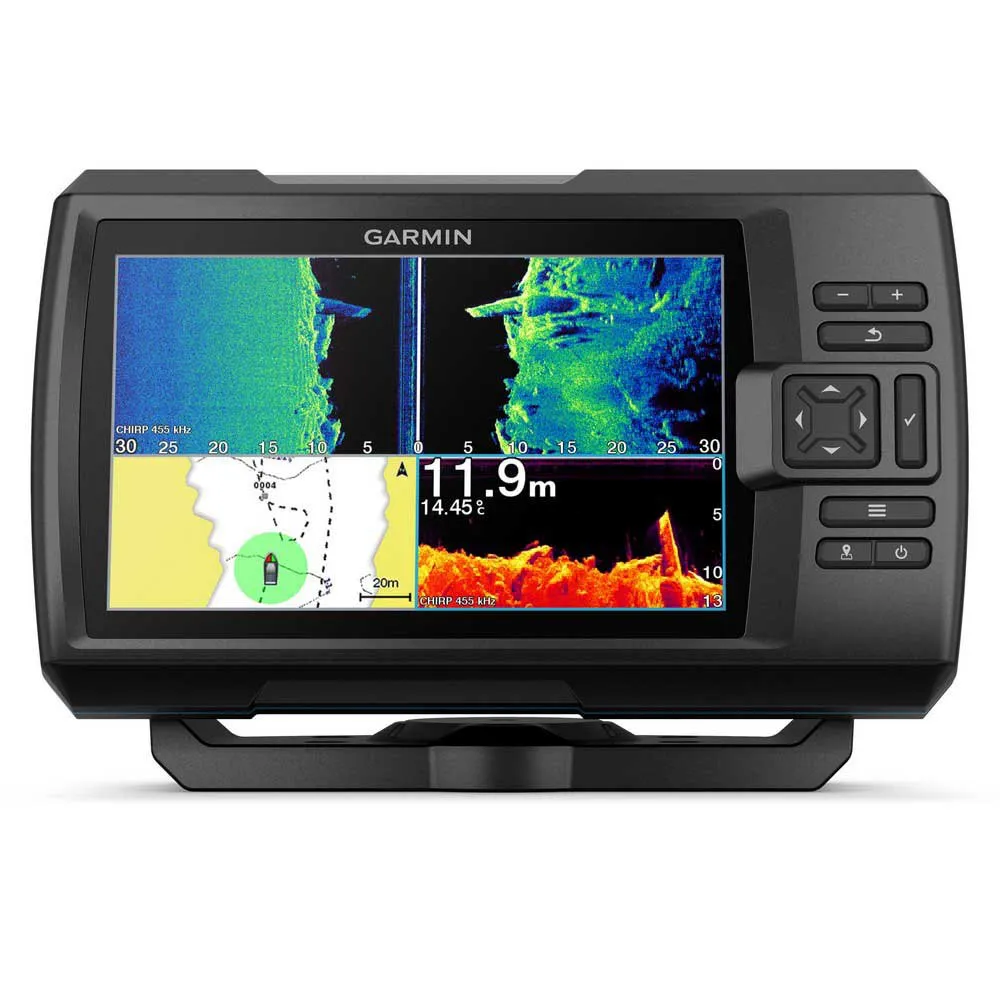

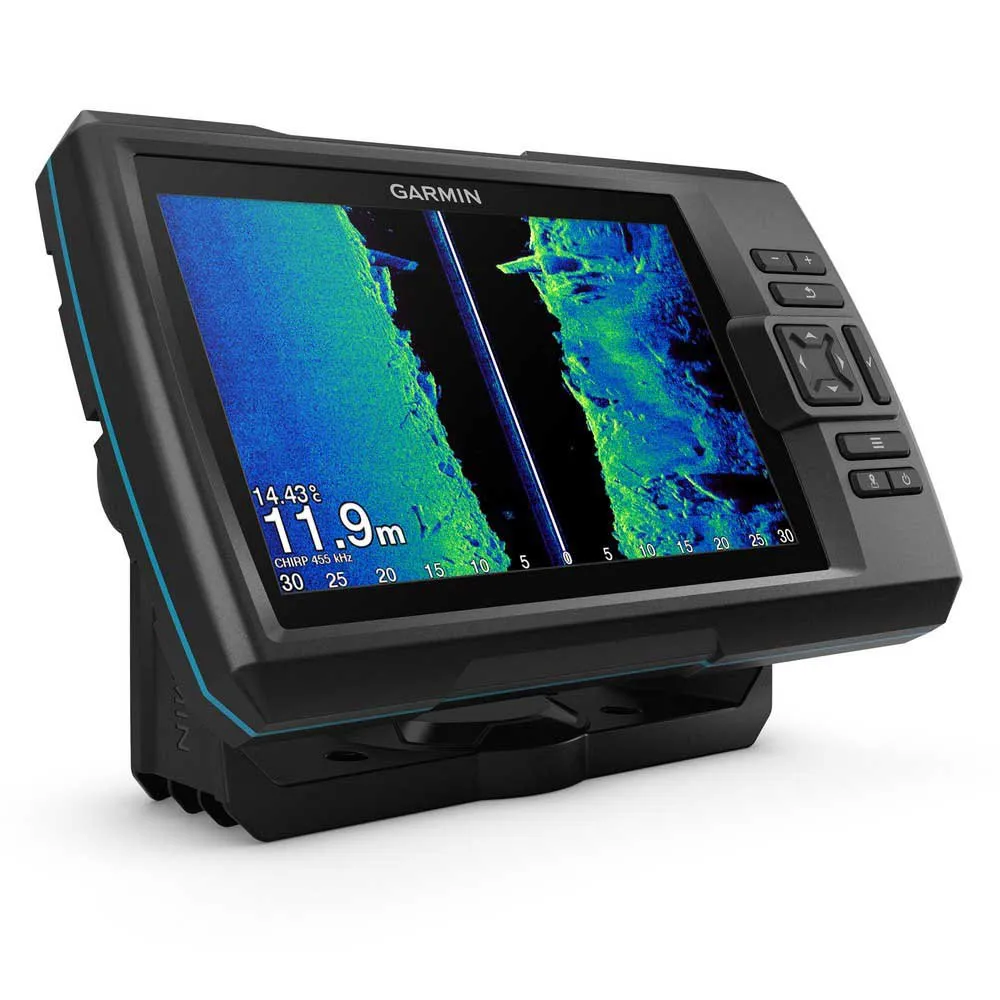

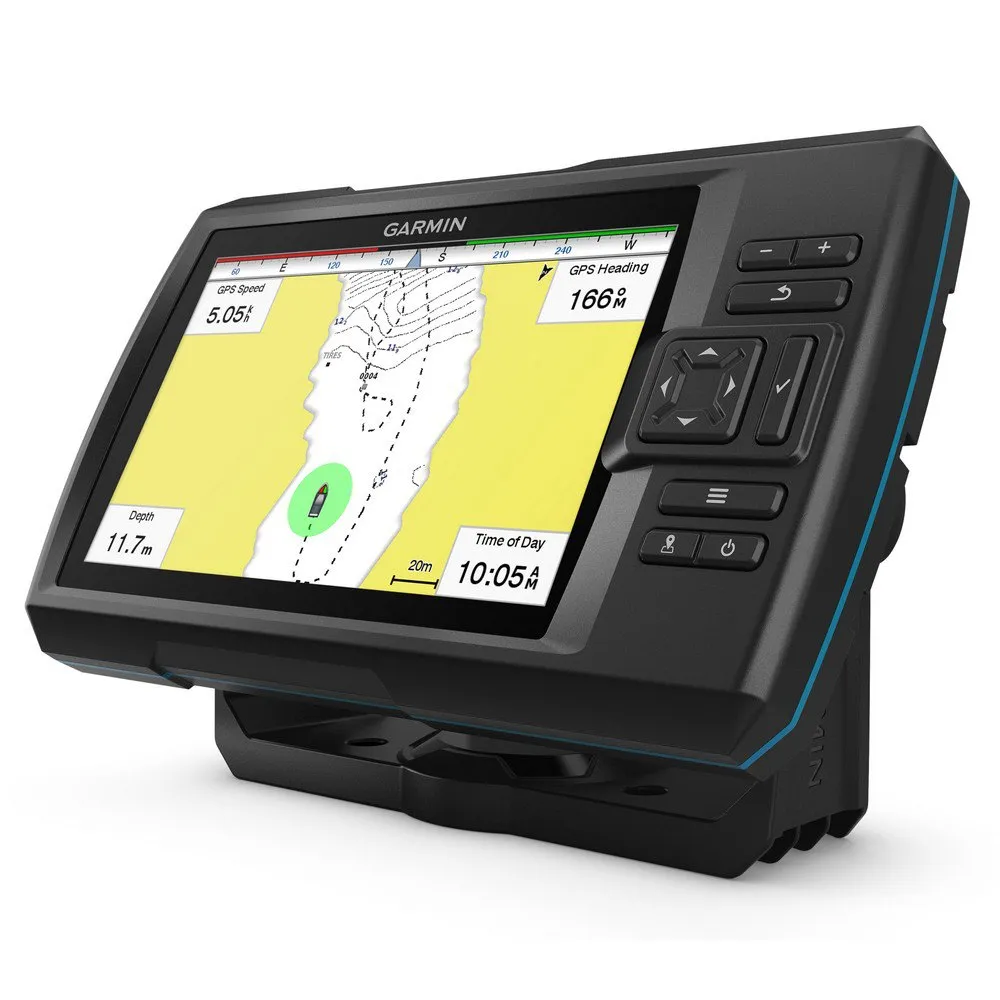

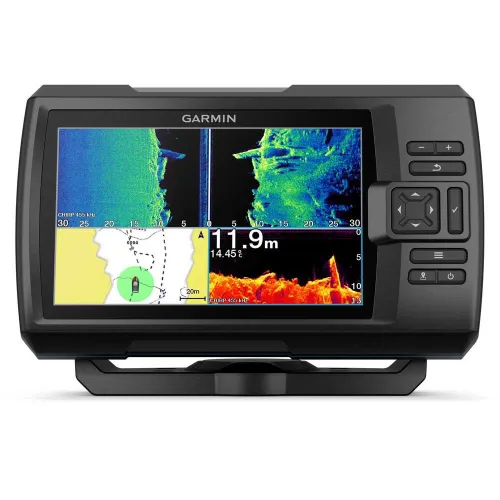

Garmin Striker Vivid 7sv Fishing Plotter

Striker Vivid 7sv is a Garmin GPS with ideal cartography for those days of fishing. The screen of this equipment is 7 ”and has a resolution of 800 x 480 pixels. One of the characteristics of this model is that you can choose between the 7 new vivid color options to visualize the fish and the structure.

This electronic device is waterproof and has a power of 500 W (RMS). To improve its functionality and catch more fish, turn on the waypoints feature. Its storage system supports up to 2 million acres of 1 ”contour maps. By connecting with the ActiveCaptain application you will be able to transfer waypoints, you will receive smart notifications as well as the software update and you will access the Garmin Quickdraw community.

The frequencies supported by this Garmin sonar are:Traditional: 50/77/200 kHz; CHIRP (medium and high) and ClearVü and SideVü 260/455/800 kHz. In the packaging you´ll find the Striker Vivid 7v sonar, power / data cable, 12-pin to dual 4-pin transducer adapter cable, slant mount, hardware, Garmin bumper sticker, and documentation. The version does not include a transducer.

The Choice Is Yours. See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7sv fishfinder.


Features:

- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. This fishfinder supports 3 different types of CHIRP sonars when you pick up a transducer separately.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1” contours, just saying.
- Wi-Fi® connection1 on land opens up a world of possibilities on the water.

CLEAR, COLORFUL SONAR:
- Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7” fishfinder.

SUPPORTS SONAR:
- This fishfinder supports 3 types of sonar: Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars with a compatible transducer (sold separately).

WAYPOINT MARKING:
- To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS:
- Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS:
- Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

WI-FI CONNECTIVITY:
- Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

INCLUDED HARDWARE:
- The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.


Specifications:

General:
- Physical dimensions: 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
- Display resolution: 800 x 480 pixels
- Display type: WVGA color
- Weight: 1.7 lbs (0.8 kg)
- Water rating: IPX7
- Transmit power: 500 W (RMS)

Sonar features & specifications:
- Dual-frequency (50/200 kHz) sonar capable: Yes
- Dual-beam (77/200 kHz) sonar capable: Yes
- Frequencies supported: Yes
- Traditional: 50/77/200 kHz
- CHIRP (mid and high)
- ClearVü and SideVü 260/455/800 kHz
- Bottom lock (shows return from the bottom up): Yes
- Water temperature log and graph: Yes

Fishfinder features:
- Split-screen zoom: Yes
- Ultrascroll® (displays fish targets at higher boat speeds): Yes
- Fish Symbol ID (helps identify fish targets): Yes
- AutoGain Technology (minimises clutter, maximises targets): Yes
- Adjustable depth line (measures depth of underwater objects): Yes
- A-scope (real time display of fish passing through transducer beam): Yes Water temperature sensor included: Yes

Additional:
- One 4-pin transducer port
- One 4-pin SideVü transducer port
- Wireless Connectivity: Yes
- Quickdraw Contours
- Integrated GPS
- Mark Waypoints
- Course over Ground (COG)
- Current draw @ 12V: 0.67A

In the Box:
- STRIKER Vivid 7sv fishfinder
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
