Garmin Wireless gWind Set

The gWind Wireless transducer offers an easy-to-install solution that eliminates running wires down the mast.

Dedicated radio signals are sent through the included WSI connection box and GND 10 black box bridge that allows shared communication of critical NMEA 2000 data between the Nexus Network and Garmin compatible chartplotters.

Now Garmin chartplotter owners can enjoy the advantages of Nexus sail equipment and vice versa. Transducer features renowned Nexus twin-fin technology with 3-bladed propeller providing more accurate TWS in lighter air and more stable TWA.

Optic reading provides superior accuracy and excellent linearity. Solar panel integrated on the transducer arm with internal solar-charged batteries that last 3 years and are easily replaced. Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB.


Features:

- An easy-to-install solution that eliminates running internal cables through a mast

- Includes a WSI connection box that receives dedicated radio signals from the transducer

- Includes a GND 10 black box bridge that allows shared communication of critical NMEA 2000 data between the Nexus Network and Garmin compatible chartplotters

- Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air

- Twin-fin design gives a more stable True Wind Angle (TWA)


Specifications:

- Weight: 350g

- Cable Length: N/A

- Waterproof: Yes (IPX6)

- Temp Range: From 5°F to 158°F (-15°C to 70°C)

- Storage Temperature: From -4°F to 176°F (-20°C to 80°C)

- Voltage Range: N/A

- Power Usage: Solar Powered

- Typical Current Draw at 12 VDC: N/A


- Compass Safe Distance: N/A

- Accuracy Angle: Better than ±1.5°

- Speed: Better than ±3%

- Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)

- NMEA 2000 Load Equivalency Number (LEN): N/A

- Wireless Connectivity: Yes


Whats in the Box:

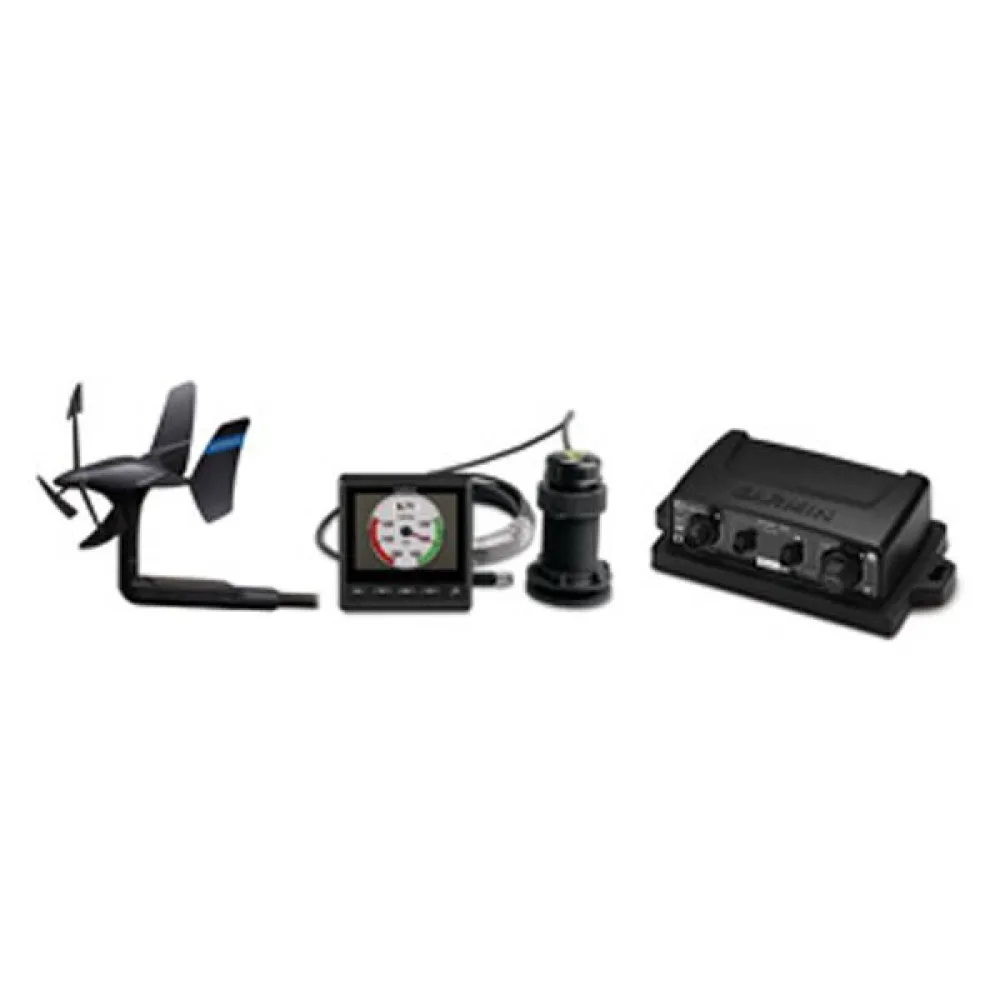

gWind Wireless Bundle (010-01248-20):

- gWind Wireless transducer

- GMI 20

- GND 10

- Nexus WSI box

- DST800 thru-hull smart transducer

- WSI to GND 10 cable

- NMEA 2000 drop cable (2 m)

- NMEA 2000 T-connector

- Nexus female field installable connector

- Mast bracket

- Mounting hardware

- NiMH battery

- Documentation


Compatible Devices:

GMI 10 Marine Instrument
GMI 20 Marine Instrument
GNX 20 Marine Instrument
GNX 21 Marine Instrument
GPSMAP 1020
GPSMAP 1020xs
GPSMAP 4008
GPSMAP 4010
GPSMAP 4012
GPSMAP 451
GPSMAP 451s
GPSMAP 5008
GPSMAP 5012
GPSMAP 5015
GPSMAP 521
GPSMAP 521s
GPSMAP 527xs
GPSMAP 551
GPSMAP 551s
GPSMAP 556
GPSMAP 556s
GPSMAP 557xs
GPSMAP 6008
GPSMAP 6012
GPSMAP 7012
GPSMAP 7015
GPSMAP 720
GPSMAP 721xs
GPSMAP 750
GPSMAP 750s
GPSMAP 751xs
GPSMAP 8008 MFD
GPSMAP 8012 MFD
GPSMAP 8015 MFD
GPSMAP 820
GPSMAP 820xs
GPSMAP 8500 Black Box
GPSMAP 8530 Black Box
