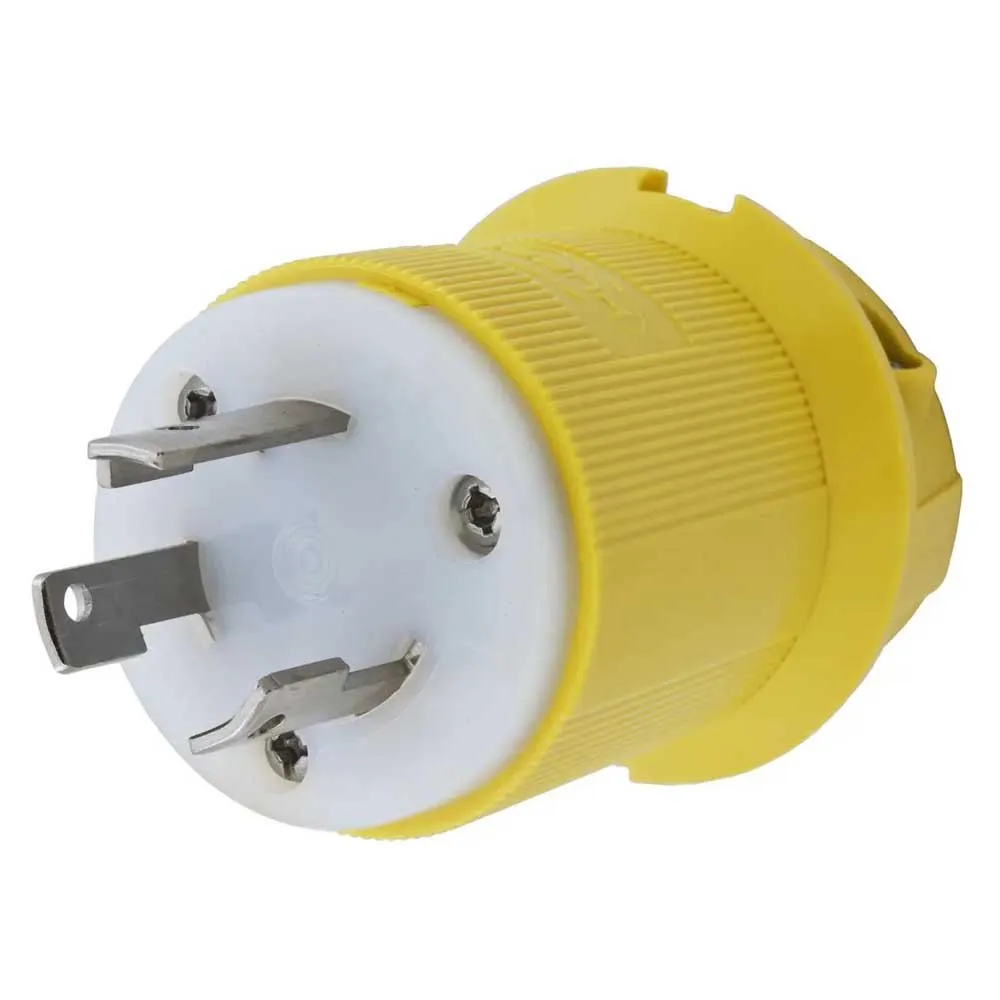

Hubbell Insulgrip Plug 30A 125V

Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30P, Screw Terminal, Corrosion resistant.

Features:

- Ribbed nylon housing provides a secure grip and impact and chemical resistance.

- Superior cord grip design protects terminations from excess strain.

- Integral dust shield protects wiring chamber from dust or contaminants.

Specifications:

General:

- Application:

Extra Heavy Duty Industrial/Marine.

- Cord Range:

0.360´´-0.930´´ (9-24).

- Environmental Conditions:

Corrosion Resistant.

- Horsepower:

Maximum 2.

- Item Type:

30A Corrosion Resistant Insulgrip® Plug.

- Material:

Nylon.

- Material:

Mounting Hardware Cord Mounted.

- Number Of Poles:

2-Pole.

- Operating Temperature:

Maximum continuous 75°C and minimum -40°C without Impact.

Performance:

- Electrical:

Current Interrupting.

- Certified for current interrupting at full rated current.

- Electrical:

Dielectric Voltage.

- Withstands 2,000V minimum.

- Environmental:

Flammability.

- HB or better per UL94 or CSA 22.2 No.

0.6.

- Environmental:

Moisture Resistance.

- IP20 Suitability.

- Environmental:

Operating Temperatures.

- Maximum Continuous 75°C Minimum -40°C (w/o impact).

- Mechanical:

Terminal Accommodation.

- 16 AWG.

- 8 AWG stranded copper wire only.

- Mechanical:

Terminal Identification.

- Terminals identified in accordance with UL 498 Dimensions:

- Dimensions:

2.26 in x 2.26 in x 2.75 in.

- Display Size:

Standard Sized.

- Height:

2.75 in.

- Length:

2.26 in.

- Weight:

0.30 lb.

- Width:

2.26 in Electrical Ratings:

- Amperage Rating:

30 A.

- Connectivity:

Pressure Terminal Screws.

- Current / Amperage Rating:

30 A.

- Current Rating:

30 A.

- Dielectric Strength:

Withstands 2,000V minimum.

- Phase:

Single Phase.

- Voltage Rating:

125 VAC.

- Voltage Rating Description:

125 VAC.

- Wattage:

3750 W.
