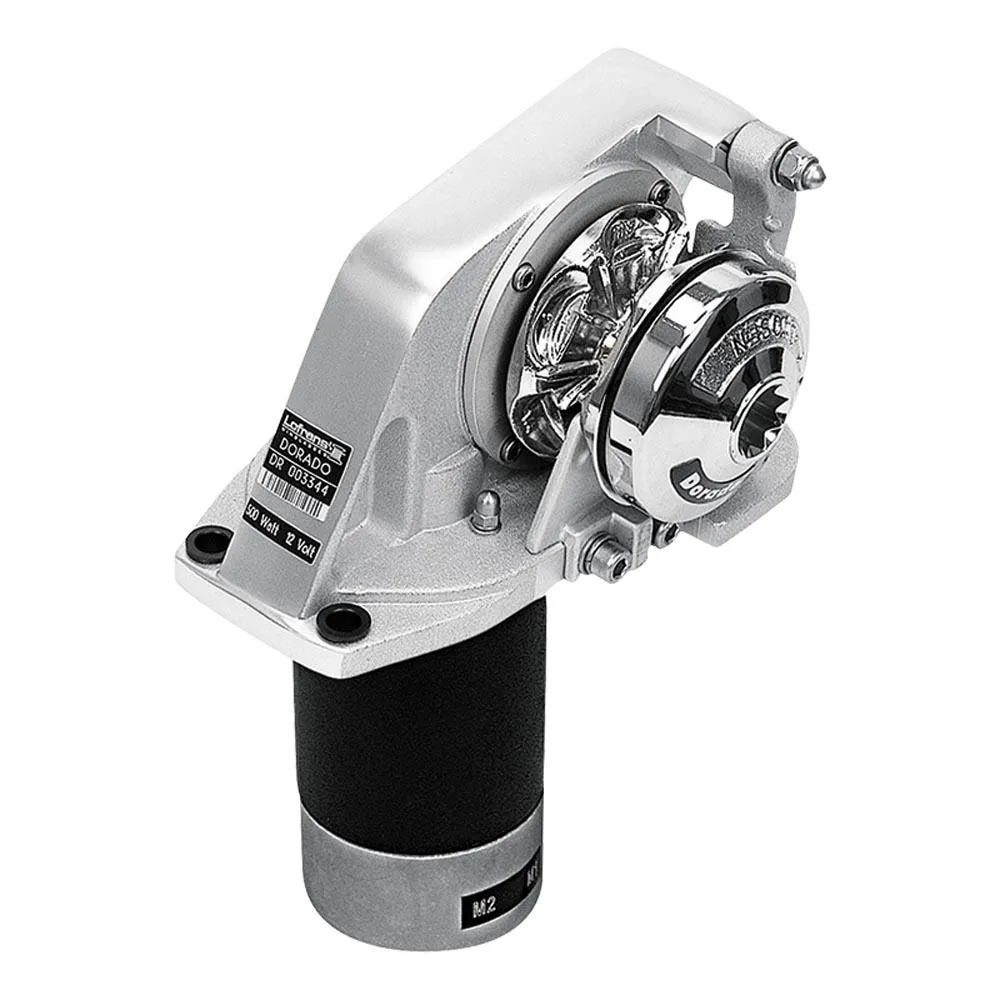

Lofrans Dorado Windlass

LOFRANS Dorado Windlass: Compact and Powerful Anchoring for Your Boat

Experience effortless and secure anchoring with the LOFRANS Dorado Windlass, a premier solution in the Anchoring and mooring subcategory, expertly designed for small to medium-sized vessels from 6 to 10 meters (20-33 ft). As a leading choice among modern Windlasses, the Dorado combines a compact, vertical design with robust performance, ensuring you have complete control and peace of mind when dropping and weighing anchor. It is the perfect upgrade for boaters who demand reliability, durability, and ease of use in their critical boat equipment.

Built to endure the harshest marine conditions, the Dorado is engineered for longevity and consistent operation. Its intelligent design addresses the core needs of boaters, providing powerful pulling force in a lightweight and space-saving package that can be easily installed on most decks. Say goodbye to the strain and uncertainty of manual anchoring. With the LOFRANS Dorado, you gain a dependable partner on the water, allowing you to focus more on the joy of boating and less on the chore of anchoring. Its smooth and quiet operation is a testament to Lofrans´ commitment to quality engineering, making your time at sea more peaceful and enjoyable.

Main Features:

* Marine aluminium anodised body
* Manual chain release
* Rope chain management by the spring load arm
* Heavy duty rated IP66 electric motor
* Automatic free fall available as option
* Control Box included in package

The advanced rope-chain management system, featuring a specialized spring-loaded arm, ensures a seamless transition and perfect grip on both rope and chain, preventing jams and ensuring flawless retrieval every time. For moments requiring swift action, the optional automatic free-fall system allows for rapid anchor deployment at the push of a button. Furthermore, the inclusion of a manual override system provides a crucial safety backup, giving you full control even in the event of a power loss. Every aspect of the Dorado is crafted to enhance your on-board safety and convenience, making it an indispensable part of your vessel´s anchoring system.

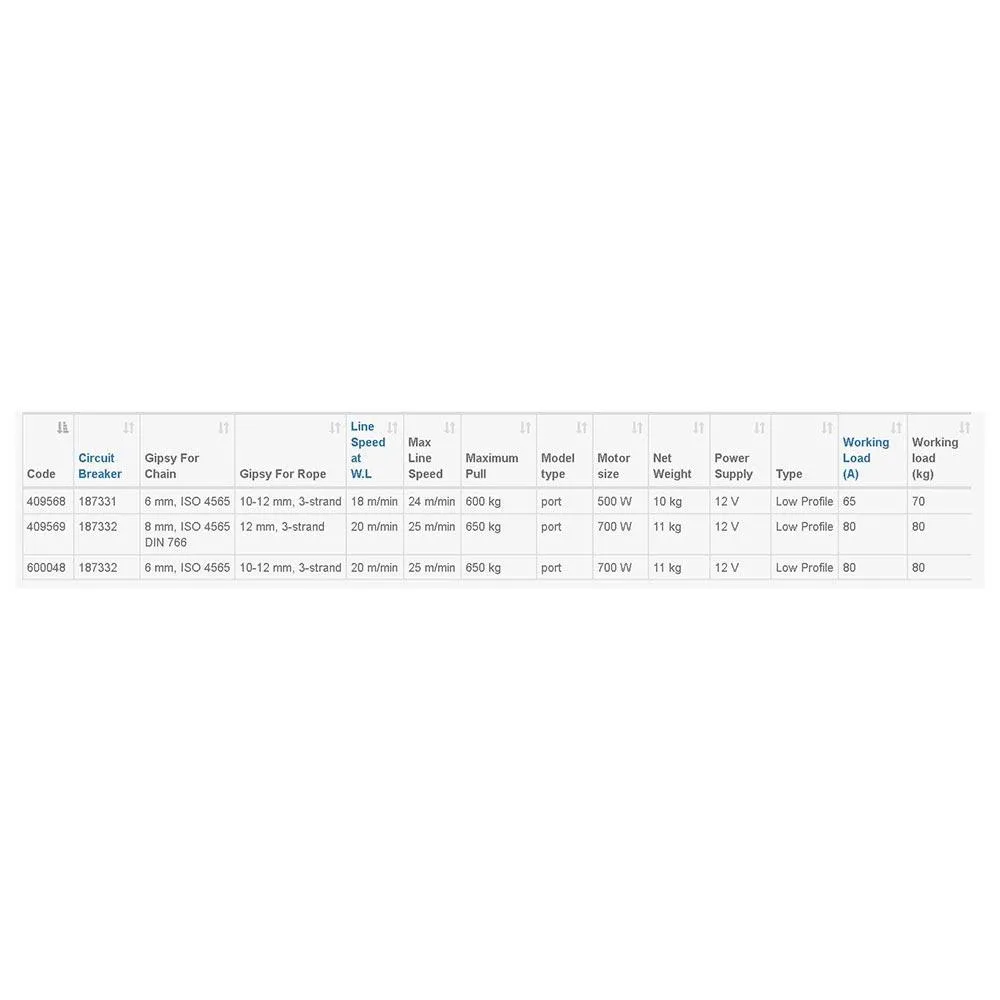

Technical Specifications:

Attribute: Windlasses
Recommended Boat Length: 6 - 10 meters (20 - 33 ft)
Motor Power: 500W / 700W
Operating Voltage: 12V DC
Gypsy for Chain: 6 mm (DIN 766), 7 mm (DIN 766), 8 mm (ISO 4565 / DIN 766)
Type: Vertical
Max Pull: Up to 630 kg (1389 lb) for the 500W version / 700 kg (1543 lb) for the 700W version
Line Speed at Working Load: Approx. 20-25 m/min
Current Draw at Working Load: Approx. 60-90A
Motor Protection Class: IP66 (Protected against heavy seas and powerful jets of water)
