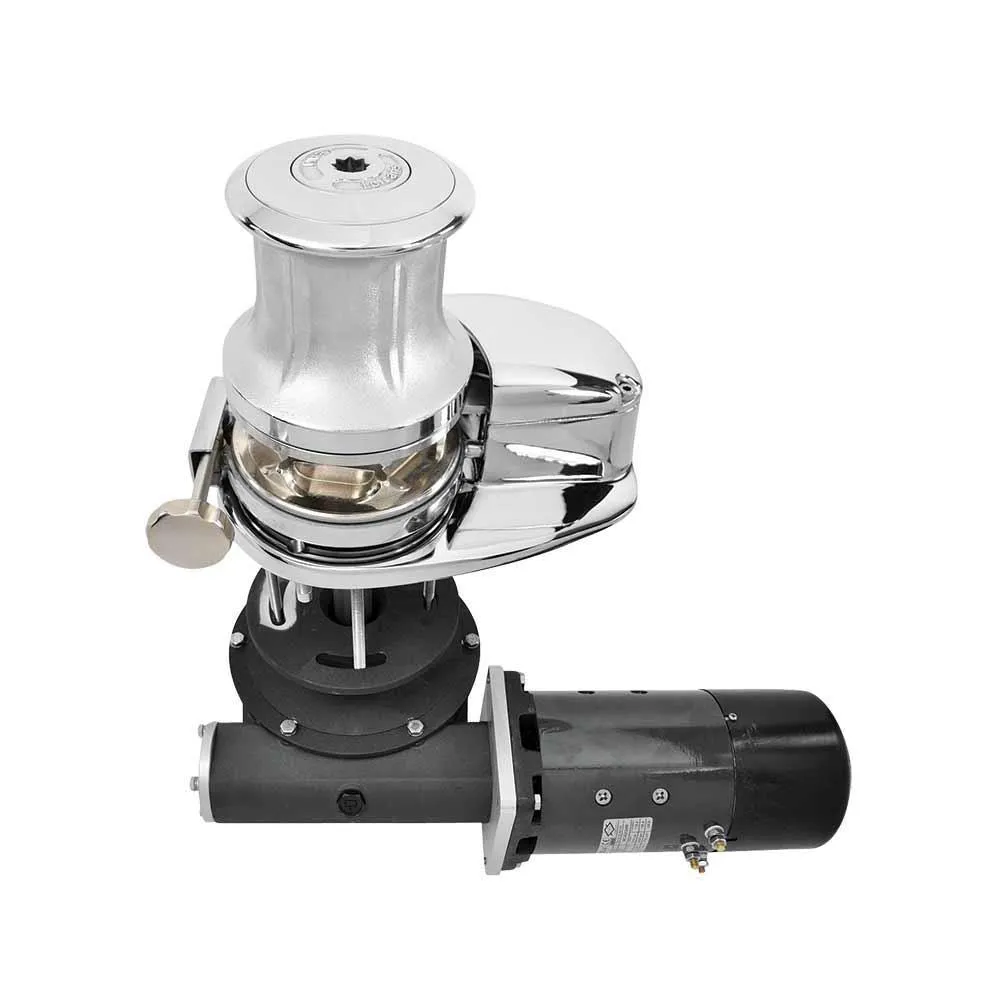

Lofrans X4 Windlass

LOFRANS X4 Windlass: Uncompromising Power and Luxury in Anchoring

Experience the pinnacle of anchoring performance with the LOFRANS X4 Windlass, a masterclass in Italian engineering designed for discerning yacht owners. This premium windlass is the ultimate solution for vessels ranging from 16 to 24 meters (52 to 79 feet), delivering unparalleled power, reliability, and aesthetic elegance to your foredeck. Built to handle the most demanding marine environments, the X4 ensures effortless and secure anchoring, giving you complete peace of mind whether you´re setting anchor in a calm bay or mooring in challenging conditions.

The LOFRANS X4 stands apart with its exceptional construction and intelligent design. The foundation of this remarkable windlass is its luxury chromed bronze base, providing not only a stunning, mirror-like finish that enhances the look of any vessel but also superior strength and unmatched resistance to the corrosive effects of the saltwater environment. This commitment to quality is evident throughout, from the robust internal mechanics to the thoughtfully integrated user-friendly features.

At the heart of the system lies a heavy-duty electric motor, engineered to provide formidable and consistent pulling power. This ensures smooth and rapid chain retrieval, reducing wait times and physical effort. The innovative design allows for independent operation of the gypsy and drum, granting you maximum versatility to manage your anchor chain and mooring lines separately. For enhanced safety and control, the X4 includes both a manual chain release and a manual override system, guaranteeing you can always operate the windlass, even in the event of a power failure. Furthermore, it comes ready for modern navigation systems with a chain counter magnet pre-installed as standard, allowing for precise monitoring of the deployed rode.

Main Features:

* Luxury chromed bronze base and drum construction for superior durability and a high-end aesthetic
* Available in configurations with a drum for line handling or as a sleek Low Profile unit
* Independent Gypsy and drum operation for versatile management of chain and rope
* Manual chain release for quick, controlled anchor deployment without power
* Manual override capability ensures functionality and safety in all situations
* Chain counter magnet pre-installed as standard for easy integration with helm displays
* Anodised marine aluminium gearbox designed for longevity and flawless performance
* Heavy-duty electric motor delivering exceptional torque and reliability
---

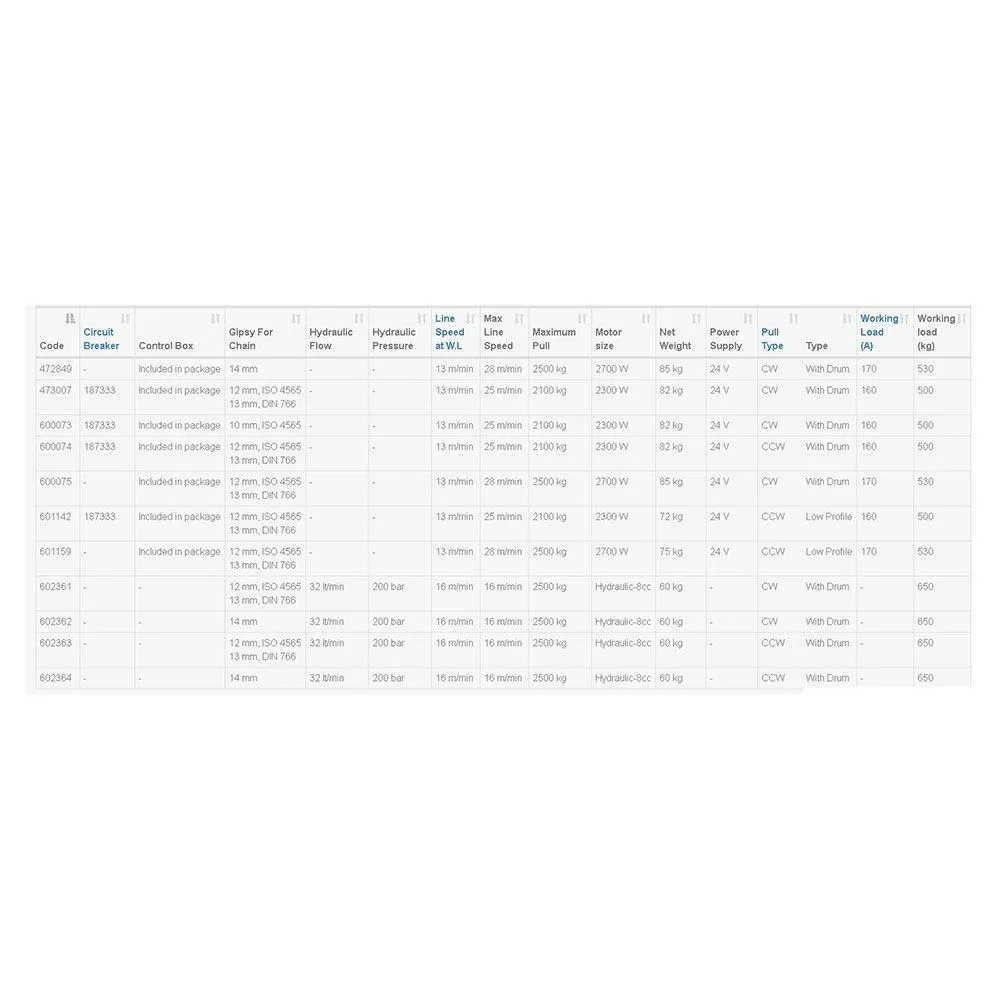

Technical Specifications

As a leader in the Windlasses attribute category, the LOFRANS X4 is specified to meet the highest standards of performance for its class.
* Recommended Boat Length: 16m to 24m (52 ft - 79 ft)
* Motor Size: 1700 W / 2300 W
* Max Pull: Up to 2200 kg / 4850 lbs
* Working Load (Typical): 270 kg - 320 kg
* Max Chain Speed: 25 - 35 m/min
* Gypsy for Chain: 10 mm (ISO 4565 / DIN 766), 12 mm (ISO 4565 / DIN 766), 1/2" (ACCO)
* Weight (With Drum Version): Approx. 59 kg / 130 lbs
---

Standard Equipment:

Each LOFRANS X4 windlass package is equipped to ensure a straightforward installation and immediate operational readiness.
* Dual direction solenoid pack
* Handle for manual override operation
* Gypsy calibrated for the specified chain size
* CD / Instruction manual for installation and maintenance guidance
