Elite-9 Ti Fishfinder/Chartplotter with TotalScan™ Transducer.

9-inch Fishfinder/Chartplotter with high-bright, LED-backlit display with CHIRP, DownScan™ and StructureScan™ technology, built-in.

Features:

- Single-touch 9 Widescreen.
- Built-in CHIRP/Broadband Sounder.
- Built-in StructureScan™ (with TotalScan™ transducer).
- Built-in 10Hz GPS/GLONASS antenna.
- Built-in Wireless connectivity.
- Built-in Bluetooth connectivity.
- Xi5 Trolling Motor control via Lowrance SmartSteer™.
- Best-in class screen brightness.
- Single micro SD card slot.
- NMEA 2000® connectivity.
- Wide selection of cartography options.
- Uses Gimbal Bracket.
- Lowrance SmartSteer™ Technology for Xi5 Trolling Motor control.
- Stand alone Fishfinder/Chartplotter.
- Built in Detailed Basemap cartography (Americas models) and Navionics Basemap (Americas and ROW).
- Add on cartography available from Insight HD™, Navionics, Jeppesen C-MAP and other 3rd Party Toolkit Partners.
- Share waypoint data via NMEA 2000® with other displays.
- Fully customizable split-screen options.
- StructureMap included with built-in StructureScan (requires optional TotalScan™ transducer).

Specifications:

GENERAL
- Display Size: 9in (228.6mm) Diag.
- Display Type: WVGA color TFT LCD.
- Resolution: 800H x 480W.
- Backlight: Pure White LED.
- Display Brightness: 1200 Nits.

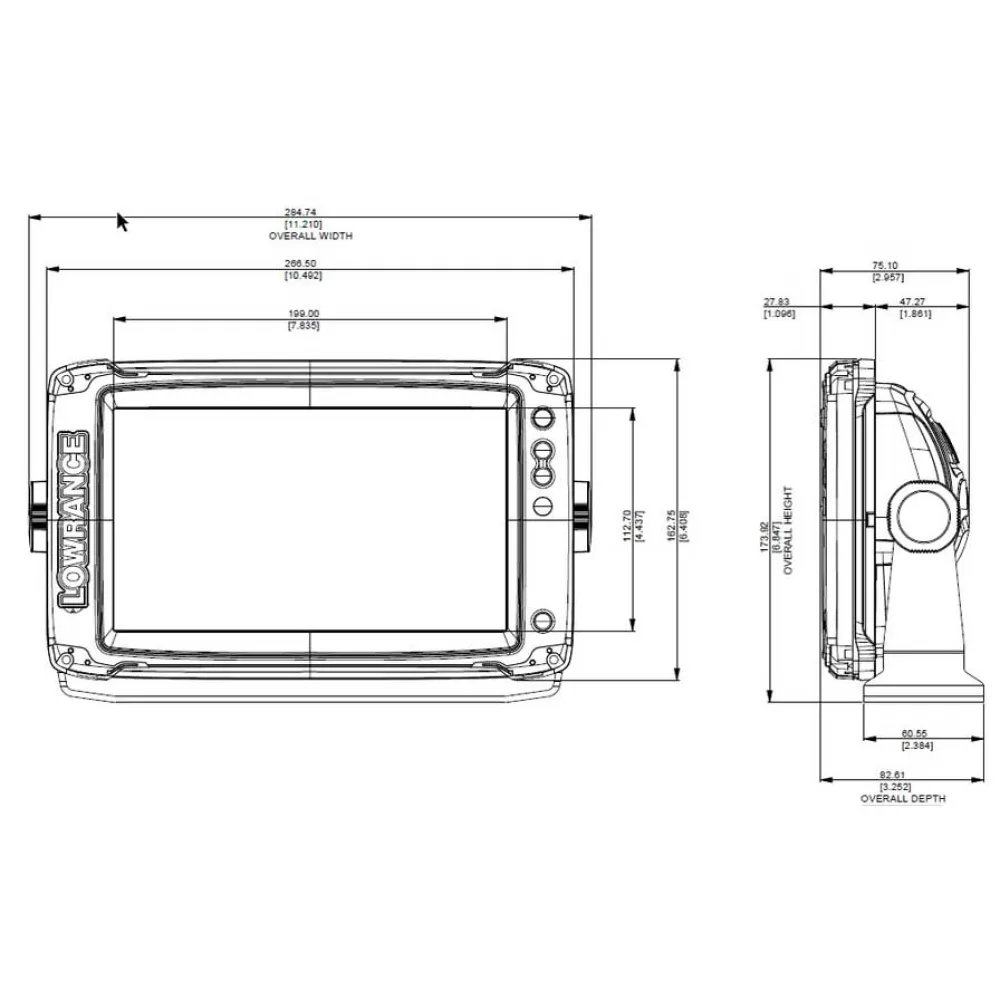

- Height: 6.408in (162.75mm).
- Width: 10.492in (266.50mm).
- Depth: 2.957in (75.10mm).
- Weight: 3.25lb (1.48kg).

ENVIRONMENTAL
- Operating Temperature: 5°F to 131°F (-15°C to 55°C).
- Waterproof: IPX7 with card door closed.
- DOC: Part 15.103 FCC rules & CE RTTE directive 1999/5/EC.

ELECTRICAL
- Current Draw: 0.9A @ 13VDC with Backlight Full/Sonar Lock.
- Operating Voltage: 12VDC.
- Supply Voltage: 10.8-17VDC.

USER INTERFACE
- Interface: Single-touch touchscreen and Limited Keypad; ZOOM +/-,WPT,LIGHT/POWER.

CHART PLOTTER CHARACTERISTICS
- Display Modes: North up, Course up (COG), Heading up (heading with external heading sensor or COG).
- Built-in Cartography: Detailed Basemap cartography (AMER models), Navionics basemap (AMER and ROW models).
- Add on Cartography: Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots.
- Alarms: No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival.

SONAR CHARACTERISTICS
- Built-in CHIRP: Yes.
- Built-in Broadband: Yes.
- Built-in StructureScan: Yes.
- Sonar Frequency: Mid/High CHIRP (83/200kHz) 455/800 kHz DownScan™, Low/High CHIRP (50/200kHz).

COMMS/INTERFACE
- NMEA0183: 1 x RS422 port.
- Supported baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200.
- NMEA 2000: 1 Micro-C.
- Data Card Slot: 1 micro SD card up to 32GB.

GPS/NAVIGATION
- GPS Type: Internal high-sensitivity WAAS + EGNOS + MSAS.
- Waypoints: 3000.
- Routes: 100.
- Trails: 100 plots with up to 10,000 points per trail.
- GPS Alarms: Anchor, Arrival, Offcourse.

- Background Mapping: World reference basemap and enhanced U.S. basemap with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m.

- Mapping Options: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
