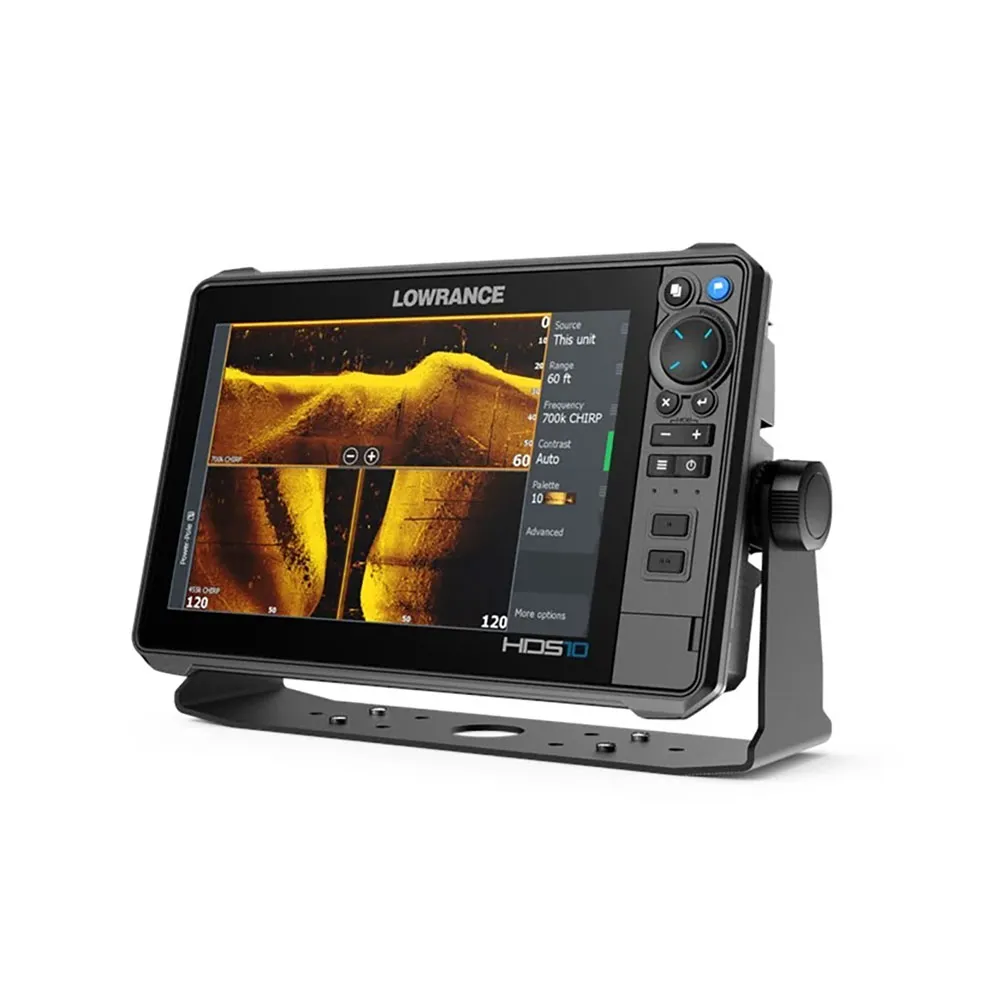

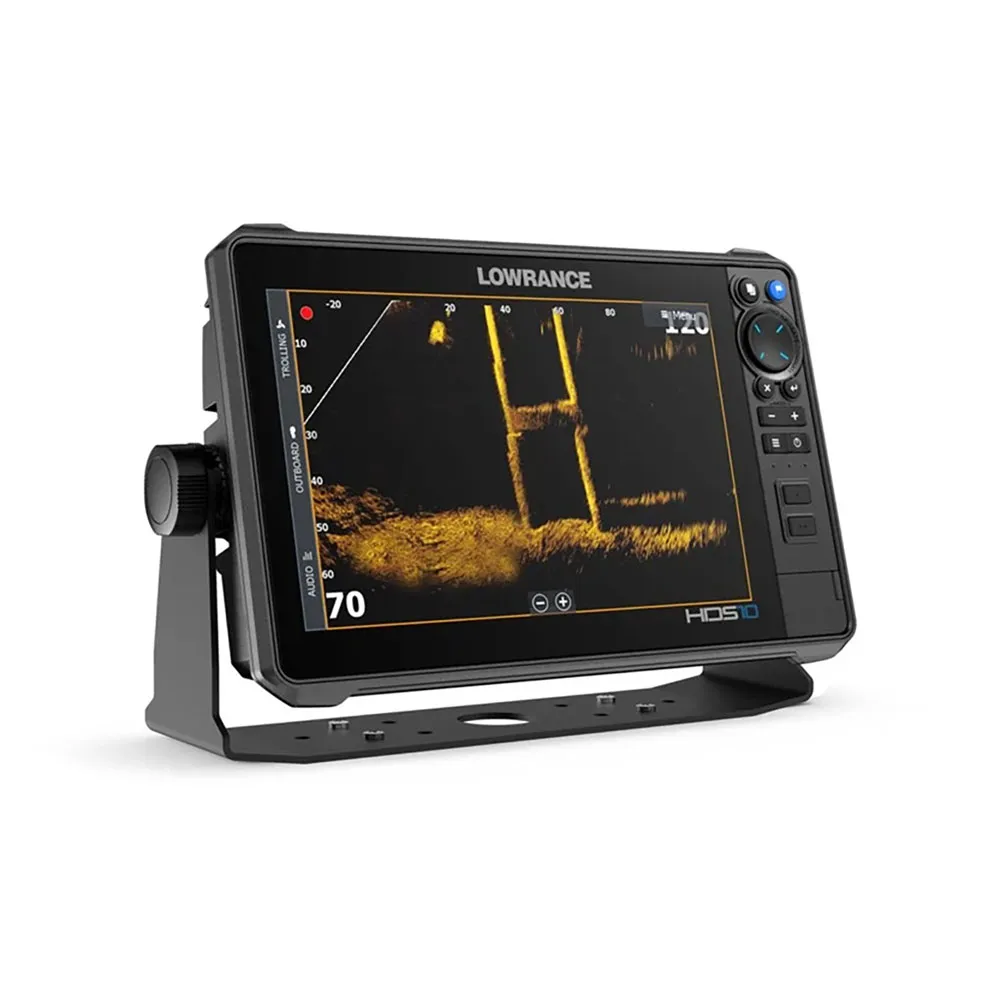

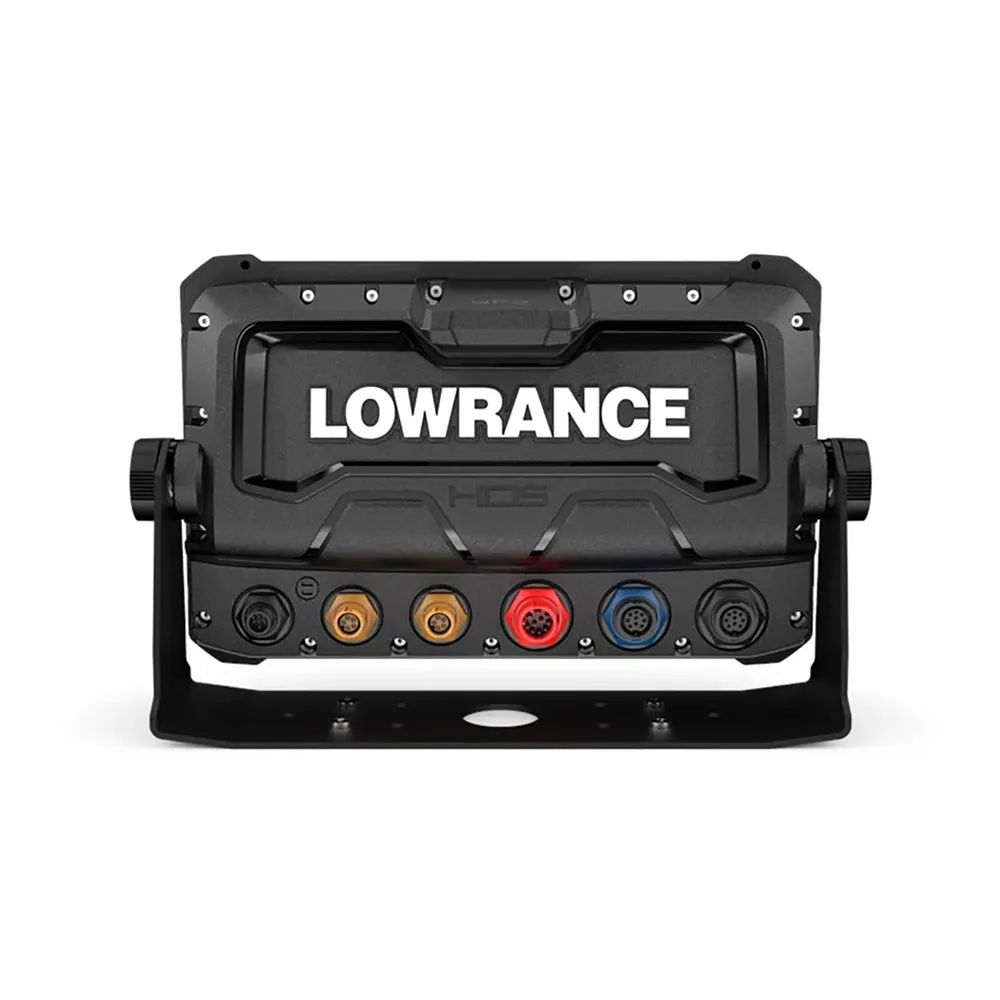

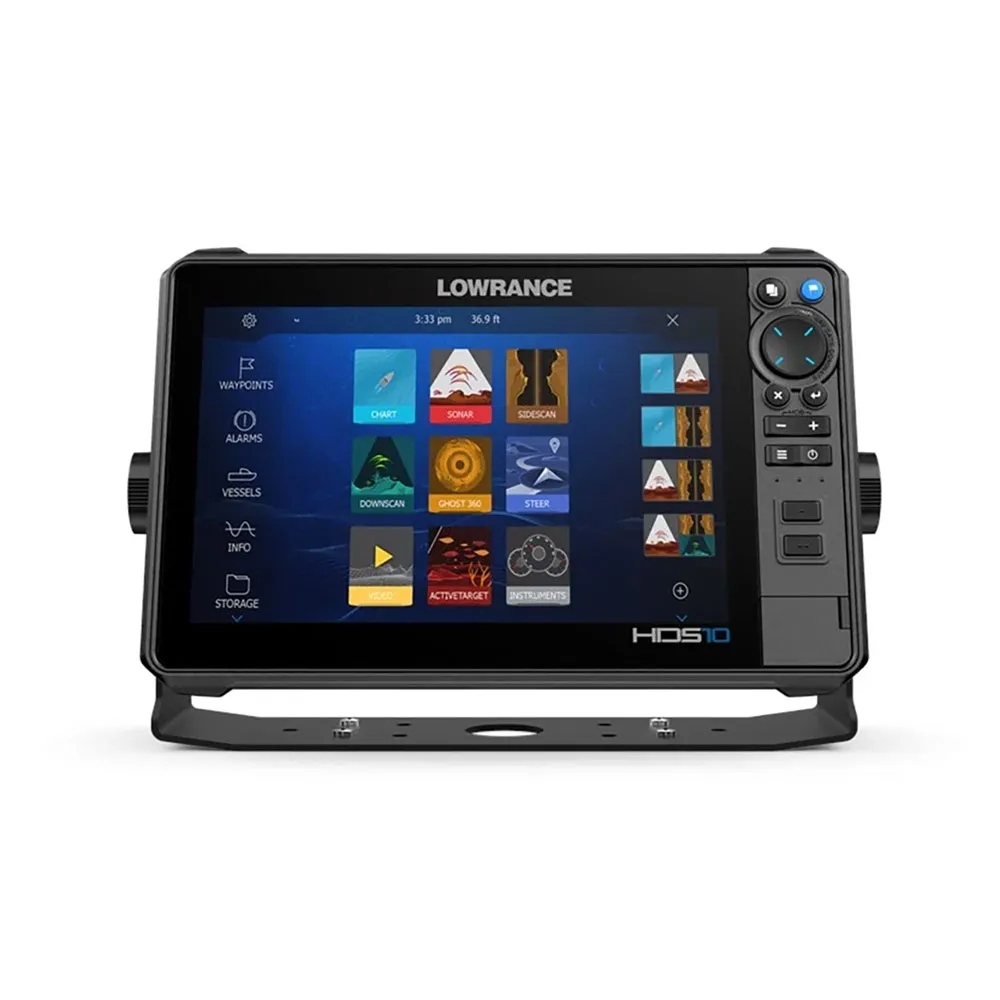

Lowrance HDS-10 Pro plotter Without Transducer

Enjoy greater visibility and more catches with the new HDS PRO sonar and chartplotter. See how fish react to your lure with the new high-resolution ActiveTarget® 2 real-time sonar, and locate fish and structures thanks to the new ultra-high definition Active Imaging™ HD technology. Quickly find fishing spots with the latest and most detailed C-MAP® charts, and enjoy an integrated system and greater bow-to-stern boat control.

Experience a new level in sonar technology with the new HDS PRO displays, featuring Lowrance´s ultimate sonar clarity, the latest C-MAP® charts, and very simple bow-to-stern control.

New Lowrance Sonar:
- See more and catch more with the new HDS® PRO, offering the clearest and most detailed views with the new higher-resolution ActiveTarget® 2 real-time sonar and the new ultra-high definition Active Imaging™ HD.

Active Imaging™ HD:
- Active Imaging HD, our clearest sonar to date, offers high-definition views of Lowrance´s CHIRP sonar, SideScan, and DownScan Imaging™.

FishReveal™:
- FishReveal™ has also been expanded to be available on SideScan and DownScan, making it easier to identify fish to the sides and underneath your boat.

ActiveTarget® 2 Real-Time Sonar:
- ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.

Additional Live Sonar Views:
- HDS PRO also allows for "plug-and-play" installation of two ActiveTarget® systems, making it possible to view multiple views simultaneously and expanding the Forward and Scout modes for better lure tracking.

C-MAP® Navigation:
- Having solid and intuitive charts is key to any fishing system, as they help anglers locate the best fishing spots and reach them under safe conditions.

All Chart Details:
- HDS Pro includes integrated worldwide base maps and offers the option to upgrade to C-MAP® DISCOVER™ or REVEAL™ so you can spend more time catching fish and less time locating them New Chart Overlays:
- HDS PRO also launches a new chart overlay option, allowing you to view ActiveTarget® Scout mode or Ghost® 360 electric motor mode directly on the chart screen.

C-MAP® Charts:
- C-MAP charts offer excellent routes, social layers, and even real-time maps with the powerful Genesis® Live feature. HDS PRO also supports Navionics and other chart providers.

Ultimate Clarity: The More You See, The Better You Fish.:
- From the high-definition touchscreen to the excellent clarity of Lowrance´s new and improved sonar, HDS® PRO offers a comprehensive range of underwater views that will take your fishing experience from good to exceptional.

SolarMAX™ HD:
- The SolarMAX™ HD touchscreen provides stunning images of fish, structure, and chart details that can be easily viewed from any angle, in direct sunlight, and even with polarized glasses, making a real difference on the water.

Complete Boat Control, Bow to Stern:
- With HDS® PRO at the core of your fishing system, it´s easy to customize your boat to suit your fishing style with sonar, navigation, connectivity, and entertainment settings and options.

The Ultimate Fishing System:
- With HDS® PRO at the core of your fishing system, it´s easy to customize your boat to suit your fishing style with sonar, navigation, connectivity, and entertainment settings and options.

Built-in Compatibility:
- HDS PRO is compatible with the best sonar technologies, from ActiveTarget® 2 and Active Imaging™ HD real-time sonar to touch control of Power-Pole® anchors, the Ghost® electric motor, and other features.

Connectivity:
- Expand your system, leveraging compatibility with radar, autopilot systems, and NMEA 2000®.

Built-in Compatibility:
- HDS PRO is compatible with the best sonar technologies, from ActiveTarget® 2 and Active Imaging™ HD real-time sonar to touch control of Power-Pole® anchors, the Ghost® electric motor, and other features.

More Options:
- The expanded options and functionality of HDS® PRO offer you more ways to customize your boat to better suit your fishing needs Plug-and-play connectivity:
- In addition to its availability in 9, 10, 12, and 16-inch displays, HDS® PRO can also be expanded for additional views and features. With plug-and-play connectivity, expanding your fishing possibilities has never been easier.

FishReveal™ SideScan:
- Simply add an S3100 sonar module and an Active Imaging™ transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish on the sides of your boat.

Simultaneous real-time sonar views:
- Anglers can also add a second ActiveTarget® system to locate fish more easily, viewing multiple ActiveTarget 2 real-time sonar screens at the same time.

Features:
- SolarMAX™ HD touchscreen visible at extremely wide angles and even with polarized sunglasses
- New Compatible with 1.2 MHz Active Imaging™ HD and high definition (Lowrance CHIRP/SideScan/DownScan Imaging™)
- New Compatible with high-resolution ActiveTarget® 2 real-time sonar
- FishReveal™ with new SideScan view, in addition to DownScan
- Basic world map with upgrade options for C-MAP® DISCOVER and REVEAL or other mapping providers.
- Real-time mapping availability with C-MAP® Genesis Live.
- Compatibility with new ActiveTarget® Scout and Ghost® 360 electric motor chart overlay views
- Large programmable keys for 10, 12, or 16-inch models
- Touch control of Power-Pole® anchors, Ghost® electric motor, autopilot system, and Lowrance outboard pilot
- Connectivity via NMEA 2000® and Bluetooth® and wireless, plus smartphone notifications.
- Wide range of optional charts, including C-MAP® REVEAL, Navionics®, Florida Marine Tracks, and more.

Specifications:

Display:
- Viewing angles: 80° top/bottom, 80° left/right
- Screen brightness: >1200 Nits
- Backlight color: Pure White LED
- Screen resolution: 1280x800

Connectivity:
- SD card storage: 2 micro SD cards up to 32GB
- Bluetooth: Integrated Bluetooth 4 0 with support for Bluetooth Classic
- NMEA 2000 Connectivity: 1x Micro-C
- NMEA 2000 PGNs: Receive only: 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Message, 129802 AIS Broadcast Safety Message, 129808 DSC Call Information, 130313 Humidity, 130314 Current Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Consumed - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status - DSP Frequency and Voltage. Transmit and Receive: 59392 ISO Acknowledge, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN Group Function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Fast Update, 120296 Heading and Speed Over Ground, Fast Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOP, 129540 Visible GNSS Satellites, 130074 Route and Waypoint Service – Waypoint List - Waypoint Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 Suzuki EP-20 Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Identifier, 130850 Event Command, 130851 Event Response (Broadcast Only), 65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Reprogramming Request, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Ethernet Ports: 1x 100 Mbit, 6 max MFD’s on a network
- Compatible NMEA 0183 Sentences: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC Receive DSC DSE VDM AIS sentences are not bridged to or from NMEA 2000.
- Video: Output: NoInput: Composite video RCA - singlechannel via optional adaptor
- Wi-Fi for connectivity with items: Internal 802 11b/g/n and Compatible with WiFi-1 Module

Cartography:
- Compatible Charts: C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Autopilot:
- Steering Modes: Course Heading Way point Power Steer
- Maneuver Turn Patterns: Course Heading Way point Power Steer U-Turn C-Turn SpiralZigzag Square Lazy-S

Approvals:
- Compliance with Homologation: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Electrical:
- Recommended Fuse Capacity: 3A
- Maximum Power Consumption: 2.9A @ 13.8VDC with Full Backlight, Sonar on
- Minimum Power Consumption: 2.0A @ 13VDC with with Full Backlight, Sonar on
- Typical Power Consumption: 2.0A @ 13VDC with with Full Backlight, Sonar on
- Supply Voltage: 12 v DC (10.8-17VDC)

Environmental:
- Waterproof Rating: IPX7 with card door closed
- Humidity: IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Shock Vibration: 100.000 cycles of 20 G

GPS:
- GPS Receiver Channels: 16
- Correction: DGPS, WAAS
- Update Rate: 10 Hz
- Position Accuracy: 20m RMS
- Time to First Fix: 30s

Multifunction:
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Internal Storage: 8 0 GB Internal
- Included Cartography: C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging Down Scan Active Imaging Side Scan Active Imaging HD Down Scan Active Imaging HD Side Scan Compatible with: Active Target Active Target2 S3100 Sonar Hub Structure Scan Structure Scan HD Structure Scan 3D Live Sight (requires PSI-1 module)
- Digital Switching: Czone Naviop
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Weather: SiriusXM via WM-3 (USA only) SiriusXM via WM-4 (USA only)
- Multimedia: Sonic Hub Sonic Hub 2 Fusion Link products any NMEA 2000 compliant Marine Audio products
- Autopilot: Outboard Pilot NAC-1 NAC-2 Ghost Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor requires Motorguide PinPoint Gateway
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10.000 points per trail

Physical Characteristics:
- Dimensions W x H x D: 11.06´´ (294.61 mm) x 7.6´´ (193.15 mm) x 3.3´´ (82.57 mm)
- Weight: 3.66lb (1.66kg)
- Compass Safe Distance: 65 cm (2 1 ft)
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount

Others:
- Languages: Standard Language Pack:
- Afrikaans, Danish, German, English (US), English (UK), Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Swedish

Asian Language Pack:
- English (US), English (UK), Japanese, Korean, Thai, Chinese - (simplified) China, Chinese - (traditional) Taiwan

Eastern European Language Pack:
- Bulgarian, German, Estonian, English (US), English (UK), Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish

Russia/Ukraine Language Pack:
- German, English (US), English (UK), Spanish, Italian, Russian, Ukrainian

Middle Eastern Language Pack:
- Arabic (UAE), German, English (US), English (UK), Farsi, French, Italian

Interface:
- Touch screen: Full Multi-touch touch screen
- Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Way point Power/Light 4 - User Programmable Quick Access Keys
