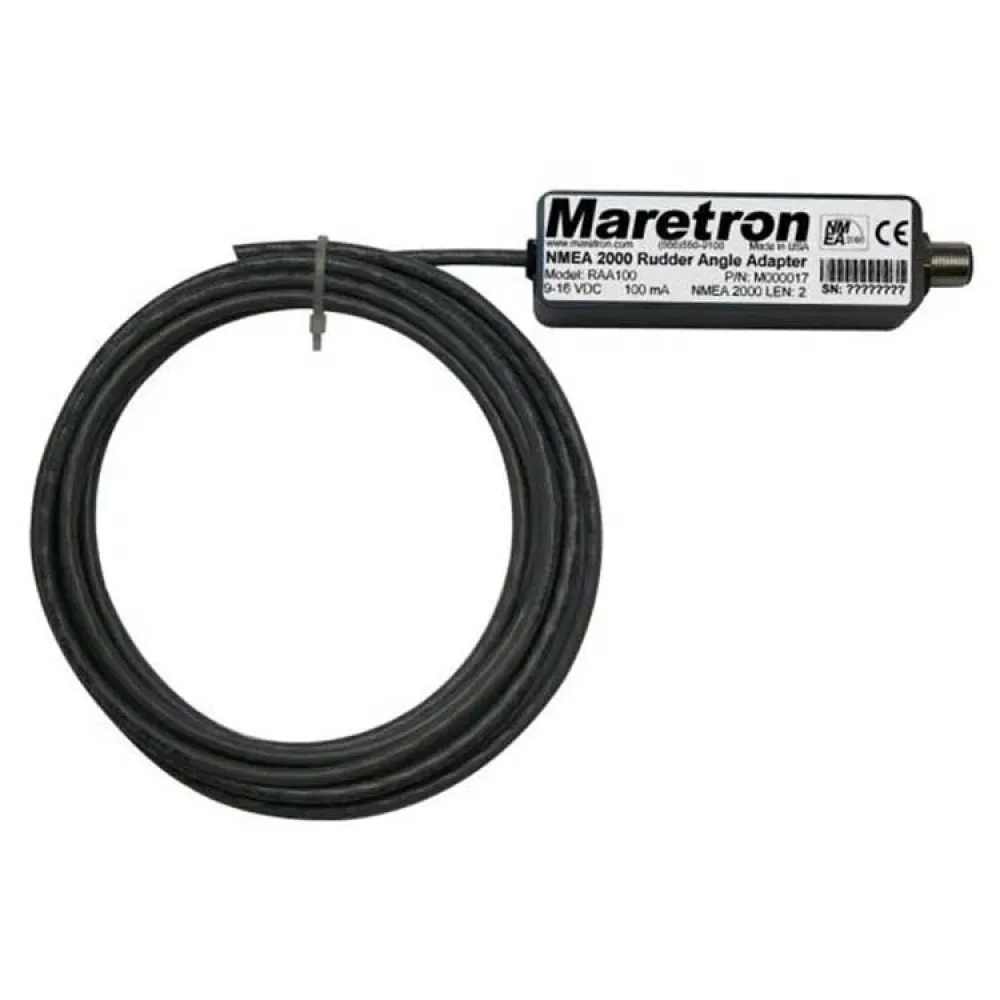

MARETRON RAA100 Rudder Angle Adapter

Category: Boats and equipment
Subcategory: Direction

Effortlessly integrate your vessel´s essential steering data into your modern NMEA 2000 network with the MARETRON RAA100 Rudder Angle Adapter. This robust and highly accurate device is engineered to bridge the gap between traditional analog rudder angle senders and today´s sophisticated digital marine electronics. By converting the resistive signal from your existing sender into the NMEA 2000 standard, the RAA100 allows you to view precise, real-time rudder position on any compatible display on your boat, including chartplotters, multi-function displays (MFDs), and dedicated instrument screens.

Eliminate the need for a separate, single-function rudder gauge and declutter your helm. The RAA100 provides the critical data necessary for enhanced situational awareness, especially during tight maneuvering, docking, or navigating in challenging conditions. Knowing your exact rudder angle at a glance can be the difference between a smooth maneuver and a costly mistake. This powerful adapter is an indispensable component for optimizing autopilot performance, providing the system with the high-resolution feedback it needs for more accurate and efficient course keeping.

Designed for reliability and simple implementation, the MARETRON RAA100 is built to withstand the harsh marine environment. Its compact, waterproof housing ensures long-lasting performance, while its power is conveniently supplied directly from the NMEA 2000 network, simplifying wiring and installation.

Key Benefits:

* Centralized Rudder Display: View your rudder´s exact position on any NMEA 2000 compatible MFD or instrument display anywhere on your vessel, eliminating the need for a dedicated analog gauge.
* Enhanced Situational Awareness: Gain critical insight for precise control during docking, anchoring, and close-quarters navigation, improving safety and confidence at the helm.
* Improved Autopilot Performance: Provides your autopilot system with the high-fidelity, real-time rudder data required for smoother, more responsive, and fuel-efficient operation.
* Modernize Your Helm: Seamlessly integrates legacy analog equipment into your boat´s digital network, creating a cleaner, more streamlined, and more capable helm station.
* Simple Installation & Calibration: Powered directly by the NMEA 2000 bus and featuring a straightforward 7-point calibration process, the RAA100 ensures a quick setup and exceptionally accurate readings.

Main Features:

* Converts standard American (240-33 ohm) or European (0-180 ohm) resistive rudder sender signals to NMEA 2000 data.
* Features an advanced 7-point calibration system to compensate for non-linearities in resistive senders, ensuring superior accuracy across the entire range of motion.
* Powered directly from the NMEA 2000 network, requiring no separate power source.
* Waterproof and rugged design suitable for engine room or lazarette installation.
* Diagnostic LED indicator provides status information for easy troubleshooting.
* NMEA 2000 certified for guaranteed compatibility and seamless network integration.

Attribute: Adapters

Technical Specifications:

* 127245: Rudder
* Type: Resistive, Single Ended
* Standard: American (240-33 Ω) or European (0-180 Ω), user-configurable
* Operating Voltage: 9 to 16 Volts DC (from NMEA 2000 Bus)
* Power Consumption: 30mA (max)
* Load Equivalence Number (LEN): 1
* Connectors: (1) NMEA 2000 Micro/Mid Series Male, (1) 2-Pin Terminal Strip for Sender Connection
* Dimensions: 4.26” x 2.65” x 1.20” (108.1mm x 67.3mm x 30.5mm)
* Weight: 5.6 oz (159 g)
* Degree of Protection: IP67 (Waterproof)
* Operating Temperature: -25°C to 55°C (-13°F to 131°F)
* NMEA 2000® Certified
