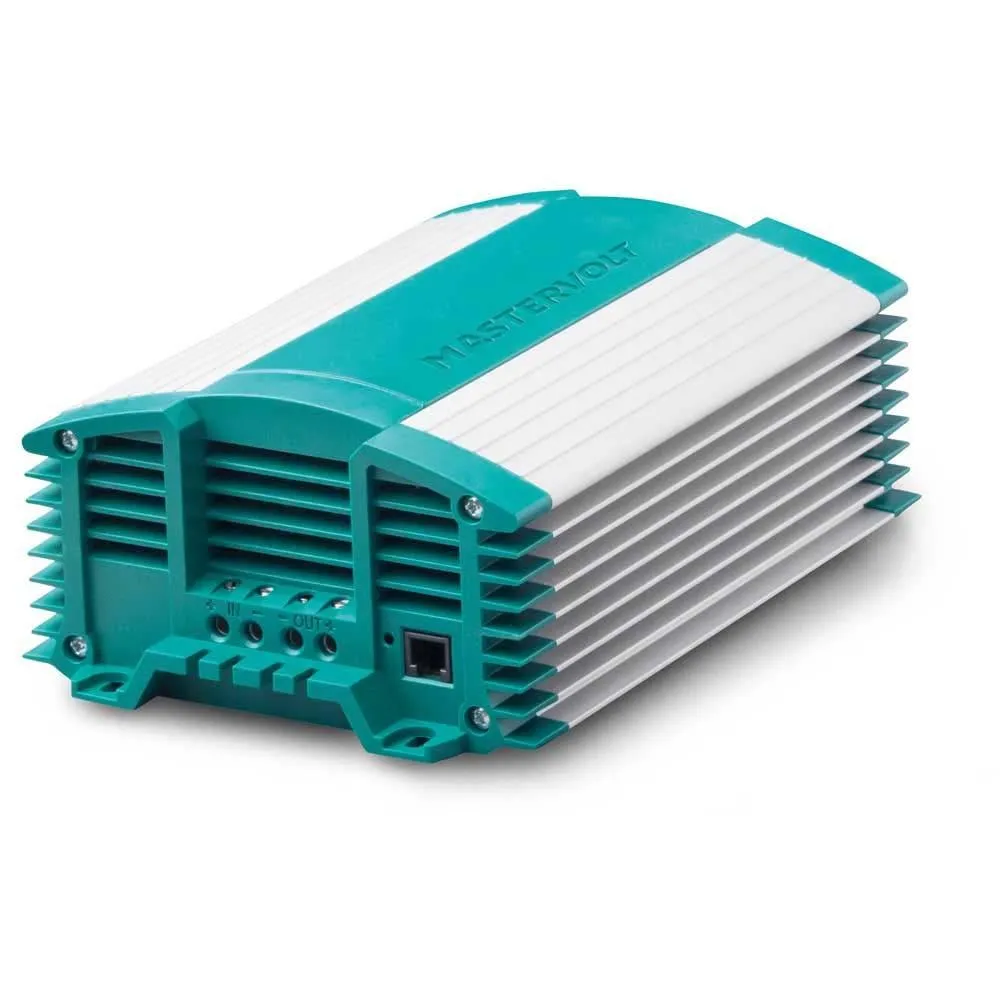

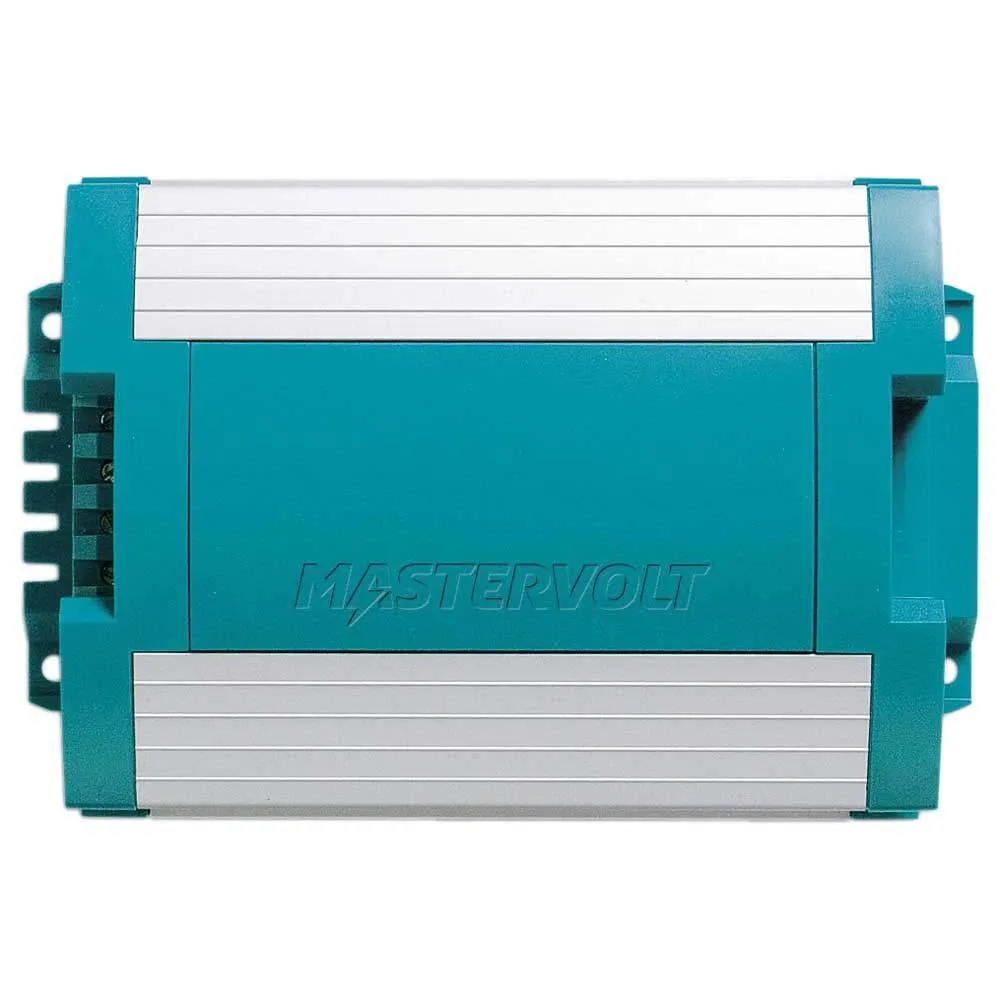

Mastervolt Magic 24/24-20 Converter

For the toughest tasks Mass battery chargers, sine wave inverters and DC-DC converters are designed for the toughest conditions for professional, semi-professional and recreational purposes.

Even under the most extreme conditions the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary.

The sustainability and technologies that underpin the Mass concept have long been proven in practice.

With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

You can always rely on their proven and technically advanced components.

Making the best even better The reliability and long lifespan of Mastervolt´s battery chargers, sine wave inverters and DC-DC converters have been established beyond doubt over the past decade.

While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same.

As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme.

Its impact on the Mass battery chargers, Mass Sine inverters and Mac & Magic DC-DC converters include:

- An exceptionally effective use of the consumed input current (cos phi) > 0.98!.

- Faster charging of batteries, even with when the input current is limited.

- Use of top quality components with a long lifespan.

- Savings in weight and space.

- Fewer installation materials.

MasterBus compatible For the DC-DC converters you can use the MasterBus Serial Interface.

All you need is a single cable with one connection.

Your benefits- Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Powerful selling points.

- Reliable and very stable DC supply.

- For 12 and 24 V battery systems.

- Parallel switching of multiple units for capacities of 40, 60 or more Amps.

- Battery charger and dimmer function.

- Adjustable output voltage.

- Voltage stabilisation for a longer lifespan of halogen lights, etc.

- Corrosion-proof aluminium casing.

- Shock-proof.

- Temperature-powered fan for cooling.

- Generates limited heat, so installable almost anywhere.

- Fully MasterBus compatible with a MasterBus Serial Interface.

Magic as power supply The Magic models can be fully used as a stabilised power supply:

From 12 to 24 V, from 24 to 12 V or from 24 to 24 V.

Inputs and outputs are galvanically isolated.

Mac & Magic as battery charger 12 V starter or emergency power batteries can be charged and monitored by a Mac or Magic converter.

The charging method is identical to Mastervolt´s Mass products (3-step technology), and voltage levels are adjustable using the MasterBus PC-Link/MasterAdjust software.

Mac or Magic as dimmer Lights can be dimmed by means of a push button or pulse switch, with a maximum load of 250 Watt for the Mac.

A second Mac can be installed when using multiple lamps.

Lights can be dimmed by means of a push button or pulse switch, with a maximum load of 250 Watt for the Mac.

A second Mac can be installed when using multiple lamps.

General specifications.

- Nom.

output voltage:

27.2 V.

- Output voltage (adjustable with MasterAdjust):

20-28.5 V.

- Output voltage dimmer (adjustable with MasterAdjust):

8-26 V.

- Output voltage stabilisation:

2% at extremes of temperatures, load and input.

- Output voltage ripple (peak peak):

max.

1%.

- Max.

output power:

580 W.

- Nom.

output power:

580 W.

- Max.

output current:

20 A.

- Output charge current (3-step mode):

16 A.

- Nom.

input voltage:

24 V.

- Input voltage range:

19-32 V.

- Input voltage range (3-step charge mode):

24-32 V.

- Lower input set point (adjustable with MasterAdjust):

20 V.

- Delay lower input set point (adjustable with MasterAdjust):

30 sec.

- Galvanic isolation:

yes.

- Voltage limited:

yes.

- Efficiency:

> 90% at nom.

input voltage, full load.

peak 92 %.

- Dimmer function:

yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting.

- Alarm contact:

yes (fast-on connector).

- Dimensions, hxwxd:

227x154x81 mm 8.9 x 6.1 x 3.2 inch.

- Weight:

1.8 kg, 4.0 lb.

- Approvals:

CE Technical specifications.

- 3-Step charge option:

yes (DIP switch settings).

- DC consumption:

40 °C 13 to 176 °F.

- Cooling:

maintenance free vario fans.

- Sound level:

< 48 dBA at 1 mtr.

- Protection degree:

IP21.

- Protections:

against over load & over temperature.

- MasterBus compatible:

yes, in combination with a MasterBus Serial Interface.
